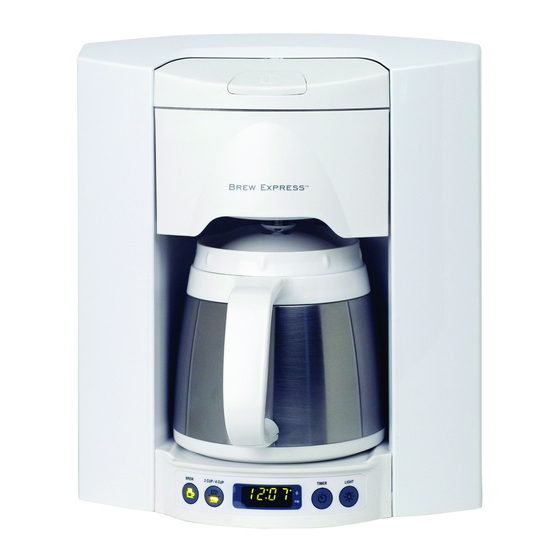

- Page 1 XPRESS ® INSTALLAT ION GUIDE BE-104 & BE-110 model # Note - BE-104R shown in illustrations.
- Page 3 CONT EN TS 1. Safety 1 - 2 2. Getting Started 3. Hardware/Tools 4. Specification and Requirements 5. Location (area of Installation) 6. Water Installation 7. Power Installation 8. Brewer Installation 10 - 14 9. Testing...
-
Page 4: Important Safeguards
5. Allow to cool before putting on or taking off parts, and before cleaning the appliance. 6. Do not operate any appliance after the appliance malfunctions or has been damaged in any manner. Call Brew Express and discuss problem with customer service. 7. The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons. -
Page 5: Coffee System
Be certain water supply is leak free. Hire a qualified plumber if necessary. The BREW EXPRESS dispenses extremely hot water. Hot liquids may cause severe burns if it contacts skin. Use extreme caution when handling hot liquids dispensed by the BREW EXPRESS. KEEP HANDS AWAY FROM SPRAY HEAD, BREW BASKET, CARAFE OR MUG DURING BREW CYCLE. -
Page 6: Getting Started
GET TING STArTED IMPORTANT: Read and follow instructions carefully before installing your BREW EXPRESS in-the-wall COFFEE SYSTEM. For best results, it is advised that you hire a qualified professional. Getting Started Carefully unpack BREW EXPRESS from gift box. Remove carafe and brew basket from brewing unit. If brewer includes carafe lock, press on lever to remove carafe. -
Page 7: Tools Required
HArDwArE/TOOLS HARDWARE BREW EXPRESS comes supplied with the following items to ensure a successful installation. Check to be certain all items have been included with your brewer. • (1) Brewer (with short water line attached to connect with incoming water line) • (1) Rough-in-Box • (1) Carafe and lid • (2) Brew Baskets (1 basket style, 1 cone style) • (1) Installation Guide • (1) Operation Guide •... -
Page 8: Specifications And Requirements
SpECIfICATIONS AND rEqUIrEmENTS BE-104 SPECIFICATIONS: (Specs for the BE-110 are on page 6) Read and follow instructions carefully before installing your BREW EXPRESS in-the-wall COFFEE SYSTEM. For best results, it is advised that you hire a qualified professional. Overall Dimensions (Finished Unit with Rough-in-Box) approximately 9.9” x 11.8” (see below). Dimensions for Rough-in-Box (Mounting Structure) approximately 8.5” x 10.1” x 4”. Electrical Requirements 120VAC, 60HZ. (1400 watts). Water Requirements 1/4” OD water supply line (copper or poly) minimum 30 psi to a maximum of 90 psi. - Page 9 SpECIfICATIONS AND rEqUIrEmENTS BE-110 SPECIFICATIONS: (Specs for the BE-104 are on page 5) Read and follow instructions carefully before installing your BREW EXPRESS in-the-wall COFFEE SYSTEM. For best results, it is advised that you hire a qualified professional. Overall Dimensions (Finished Unit with Rough-in-Box) approximately 12 1/4” X 13 3/8” (see below). Dimensions for Rough-in-Box (Mounting Structure) approximately 11.5” X 11.5”. Electrical Requirements 120VAC, 60HZ. (1400 watts). Water Requirements 1/4” OD water supply line (copper or poly) minimum 30 psi to a maximum of 90 psi. Potable COLD water is required.
- Page 10 LOCATION (Area of Installation) The BREW EXPRESS can be installed in most places where power and water are supplied. If only power is available, you may consider using a water bottle and pump. The most common locations are the kitchen, master bathroom or office. Installation inside an exterior wall is not recommended due to risk of water freezing. See warranty section for additional information.
-
Page 11: Water Installation
Always turn off water supply at source. It is strongly advised you consult a qualified professional plumber when attempting to install the BREW EXPRESS in-the-wall COFFEE SYSTEM. It is important to make sure there are no conflicts or obstructions in the wall cavity such as plumbing or electrical wires. -
Page 12: Power Installation
IMPORTANT: Installation must be performed by a qualified electrician, or equivalent. The BREW EXPRESS can be installed in most places where power and water are supplied. See diagrams below for the application best suited for your needs. OPTION A OPTION A. -
Page 13: Brewer Installation
In an existing home, this may require part of the back splash to be removed. Use template provided to determine the location to be cut out for rough-in-box. B. Installing BREW EXPRESS with Full Back Splash Use template provided to determine the location to be cut out for rough-in-box. Ensure fit is correct by first placing rough-in-box in cut out hole. - Page 14 BrEwEr INSTALLATION Installation of Rough-In-Box Figure 1 1. Locate wall studs adjacent to the desired location. Place template on wall as shown. Outside edge of slots in template should be even with left or right side of stud edge. The slots in the template designate the area to be cut. Outside edge of template is equivalent to brewer size .
- Page 15 BrEwEr INSTALLATION Place rough-in-box on a towel or cardboard to protect Figure 4 counter surface. Bring power supply wire from source to cut opening as shown in Figure 4. Minimum 12-2 wire required. Be sure to have an additional length of approximately 18” at rough-in-box opening for installation of box. Remove power panel cover. Install strain relief (not supplied) in hole. Run power supply wire through strain relief and secure power supply wire (See Supply Detail, page 11). Connect power supply wires to power panel supply wires and secure with...
- Page 16 BrEwEr INSTALLATION After sheet rock screws are in place, bend tabs to finish securing rough-in box to wall. See figures 6 and 7. Use pliers (if needed) to bend/crimp tabs firmly to wall. Gently slide excess water line back through grommet into wall cavity leaving top of connector a maximum of 3” above bottom of rough-in box. Carefully install power panel cover. All electrical wires and connections MUST be tucked completely inside POWER PANEL COVER, without exposing bare wiring inside rough-in box.
- Page 17 Place unit on a towel or cardboard to protect counter surface. Place BREW EXPRESS directly in front of rough-in box. Connect Figure 8 brewer to water supply using quick connectors. (See Quick Connect Detail). Snap connectors together firmly. Turn on...
- Page 18 If the button icon is not illuminated, refer to the troubleshooting section of this manual. Turn on water supply to BREW EXPRESS. There should be no leaks in the water connections. If water is leaking, pull the brewer from the wall, check connections and refer to the troubleshooting section of this manual to make appropriate corrections.
- Page 20 www.brewexpress.com for customer service or technical service please call (866)-268-5953 Printed in CHINA. BE104&110 IG/ 100108 © BREW EXPRESS 2011...
