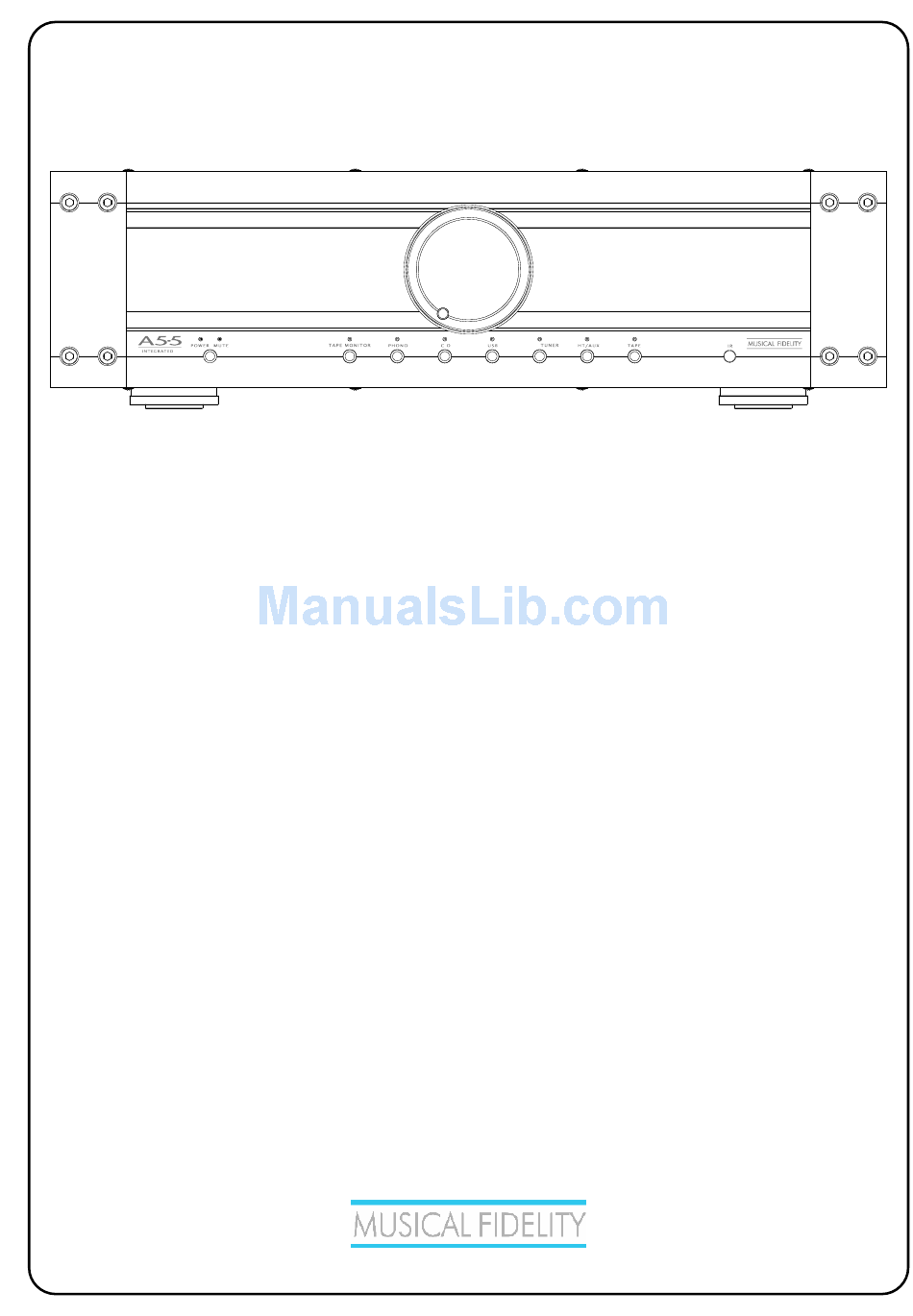

A5.5 Integrated
A5.5-SERIES INTEGRATED AMPLIFIER WITH USB INPUT
INSTRUCTIONS FOR USE
Thank you for purchasing the Musical Fidelity A5.5 Integrated amplifier
Designed to be partnered with future A5.5 products, this amplifier is also the perfect answer to any
integrated amplifier requirements, in a single, beautifully engineered package.
Used properly and carefully, it should give many years of outstanding musical reproduction.
Dust regularly with a soft duster or soft brush, but be careful when using cleaning or polishing agents - they
may harm the surface finish.
If you have any questions about your audio system,
Please consult your dealer who is there to help and advise.
Advertisement
Table of Contents
Related Manuals for Musical Fidelity A5.5
Summary of Contents for Musical Fidelity A5.5
- Page 1 INSTRUCTIONS FOR USE Thank you for purchasing the Musical Fidelity A5.5 Integrated amplifier Designed to be partnered with future A5.5 products, this amplifier is also the perfect answer to any integrated amplifier requirements, in a single, beautifully engineered package. Used properly and carefully, it should give many years of outstanding musical reproduction.
-
Page 2: Table Of Contents
A5.5 integrated CONTENTS PAGE Section Safety information Mains plug (U.K. only) Modification warning General advice Installation precautions User information Disposal information EU disposal information Installation Introduction Cleaning Installation Audio connection Facilities and connections Illustrations – Main unit front & rear panels... -
Page 3: Safety Information
If connecting to a BS1363 plug, a 13 amp fuse must be used. WARNING: ANY MODIFICATIONS TO THIS PRODUCT NOT EXPRESSLY APPROVED BY MUSICAL FIDELITY WHO IS THE PARTY RESPONSIBLE FOR STANDARDS COMPLIANCE COULD VOID THE USER'S AUTHORITY TO OPERATE THIS EQUIPMENT. -
Page 4: General Advice
Heed all warnings shown on the back of the product. Only connect the A5.5 power supply to a mains outlet having the same voltage as marked at the back of the unit. Always ensure that when disconnecting and reconnecting your audio equipment the mains supply is switched off. -
Page 5: Disposal Information
A5.5 integrated ITEM DISPOSAL INFORMATION DISPOSAL AFVAL The crossed out wheeled bin label that appears on the Het label op de achterzijde van dit apparaat, een back panel o f the product indicates that the product must not be afvalbak o p wielen met een kruis doorgehaald, geeft aan dat dit disposed of as normal household waste. -
Page 6: Installation
The A5.5 must be protected from humidity - if the unit is moved from a cold place to a warm room, leave the unit for an hour or so to allow sufficient time for the moisture to evaporate. -
Page 7: Facilities And Connections
A5.5 integrated FACILITIES AND CONNECTION FRONT PANEL 1. VOLUME knob 4. ANALOGUE AND USB INPUT selector buttons and LED indicators 2. ON/OFF Button with POWER and MUTE LEDs 5. IR RECIEVER lens 3. TAPE MONITOR button REAR PANEL 6. LOUDSPEAKER OUTPUTS Right hand side 11. -
Page 8: Remote Control
SEARCH – Fast forward/backward through track TRACK – Next/previous track STOP – Stop playing/Eject CD PAUSE/PLAY – Stop/start CD playback A5.5 Integrated amplifier: (SYSTEM CODE 16) FUNCTION RC5 CODE Select USB input Remote controller device input Select Tuner input Select Phono input A remote input is included that allows electronic control from other devices. -
Page 9: Amplifier Operation
Press the input to normal operation. selector button on the front panel or remote control. This source will now be routed to the A5.5 TAPE OUT for recording by tape deck. PHONO INPUT... - Page 10 A second mixer will now be available which will be the the computer. default mixer whenever the A5.5 is plugged in. Use this The computer should detect the new hardware and mixer to select the source or adjust levels if required.
-
Page 11: Amplifier Problems
Wrong frequency Unit accepts 38KHz inputs only If none of these actions affect a cure, please contact the dealer, or an authorised Musical Fidelity service agent. Remember; never open the case of the A5.5, as this will invalidate the guarantee. -
Page 12: Amplifier Specifications
Unboxed 21.3 kg. 46 ¾ lbs In shipping carton , including all accessories Musical Fidelity reserves the right to make improvements which may result in specification or feature changes without notice. Page 12 of 13 Issue 1: 1 September 2007... - Page 13 A5.5 integrated MANUAL REVISION RELEASE DATE CHANGES Issue 1 1st September 2007 First issue Page 13 of 13 Issue 1: 1 September 2007...
