Instructions for use

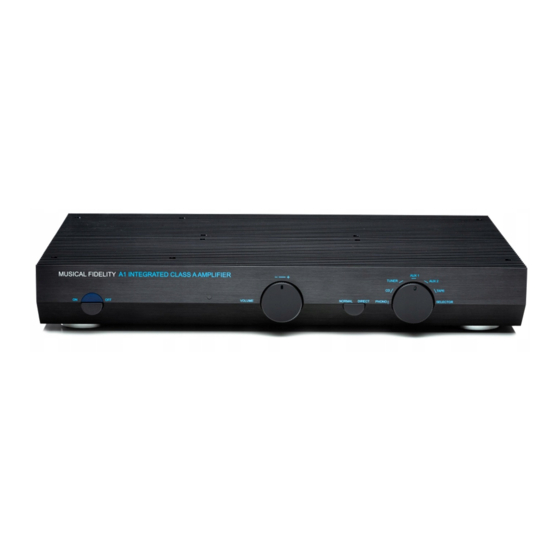

Thank you for choosing the A1 integrated class A amplifier. Used properly, it should give you many years of
outstanding musical reproduction.
The A1 is designed for high definition performance. It is strongly biased into Class A, for audible smoothness and
clarity.
If there are any questions about the audio system, please consult the dealer, who is there to help and advise.
HEAT DISSIPATION
The A1 is a traditional Class A amp. A rarity in this day and age. Because the A1 is strongly biased into Class A,
it dissipates power, as heat. Think of the heat that a 75 watt light bulb creates, and you've got an idea of the heat
produced by the A1.
CAUTION:
SOME PARTS OF THE PRODUCT MAY BECOME VERY HOT AND CAUSE
BURNS. SPECIAL CARE SHOULD BE TAKEN IN THE PRESENCE OF
CHILDREN AND VULNERABLE PERSONS.
THE WHOLE TOP OF THE A1 IS A HEAT SINK. TO ALLOW FULL HEAT
DISSIPATION, NOTHING SHOULD BE PLACED ON IT AT ANY TIME.
SURFACE TEMPERATURES OF ABOUT 55 DEGREES C ARE AVERAGE
FOR THE HEAT SINK. FRONT PANEL CONTROL ELEMENTS CAN FEEL
WARM TO THE TOUCH.
The exact temperature depends on the ambient temperature in your room, and on how much energy is dissipated
as sound.
It is also important to keep the top of the A1 free of dust and grime. Dust it regularly with a soft duster or soft brush
but do not use cleaning or polishing agents - they may harm the surface finish.
YOU MUST CONNECT THE A1 TO A PAIR OF LOUDSPEAKERS BEFORE YOU SWITCH IT ON.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Musical Fidelity A1
Summary of Contents for Musical Fidelity A1
- Page 1 It is also important to keep the top of the A1 free of dust and grime. Dust it regularly with a soft duster or soft brush but do not use cleaning or polishing agents - they may harm the surface finish.
-
Page 2: Table Of Contents
CONTENTS Section Page – Safety Information Mains plug (UK only), modification warning – General advice Installation precautions – Installation Introduction, cleaning, installation, power connections, audio connections – Facilities and connections Illustrations, main unit front & rear panels – Remote control handset Operation and illustration –... -
Page 3: Safety Information
If connecting to a BS1363 plug, a 13 amp fuse must be used. WARNING: ANY MODIFICATIONS TO THIS PRODUCT NOT EXPRESSLY APPROVED BY MUSICAL FIDELITY WHO IS THE PARTY RESPONSIBLE FOR STANDARDS COMPLIANCE COULD VOID THE USER'S AUTHORITY TO OPERATE THIS EQUIPMENT. -
Page 4: General Advice
Heed all warnings on the back of the amplifier. • Only connect the A1 to a mains outlet having the same voltage as marked at the back of the unit. • All connections should be made with the power OFF. -
Page 5: Installation
Power Connections The A1 is supplied with a standard IEC mains cable which plugs into the IEC socket at the back of the unit (see page 6). - Page 6 FACILITIES & CONNECTIONS ON/OFF switch 4 NORMAL/DIRECT switch IR receiver SOURCE selector VOLUME control PHONO RCA input with ground post PRE OUT variable output RCA sockets RCA line level input sockets 10 LOUDSPEAKER OUTPUTS left and right 8 TAPE OUT fixed output RCA sockets 11 IEC MAINS INPUT 12 MM/MC phono preamp switch P a g e...
-
Page 7: Remote Control Handset
REMOTE CONTROL The universal remote control shown below enables functions from this and related units to be operated from a convenient distance. Equivalent buttons on the remote control have the same functions as those on the front panel of the unit. Mute is only available by remote control. -
Page 8: Operation
Carefully advance the volume to the level you want, if all is well, enjoy the music. Fuses There is one fuse inside the A1. In the unlikely event that it blows, take your A1 to your audio dealer. Do NOT try to replace the fuse yourself or you will invalidate the warranty. -
Page 9: Wiring
WIRING Simple speaker lead wiring (source and mains leads omitted for clarity) Speaker lead wiring with bass/treble terminals Bass/treble terminal links in Bass/treble terminal links in (source and mains leads omitted for clarity) P a g e... - Page 10 If none of these actions affect a cure, please contact the dealer, or an authorised Musical Fidelity service agent. Remember; never open the case of the A1, as this will invalidate the guarantee. P a g e...
- Page 11 Deep (front to back) including terminals 283.3 mm Standard accessories IEC type mains lead 10-Amp type Remote control A1 remote Batteries CR2032 Musical Fidelity reserves the right to make improvements which may result in specification or feature changes without notice. P a g e...
- Page 12 MANUAL HISTORY DISPOSAL INFORMATION RELEASE DATE CHANGES 2023 issue, Specs adjusted DISPOSAL The crossed out wheeled bin label that appears on the back panel of the product indicates that the product must not be disposed of as normal household waste. To prevent possible harm to the environment please separate the product from other waste to ensure that it can be recycled in an environmentally safe manner.
