DSC WS4949 Operating Instructions

WS4949 Wireless Panic Button

Operating Instructions

Introduction

The WS4949 is a 2 button, 3 function remote that can be
used to arm and disarm as well as a variety of other
remote functions. Please discuss all WS4949 options with
your installer in order to program the best possible com-
bination to suit your needs.
NOTE: Signals will not be received if the key is not within the
range of the wireless receiver.

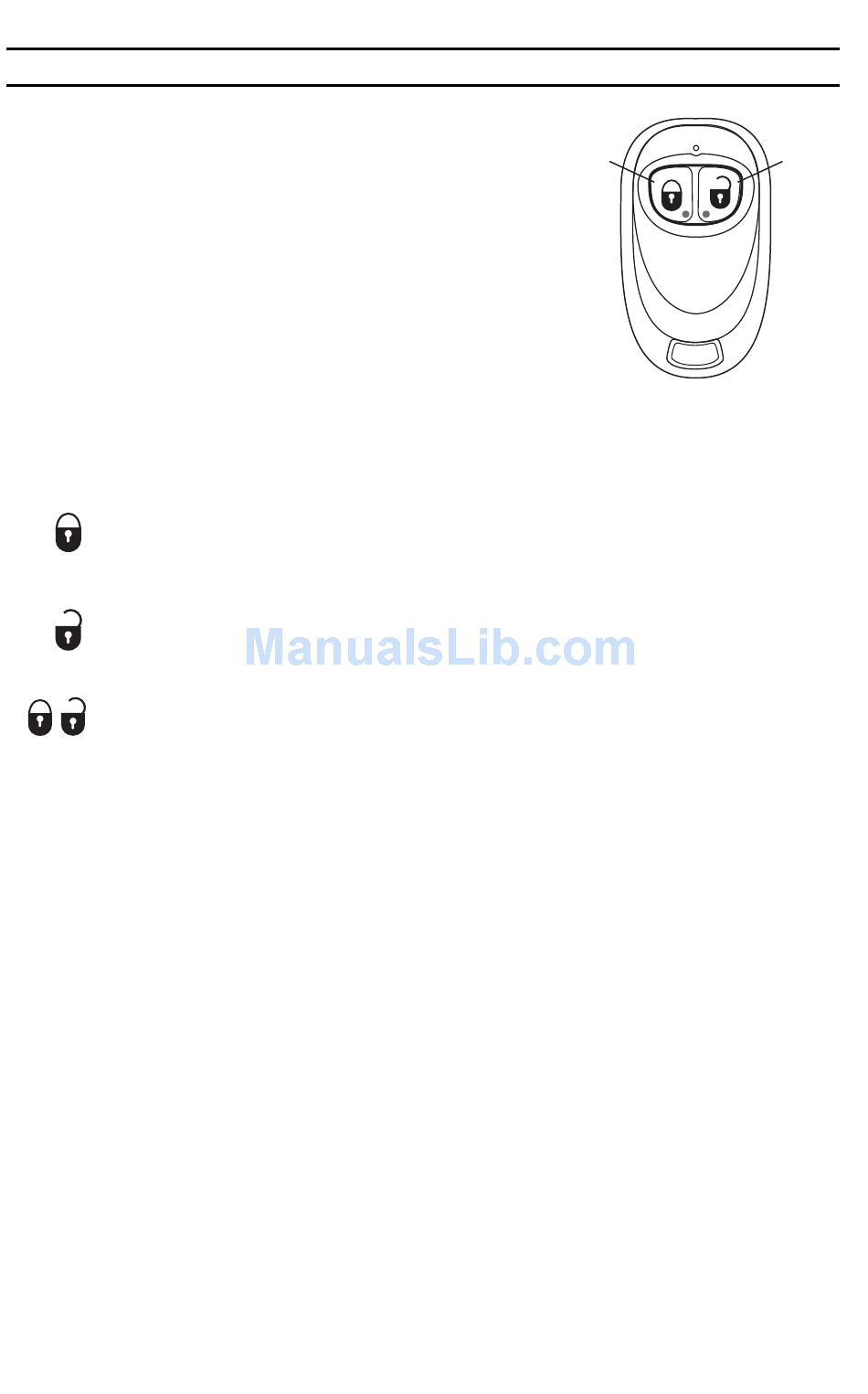

Operation of the WS4949

To activate function 1 or 2 press and hold the appropriate
button for approximately 1 second. For function 3 press and hold both buttons for approxi-
mately 3 seconds. The LED located between buttons 1 and 2 will light up indicating a sig-
nal has been sent to the control panel receiver. The typical functions are as follows:
Away Arming
Press this button to arm your system in the Away mode. Both the interior and
exterior zones will be armed, allowing you to exit the premises.
Disarm
Press this button to disarm your system. You do not have to enter your access
code when you use the key to disarm the system.
Panic
Press and hold both buttons to notify your central monitoring station of a situation
requiring the police, such as a break-in (requires a monitored account).
NOTE: By default, the user must press and hold the buttons for 3 seconds to activate the panic function.

How to Enroll the WS4949

This section describes how to set up and program your remote and should be done by the
installer. When programming the functions keys in the receiver, Function Key #1 is not used
for the WS4949.
• Button 1 (Left Button) sends Function Key #2
• Button 2 (Right Button) sends Function Key #3
• Both buttons pressed simultaneously and held for 3 seconds sends Function Key #4
The following outlines the basic steps for programming and enrolling this device on
PowerSeries receivers. For additional options or for other receivers please refer to the
specific receiver installation manuals.
Step 1 - Program Electronic Serial Number (ESN)
Section [804], subsections [41] - [56]
[41] Key #1
| _ _____| _ _____| _ _____| _ _____| _ _____| _ _____|
Step 2 - Program Function Buttons
Section [804], subsections [59] - [60]
For the RF5501-433 v5.0 Receiver, Section [804], subsections [61] - [68]*
Button 1
. . . [56]
Key #16 | _ _____| _ _____| _ _____| _ _____| _ _____| _ _____|
Button 2
