DSC WS4969 Operating Instructions

WS4969 Wireless Key

Operating Instructions

The WS4969 is the first four-button wireless key with a built-in flashlight in
the industry. This key allows you to arm, disarm and also offers other func-
tions with the convenience of wireless portability. Together with your
installer, you can decide which functions you wish to have accessible from
your portable key.
To activate, press and hold the appropriate button for approximately 1 sec-

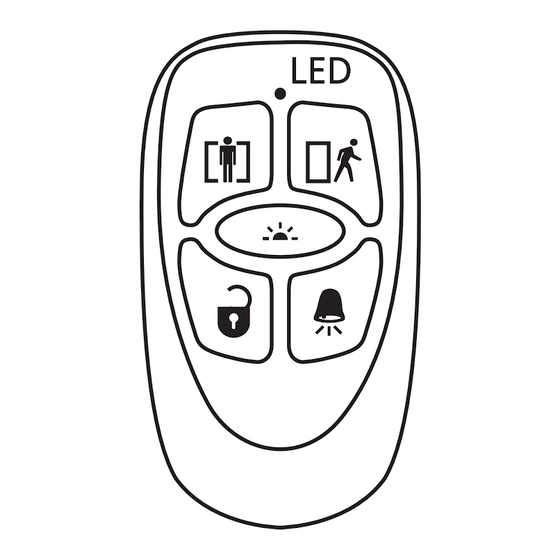

ond*. The LED located between buttons
signal has been sent to the control panel receiver.
*False Alarm Prevention
By default, the
mately 3 seconds. This was designed to reduce the possibility of a false alarm.
NOTE: Signals will not be received if the key is not within the range of the wireless receiver.
The default functions are as follows:
Stay Arming
Press this button to arm your system in the Stay mode. All perimeter zones
will be armed, such as all window and door contacts, but the interior zones
will remain inactive, allowing you to stay on the premises without setting off
an alarm.
Away Arming
Press this button to arm your system in the Away mode. Both the interior
and exterior zones will be armed, allowing you to exit the premises.
Disarm
Press this button to disarm your system. You do not have to enter your
access code when you use the key to disarm the system.
Panic
Press this button to notify your central monitoring station of a situation
requiring the police, such as a break-in.
Flashlight
Press and hold the centre button to activate the flashlight.
Other options are available. Please discuss all WS4969 options with your installer in order to
program the best possible combination to suit your needs.

Replacing the Batteries

Battery life depends on use of the flashlight feature. The battery
should last 3 to 6 years with normal operation and usage. During
each button press the key will send the status of its battery to the
control panel receiver. If the battery is low the trouble light on the
controls panel's keypad will turn ON.
To replace the battery, remove the screw located on the back of the unit. Replace both bat-
teries with Panasonic CR-2032 lithium batteries (see diagram).
NOTE: The polarity of the battery must be observed, as shown in the diagram above. Improper
handling of lithium batteries may result in heat generation, explosion or fire, which may lead to
personal injuries.
WARNING: DANGER OF EXPLOSION IF BATTERIES ARE INSTALLED INCORRECTLY.
REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE
MANUFACTURER. Keep away from small children. If batteries are swallowed, promptly see a
doctor. Disposal of used batteries must be made in accordance with the waste recovery and recy-
cling regulations in your area. Do not try to recharge these batteries.
key is a panic key. It will require the user to press and hold for approxi-
and will confirm that a
LED
+
Panasonic
CR2032
3V
