1. Volume Label. The hard drive Volume Label (up to 11 characters, all
capital letters) will automatically be displayed here. To change the Volume
Label in Windows, right-click on the drive in My Computer and then select
Rename. To change the Volume Label in Mac OS, highlight the drive on
the desktop and then click on the drive name to edit.
2. Date. The date of the last file save operation will automatically be displayed
here.
3. Notepad. You may use the SmartDisk Notepad application tool (on either
Windows or Mac) to enter text or graphics in this area. The notepad size is
158 x 120 monochrome pixels.
4. Percent-Full Gauge. This gauge will give a graphical representation of the
percentage of the disk capacity that is currently being used to store your
files. When all bars are filled in you will have no remaining free space.
5. Capacity. This number reports the capacity of the drive in gigabytes (GB).
1 GB = 1,000,000,000 bytes.
6. Free Space. This number reports the remaining amount of free space in
gigabytes (GB). 1 GB = 1,000,000,000 bytes.
Located just below the LCD is the activity LED. This LED is ON when power is
applied and flashes during disk access.
Activity LED.

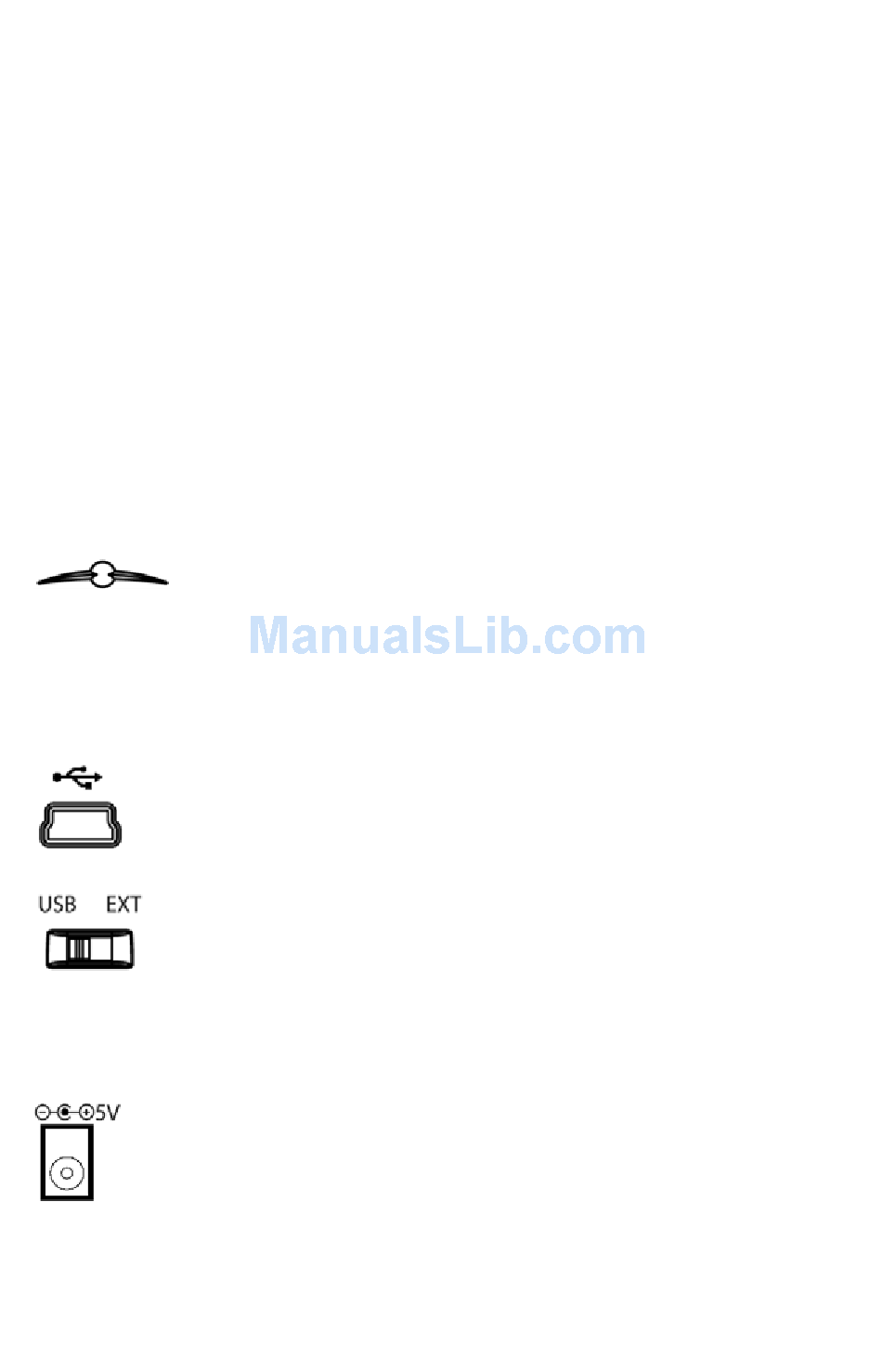

Rear Panel

The rear panel of your drive contains two connectors and a single control switch as
described below.
USB mini-B Jack. Use the included USB cable to connect to your computer.
Power Source Switch. Selects the power source for the unit.
To operate using the power supplied by your computer's USB port, slide the
switch to "USB". If your USB host does not supply sufficient power you can
alternatively use the optional AC Adapter (model ACFLB) and slide the switch
to "EXT".
DC Input Jack. For use with the optional AC Adapter (ACFLB).
