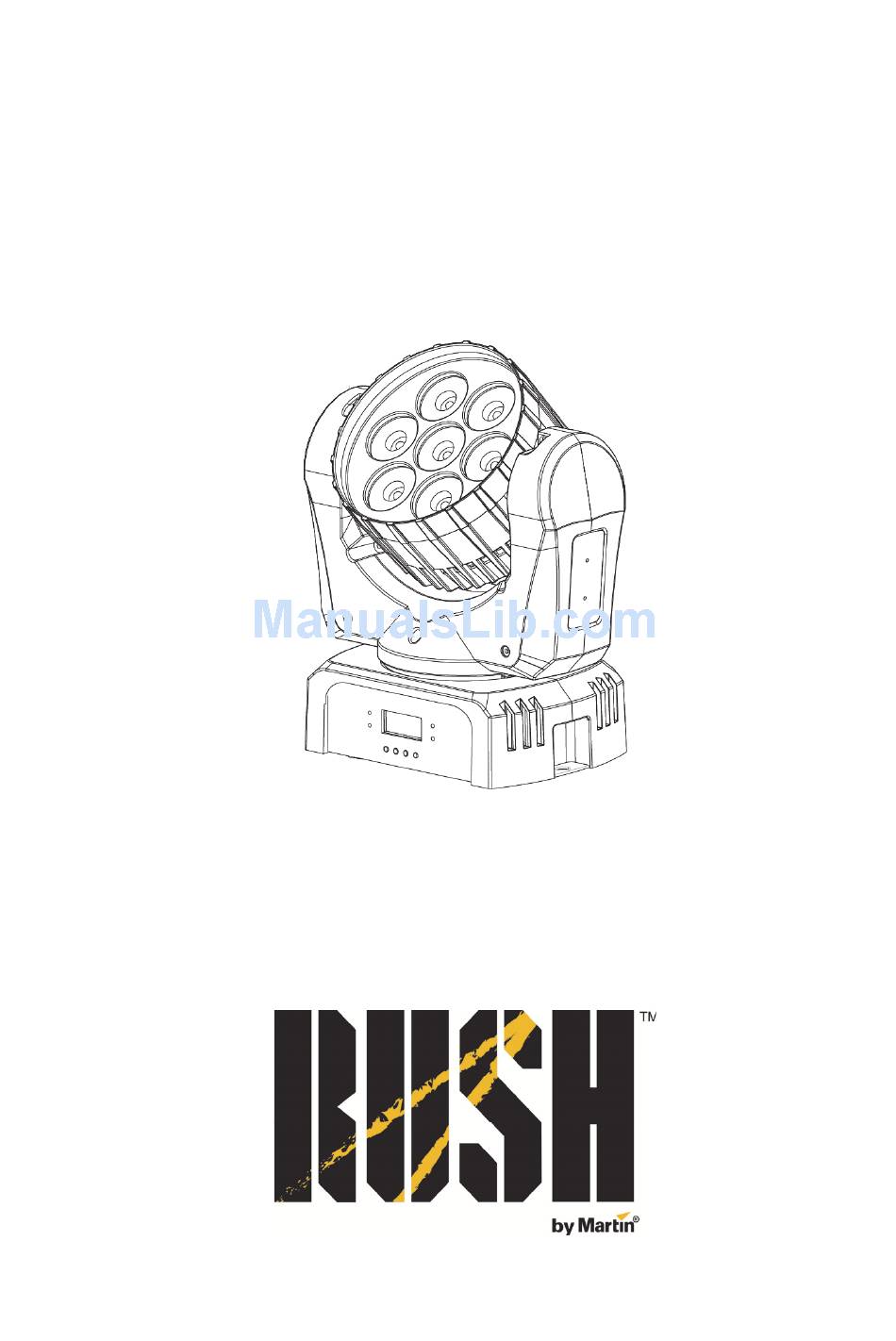

- Page 1 MH 2 Wash User Manual Professional Entertainment Technology...
- Page 2 The Martin logo, the RUSH by Martin logo, the RUSH by Martin name, the Martin name and all other trademarks in this document pertaining to services or products by Martin Professional A/S or its affiliates and subsidiaries are trademarks owned or licensed by Martin Professional A/S or its affiliates or subsidiaries.
-
Page 3: Table Of Contents
Table of contents Safety information ..................... 5 Introduction ....................... 9 Before using the product for the first time ............9 Physical installation ..................10 Fastening the fixture to a flat surface ............10 Mounting the fixture on a truss ..............10 AC power ...................... - Page 4 Maintenance ....................22 Cleaning ...................... 22 Service and repairs ..................23 DMX protocol ....................24 Electronic shutter effect ................24 Color wheel effect ..................25 Color wheel rotation effect................26 Random color ....................26 Control menus ....................27 Troubleshooting ....................29 Specifications ....................
-
Page 5: Safety Information
Keep this manual for future use. If you have questions about how to operate the fixture safely, please contact your RUSH by Martin™ dealer or call the Martin™ 24-hour service hotline on +45 8740 0000, or in the USA on 1-888-tech-180. - Page 6 Provide a minimum clearance of 100 mm (4 in.) around fans and air vents. Do not illuminate surfaces within 200 mm (7.9 ins.) of the fixture. Do not attempt to bypass thermostatic switches or fuses. RUSH MH 2 Wash user manual...
- Page 7 The safety cable must comply with EN 60598-2-17 Section 17.6.6 and be capable of bearing a static suspended load that is ten times the weight of the fixture and all installed accessories. RUSH MH 2 Wash user manual...
- Page 8 Never attempt to use a fixture that is obviously damaged. Do not modify the fixture or install other than genuine RUSH by Martin™ parts. Refer any service operation not described in this manual to a qualified technician.
-
Page 9: Introduction
Introduction The MH 2 Wash is an extremely small, fast and powerful LED moving beam and wash effect incorporating seven 10 W long-life LEDs. It provides smooth electronic dimming as well as strobe effects. The device is extremely rugged, lightweight and compact, and is ideal for mobile DJ’s, touring or small fixed installations. -
Page 10: Physical Installation
4. Secure the fixture against clamp failure with a secondary attachment such as an approved safety cable that is rated for the weight of the fixture. 5. Check that the head will not collide with other fixtures or objects. RUSH MH 2 Wash user manual... -
Page 11: Ac Power
Power can be relayed from one fixture to another device in a daisy-chain via the white PowerCon throughput socket. Do not connect devices to power in a chain that will exceed the power and current ratings of any cable or connector RUSH MH 2 Wash user manual... - Page 12 120 V, 60 Hz mains power, do not connect more than 3 fixtures to power in one chain. • 230 V, 50 Hz mains power, do not connect more than 5 fixtures to power in one chain. RUSH MH 2 Wash user manual...
-
Page 13: Fixture Overview
(blue) and output (white) connections and well as 3-pin and 5-pin XLR connections for data input and output. Fuse The T 6.3A fixture fuse can be found under the cover next to the power input/output connectors. RUSH MH 2 Wash user manual... -
Page 14: Control Data Link
2. Connect the DMX output of the fixture closest to the controller to the DMX input of the next fixture and continue connecting fixtures output to input. Terminate the last fixture on the link with a 120-Ohm resistor. RUSH MH 2 Wash user manual... -
Page 15: Fixture Setup
2. Use the UP and DOWN buttons to select the address (1 to 512). 3. Once the address has been selected, press the ENTER button to set it. To return to the higher level of the menu structure without any change press RUSH MH 2 Wash user manual... -
Page 16: Show Mode
2. Use the DOWN and UP buttons to change the sound sense from 0 …100. 3. Once the level has been selected, press the ENTER button to set it (or, to return to the higher level of the menu structure without any change press the MENU button). RUSH MH 2 Wash user manual... -
Page 17: Dimmer Modes
1. Select PAN INVERSE and press the ENTER button to confirm. The present mode will blink on the display. 2. Use the DOWN and UP buttons to select the YES (tilt inversion) or NO (normal) mode. RUSH MH 2 Wash user manual... -
Page 18: Backlight
Functions activated through DMX (when in DMX mode) can be set so that they are delayed up to 3 seconds. To set a function delay duration: 1. Select Function Delay and press the ENTER button to confirm. The present mode will blink on the display. RUSH MH 2 Wash user manual... -
Page 19: Blackout
1. Select TEMP and press the ENTER button. The display will show the temperature of the unit. 2. To return to a higher level of the menu press the MENU button again. Hold and press the MENU button to exit the menu mode. RUSH MH 2 Wash user manual... -
Page 20: Fixture Time
(or, to return to a higher level of the menu structure without any change press the MENU button). Reset factory default settings The fixture’s default settings can be restored using the RESET menu. RUSH MH 2 Wash user manual... -
Page 21: Effects
There is also an electronic color wheel effect that you can control as if it was a mechanical color wheel. You can select from 33 Lee-referenced colors and also snap through the colors as if you were rotating a color wheel. RUSH MH 2 Wash user manual... -
Page 22: Maintenance
Check again at frequent intervals. This procedure will allow you to assess cleaning requirements in your particular situation. If in doubt, consult your RUSH by Martin dealer about a suitable maintenance schedule. -
Page 23: Service And Repairs
Never try to repair the fixture by yourself as this may result in damage or malfunction and it may potentially void your product warranty. The equipment must only be serviced or repaired by an authorized RUSH by Martin service technician. -
Page 24: Dmx Protocol
95-99 Enable blackout during P/T movement 100-104 No function 105-109 Disable blackout during P/T movement 110-114 Fast dimming, unrestricted effects speed 115-119 No function 120-124 Smooth dimming, slightly reduced effects speed 125-249 Illuminate display RUSH MH 2 Wash user manual... -
Page 25: Color Wheel Effect
LEE 021 - Gold Amber 160 - 164 LEE 778 - Millennium Gold 165 - 169 LEE 135 - Deep Golden Amber 170 - 174 LEE 164 - Flame Red 175 - 179 Open RUSH MH 2 Wash user manual... -
Page 26: Color Wheel Rotation Effect
230 - 234 Open Random color 235 - 239 Fast 240 - 244 Medium 245 - 249 Slow 250 - 255 Open 0-255 Red 0-100% 0-255 Green 0-100% 0-255 Blue 0-100% 0-255 White 0-100% RUSH MH 2 Wash user manual... -
Page 27: Control Menus
Blue (125…255) Adjust white balance blue mix Manual Test Pan (0…255) Manual pan Tilt (0…255) Manual tilt Red (0…255) Manual red Green (0…255) Manual green Blue (0…255) Manual blue White (0…255) Manual white Dimmer (0…255) RUSH MH 2 Wash user manual... - Page 28 To access the Offset menu, press the MENU button to enter the menu structure and then press and hold the ENTER button for three seconds. Menu Sub-menu Explanation Offset Pan offset 127...-127 Tilt offset 127…-127 RUSH MH 2 Wash user manual...
-
Page 29: Troubleshooting
One of the control Damaged step motor or Contact your RUSH by channels is cable connection Martin authorized unresponsive or only between the head and distributor or service center responds body. for assistance. intermittently. RUSH MH 2 Wash user manual... - Page 30 DMX network. Attempt to control the fixture with another DMX control device. Move the fixture if it is being operated very close to an unshielded high- voltage installation. RUSH MH 2 Wash user manual...
-
Page 31: Specifications
Control options ....DMX, stand-alone (music trig, auto trig/show mode) DMX channels ....................12 DMX control protocol ............USITT DMX512/1990 Interface ............Control panel with backlit display Construction Color ......................Black IP rating ..................... IP 20 RUSH MH 2 Wash user manual... - Page 32 Cooling ....................Forced air Maximum ambient temperature (T max.) ........ 40° C (104° F) Minimum ambient temperature (T min) ......... 0°C (32° F) Specifications are subject to change without notice. For the latest product specifications, see www.martin.com RUSH MH 2 Wash user manual...
- Page 33 Disposing of this product RUSH by Martin™ products are supplied in compliance with Directive 2012/19/EC of the European Parliament and of the Council of the European Union on WEEE (Waste Electrical and Electronic Equipment), where applicable. Help preserve the environment! Ensure that this product is recycled at the end of its life.
