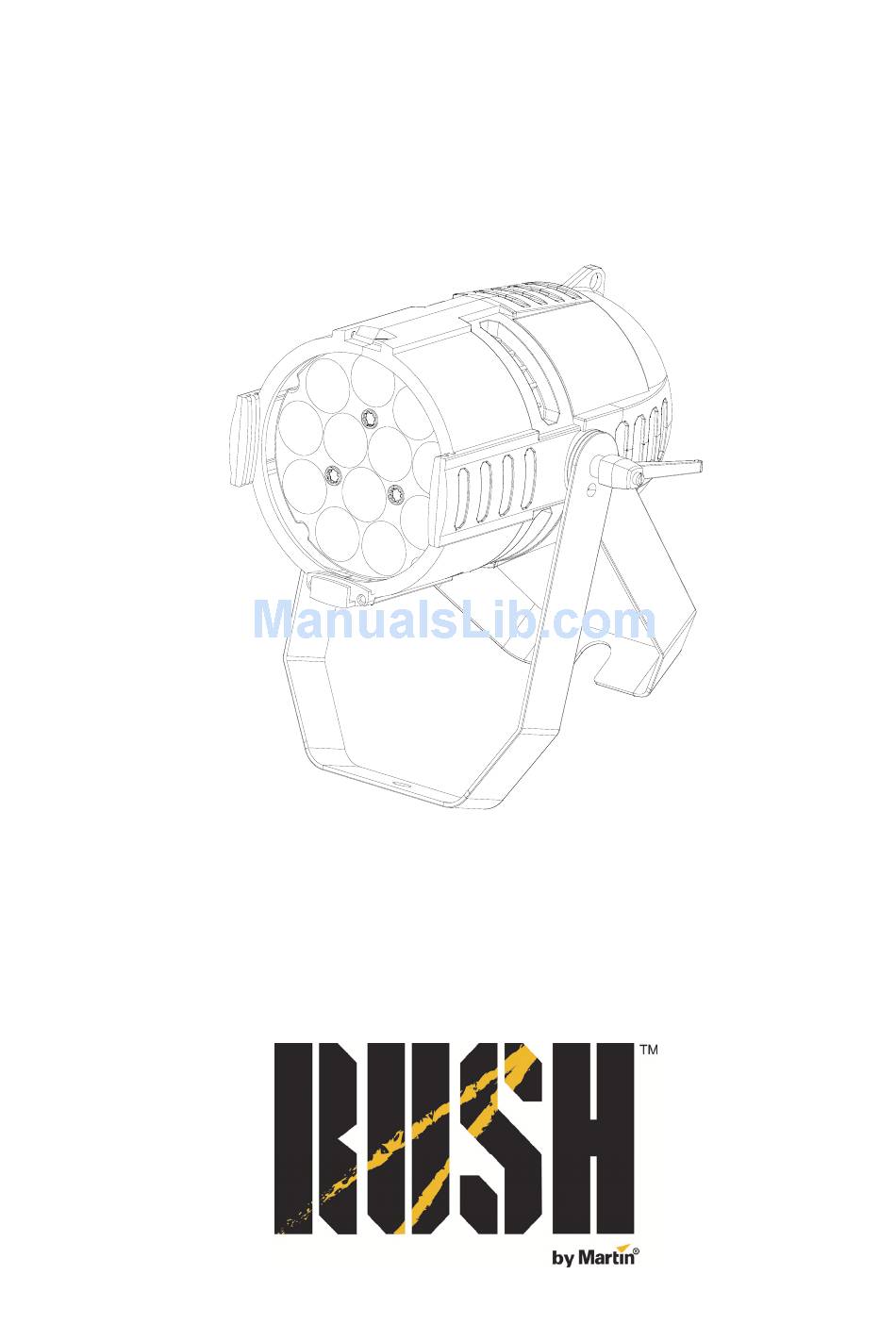

- Page 1 PAR 2 RGBW Zoom User Manual Professional Entertainment Technology...
- Page 2 The Martin logo, the RUSH by Martin logo, the RUSH by Martin name, the Martin name and all other trademarks in this document pertaining to services or products by Martin Professional or its affiliates and subsidiaries are trademarks owned or licensed by Martin Professional or its affiliates or subsidiaries.
-
Page 3: Table Of Contents
Table of contents Safety information ..................... 4 Introduction ....................... 9 Before using the product for the first time ............. 9 Physical installation ..................10 Fastening the fixture to a flat surface ............10 Mounting the fixture on a truss ..............10 Securing with a safety cable ............... -
Page 4: Safety Information
Install, operate and service RUSH by Martin™ products only as directed in their user manuals, or you may create a safety hazard or cause damage that is not covered by product warranties. - Page 5 Before using the fixture, check that all power distribution equipment and cables are in perfect condition and rated for the current requirements of all connected devices. Use only Neutrik PowerCon cable connectors to connect to the fixture’s power sockets. RUSH PAR 2 RGBW Zoom User Manual...
- Page 6 MAINS IN input socket, but do not link more than: • eight (8) RUSH PAR 2 fixtures in total at 100-120 V, or • eighteen (18) RUSH PAR 2 fixtures in total at 200-240 V. The voltage and frequency at the MAINS OUT socket are the same as the voltage and frequency applied to the MAINS IN socket.
- Page 7 The secondary attachment must be approved by an official body such as TÜV as a safety attachment for the weight that it secures, must comply with EN RUSH PAR 2 RGBW Zoom User Manual...
- Page 8 Do not attempt to use a fixture that is obviously damaged. Do not modify the fixture or install other than genuine RUSH by Martin™ parts. Refer any service operation not described in this manual to a qualified technician.
-
Page 9: Introduction

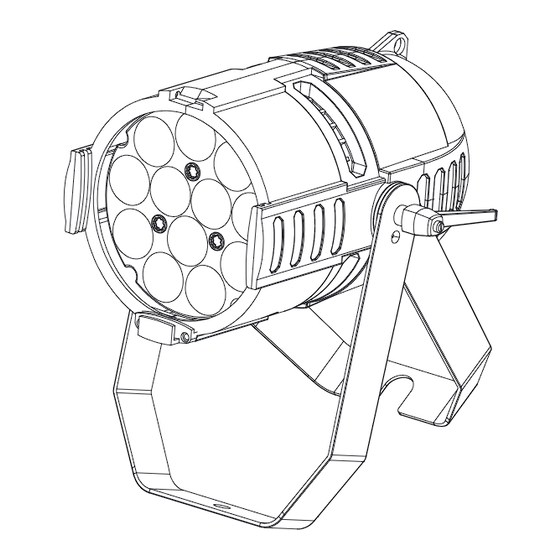

Introduction The RUSH PAR 2 RGBW Zoom™ is a bright single-lens LED PAR Can with fully premixed color from 12 RGBW LEDs and a 10 to 60° motorized zoom. It offers electronic dimming and strobe and features a bracket for floor or truss mounting. -
Page 10: Physical Installation
It must pass through both mounting bracket legs and be fastened with a self-locking nut. 4. Working from a stable platform, hang the fixture with its clamp on the truss and fasten the clamp securely. RUSH PAR 2 RGBW Zoom User Manual... -
Page 11: Securing With A Safety Cable
The fixture can be hard-wired to a building electrical installation if you want to install it permanently, or a power plug (not supplied) that is suitable for the local power outlets can be installed on the supplied power cable. RUSH PAR 2 RGBW Zoom User Manual... -
Page 12: Linking Fixtures To Power In A Chain
Using 14 AWG or 1.5 mm cables from Martin™, you can link: • Maximum eight (8) RUSH PAR 2 RGBW Zoom fixtures in total at 100- 120 V, or • Maximum eighteen (18) RUSH PAR 2 RGBW Zoom fixtures in total at 200-240 V. - Page 13 See ‘Safety information’ on page 4. The light-grey Neutrik PowerCon socket can be used to supply power to other fixtures only if the supplied power input cable is replaced as directed in this manual and safety limits are respected. RUSH PAR 2 RGBW Zoom User Manual...
-
Page 14: Control Data Link
Terminate the link by installing a DMX termination plug in the output socket of the last fixture. The termination plug, which is a male XLR plug with a 120 Ohm, 0.25 W resistor soldered between pins 2 and 3, “soaks up” the control RUSH PAR 2 RGBW Zoom User Manual... -
Page 15: Connecting The Dmx Data Link
• In 5-channel mode, if the first fixture has a DMX address of 1, then DMX address 6 is available for the next fixture, address 11 for the next fixture and so on. RUSH PAR 2 RGBW Zoom User Manual... -
Page 16: Dimming Curves
DIMMER 2: SQUARE LAW – light intensity control is finer at low levels and coarser at high levels. DIMMER 3: INVERSE SQUARE LAW – light intensity control is coarser at low levels and finer at high levels. RUSH PAR 2 RGBW Zoom User Manual... -
Page 17: Blackout Or Hold If Dmx Signal Stops
OFF (display backlight turns off when not in use). Press ENTER to confirm (or, to return to the higher level of the menu structure without making a change, press MENU). RUSH PAR 2 RGBW Zoom User Manual... -
Page 18: White Balance Adjustment
6. If you want, you can now select another effect and set a value for it as described above. This effect will be added to the effects that you have already set. RUSH PAR 2 RGBW Zoom User Manual... -
Page 19: Single Stand-Alone Scene
2. To return to a higher level of the menu structure, press MENU. Reset To reset the fixture to its factory default settings: 1. Select RESET and press ENTER to confirm. 2. The fixture will now reset to its default settings. RUSH PAR 2 RGBW Zoom User Manual... -
Page 20: Effects
Color 9 Color 10 Color 11 Color 12 Color 13 Color 14 Color 15 Color 16 Color 17 Color 18 Color 19 Color 20 Color 21 Color 22 Color 23 Color 24 Color 25 RUSH PAR 2 RGBW Zoom User Manual... - Page 21 Overall intensity can be adjusted 0-100% using electronic dimming in 9- channel mode. Two channels can be used to control intensity: the first gives coarse 0-100% control, the second gives 16-bit fine adjustment. RUSH PAR 2 RGBW Zoom User Manual...
-
Page 22: Maintenance
100 hours of operation to see whether cleaning is necessary. Check again at frequent intervals. This procedure will allow you to assess cleaning requirements in your particular situation. If in doubt, consult your RUSH by Martin dealer about a suitable maintenance schedule. -
Page 23: Fuse Replacement
Refer any service or repair operation not described in this manual to an authorized RUSH by Martin™ service technician. Do not try to carry out such an operation yourself, as doing so may present a health or safety risk. It may also cause damage or malfunction, and it may void your product warranty. -
Page 24: Dmx Protocol
Color wheel effect (color presets) 0-10 Open (white) 11-15 Color 1 16-20 Color 2 21-25 Color 3 Snap 26-30 Color 4 31-35 Color 5 36-40 Color 6 41-45 Color 7 46-50 Color 8 RUSH PAR 2 RGBW Zoom User Manual... - Page 25 215-221 Stop (wheel stops at current position) 222-243 CCW rotation slow fast Random colors 244-247 Random color, fast 248-251 Random color, medium 252-255 Random color, slow 0-255 Zoom wide narrow Fade RUSH PAR 2 RGBW Zoom User Manual...
-
Page 26: Control Menus
Zoom Dimmer Strobe Auto Test Automatic test of all effects Temp. Display fixture’s current temperature Fixture time Display total operation time Display currently installed firmware Firmware Version version Reset Force a fixture reset RUSH PAR 2 RGBW Zoom User Manual... -
Page 27: Troubleshooting
Check that all components on DMX link use standard DMX polarity. Attempt to control the fixture with another DMX control device. Move or shield link if it is close to an unshielded high- voltage installation. RUSH PAR 2 RGBW Zoom User Manual... -
Page 28: Specifications
Light source ........12 x 10 W RGBW Osram Ostar LEDs Minimum LED lifetime ....50 000 hours (to >70% luminous output)* Beam angle ..................10° - 60° *Figure obtained under manufacturer´s test conditions Construction Color ...................... Black Housing ................... Aluminum RUSH PAR 2 RGBW Zoom User Manual... - Page 29 ......... EN 61000-3-2, EN 61000-3-3, EN 61547 US safety (pending)................ UL 1573 US EMC ..............FCC Part 15 Class A Canadian safety (pending) ........... CSA C22.2 No. 166 Canadian EMC ............... ICES-003 Class A Australia/NZ ................C-TICK N4241 RUSH PAR 2 RGBW Zoom User Manual...
-
Page 30: Included Items
Related Items RUSH Software Uploader 1™ ..........P/N 91611399 Ordering Information RUSH PAR 2 RGBW Zoom™ in cardboard box ..... P/N 90280040 Specifications are subject to change without notice. For the latest product specifications, see www.martin.com Disposing of this product RUSH by Martin™... - Page 32 Innovation Quality Performance...
