Summary of Contents for Rush PAR 2 CT Zoom

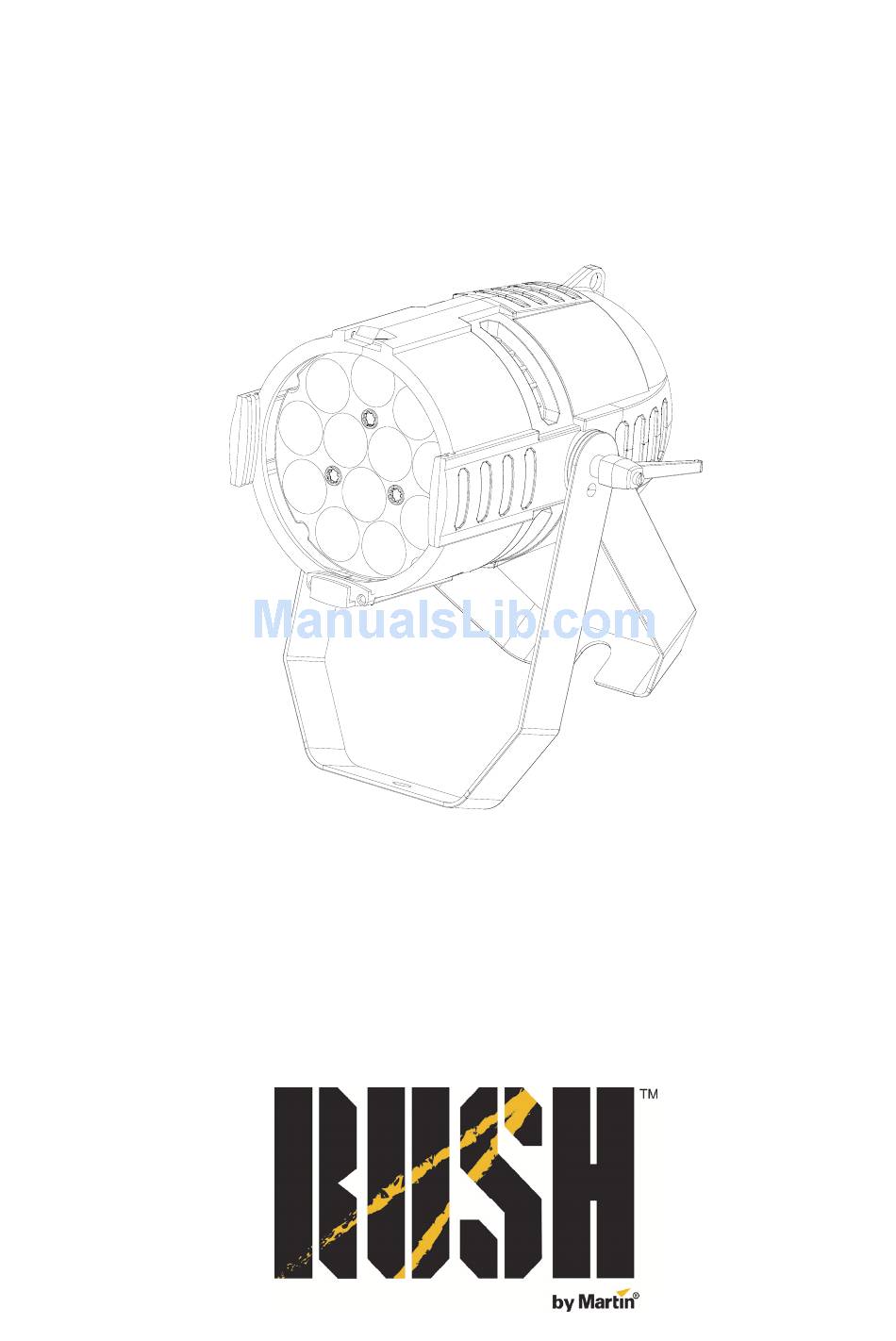

- Page 1 PAR 2 CT Zoom User Manual...
- Page 2 The RUSH logo, the RUSH name, the Martin logo, the Martin name and all other trademarks in this document pertaining to services or products by Martin Professional or its affiliates and subsidiaries are trademarks owned or licensed by Martin Professional or its affiliates or subsidiaries.
-
Page 3: Table Of Contents
Table of contents Safety information ..................... 4 Introduction ....................... 9 Before using the product for the first time ............. 9 Physical installation ..................10 Fastening the fixture to a flat surface ............10 Mounting the fixture on a truss ..............10 Securing with a safety cable ............... -
Page 4: Safety Information
Install, operate and service RUSH by Martin™ products only as directed in their user manuals, or you may create a safety hazard or cause damage that is not covered by product warranties. - Page 5 Before using the fixture, check that all power distribution equipment and cables are in perfect condition and rated for the current requirements of all connected devices. Use only Neutrik PowerCon cable connectors to connect to the fixture’s power sockets. RUSH PAR 2 CT Zoom™ User Manual...
- Page 6 MAINS IN input socket, but do not link more than: • eight (8) RUSH PAR 2 fixtures in total at 100-120 V, or • eighteen (18) RUSH PAR 2 fixtures in total at 200-240 V. The voltage and frequency at the MAINS OUT socket are the same as the voltage and frequency applied to the MAINS IN socket.
- Page 7 Fasten the fixture securely to a fixed surface or structure when in use. The fixture is not portable when installed. Ensure that any supporting structure and/or hardware used can hold at least 10 times the weight of all the devices they support. RUSH PAR 2 CT Zoom™ User Manual...
- Page 8 Do not modify the fixture in any way not described in this manual or install other than genuine RUSH by Martin™ parts. Refer any service operation not described in this manual to a qualified technician.
-
Page 9: Introduction
Introduction The RUSH PAR 2 CT Zoom™ is a bright single-lens LED PAR Can. It offers white color temperature mixing using twelve 10 W CWUW (warm white and ultra white) LEDs and a 10° to 60° motorized zoom. This fixture also offers electronic dimming and strobe and features a bracket for floor or truss mounting. -
Page 10: Physical Installation
3. Fold the legs of the mounting bracket together and bolt a rigging clamp securely to the mounting bracket. The bolt used must be M12, grade 8.8 steel minimum. It must pass through both mounting bracket legs and be fastened with a self-locking nut. RUSH PAR 2 CT Zoom™ User Manual... -
Page 11: Securing With A Safety Cable
Do not insert or remove live Neutrik PowerCon connectors to apply or cut power, as this may cause arcing at the terminals that will damage the connectors. RUSH PAR 2 CT Zoom™ User Manual... -
Page 12: Linking Fixtures To Power In A Chain
MAINS OUT throughput socket to MAINS IN input socket. Using 14 AWG or 1.5 mm cables from Martin™, you can link: • Maximum eight (8) RUSH PAR 2 CT Zoom fixtures in total at 100-120 V, or • Maximum eighteen (18) RUSH PAR 2 CT Zoom fixtures in total at 200-240 V. -
Page 13: Fixture Overview
Confirm the selection 4 – 5-pin XLR DMX input/output sockets 5 – Primary (mains power) fuse F1 The T 6.3A fixture fuse is located in a fuseholder next to the power input/output connectors. RUSH PAR 2 CT Zoom™ User Manual... -
Page 14: Control Data Link
DMX channels. Fixtures that are required to behave identically can share the same DMX address and channels. To add more fixtures or groups of fixtures when the above limit is reached, add a DMX universe and another daisy- chained link. RUSH PAR 2 CT Zoom™ User Manual... -
Page 15: Tips For Reliable Data Transmission
Navigate the menu structure using the DOWN, UP and ENTER buttons. • If you have selected a menu option, confirm your selection and set that option using the ENTER button, or if you want to return to the previous RUSH PAR 2 CT Zoom™ User Manual... -
Page 16: Dmx Addressing
• MODE 4: S-CURVE – light intensity control is finer at low levels and high levels and coarser at medium levels. MODE 1 MODE 2 MODE 3 MODE 4 RUSH PAR 2 CT Zoom™ User Manual... -
Page 17: Blackout Or Hold If Dmx Signal Stops
FADE adds a one-second (approx.) smooth fade to all changes in dimming level sent from the controller. This gives the smoothest dimmer response. To set the dimmer speed: 1. Select DIMMER SPEED and press ENTER to confirm. RUSH PAR 2 CT Zoom™ User Manual... -
Page 18: Fixture Test
2. Using the DOWN and UP buttons, toggle between the two modes: If you select LOW, fans are set to constant low speed. This gives quieter operation but light output is reduced when necessary to control fixture temperature. RUSH PAR 2 CT Zoom™ User Manual... -
Page 19: Single Standalone Scene
The fixture resets each time it is powered off and on, but it is possible to force a reset at any time: 1. Select RESET and press ENTER to confirm. 2. Give the fixture time to reset. RUSH PAR 2 CT Zoom™ User Manual... -
Page 20: Effects
Shutter effect The electronic ‘shutter’ effect provides instant open and blackout as well as variable speed regular and random strobe and pulse effects. Zoom Zoom angle can be varied from 10° to 60°. RUSH PAR 2 CT Zoom™ User Manual... -
Page 21: Maintenance
100 hours of operation to see whether cleaning is necessary. Check again at frequent intervals. This procedure will allow you to assess cleaning requirements in your particular situation. If in doubt, consult your RUSH by Martin dealer about a suitable maintenance schedule. -
Page 22: Fuse Replacement
Refer any service or repair operation not described in this manual to an authorized RUSH by Martin™ service technician. Do not try to carry out such an operation yourself, as doing so may present a health or safety risk. It may also cause damage or malfunction, and it may void your product warranty. -
Page 23: Dmx Protocol
0-26 Color Temperature disabled Color Temperature from 2700 to 7800 K 27-72 in approx.100 K steps (Cold and Warm Fade LED channels are disabled) 73-255 7800 K 0-255 Zoom wide narrow Fade RUSH PAR 2 CT Zoom™ User Manual... -
Page 24: Control Menus
Automatic test of all effects Temp. Display fixture’s current temperature Fan Mode Adjust cooling fan speed Auto Fixture time Display total operation time Display currently installed firmware Firmware Version version Reset Force a fixture reset RUSH PAR 2 CT Zoom™ User Manual... -
Page 25: Troubleshooting
Check that all components on DMX link use standard DMX polarity. Attempt to control the fixture with another DMX control device. Move or shield link if it is close to an unshielded high- voltage installation. RUSH PAR 2 CT Zoom™ User Manual... -
Page 26: Specifications
Light source ............. 12 x 10 W CWUW LEDs Minimum LED lifetime ....50 000 hours (to >70% luminous output)* CRI (Color rendering index)................ 90 Beam angle ..................10° - 60° *Figure obtained under manufacturer´s test conditions RUSH PAR 2 CT Zoom™ User Manual... - Page 27 EU safety ....EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC ..........EN 55015, EN 55032, EN 55103-2, ......... EN 61000-3-2, EN 61000-3-3, EN 61547 US safety ..................UL 1573 US EMC ..............FCC Part 15 Class A RUSH PAR 2 CT Zoom™ User Manual...
- Page 28 RUSH Software Uploader 1™ ..........P/N 91611399 Ordering Information RUSH PAR 2 CT Zoom™ in cardboard box, EU model ..P/N 90280060 RUSH PAR 2 CT Zoom™ in cardboard box, US model ..P/N 90280065 Specifications are subject to change without notice. For the latest product specifications, see www.martin.com...
- Page 29 Disposing of this product RUSH by Martin™ products are supplied in compliance with Directive 2012/19/EC of the European Parliament and of the Council of the European Union on WEEE (Waste Electrical and Electronic Equipment), where applicable. Help preserve the environment! Ensure that this product is recycled at the end of its life.
