Summary of Contents for TV Star C101

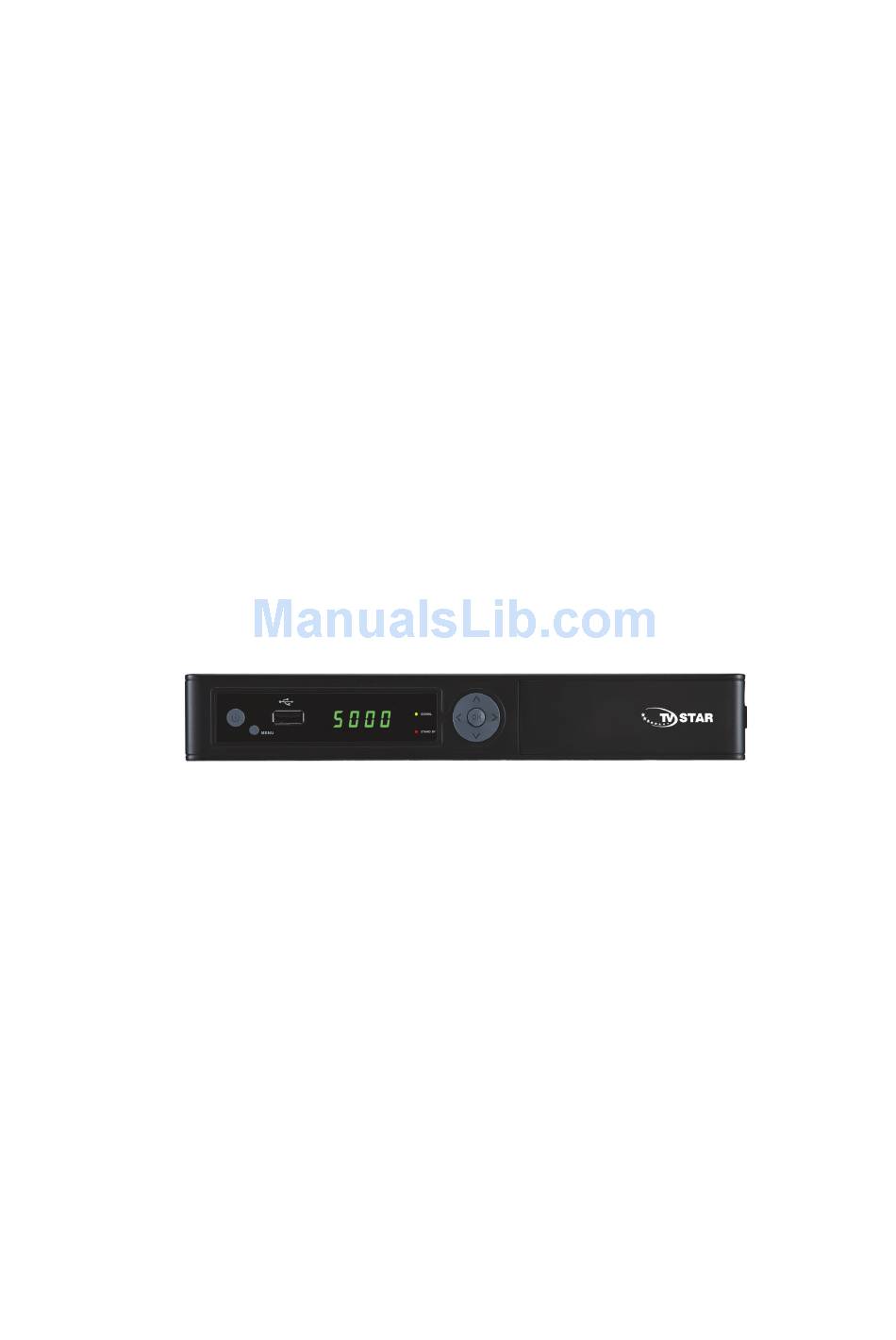

- Page 1 DIGITAL CABLE RECEIVER TV STAR C101 USER MANUAL...
-
Page 2: Table Of Contents
Table of contents Safety Instructions ................3 General Introduction ................4 Front Panel/ Rear Panel ............... 5 Remote Control Unit................6 S.T.B Connection ................. 8 Digital TV ..................10 USB....................15 PVR Instruction ................. 17 Timeshift .................... 19 Troubleshooting ................. 20 Glossary ..................... -
Page 3: Safety Instructions
Safety Instructions This STB has been manufactured to satisfy the international safety standards. Please read the following safety precautions carefully. MAIN SUPPLY: AC 220/240V, 50/60Hz, 20W. OVERLOADING: Do not overload a wall outlet, extension cord or adapter as this may result in fire or electric shock. Ensure that the power source (socket) is easily accessible. -
Page 4: General Introduction
Battery handling: Batteries may contain toxic agents that are hazardous to the environment. Therefore, dispose of the batteries immediately according to the prevailing statutory regulations. Never throw the batteries in normal household waste. General Introduction INTRODUCTION This manual will help you learn basic functions such as installation, selecting channels and many other functions of the STB. -
Page 5: Front Panel/ Rear Panel
We hope you enjoy using your digital satellite receiver! Front Panel/ Rear Panel Front Panel : Press to switch between Operation and Standby modes. CH: Change channels or items from top to bottom on the menus. VOL: Increase or Decrease the volume of sound. OK: Press to proceed of confirmation. -
Page 6: Remote Control Unit
S/PDIF Digital audio output. A/V RCA To connect the Audio/Video RCA output to TV. POWER Power ON/OFF switch. Remote Control Unit Switches between Operation and Standby modes. 0–9 Changes channels or selects the menu options. Subtitle functions SUBTL Selects favorite channel list or current channel list in the view mode. - Page 7 VOL( / ) Turns up/down volume. Moves to main menu during TV viewing. MENU INFO Displays the program in formation box on the screen. Displays TXT information broadcasting from satellite. Changes audio mode to left right and stereo. AUDIO Electronic Program Guide button displays the TV/Radio program guide broadcasting by Satellite TV provider.
-
Page 8: Connection
STOP Press to stop file playing. PLAY/REC Press to play the media files from USB disk, or to start recording TV program. PAUSE Pauses to freeze the screen. SLOW Slow down playing speed to be 1/2, 1/4 of normal. S.T.B Connection Various equipment and TV/VCR can be connected to STB. - Page 9 local television broadcasting signal. Connect the TO TV socket to input socket on TV using the coaxial cable. Adjust the Tuning setting of TV to get the Satellite TV program. 3. How to connect the Audio system Connect the AUDIO R, L socket of the STB to the Audio System like HI-FI, Amplifier, etc..
-
Page 10: Digital Tv
Digital TV Plug in the STB. Then press the “power” button on the remote control or the “Standby” button on the STB Front Panel. The Main Menu screen, the beginning of the OSD screen, will appear as shown in the following picture. The Main Menu displays various functions of the STB or you can select with “CH”... - Page 11 22KHz; DiSEqC control; LNB Power and so on, using the ”Vol” buttons on the remote control then Save the settings. ALL + NIT: To Search out all the Free Channels + Scrambled Channels available in particular Satellite or Transponders including the new transponders that are not preprogrammed in your STB but broadcasting by Satellite Provider.
- Page 12 and input channel numbers you wish to move, and press OK button again to insert. Delete:Press OK button to select the channel you wish to delete, then press blue button to delete the selected channel from STB. 2.2 Channel Grouping In this menu,you can group your TV programes to news, scien, sport, movie, kids, music ,fashi and etc.
- Page 13 Summer Time If you set summer time to “ON”, then your local time should add one hour more. GMT offsett Choose the format to display the Date. Wakeup Timer:In this function, you can setting your Wakeup timer. Such as timer No., timer mode, wakeup mode, wakeup channels, wakeup date and so on.
-
Page 14: Usb
You can also change the password by input numeric key for NEW Password, and then repeat again to VERIFY Password. 4. Factory Default To default the factory settings, by choosing ALL or CHANNELS, and press ”OK” button to proceed. To default software settings and channels to be factory settings. - Page 15 Format supported AVI, VOB, MPG, DAT Backward and forward Press “Previous”/“Forward” to play backward/forward at max x20 speed. 7.2 Music Go to USB music menu, choose path to music files, select one and press “USB Play” or “OK” button to start play. Press “Exit”...
- Page 16 Slide play When in full screen display, use “USB play” to start slide play. Use “USB pause” to stop, “USB stop” or “Exit” to quit full screen and back to picture menu. Skip Press “Previous”/“Next” button, when playing, to skip to play previous/next video file.
-
Page 17: Pvr Instruction
Information Press “Info” button to check details information when recording, such as recorded time, available free memory size etc. Format of recorded file Recorded file will be saved in format of MPG. PVR preview In PVR preview menu, select recorded file, and press “OK”... -
Page 18: Timeshift
1) Our STB can support up to 4 partition of one HDD, and theoretically each partition can allow up to 2TByte (2,000Gb), however, we suggest to use one HDD with each partition not bigger than 120Gb 2) Each recorded video file will not bigger than 3.8Gb (Approx 4 hours), the STB will automatically create new video file to continue recording your TV program if the recorded video file is bigger than 3.8Gb. -
Page 19: Troubleshooting
Never miss an Excellent moment of your favorite LIVE Sports or Movie scene, now with WIZ-555 FTA PLUS, you can easily enjoy it with just one press of button. TIMESHIFT MODE: Make sure you have USB device plugged into the STB, and there are free storage. -
Page 20: Glossary
Fault probably reasons Resolve Phenomenon Put firmly the power plug to the Power on, but no Please carefully check the socket on display on power plug, to see it is in the wall. screen socket of wall or not? Is power interrupted? Power on this Is the aerial install correct? - Page 21 22KHz tone that the receiver sends to the dish. (2) Antenna A device that collects and radiates electromagnetic waves includes a satellite dish and a broadband antenna. (3) CVBS Composite Video Baseband Signal, Standard single-wire video, mixing lum and chroma signals together. (4) DiSEqC Digital Satellite Equipment Control, a protocol established by EUTELSAT organization www.eutelsat.com, the most popular...
-
Page 22: Specification
Satellite waves are polarized. They can be linear or circular. Linear polarity is Vertical or Horizontal, circular polarity is Right-hand and Left-hand circular polarity. (13) Quaternary Phase Shift Keying (QPSK) Phase-shift keying in which four different phase angles are used. (14) RF A frequency that is useful for radio transmission, usually between10KHz and 300,000Mhz. - Page 23 Mode Mono, Dual,Stereo,Joint Stereo Bit Rate Max 384kbps Sampling Fre. 32,44.1,48KHz Standard ISO/IEC 13818-2 Profile Level MPEG-2 MP@ML Video Output level 1.0 Vp-p Decoder Aspect Ratio 4:3/16:9 Output NTSC/PAL Active Pixel 729*480@30fps(NTSC);20*567@25fps(PAL) Standard DVB-C EN300 429 Input 50MHz to 860MHz Frequency Tuner Input Level...
- Page 24 Operation +5° C to +40° C Temperature Storage -20° C to 70° C Temperature Dimension 220mm X124mmx32mm The manufacturer reserves the right to change the configuration, technical or any other parameters without prior notice. www.tvstar.eu...
