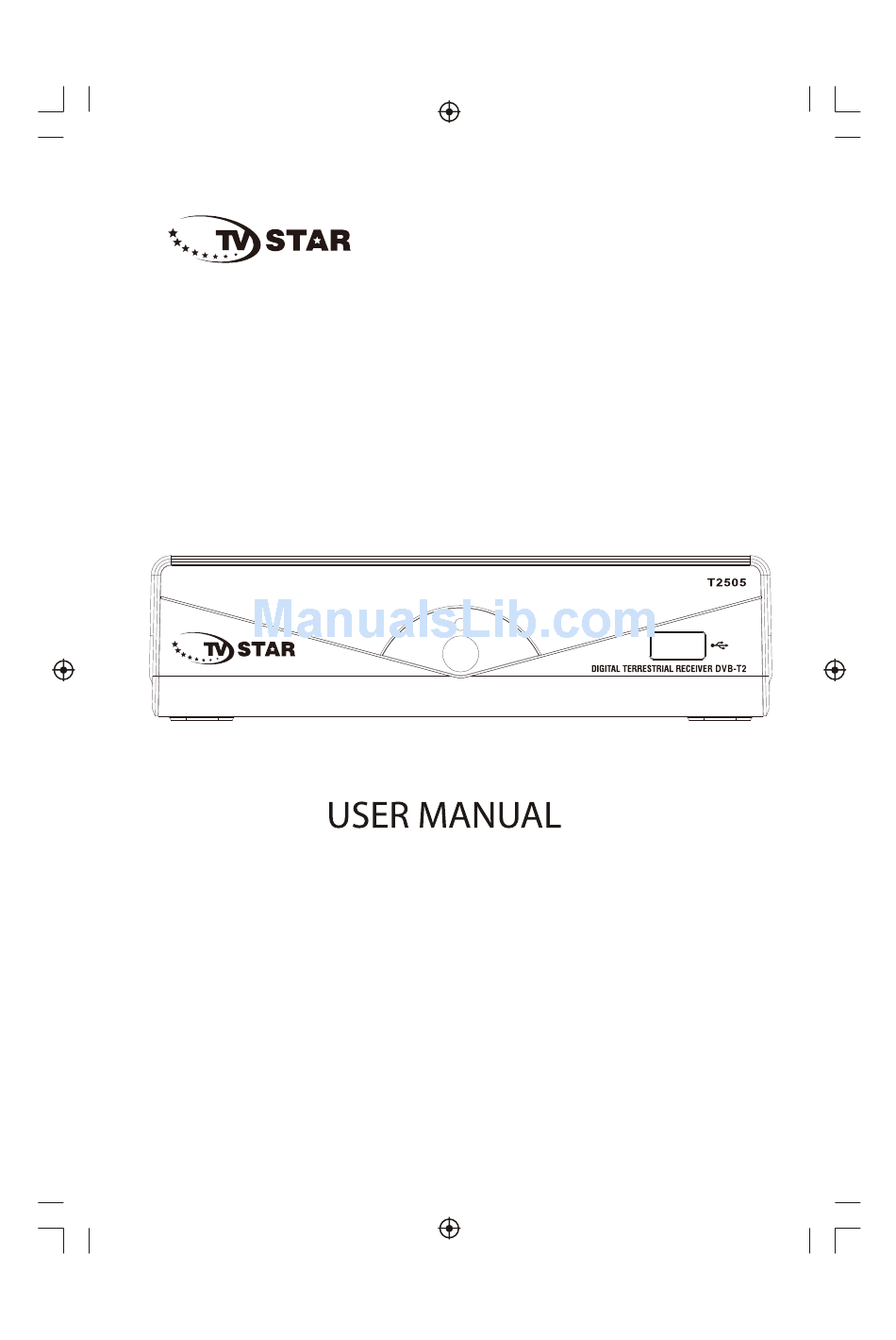

  • Page 1 High Definition Digital Receiver T2505...
  • Page 2 Important Safety Instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
  • Page 3 This symbol indicates that dangerous voltages constituting a risk of electric shock are present within this unit. This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit. This symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts.

  • Page 4: Table Of Contents

    Table of Contents Front and Rear Panel ................1 Remote Control..................2 Connecting to a Television.................4 First Time Installation................5 Troubleshooting..................16 Technical Specifications................17 DVB-T TV Receiver Remote Control High Definition Digital Receiver T2505 AAA Battery User Manual...

  • Page 5: Front And Rear Panel

    Front and Rear Panel 1. Front panel USB: For software upgrade and media playback. REMOTE CONTROL SENSOR: Used to receive the signal from the Remote Control. 2. Rear panel RF IN: This socket connects to your external Aerial. RF LOOP THROUGH: This socket will feed the RF signal to either your TV or another video system.

  • Page 6: Remote Control

    Remote Control POWER: Switch the receiver in and out of Standby mode. <0>-<9>: Numeric keys. CH-/CH+: Program changing keys. MENU: Display main menu on TV screen, and press again to disappear menu. OK: To confirm current setting, or display all programs in no-menu mode.
  • Page 7 Installing the Batteries Remove the battery cover from the rear of the Remote Control and place 2xAAA size batteries inside the compartment. Please make sure the battery polarities match the polarity markings inside the compartment. 1.Open the cover 2.Install batteries 3.Close the cover Using the Remote Control To use the Remote Control, point it towards the front of the Digital Set Top Box.

  • Page 8: Connecting To A Television

    Connecting to a Television For a basic connection from your Set Top Box to the television, use the Composite connection outlined below. For a higher quality connection, use the Component Video connection outlined below combined with the Composite Audio Connection. For the highest quality connection use a direct HDMI connection, see below.

  • Page 9: First Time Installation

    First Time Installation After all connections have been made properly, switch on TV and make sure the is connected to the Main Power. Press Power button to switch If you are using the unit for the first time or or have restored the unit to Factory Default, Installation Guide Menu l l i...
  • Page 10 (a) Program Edit To edit your program preferences (lock, skip, favourite, move or delete), you will need to enter the Program Edit Menu. This Menu requires a password to access. Enter the default password '000000'. The master unlock password '888888' Set Favourite Channels You can create a shortlist of favourite programs that you can easily access.
  • Page 11 Move a TV or Radio Program 1. Select the preferred channel then press the RED button. A move symbol will appear. 2. Press UP/DOWN to move the channel. 3. Press OK to confirm. 4. Repeat the above steps to move more channels. Lock Program You can lock selected programs for restricted viewing...
  • Page 12 •Select "View" in the "Mode" option. •Press EXIT. A few seconds before changing channels, a warning message with a count -down is displayed on screen, which will change to the programmed channel when the count-down ends. (c) Sort Sort your channels from the following options: [By LCN] - Sort the channels in ascending order.
  • Page 13 (a) Auto Search This option will automatically search for channels and save them once the scanning is complete. All previously saved channels and settings will be deleted. 1. Select [Auto Search] and press OK or RIGHT to start channel search. 2.
  • Page 14 2. Press the RIGHT/LEFT key to select the channel frequency. 3. Press OK to start searching channels. If a channel is found, it is saved and added to the channels list. If channels can not be found during searching, the unit will exit automatically. (c) Country Select your country of residence.
  • Page 15 (a) OSD (On Screen Display) Language Select an OSD language. (b) Subtitle Language Select the preferred subtitle language. (c) Audio Language Select the preferred audio language for watching TV channels. If the language is not available, the default program language will be used. (6).
  • Page 16 (c) Information View model, hardware and software information. (7). USB To access the Menu, press the MENU button and select [USB] using the RIGHT/LEFT keys. The menu provides options to playback Music, Photo and Multimedia files. It can support AVI, MP3, WMA, JPEG and BMP formats. The unit will only support USB device with FAT32 / NTFS file system.
  • Page 17 (b) Photo configure: -Slide Time: adjust slide show interval to 1~8 seconds. -Slide Mode: adjust slide show effect as mode 0~59 or random. [Keep]: Play picture in its original aspect. [Discard]: Play picture in full screen mode. (c) Movie Configure: [Keep]: Play movie in its original aspect.
  • Page 18 •Select "OTHER RECORDING" in the "Mode" option. •Press EXIT. A few seconds before starting to record, a warning message with a count-down is displayed on screen, which will change to the programmed channel when the count-down ends. Once the recording has finished, a confirmation message appears on screen.
  • Page 19 Timeshift When you are playing the program, you can insert the USB, and at any time you can press the [Time shift] button, the frame will be paused, and you may press the [PLAY] button after a second, it will start to timeshift now. You may press the PLAY button to return the normal program playing, and the timeshift is continuing, you may see from the below picture’s bottom which is showing the time shift status.

  • Page 20: Troubleshooting

    Troubleshooting Problem Potential Reasons What to do Connect the power Power isn't connected No picture The power switch is not on Switch on the power Screen shows DVB-T cable not connected Plug in the DVB-T cable No Signal Check aerial cable and Aerial cable is faulty connections No or incorrect connection...

  • Page 21: Technical Specifications

    Technical Specifications Sub Item Item Parameter Tuner 44~1002MHz Input Frequency RF Input level 81.5 IF Bandwidth 6MHz/7MHz/8MHz Modulation QPSK,16QAM,64QAM,256QAM Video MPEG4 AVC/H.264 HP@L4 Decoder Format MPEG2 MP@ML.HL 576P , 720P, 1080P, 4:3 and 16:9 Output Format HDMI(V1.3), Scart Output Port Decoder Format Audio MPEG-1 (layer1&2&3 ), WMA, AC3...
