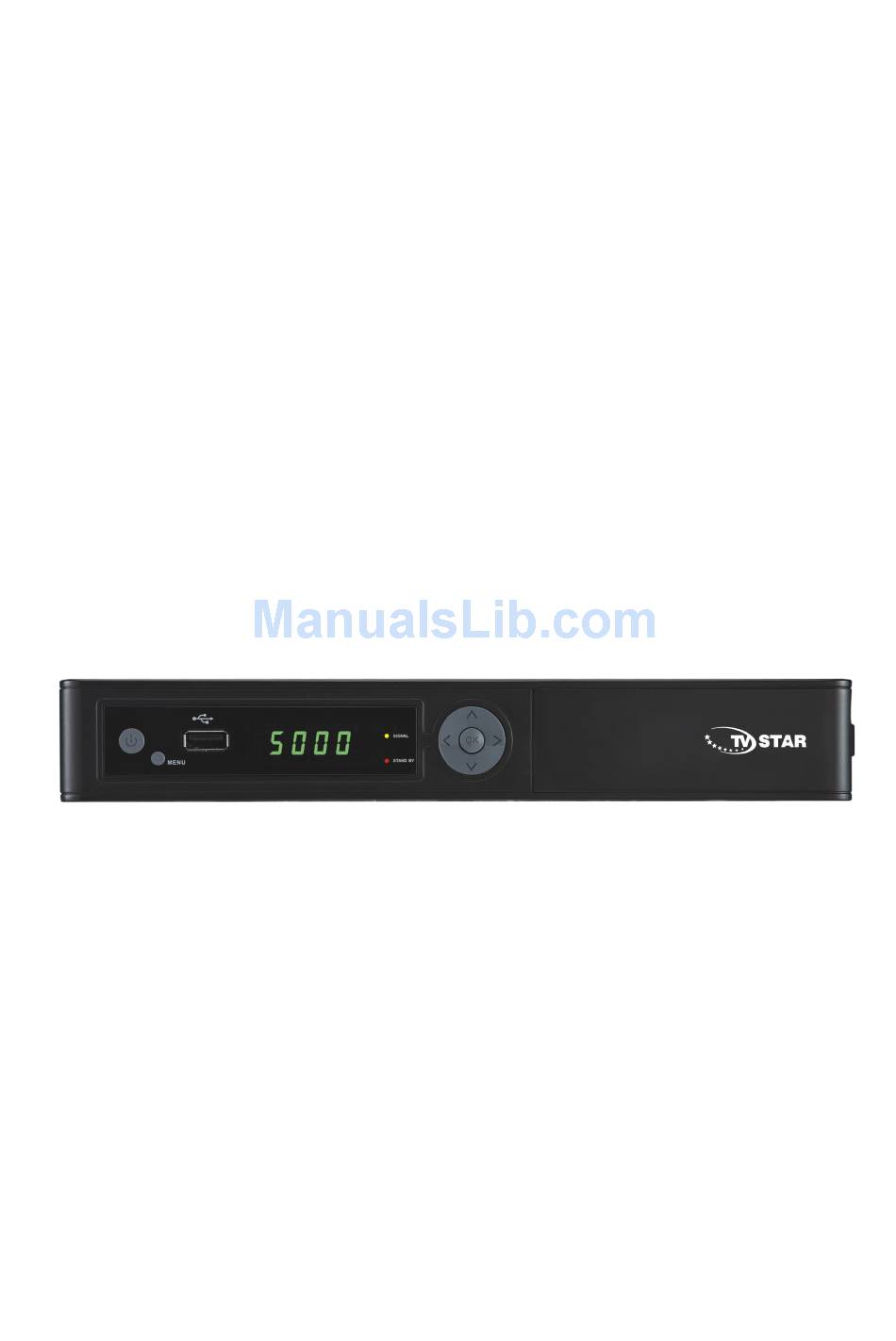

- Page 1 DIGITAL CABLE TV RECEIVER Set Top Box (STB) TV STAR C101 USER MANUAL...
-
Page 2: Table Of Contents
Table of contents Safety………………………………………………………………………….……4 General Introduction…………………………………………………………..…6 Front Panel / Rear Panel…………………………………………………………..8 Remote Control Unit………………………………………………………….……. 10 S.T.B Connection………………………………………………………………..13 Digital TV…………………………………………………………………………...16 1. Installation………………………………………………………………………...16 1.1 Manual Search………………………………………………………………….…...16 1.2 Auto Search……………………………………………………………. …..17 2. Channel Manager…………………………………………………………………….18 2.1 Channel Origanizer…. ……………………………………………………….………19 2.2 Channel Grouping………. ………………………………………………….………...19 2.3 Delete all channels………………………………………………………….……..….19 3. - Page 3 Table of contents 8.0 PVR……….……………………………………………………………………25 8.1 PVR Instruction………………………………………………………………26 9.0 TIMESHIFT…………………………………………….……………………………27 Trouble Shooting………………………………………………………………….…28 Glossary……………………………………………………………….……………...29 Specification………………………………………………………………………….31...
-
Page 4: Safety
Safety Instructions This STB has been manufactured to satisfy the international safety standards. Please read the following safety precautions carefully. MAIN SUPPLY :AC 220/240V, 50/60Hz, max 20W. OVERLOADING :Do not overload a wall outlet, extension cord or adapter as this may result in fire or electric shock. -
Page 5: Safety Instructions
Safety Instructions CONNECTION TO Cable TV Network :Disconnect the STB from the main supply before connecting or disconnecting the cable from the CATV Network CONNECTION TO THE TV :Disconnect the STB from the main supply before connecting or disconnecting the cable from TV. FAILURE TO DO SO CAN DAMAGE THE TV. -
Page 6: General Introduction
General Introduction INTRODUCTION This manual will help you learn basic functions such as installation, selecting channels and many other functions of the STB. All functions can be operated by the remote control. You can easily install it by selecting ”Installation” function and upgrade its software through communication cable. - Page 7 General Introduction UNPACKING Unpack the unit and check to make sure that all of the following items are included in the packaging. 1 x Remote Control Unit (RCU) 1 x User Manual 2 x AAA batteries 1 x Digital Cable TV Receiver 1 x A/V Cable We hope you enjoy using your digital receiver!
-
Page 8: Front Panel/ Rear Panel
Front Panel/ Rear Panel Front Panel Press to switch between Operation and Standby modes. CH: Change channels or items from top to bottom on the menus. VOL: Increase or Decrease the volume of sound. OK: Press to proceed of confirmation. Dimension: 250x 175x 38 (W x D x H ) - Page 9 Front Panel/ Rear Panel Rear Panel Symbol Function RF IN Use to connect an antenna. LOOP OUTPUT Use it when connecting to another STB. TV SCART For the video/audio input of the TV. S/PDIF Digital audio output. A/V RCA To connect the Audio/Video RCA output to TV. POWER Power ON/OFF switch.
-
Page 10: Remote Control Unit
Remote Control Unit... - Page 11 Remote Control Unit Switches between Operation and Standby modes. 0–9 Changes channels or selects the menu options. SUBTL Subtitle functions Selects favorite channel list or current channel list in the view mode. In Edit Channel mode’s“Add favorite”menu it changes the right window’s channel list. CH (▲/▼) Changes channels or items from top to bottom on the menu.
- Page 12 Remote Control Unit NEXT Press to skip the playing file to play the next file MUTE Turns sound on or off. Timer Press to display Timer Menu List Press to jump to previous channel watched. Displays the channel list and selects the item on the menu.
-
Page 13: Connection
S.T.B Connection Various equipment and TV/VCR can be connected to STB. This manual will explain common ways to connect to the equipment. If you experience any problem, please contact your sales agency. How to connect the STB to a TV set (1) Connect one end of the SCART cable to the TV SCART socket on the back of the STB and the other end to the SCART input socket on your TV. - Page 14 S.T.B Connection 2. How to connect to CATV Network Connect the RF IN socket on STB to a Cable TV network, for the local ① television broadcasting signal. Connect the TO TV socket to input socket on TV using the coaxial cable. ②...
- Page 15 S.T.B Connection 3. How to connect the Audio system Connect the AUDIO R, L socket of the STB to the Audio System like HI-FI, ① Amplifier, etc.. Audio System must capable of stereo audio ability. ② If Digital Audio or S/PDIF Optical output are available on STB, you can get better ③...
-
Page 16: Digital Tv
Digital TV Plug in the STB. Then press the “power” button on the remote control or the “Standby” button on the STB Front Panel. The Main Menu screen, the beginning of the OSD screen, will appear as shown in the following picture. The Main Menu displays various functions of the STB or you can select with “CH”... -
Page 17: Auto Search
Digital TV ALL + NIT: To Search out all the Free Channels Scrambled Channels available in CATV Network broadcasted the Cable TV Service Provider. Please enter search frequency recommended by the Cable TV Operator. Then press ”OK” button start searching, while the related menu shows details info of the scanning status. -
Page 18: Channel Manager
Digital TV Channel Manager You can easily access to any TV and Radio programs by the variable functions available from this STB, and enjoy your digital entertainment TV fun. 2.1. Channel Organizer You can organizer the channel list as you want, using color coded function keys on the remote control to operate your TV programs. -
Page 19: Channel Grouping
Digital TV 2.2 Channel Grouping In this menu,you can group your TV programes to news, scien, sport, movie, kids, music ,fashi and etc. 2.3 Delete all channels Here you can delete all channel settings before, but you have to input your password in order to protect the channels data. - Page 20 Digital TV Time:To set the local time and date to your STB, then save it. Time Mode Choose the time mode of you like to. Local Date Set the Local Date. Local Time Set the Local Time. Summer Time If you set summer time to “ON”, then your local time should add one hour more. GMT offsett Choose the format to display the Date.
- Page 21 Digital TV Parental Control: prevent unauthorized Accessing of your STB, you can set the Parental control password to you receiver. (Default password: 0000) Channel Edit Lock: To lock the Channel Edit menu prevent unauthorized adjusting of Channel. Installation Lock: To lock the installation menu to prevent unauthorized adjusting of Installation.
-
Page 22: Factory Default
Digital TV 4. Factory Default To default the factory settings, by choosing ALL or CHANNELS, and press ”OK” button to proceed. To default software settings and channels be factory settings. Channel To default only channel to be factory settings. 5 Version In this menu, you can check your STB information, like HW/SW information. -
Page 23: Usb
To play multimedia files, games, record program, update software through USB port. 7.1 Movie Go to USB movie menu, choose path to video files, select one and press “USB Play” or “OK” button to start full screen play. Press “Exit” or “USB Stop” to stop and back to movie menu. -
Page 24: Photo
7.3 Photo Go to USB photo menu, choose path to photo files, for the picture selected, there is preview in right side, and use “OK” button to full screen display. Press “Exit” or “USB Stop” to stop and back to picture menu. Format supported Skip When display the picture in full screen, use “previous”... -
Page 25: Pvr
8.0 PVR Record favorite TV program to USB device, and review it at anytime in future. Partition Select Before to record TV program, connect hard disk to receiver, and go to PVR partition select menu, choose disk partition, where the recorded file is supposed be saved. -
Page 26: Pvr Instruction
PVR Instruction Supported Device: Most of popular USB2.0 Hard Drive Disk can be supported by our STB, however due to there are too many types of HDD available in the market, if you find one particular HDD can not work with our STB, please kindly provide it to us, and we will be happy to solve it for you in shortest time. -
Page 27: Timeshift
TIMESHIFT 9．0 TimeShift Never miss an Excellent moment of your favorite LIVE Sports or Movie scene, now with C101 you can easily enjoy it with just one press of button. TIMESHIFT MODE: Make sure you have USB device plugged into the STB, and there are free storage. -
Page 28: Troubleshooting
Troubleshooting When you found some problems about this STB, please check the table as below. Because these may not be any serious problems: Fault Phenomenon probably reasons Resolve Put firmly the power plug to the Power on, but no Please carefully check the socket on display on screen power plug, to see it is in... -
Page 29: Glossary
Specification 16 QAM,32 QAM,64 QAM,128 QAM,256 Waveform Demodulator Symbol Rate 3.0-7.0MS/s Standard ISO/IEC 13818-3 Decoding MPEG2&MPEG1 layer I&II Audio Mode Mono, Dual,Stereo,Joint Stereo Decoder Bit Rate Max 384kbps Sampling 32,44.1,48KHz Fre. Standard ISO/IEC 13818-2 Profile Level MPEG-2 MP@ML Output level 1.0 Vp-p Video Aspect Ratio... - Page 30 Power cord 1.2m Accessory RCA cable 3x RCA, 1.2m Battery 1.5vx2 Book manual Supply 220~240VAC 50/60Hz Voltage Power 30 watts Max Consumption Standby General 3 watts max. Power Operation +5°C to +40°C Temperature Storage -20°C to 70°C Temperature Dimension 220mm X124mmx32mm...
