Residential Outdoor Gas

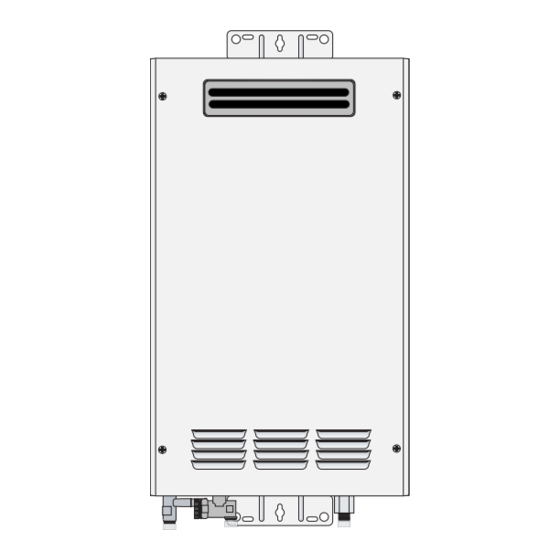

Tankless Water Heater
!
WARNING: If the information in these instructions is not followed exactly,
a fire or explosion may result causing property damage, personal injury or death.
!
FOR YOUR SAFETY!
— Do not store or use gasoline or other
flammable vapors or liquids or other
combustible materials in the vicinity of this or
any other appliance. To do so may result in an
explosion or fire.
— WHAT TO DO IF YOU SMELL GAS
●
Do not try to light any appliance.
●
Do not touch any electrical switch; do not
use any phone in your building.
●
Immediately call your gas supplier from a
neighbor's phone. Follow the gas
supplier's instructions.
Printed in Japan
Use & Care Manual
With Installation Instructions for the Installer
Warning: This water heater is not suitable
!
for use in manufactured (mobile) homes!
The purpose of this manual is twofold: one, to provide the installer with
the basic directions and recommendations for the proper installation and
adjustment of the water heater; and two, to the owner–operator, to
explain the features, operation, safety precautions, maintenance and
troubleshooting of the water heater. This manual also includes a parts
list.
It is imperative that all persons who are expected to install, operate or
adjust this water heater read the instructions carefully so they may
understand how to perform these operations. If you don't understand
these instructions or any terms within it, seek professional advice.
Any questions regarding the operation, maintenance, service or
warranty of this water heater should be directed to the seller from whom
it was purchased. If additional information is required, refer to the
section on If You Need Service.
Do not destroy this manual. Please read carefully and keep in a safe
place for future reference.
!
Recognize this symbol as an indication of Important Safety
Information!
!
California Proposition 65 Warning: This product contains
chemicals known to the State of California to cause cancer, birth
defects or other reproductive harm.
●
If you cannot reach your gas supplier, call
the fire department.
●
Do not return to your home until authorized
by the gas supplier or fire department.
— Improper installation, adjustment,
alteration, service or maintenance can cause
property damage, personal injury, or death.
Refer to this manual. Installation and service
must be performed by a qualified installer,
service agency or the gas supplier.
®
199,900 BTU Max Input
AP13592 (06/04)
31-51482
Advertisement
Table of Contents
Related Manuals for Paloma PTG-74X
Summary of Contents for Paloma PTG-74X
- Page 1 Use & Care Manual With Installation Instructions for the Installer 199,900 BTU Max Input Residential Outdoor Gas Tankless Water Heater Warning: This water heater is not suitable for use in manufactured (mobile) homes! The purpose of this manual is twofold: one, to provide the installer with the basic directions and recommendations for the proper installation and adjustment of the water heater;...
-
Page 2: Table Of Contents
FOR YOUR RECORDS Safety Information Safety Precautions..3–6 Write the model and serial numbers here: LP Gas Models ... 5 Installation Instructions You can find them on a label on the appliance. Location . -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING. Be sure to read and understand the entire Use and Care Manual before attempting to install or operate this water heater. It may save you time and money. Pay particular attention to the Safety Instructions. Failure to follow these warnings could result in serious bodily injury or death. -
Page 4: Water Temperature Setting
IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING. DANGER! WATER TEMPERATURE SETTING Safety and energy conservation are factors to be considered when selecting the water temperature setting of a water heater’s remote control. Water temperatures above 125°F can cause severe burns or death from scalding. Be sure to read and follow the warnings outlined on the label pictured below. - Page 5 DANGER! NATURAL GAS AND LIQUEFIED PETROLEUM MODELS Both LP and natural gas have an odorant added to aid in detecting a gas leak. Some people may not physically be able to smell or recognize this odorant. If you are unsure or unfamiliar with the smell of LP or natural gas, ask the gas supplier.
-
Page 6: Safety Precautions
IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING. WARNING! For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life. -
Page 7: Location
Installing the water heater. This water heater must be installed in accordance with these instructions, local codes, utility company requirements, and/or in the absence of local codes, use the latest edition of the American National Standard/National Fuel Gas Code. A copy can be purchased from either the American Gas Association, 400 North Capitol Street Northwest, Washington, DC 20001 as ANSI standard Z223.1 or National Fire Protection Association, 1 Batterymarch Park, Quincy, MA 02269 as NFPA 54. -
Page 8: Combustion And Ventilation Air
Installing the water heater. Proper operation of the water heater requires air for combustion and ventilation. Provisions for combustion and ventilation air must comply with referenced codes and standards. Combustion and Ventilation Air This water heater is for OUTDOOR It must NOT be installed indoors or in a installation ONLY. -
Page 9: Water Connections
Mounting the Water Heater Make sure the location of the appliance The brackets can be adjusted to change CAUTION: allows for easy access and operation. the distance between the back of the Reinforcement of the wall is appliance and the wall within the range of required in case the wall is Wall studs should be utilized when 3/8”... -
Page 10: Relief Valve
Installing the water heater. Water Supply Connections Continued. Install a shutoff valve near the inlet of the Install a Check Valve between the water Water Filter water heater for service and draining heater and the water shutoff valve. (See purposes. illustration the top left). -
Page 11: Gas Supply
WARNING: Do not attempt to convert this water heater for use with a different type of gas other than the type shown on the rating plate. Such conversion could result in hazardous operating conditions. Gas Supply It is recommended that a Manual Gas Compound used on the threaded joints of Appliance Shutoff Valve be installed at the the gas piping must be of the type... -
Page 12: Venting
Installing the water heater. Flue Terminal Location The location of the vent terminal depends on the following minimum clearances and considerations (see illustration): Twelve (12) inches above grade level and above normal snow levels. Soffit vents Four (4) feet below, or four (4) feet horizontally from any door, window, soffit, under eave vent or gravity air inlet to the building or other appliances, or from gas or electric Fresh... -
Page 13: Remote Control
WARNING: Field wiring connections and electrical grounding must comply with local codes, or in the absence of local codes, with the latest edition of the National Electrical Code, ANSI/NFPA 70, or in Canada, Canadian Electrical Code, CSA C22.1 Part 1. Remote Control Installation ●... - Page 14 Installing the water heater. WARNING: Field wiring connections and electrical grounding must comply with local codes, or in the absence of local codes, with the latest edition of the National Electrical Code, ANSI/NFPA 70, or in Canada, Canadian Electrical Code, CSA C22.1 Part 1. Remote Control Installation Continued...
-
Page 15: Electrical Connection
WARNING: Field wiring connections and electrical grounding must comply with local codes, or in the absence of local codes, with the latest edition of the National Electrical Code, ANSI/NFPA 70, or in Canada, Canadian Electrical Code, CSA C22.1 Part 1. Electrical Connection HARDWIRING THE ELECTRICAL WARNING: Shock... -
Page 16: Typical Installation
Installing the water heater. Typical Installation Flue Terminal PRIORITY °F POWER ON/OFF Remote Control (Must be installed Air Relief INDOORS) Valve Manual Gas Supply Line Shut-off To Hot Water Valve Faucet(s) NOTICE: The National Fuel Gas Code (NFGC) mandates a manual gas shut-off valve: See (NFGC) for Manual Gas complete instructions. -
Page 17: Pipe Insulation
Insulation Blankets Insulation blankets, available to the The use of unauthorized energy saving WARNING: If local general public, for external use on gas devices may shorten the life of the water codes require external water heaters are not necessary. The heater and may endanger life and property. -
Page 18: Installation Checklist
Installing the water heater. Installation Check List C. Gas Supply A Water Heater Location ❑ ❑ Gas type matches rating plate. Installed OUTDOORS. ❑ ❑ Gas supply pressure is sufficient for the water Close to area of mostly used outlet. heater. -
Page 19: Lighting The Water Heater
Lighting the water heater. Before operating this water heater, be sure to read and follow the instructions on the label pictured below and all other labels on the water heater, as well as the warnings printed in this manual. Failure to do so can result in unsafe operation of the water heater resulting in property damage, personal injury, or death . -
Page 20: Water Temperature
Operating the water heater. Safety Precautions Do turn off manual gas shut-off valve if water heater Do Not store or use gasoline or other flammable has been subjected to over heating, fire, flood, vapors and liquids, such as adhesives or paint thinner, physical damage or if the gas supply fails in vicinity of this or any other appliance. - Page 21 Water Temperature Setting… Maximum water temperature occurs while Only qualified service personnel should the burner is on. To determine the water perform this adjustment. Only factory temperature, turn on a hot water faucet authorized remote control(s) should be and place a thermometer in the water used.
-
Page 22: Care And Cleaning
Care and cleaning of the water heater. Routine Preventative Maintenance DANGER: Before manually operating the Properly maintained, your water heater Inspect the area around the water heater to relief valve, make certain will provide years of dependable trouble- ensure a safe operating environment. Keep no one will be exposed to free service. -
Page 23: Vent Inspection
Care and cleaning of the water heater. Housekeeping continued CLEANING THE REMOTE CONTROL(S): ● ● DO NOT remove any label including Make sure the unit is OFF and the the rating plate while cleaning or electrical power supply has been servicing. -
Page 24: Draining
Care and cleaning of the water heater. Draining the Water Heater Below are instructions for draining water To put the water heater back into out of the water heater. operation after draining, follow the steps below. Turn off the switch on the remote control. -
Page 25: Troubleshooting Tips
Before You Call For Service… Troubleshooting Tips Save time and money! Review the charts on the following pages first and you may not need to call for service. This water heater incorporates a combustion shut off device that shuts the operation of the water heater down if undesirable combustion conditions occur. -
Page 26: Customer Service
Error Code Guide When an error code is displayed: If the error code is still shown: ● Close the hot water faucet, turn off the switch on the ● Turn off the hot water faucet and turn off the switch on remote control. -
Page 27: Parts List
Replacement Parts. For models using natural or LP gas. Instructions For Placing a Parts Order Address parts orders to the distributor or Part description (as noted below) and WARNING: For your store from where the water heater was number of parts desired. safety, DO NOT attempt to purchased. -
Page 28: If You Need Service
IF YOU NEED SERVICE 1. Should you have any questions about your new water heater, or if it requires adjustment, repair, or routine maintenance, it is suggested that you first contact your installer, plumbing contractor or previously agreed upon service agency. In the event the firm has moved, or is unavailable, refer to the telephone directory, commercial listings or local utility for qualified service assistance.
Need help?
Do you have a question about the PTG-74X and is the answer not in the manual?
Questions and answers
Remote on Paloma model ptg-74pvp-2 won’t light up when unit is plugged in
The remote on the Paloma PTG-74PVP-2 may not light up when the unit is plugged in due to one or more of the following reasons:
- The unit is not turned "ON". Turn the unit "ON" using the button on the remote control.
- There is no electricity or the power supply is inadequate. Check that proper power is being supplied to the unit.
- An error code may be displayed. Check the remote for any error code and refer to instructions or contact a dealer for service.
This answer is automatically generated
Remote is displaying code L014
