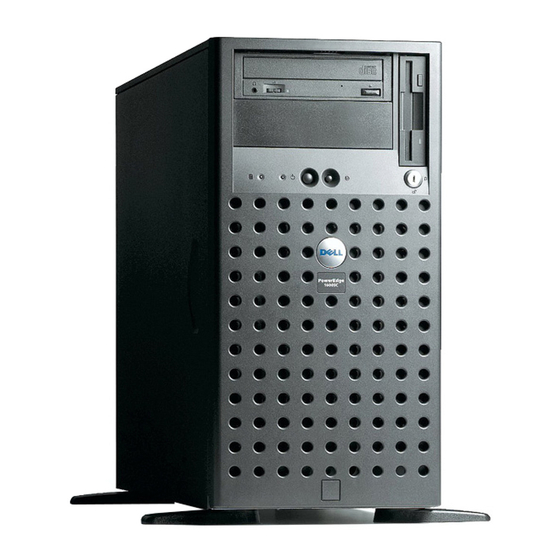

Dell PowerEdge 1600SC Service Manual

System Overview: Dell PowerEdge 1600SC Systems Service Manual
Back to Contents Page

System Overview

Dell™ PowerEdge™ 1600SC Systems Service Manual

System Features

Supported Operating Systems
Power Protection Devices
Other Documents You May Need
Specifications
System Features
The system offers the following features:
533-MHz front side bus systems:
Up to two Intel® Xeon™ microprocessors with an internal processing speed of at least
2.0 GHz, a 533-MHz front side bus speed, and a 512-KB Level 2 cache
400-MHz front side bus systems:
Up to two Intel Xeon microprocessors with an internal processing speed of at least 1.8
GHz, a 400-MHz front side bus speed, and a 512-KB Level 2 cache
NOTE: Use the System Setup program to view microprocessor information. For more
information, see
A minimum of 128 MB of ECC DDR 266 SDRAM memory, upgradable to a maximum of 4 GB
by installing 128-, 256-, 512-MB, or 1-GB registered memory modules in the four memory
module sockets on the system board
Support for the following internal hard-drive configurations:
Up to six 1-inch Ultra3 SCSI hot-plug hard drives
Up to four 1-inch non-hot-plug SCSI or IDE hard drives
Integrated SCSI controller for SCSI hard drives and integrated IDE controller for IDE hard
drives, CD drive, and optional DVD and combination drives
Optional single-channel RAID controller for SCSI RAID or optional quad-channel RAID
controller for IDE RAID
Two 5.25-inch peripheral drive bays that support the following optional drives: CD, DVD,
http://support.jp.dell.com/docs/systems/pe1600sc/en/sm/overview.htm (1 av 7)2004-12-10 10:45:50
"Using the System Setup Program."
