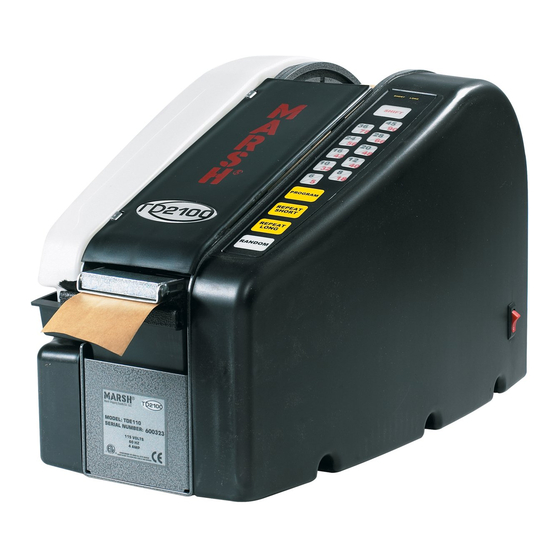

TD2100 Electric Gummed Tape Dispenser
Owner's Manual
M a r s h S h i p p i n g S u p p l y C o . L L C
926 McDonough Lake Road
Collinsville, IL 62234
www.msscllc.com
Customer Service
Phone: (618)-343-1006
Fax: (618)-343-1016
Technical Support: (573)-437-7030
1
42900 Rev. 09-30-2008

Advertisement

loading
Need help?

Need help?

Do you have a question about the TD2100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Marsh TD2100

Summary of Contents for Marsh TD2100

  • Page 1 TD2100 Electric Gummed Tape Dispenser Owner’s Manual M a r s h S h i p p i n g S u p p l y C o . L L C 926 McDonough Lake Road Collinsville, IL 62234 www.msscllc.com...

  • Page 2: Table Of Contents

    A wall-socket must be close to the product and readily accessible. The overall system is protected against overload by the branch circuit protection in accordance with the current edition of the NEC or CEC Table of Contents Introduction............................. 3 Warranty Information: ........................4 Specifications..........................

  • Page 3: Introduction

    Should you require replacement parts, please refer to the provided parts list and the corresponding exploded view drawings. For assistance, or if you would like to obtain information about any Marsh product, contact your Marsh distributor or MSSC, LLC at:...

  • Page 4: Warranty Information

    18 months. Your Marsh distributor will provide free service for ninety (90) days from the beginning of the warranty period. The warranty period begins on the original installation date as indicated on your on-line warranty registration.

  • Page 5: Specifications

    Specifications Net and Shipping Weight: 26 pounds (11.8 kg); 32 pounds (14.5 kg) Water Bottle Capacity: 70 ounces (2070 ml) Tape: Dry gummed tape – paper or reinforced – between 1 to 3 inches (25.4 to 76.2 mm) wide, up to 1000 feet (304.8 m) long and 9 (228.6 mm) inches max roll diameter Electrical Requirements: 115 volts AC or 220 volts AC...

  • Page 6: Setup Instructions

    Setup Instructions Loading Tape – refer to Figures 2 & 3 1. Open the top cover of the machine. 2. Adjust the tape guides, with the tape guide turnbuckle, wide enough to get the tape between them. 3. Place the roll of tape into the machine. 4.
  • Page 7 Top Roller Pressure Plate Tape 1000 ft. roll Pinch Roller of tape Pinch Roller Shaft Cleaning Gaps Gummed Side out Cutter Assembly Figure 3 – Tape Routing Water Bottle Duck Bill Valve Tape Weight Brush Water Bottle Tank Brackets Post Figure 4 –...
  • Page 8 Filling the Water Bottle – Figure 4 1. Remove the water bottle from the machine. 2. Remove the duckbill valve from the water bottle. 3. Fill the water bottle with water. 4. Place the duckbill valve back into the water bottle. 5.

  • Page 9: Operating Instructions

    Pre-Programmed Lengths and SHIFT – There are 20 common lengths of tape pre- programmed into the memory of your TD2100 automatic tape dispenser. Simply press one of the ten length keys and the length in black is dispensed. To dispense the lengths in red press the SHIFT key then press the corresponding length key.
  • Page 10 TD2100 PREMIUM Keypad The PREMIUM keypad offers all the same function as the STANDARD keypad plus it is possible for you to dispense any length of tape from 5” to 99” in 1” increments. The exception from the STANDARD keypad is there are 10 preset lengths versus 20. There are two versions of the PREMIUM keypad, Short and Long.
  • Page 11 TD2100 PREMIUM Keypad The Premium keypad offers all the same function as the STANDARD keypad plus it is possible for you to dispense any length of tape from 5” to 99” in 1” increments. The exception from the STANDARD keypad is there are 10 preset lengths versus 20. There are two versions of the PREMIUM keypad, Short and Long.

  • Page 12: Maintenance

    Maintenance The Marsh TD2100 requires very little maintenance, but it is important to regularly clean the brush, brush tank, cutter mechanism, and remove debris from the tape path. CAUTION: Before beginning maintenance or adjustments be sure the tape machine is turned OFF and unplugged.
  • Page 13 Cleaning the Cutter Assembly – Figure 9 1. Turn the power switch to the OFF position and unplug the power cord. 2. Open top cover. 3. Remove pressure plate. 4. Remove the tape from the tape path. 5. Using generous amount of a non-flammable lubricant (MG Chemicals Super Penetrating Lubricant [www.mgchemicals.com], is recommended), spray the cutter assembly behind the cutter guard, using the available gaps in front and behind the cutter guard.

  • Page 14: Troubleshooting

    Troubleshooting This section describes potential problems you may encounter while working with your TD2100 tape machine and outlines possible causes and solutions for these problems. To avoid problem situations, be sure to follow the procedures in the setup and maintenance sections. Before performing any repair procedures be sure that the power switch is in the OFF position and the Tape Machine is disconnected from the power source.
  • Page 15 Item Number Part Number Description RP40401 Water Bottle with Duckbill RP33460 Duckbill Valve (Qty 5) RP40404 Rear Water Bottle Bracket with Screw RP40403 Front Water Bottle Bracket with Screw RP40407 Brush RP40405 Brush Tank RP40517 Tape Weight with Screw RP40325 Cutter Guard with Screws RP40310 Top Cover...
