Marsh TD2100 Owner's Manual

Manual gummed tape dispenser
Hide thumbs Also See for TD2100:

Advertisement

Quick Links

See also: Owner's Manual , Technical Manual

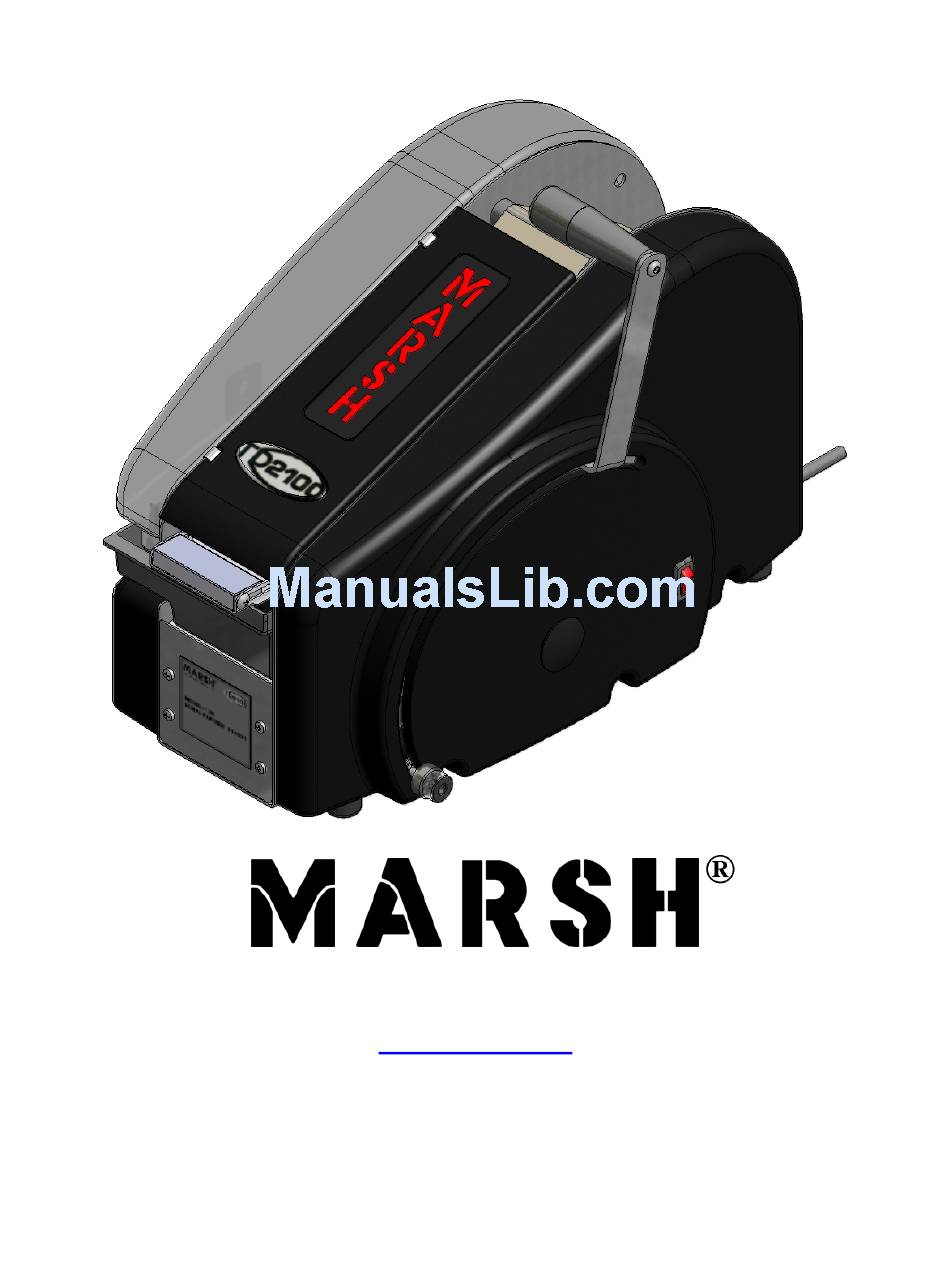

TD2100 Manual Gummed Tape Dispenser
Owner's Manual
M a r s h S h i p p i n g S u p p l y C o . L L C
926 McDonough Lake Road
Collinsville, IL 62234
www.msscllc.com
Customer Service
Phone: (618)-343-1006
Fax: (618)-343-1016
Technical Support: (573)-437-7030
1
40974 Rev. 03-24-2009

Advertisement

loading
Need help?

Need help?

Do you have a question about the TD2100 and is the answer not in the manual?

Questions and answers

Related Manuals for Marsh TD2100

Summary of Contents for Marsh TD2100

  • Page 1 TD2100 Manual Gummed Tape Dispenser Owner’s Manual M a r s h S h i p p i n g S u p p l y C o . L L C 926 McDonough Lake Road Collinsville, IL 62234 www.msscllc.com...

  • Page 2: Table Of Contents

    A wall-socket must be close to the product and readily accessible. The overall system is protected against overload by the branch circuit protection in accordance with the current edition of the NEC or CEC Table of Contents Introduction............................. 3 Warranty Information ........................4 Specifications..........................

  • Page 3: Introduction

    Should you require replacement parts, please refer to the Parts List. Should you need assistance, or if you would like to obtain information about any Marsh product, contact your Marsh distributor or MSSC, LLC at: MSSC, LLC...

  • Page 4: Warranty Information

    18 months. Your Marsh distributor will provide free service for ninety (90) days from the beginning of the warranty period. The warranty period begins on the original installation date as indicated on your on-line warranty registration.

  • Page 5: Specifications

    Specifications Shipping Weight: 31 pounds (14.1 kg) Water Bottle Capacity: 70 ounces (2070 ml) Tape: Dry gummed tape – paper or reinforced – between 1 to 3 inches (25.4 to 76.2 mm) wide, up to 1000 feet (304.8 m) long and 9 inches (228.6 mm) max roll diameter For Units with Heater: Electrical Requirements:...

  • Page 6: Setup Instructions

    Setup Instructions Pressure Plate Top Roller Tape Guide Tape Guide Turnbuckle Pinch Roller Lighted Power Switch Top Cover (Units with Heater Only) Length Scale Mechanical Stop Figure 2 – Loading Tape Loading Tape – Figure 2 & 3 1. Open the top cover of the machine. 2.
  • Page 7 Top Roller Pressure 1000 ft. Pinch Roller Pinch Plate Roll of Shaft Roller Tape Cutter Assembly Gummed Side Out Tape Figure 3 – Tape Routing Water Bottle Duck bill Valve Tape Weight Brush Tank Water Bottle Post Brackets Figure 4 – Filling the Water Bottle, Adjusting the Brush Tank Water Level, Adjusting the Tape Weight 40974 Rev.
  • Page 8 Filling the Water Bottle – Figure 4 1. Remove the water bottle from the machine. 2. Remove the duckbill valve from the water bottle. 3. Fill the water bottle with water. 4. Place the duckbill valve back into the water bottle. 5.

  • Page 9: Operating Instructions

    Caution: The knurled nut should never be removed. Maintenance The Marsh TD2100 requires very little maintenance, but it is important to regularly clean the brush, brush tank, cutter mechanism, and remove debris from the tape path. A suggested time for cleaning the machine and its parts is at the same time as when the water bottle needs to be refilled.
  • Page 10 4. Remove the tape from the tape path. 5. Using minimal amount of a non-flammable lubricant (MG Chemicals Super Penetrating Lubricant [www.mgchemicals.com], WD 40, or Marsh Industrial Silicon Spray are recommended), spray the cutter assembly behind the cutter guard, using the available gaps in front and behind the cutter guard.
  • Page 11 Cleaning the Tape Path – Figure 6 1. For units with heater, turn the power switch to the off position and unplug the power cord. 2. Open the top cover. 3. Remove pressure plate. 4. Remove tape from tape path. 5.

  • Page 12: Troubleshooting

    Troubleshooting This section describes potential problems you may encounter while working with your TD2100 tape machine and outlines possible causes and solutions for these problems. To avoid problem situations, be sure to follow the procedures in the setup and maintenance sections. For units with heater, before performing any repair procedures be sure that the power switch is in the off position and is disconnected from the power source.

  • Page 13: Parts List

    Parts List Item Number Part Number Description RP40401 Water Bottle RP41257 Handle RP40505 Pressure Plate RP40404 Rear Water Bottle Bracket with Screw RP33460 Duck Bill Valve RP40403 Front Water Bottle Bracket RP40407 Brush RP40405 Brush Tank RP40517 Tape Weight with Screw RP41325 Cutter Guard with Screws RP41302...
