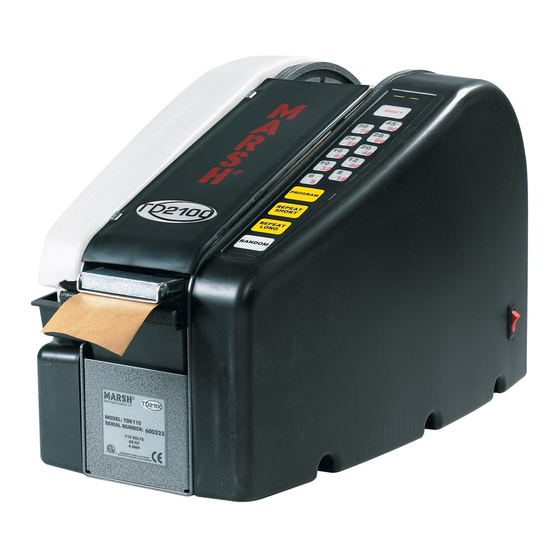

Marsh TD2100 Electric Taper
Technical Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TD2100 and is the answer not in the manual?

Questions and answers

Related Manuals for Marsh TD2100

Summary of Contents for Marsh TD2100

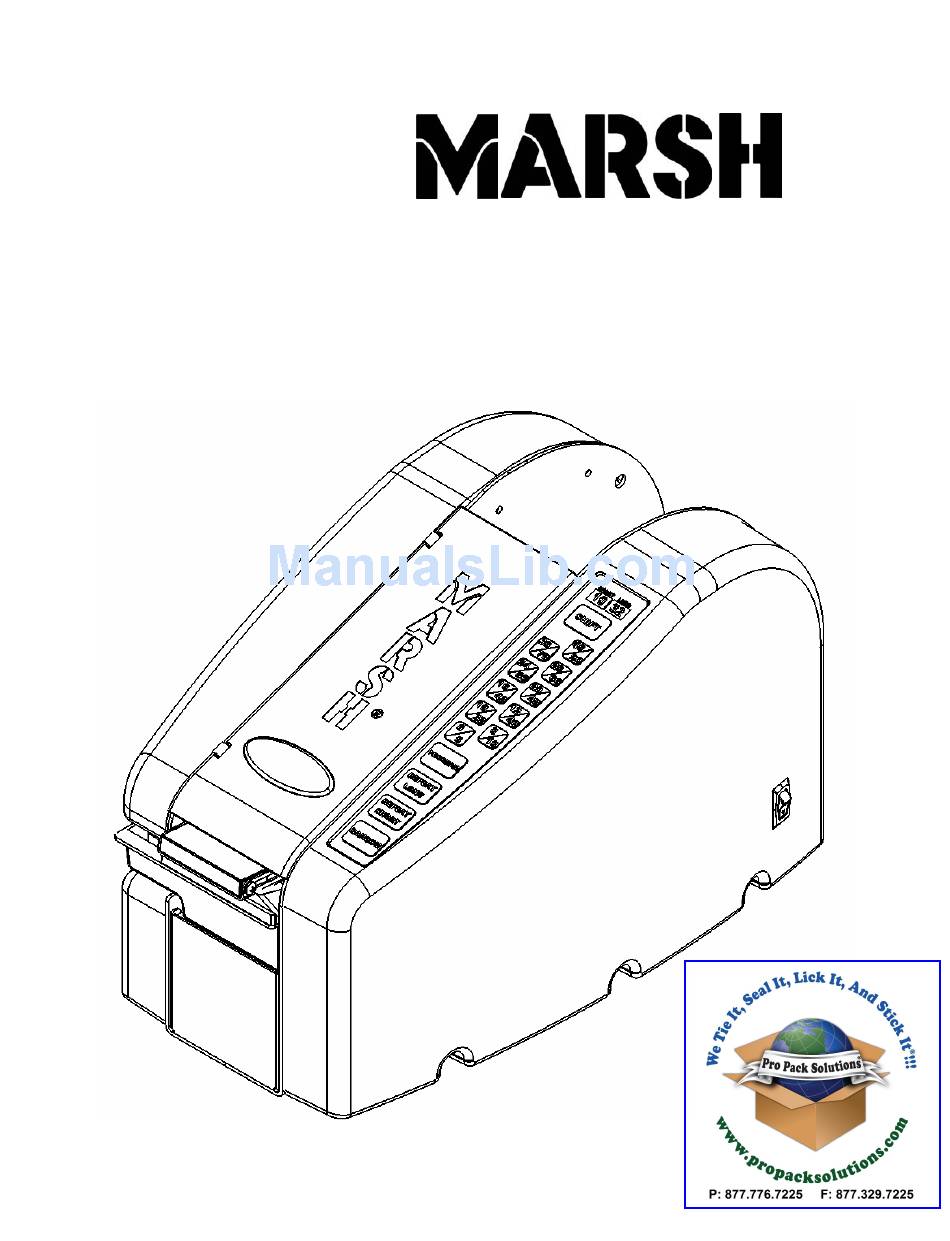

  • Page 1 ® Marsh Shipping Supply Co. LLC Marsh TD2100 Electric Taper Technical Manual...

  • Page 2: Table Of Contents

    Removing the Tape Channel Plate http://www.propacksolutions.com/2100- Attaching the Tape Channel Plate Electric_c_428.html Removing the Tape Basket/Motor Cover or call 877-776-7225 toll free. Attaching the Tape Basket/Motor Cover 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...
  • Page 3 Removing the Weighted Brush Cover Attaching the Weighted Brush Cover Correctly routing the tape and pressure plate Properly positioning the fixed blade holder 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 4: Introduction

    Marsh distributor or Marsh Shipping Supply Company, LLC at: Marsh Shipping Supply Company, LLC Address: 926 McDonough Lake Road Collinsville, IL 62234 USA Telephone: (618)-343-1006 Fax: (618)-343-1016 E-mail: customerservice@msscllc.com Website: www.msscllc.com 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 5: Specifications

    7 feet (2.3 m) Dimensions: 10.1 in 25.5 cm 11.9 in 30.1 cm 18.9 in 48.0 cm Figure 1 – Tape Machine Dimensions 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 6: Setup Instructions

    7. Place the pressure plate over the tape and release the pinch roller. 8. Close the top cover. Tape Guide Flap Turnbuckle Figure 2 – Loading Tape 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...
  • Page 7 Figure 4 – Filling the Water Bottle, Adjusting the Brush Tank Water Level, Adjusting the Tape Weight Water Bottle Duckbill Valve Retaining Screw Tape Weight Water Bottle Brackets Brush Post Tank 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...
  • Page 8 3. Slide the tape weight backwards less pressure, typically light weight tapes which will apply less water on the tape. 4. Tighten the retaining screw. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 9: Operating Instructions

    RANDOM – The RANDOM key allows the user to dispense tape while pressed and the machine will cut the tape when the RANDOM key is released. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...
  • Page 10 TD2100 PREMIUM Keypad - The Premium keypad offers all the same function as the STANDARD keypad plus it is possible for you to dispense any length of tape from 5” to 99” in 1” increments. The exception from the STANDARD keypad is there are 10 preset lengths versus 20.
  • Page 11 TD2100 PREMIUM Keypad - The Premium keypad offers all the same function as the STANDARD keypad plus it is possible for you to dispense any length of tape from 5” to 99” in 1” increments. The exception from the STANDARD keypad is there are 10 preset lengths versus 20.

  • Page 12: Maintenance

    Maintenance The Marsh TD2100 requires very little maintenance, but it is important to regularly clean the brush, brush tank, cutter mechanism, and remove debris from the tape path. CAUTION: Before beginning maintenance or adjustments be sure the tape machine is turned OFF and unplugged.
  • Page 13 8. Referring to the tape loading section, place the tape back into the tape path. 9. Place the pressure plate back in the machine. 10. Close the top cover. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 14: Troubleshooting

    (refer to Removing the Tape Channel Plate [p. 30] to gain access to the feed wheel set screw). 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 15: The On/Off Switch Is Not Illuminated

    Replacing the Motor (p. 62). 7. Is the controller board faulty? 7. Replace the controller board. Refer to Replacing the Controller Board (p. 45). 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...
  • Page 16 This is how the solenoid spring Obselete Model should look once the tape Fig 11 channel plate is removed (refer to Removing the Tape Channel Plate [p. 34]). 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 17: The Machine Doesn't Operate When A Key Is Pushed

    2. Tighten the feed wheel set screw loose? (refer to Removing the Tape Channel Plate [p. 30] to gain access to the feed wheel set screw). 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 18: The Cutter Doesn't Cut The Tape

    5. Has the fixed blade holder been 5. Properly position the fixed blade holder. knocked out of the correct position ? (p. 76) 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 19: The Tape Is Jamming Or Tearing

    If that does not work, the controller board needs to be replaced. Refer to Replacing the Controller Board (p. 45). 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 20: The Tape Doesn't Stick To The Carton

    1. Adjust the water level and/or the tape weight. 2. Are the cartons dirty? 2. The cartons need to be free of dust and dirt for proper adhesion. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 21: The Heater Doesn't Heat

    2. Is the machine in program 2. Press program to exit program mode? mode or program the machine. Refer to Operating Instructions (p. 9). 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 22: Repair

    ” long hex key ” hex key ” hex key ” hex key Loosen both screws on the bottom of the chassis. Fig 13 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 23: Removing The Right Side Cover

    8. Place the water bottle and duckbill valve onto the water bottle brackets with the post of the water tank into the duckbill valve. The machine is now ready to continue normal operation. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...
  • Page 24 8. Remove the two ribbon cable connecting the display and the key pad from the controller board. 9. Remove the power wires from the switch 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 25: Removing The Left Side Cover

    5. Place the water bottle and duckbill valve onto the water bottle brackets with the post of the water tank into the duckbill valve. The left side cover is now attached. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...
  • Page 26 4. Slide the left side cover towards the bottom of the machine and pull the left side cover away. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 27: Removing The Timing Belt

    3. Facing the right side of the machine, remove the timing belt from the large timing pulley first, then from the small timing pulley. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 28: Removing The Small Timing Pulley

    The machine is now ready to continue normal operation. Fig 17 Small Timing Pulley 5. Remove the small timing pulley from the shaft of the motor. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 29: Removing The Large Timing Pulley

    NOTE: Make sure that any washers that the feed wheel shaft. were on the feed wheel shaft are now placed back on the feed wheel shaft. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 30: Removing The Pinch Roller

    8. Release the pinch roller spring gently. 9. Place pressure plate underneath the pinch roller. 10. Attach the water bottle. The machine is now ready to continue normal operation. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...
  • Page 31 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...
  • Page 32 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 33: Removing The Weighted Brush Cover

    7. Attach the right side cover (refer to Attaching the Right Side Cover [p. 23]). The machine is now ready to continue normal operations 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...
  • Page 34 5. Remove the screws from the flapper shaft. 6. Slide the flapper shaft, weighted brush cover, tape weight, and bushings from the front of the machine. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 35: Removing The Tape Channel Plate

    11. Attach the right side cover (refer to Attaching the Right Side Cover [p. 23]). The machine is now ready to continue normal operation. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...
  • Page 36 11. Remove the two screws connecting the tape channel plate and the dead roller. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 37: Removing The Tape Basket/Motor Cover

    9. Attach the right side cover (refer to Attaching the Right Side Cover [p. 23]). The machine is now ready to continue normal operation. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...
  • Page 38 1. Insert the tape basket/motor cover into the machine going straight through the top and middle of the machine. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 39: Removing The Water Tank Holder

    6. Attach the right side cover (refer to Attaching the Right Side Cover [p. 23]). The machine is now ready to continue normal operation. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...
  • Page 40 Fig 23 Water Tank Holder 5. Loosen the screws in the coder bar and dead roller. 6. Remove the front cover. 9. Remove the water tank holder. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 41: Removing The Movable Cutter Assembly

    10. Attach the right side cover (refer to Attaching the Right Side Cover [p. 23]). The machine is now ready to continue normal operation. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...
  • Page 42 Fig 24 Movable Cutter Assembly 10. Remove the solenoid spring from the shoulder bolt connecting it from the solenoid. 11. Remove the shoulder bolt w/ pin holding the movable cutter to the solenoid. 12. Rotate the movable cutter 13. Twist the movable cutter assembly towards the front of the assembly and remove from the machine.

  • Page 43: Removing The Gearbox/Motor Mount With The Motor Attached

    (refer to Replacing the Motor [p. 62]). 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 44: Attaching The Gearbox/Motor Mount With The Motor Attached

    10. Attach the right side cover (refer to Attaching the Right Side Cover [p. 23]). The machine is now ready to continue normal operation. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...
  • Page 45 11. Pull the gearbox/motor 12. Remove all the electrical mount assembly out of the connections from the gearbox/motor machine. mount. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 46: Replacing The Movable Cutter Blade

    9. Attach the right side cover (refer to Attaching the Right Side Cover [p. 23]). The machine is now ready to continue normal operation. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...
  • Page 47 2. Remove the connectors labeled J1, J2, PHOTO EYE, HEATER, KEYPAD, DISPLAY, MOTOR, and SOL from the controller board. 3. Remove the screws from the controller board. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 48: Replacing The Encoder

    8. Attach the left side cover (refer to Attaching the Left Side Cover [p. 25]). The machine is now ready to continue normal operations. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...
  • Page 49 ± ”. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 50: Replacing The Brush

    9. Attach the right side cover (refer to Attaching the Right Side Cover [p. 23]). The machine is now ready to continue normal operation. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...
  • Page 51 Fig 30 Thermostat Assembly 5. With one hand holding a screw driver inside the water tank holder, remove the nuts holding on the thermostat. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 52: Replacing The Solenoid Spring

    18. Attach ends of cutter return springs to spring clips. Make sure blade holder travels freely. 19. Re-assemble unit in reverse order of dis-assembly. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 53: Replacing The Top Roller

    Fig 32 Top Roller 3. Remove the e-clips from the top roller shaft. 4. Remove the top roller shaft. 5. Remove the top roller tube. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 54: Replacing The Free Spin Roller Assembly

    7. Attach the right side cover (refer to Attaching the Right Side Cover [p. 23]). The machine is now ready to continue normal operations 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...
  • Page 55 6. Attach the four screws to the new ramp inside the machine so that the thicker end of the ramp is toward the rear of the machine. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 56: Replacing The Tape Guide Assembly

    8. Reattach the extension springs to the fixed blade shoe. 9. Attach the right side cover (refer to Attaching the Right Side Cover [p. 23]). 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...
  • Page 57 3. Use a pair of need-nose pliers to 4. Remove the fixed blade using the remove the springs that are attached same pair of needle-nose pliers. to the blade shoe. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 58: Replacing The

    7. With one hand pushing and the cover will be the chassis slightly apart, removable. position the new front cover. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 59: Replacing The Feed Wheel

    14. Attach the right side cover (refer to Attaching the Right Side Cover [p. 23]). The machine is now ready to continue normal operation. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...
  • Page 60 9. Insert the new feed wheel shaft and feed wheel into the chassis into the bearing. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 61: Replacing The Solenoid

    26. Attach the right side cover (refer to Attaching the Right Side Cover [p. 23]). The machine is now ready to continue normal operation. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 62: Replacing The Motor

    18. Attach the right side cover (refer to Attaching the Right Side Cover [p. 23]). The machine is now ready to continue normal operation. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...
  • Page 63 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 64: Parts List

    Power Cord Side Cover RP40305 Left Side Cover Screw Screw Encoder Switch Screw Encoder Wheel RP42410 Encoder Assembly Encoder Bracket Screw Split Bushing Connectors 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...
  • Page 65 RP150536 Power Switch Display Board RP42405 Display Board and Cable Cable RP40825 Fixed Blade Stop Fixed Blade Stop TD 2100 Electric Drawing #1 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...
  • Page 66 Motor RP42210 120V Motor Gearbox/Motor Frame Connector Motor RP42811 220V Motor Gearbox/Motor Frame Connector Front Cover Front Cover RP40317 Clips w/ Clips Screw 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...
  • Page 67 Cutter Guard Clip Screw Screw Board 220 Controller Board Assembly RP42402 Standoff 220 V Washer Roller RP40522 Top Roller Assembly Shaft E -C lip 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...
  • Page 68 TD 2100 Electric Drawing #2 Need Parts? We have all parts on our website with pictures and prices. Visit: http://www.propacksolutions.com/2100-Electric_c_428.html or call 877-776-7225 toll free. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...
  • Page 69 Thermostat Assembly RP42977 110V Wire Wire Connections Water Tank Holder Thermostat 220V Screw Heater/Thermostat RP42810 Assembly 220V Heater 220V Screw Wire Wire Connections 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...
  • Page 70 TD 2100 Electric Drawing #3 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...
  • Page 71 Shoulder Bolt w/ Pin Solenoid, 110V Mounting Shelf Screw Shoulder Bolt w/ Pin RP42150 Solenoid Assembly 110V Washer Solenoid Spring Connection Bar Wires Connections 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...
  • Page 72 Mounting Shelf Screw Shoulder Bolt w/ Pin RP42151 Solenoid Assembly 220V Washer Wires Connections Solenoid Spring Connection Bar TD 2100 Electric Drawing #4 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 73: Wiring Diagram

    Wiring Diagram 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 74: Addendum

    5. Attach the cutter guard. 6. Attach the water bottle. The machine is now ready to continue normal operations Old Version Current Version 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...

  • Page 75: Correctly Routing The Tape And Pressure Plate

    4. Lift the pressure wheel and plate, and insert the tape under the plate. TAPE LIFT UP  Incorrect installation of pressure plate 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...
  • Page 76 A) Remove the water bottle from the left hand side of the dispenser. B) Locate the end of the blade guide attached to the springs. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...
  • Page 77 E) Re-install the hold down bracket, water bottle, and reload tape. 42901 09/21/2016 Marsh Shipping Supply Co., LLC. Collinsville, IL 62234 U.S.A. | Tel: 618.343.1006 | Fax: 618.343.1016...
