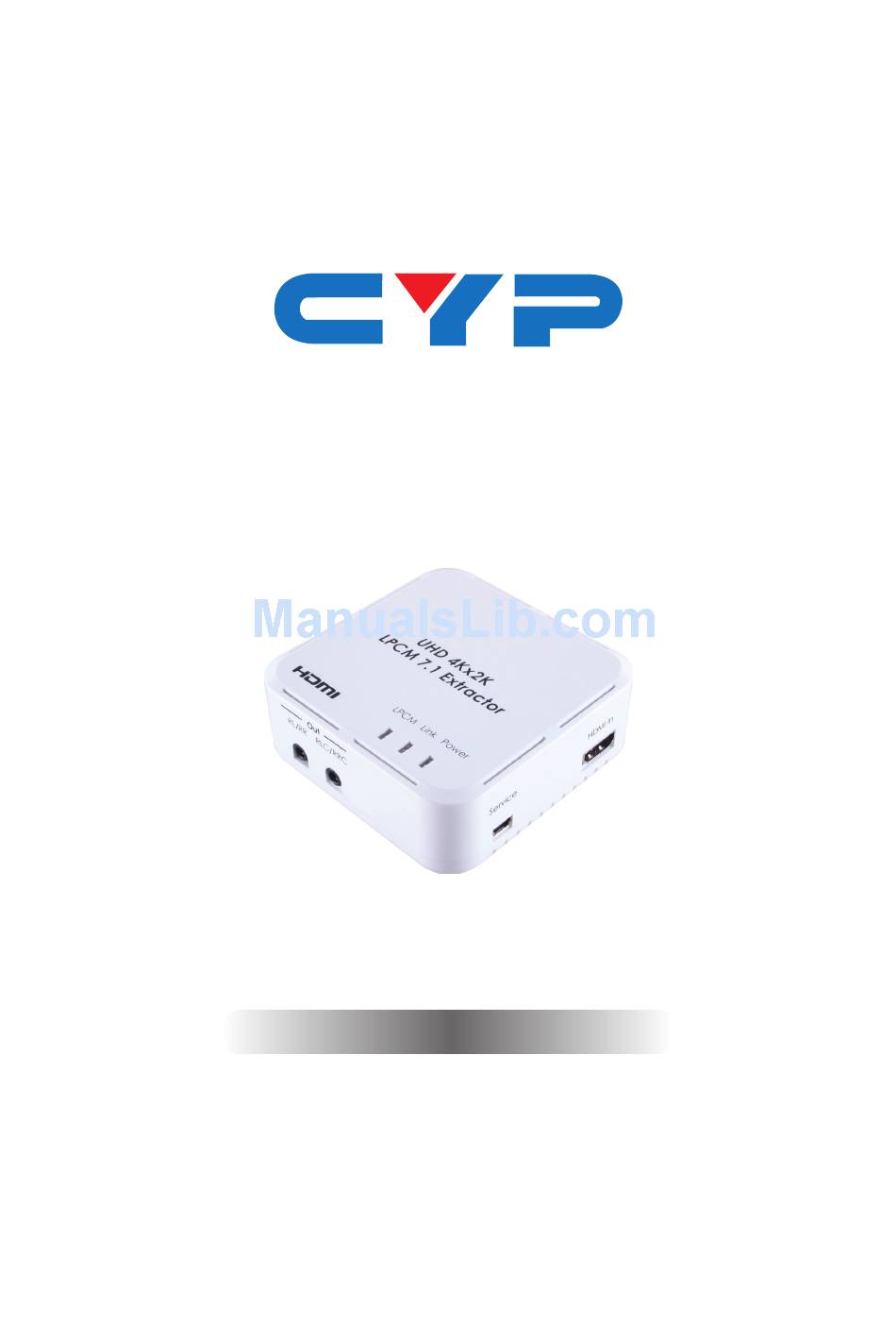

- Page 1 CPRO-11SE8 HDMI 4Kx2K LPCM 7.1 Extractor Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Revision History
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • electrical shock and injury to persons. •... -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Top Panel ...........3 6.2 Right Panel .........3 6.3 Left Panel ...........4 6.4 Front Panel .........5 6.5 Rear Panel .........6 7. -
Page 6: Introduction
1. INTRODUCTION The HDMI you can take your original HDMI audio signal and convert it to digital optical or multichannel audio, allowing you to output your audio 2K and 3D support, allowing full resolution video and eliminating the need to downscale the image. -
Page 7: Features
5. FEATURES • Compliant with HDMI, HDCP 1.2 and DVI 1.0 • • • • No HDMI output connection is required for analog or optical audio output • • 2K resolution • • Supports CEC bypass function • Supports 4K 2K resolution and 3D signals Note: For playback of 4K 2K/3D HDMI source signals, a 4K 2K/3D capable display and High Speed HDMI cables are required. -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Top Panel LPCM Link Power 1 2 3 LPCM LED: This LED will illuminate to indicate that the output audio EDID is switched to LPCM 7.1CH. Link LED: This LED will illuminate when input source is connected and receiving an HDMI signal. -
Page 9: Left Panel
6.3 Left Panel HDMI Optical FL/FR LFE/FC HDMI Out: Connect the HDMI output port to the HDMI input port of your display with an HDMI cable. Note: For playback of 4K 2K/3D HDMI source signals, a 4K 2K/3D capable display and High Speed HDMI cables are required. No HDMI output connection is required for analog or optical audio output. -
Page 10: Front Panel
6.4 Front Panel RL/RR RLC/RRC RL/RR Out: right analog audio outputs. RLC/RRC Out: rear right center analog audio outputs. -
Page 11: Rear Panel
6.5 Rear Panel DC 5V Bitstream Power LPCM 7.1CH Audio EDID Switch: This switch allows users to select which audio EDID settings are used for audio output. TV Mode: Switch to TV mode to use the EDID settings of the display connected to the HDMI output port. -
Page 12: Connection Diagram
7. CONNECTION DIAGRAM DVD or Blu-ray Player Power Supply HDMI Input HDMI 4Kx2K LPCM 7.1 Extractor Digital Audio HDMI LPCM Link Power Output (Optical) Output Multichannel Analog Output 7.1CH Active Speaker System... -
Page 13: Specifications
8. SPECIFICATIONS Video Bandwidth 300 Mbps/10.2 Gbps Input Ports Output Ports Audio Sampling Rates HDMI Audio Formats LPCM 2/5.1/7.1CH, Dolby Digital 2~5.1CH, DTS 2~5.1CH, Dolby Digital Plus, Dolby Optical Audio Formats LPCM 2CH, Dolby Digital 2~5.1CH & DTS 2~5.1CH Analog Audio Formats Analog Stereo 7.1CH HDMI Cable I/O Distance 10 m (4K×2K) -
Page 14: Supported Audio Formats
8.2 Supported Audio Formats OUTPUT HDMI Optical Analog FORMAT LPCM 2CH LPCM 5.1CH LPCM 7.1CH Bitstream 5.1CH Bitstream 7.1CH 9. ACRONYMS ACRONYM COMPLETE TERM 4K×2K Ultra HD (3840×2160/4096×2160) Digital Theater System EDID HDCP HDMI HDTV... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20130627 MPM-CPRO11SE8...
