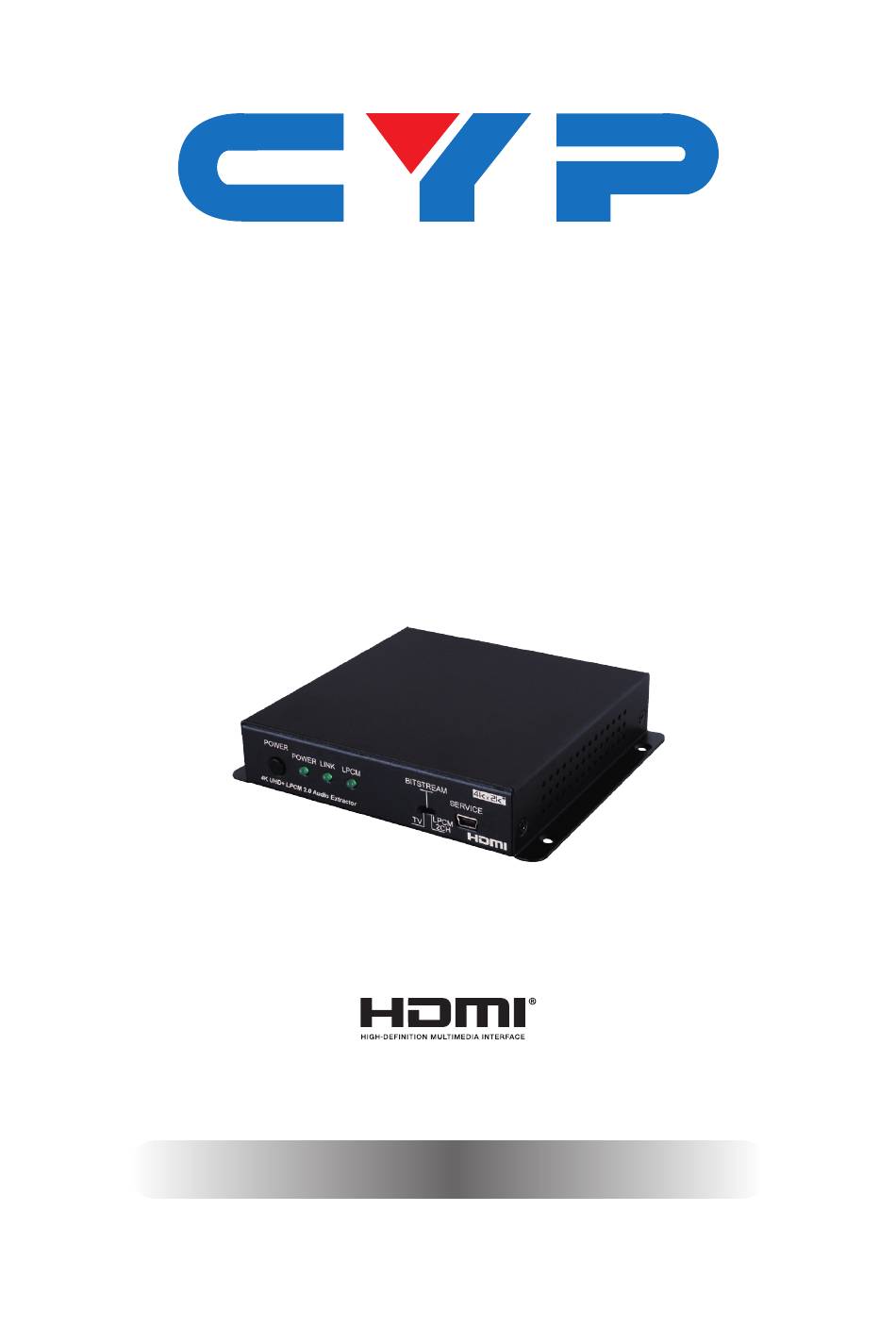

- Page 1 CPLUS-V11PE2 4K UHD HDMI Audio Extractor (LPCM 2.0) Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ............1 2. Applications .............1 3. Package Contents ..........1 4. System Requirements ........2 5. Features ............2 6. Operation Controls and Functions ....3 6.1 Front Panel ..........3 6.2 Rear Panel ..........4 6.3 Virtual COM Port Control ......4 6.4 EDID Commander ........ -
Page 6: Introduction
1. INTRODUCTION This HDMI Audio Extractor can extract up to 2 channels of LPCM audio or 5.1 channels of Bitstream audio from an HDMI source, allowing the user to convert high quality HDMI audio into more convenient analog (LPCM 2.0 sources only) or optical signals for use with powered speakers or non-HDMI AV receivers. -
Page 7: System Requirements
4. SYSTEM REQUIREMENTS • HDMI source equipment such as a media player, video game console or set-top box. • HDMI receiving equipment such as an HDTV, monitor or audio amplifier. • Analog audio receiving equipment such as an audio amplifier or powered speakers. -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER BITSTREAM POWER LINK LPCM SERVICE LPCM 4K UHD+ LPCM 2.0 Audio Extractor POWER: Press this button to power the unit on or off. POWER: This LED will be lit when the unit is receiving power. Note: Press and hold the Power button for 3 seconds (until the LEDs begin flashing) to perform a factory reset. -
Page 9: Rear Panel
6.2 Rear Panel AUDIO OUT HDMI IN HDMI OUT DC 5V OPTICAL HDMI IN: Connect to HDMI source equipment such as a media player, game console or set-top box. HDMI OUT: Connect to an HDMI TV, monitor or amplifier for digital video and audio output (LPCM up to 7.1, Bitstream, HD Bitstream). - Page 10 COMMAND DESCRIPTION & PARAMETERS Show the full command list. HELP Show the full command list. Power the unit on. Power the unit off (Stand-by mode). Show the current power state. SOURCEDET Show the current input source detection state. SINKINFO Show information about the currently connected display.
-
Page 11: Edid Commander
6.4 EDID Commander (1) This unit uses an EDID Management application which allows the user to copy the EDID from an attached display, edit an existing EDID file stored on the PC or create a basic EDID from scratch. The EDID can then be uploaded to the unit for use. -
Page 12: Edid Creator Tab
• Save/Upload/Analysis: EDIDs may be saved to a PC, uploaded from a PC or analyzed. - Save: Any EDID from the unit or the connected HDMI display can be saved to your PC as a *.bin file by selecting the EDID source from the drop down menu and then clicking the “... -
Page 13: System Tab
• Edit: The following tabs provide access to a wide range of EDID information which can be edited: - Descriptor: This tab allows for the editing of various description and information fields within the EDID file such as Manufacturer Name, Monitor Name, etc. - PC Timing &... -
Page 14: Connection Diagram
7. CONNECTION DIAGRAM Game Console HDMI Input Power Supply AUDIO OUT HDMI IN HDMI OUT DC 5V OPTICAL Virtual COM Port Enabled PC HDMI Optical Stereo Output Output Output UHDTV AV Receiver Powered Speakers... -
Page 15: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 600MHz/18Gbps Input Port 1×HDMI Output Ports 1×HDMI 1×Optical (S/PDIF) 2×RCA (Stereo) Control Interface 1×USB Mini-B HDMI Cable Length 10m (1080p@60Hz, 12-bit) 3m (4K@60Hz, 4:4:4, 8-bit) Baud Rate Up to 115200bps Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human Body Model:... -
Page 16: Video Specifications
8.2 Video Specifications Standard Resolution Support Input Output 640×480 60, 72, 75, 85 800×600 56, 60, 72, 75, 85 1024×768 60, 70, 75, 85 1280×720 50, 60 1280×768 60, 75, 85 ... -
Page 17: Audio Specifications
8.3 Audio Specifications Input/Output Audio Analysis: Input Connector Measurement HDMI Level 0dBFs Frequency 1kHz Output Connector Measurement HDMI Optical Analog Output Level 0~−1dB 2Vrms±10% THD+N <0.01% <0.01% Frequency ±1dBFS ±1dBFS Response >80dB >80dB Crosstalk <−80dB <−80dB Audio Sampling Rates: HDMI 32, 44.1, 48, 88.2, 96, 176.4, 192kHz (Passthrough) S/PDIF... -
Page 18: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Three-Dimensional Audio Return Channel Consumer Electronics Control Communication Digital-to-Analog Converter Digital Visual Interface EDID Extended Display Identification Data High-Definition HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface High Dynamic Range Light-Emitting Diode LPCM Linear Pulse-Code Modulation Personal Computer S/PDIF Sony/Philips Digital Interface Format... - Page 20 CYPRESS TECHNOLOGY CO., LTD. www.cypress.com.tw...
