CYP CPLUS-V11SE2 Operation Manual

Uhd 4k 6g with hdcp2.2 audio extractor

Advertisement

Quick Links

CPLUS-V11SE2
UHD 4K 6G with HDCP2.2 Audio Extractor
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPLUS-V11SE2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CYP CPLUS-V11SE2

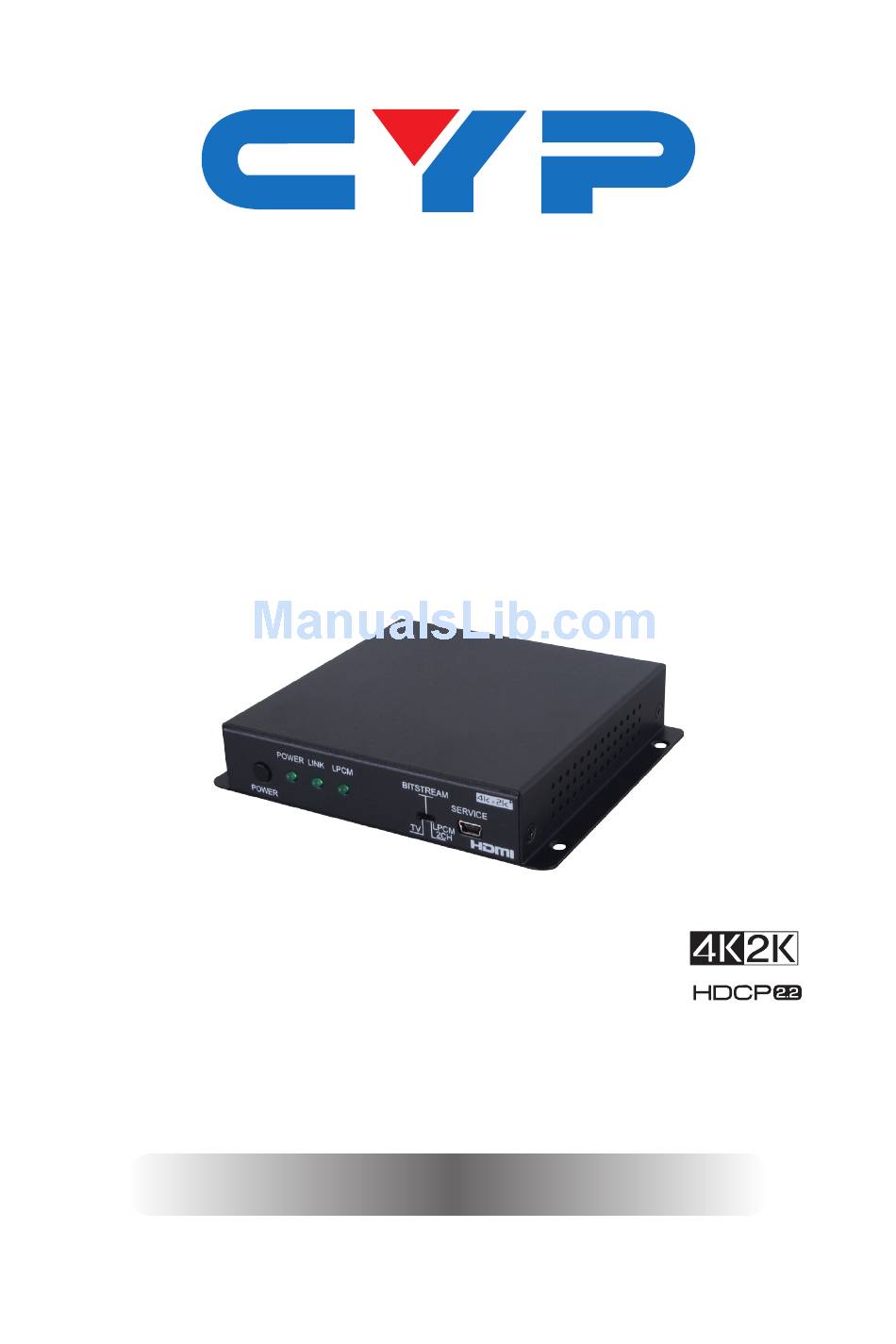

  • Page 1 CPLUS-V11SE2 UHD 4K 6G with HDCP2.2 Audio Extractor Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..2 6.1 Front Panel ........2 6.2 Rear Panel .........3 7. Connection Diagram ......4 8.
  • Page 6: Introduction

    1. INTRODUCTION The HDMI 4K 6G Audio Extractor could extract audio signals from your HDMI source. The unit allows you to extract original HDMI audio signal and convert it to digital optical or analog stereo L/R audio. Further, both input and output HDMI support UHD resolution up to 4K2K@60Hz (YUV444), and capable of provide high quality of audio and video performance.
  • Page 7: Features

    5. FEATURES • HDMI2.0 with 4Kx2K 6G supported, HDCP 2.2 and DVI compliant • Supports HDMI audio sampling rate up to 192 kHz • Supports Optical S/PDIF audio sampling rate up to 192 kHz • Supports external HDMI, Digital or Analog audio signal embeds into HDMI •...
  • Page 8: Rear Panel

    6.2 Rear Panel AUDIO OUT HDMI IN HDMI OUT DC 5V OPTICAL HDMI IN: This slot is to connect with source equipment such as Blu- ray/PS3 player or PC/laptop with HDMI signal sending. HDMI OUT: Connect to HDMI UHD TV/display or UHD Amplifier for output image and or audio display.
  • Page 9: Connection Diagram

    7. CONNECTION DIAGRAM DVD or Blu-ray Player HDMI Input Power Supply AUDIO OUT HDMI IN HDMI OUT DC 5V OPTICAL HDMI Digital Optical Analog Stereo Output Audio Output Audio Output UHDTV AV Receiver Active Speakers...
  • Page 10: Specifications

    8. SPECIFICATIONS Video Bandwidth 600 MHz/6 Gbps Input Ports 1×HDMI, 1×Mini-USB (Service only) Output Port 1×HDMI, 1×Optical, 2×RCA (Analog Audio) HDMI Resolutions VGA~WUXGA (RB), 408i~1080p@24/50/60, 4K@24/25/30, 4K@50/60 (YUV444) HDMI Audio Sampling Up to 192 kHz Rates Optical Audio (S/PDIF) Up to 192 kHz Sampling Rates HDMI Audio Formats LPCM 2/5.1/7.1CH, Dolby Digital 2/5.1CH,...
  • Page 11: Acronyms

    Operating Temperature 0˚C~40˚C/32˚F~104˚F Storage Temperature −20˚C~60˚C/−4˚F~140˚F Relative Humidity 20~90% RH (non-condensing) Power Consumption Note: HDMI cable distance might affected by material or design of cable. 9. ACRONYMS ACRONYM COMPLETE TERM Consumer Electronics Control COAX Coaxial Digital Theater System Digital Visual Interface HDCP High-bandwidth Digital Content Protection HDMI...
  • Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
