Summary of Contents for CYP CLUX-11CD

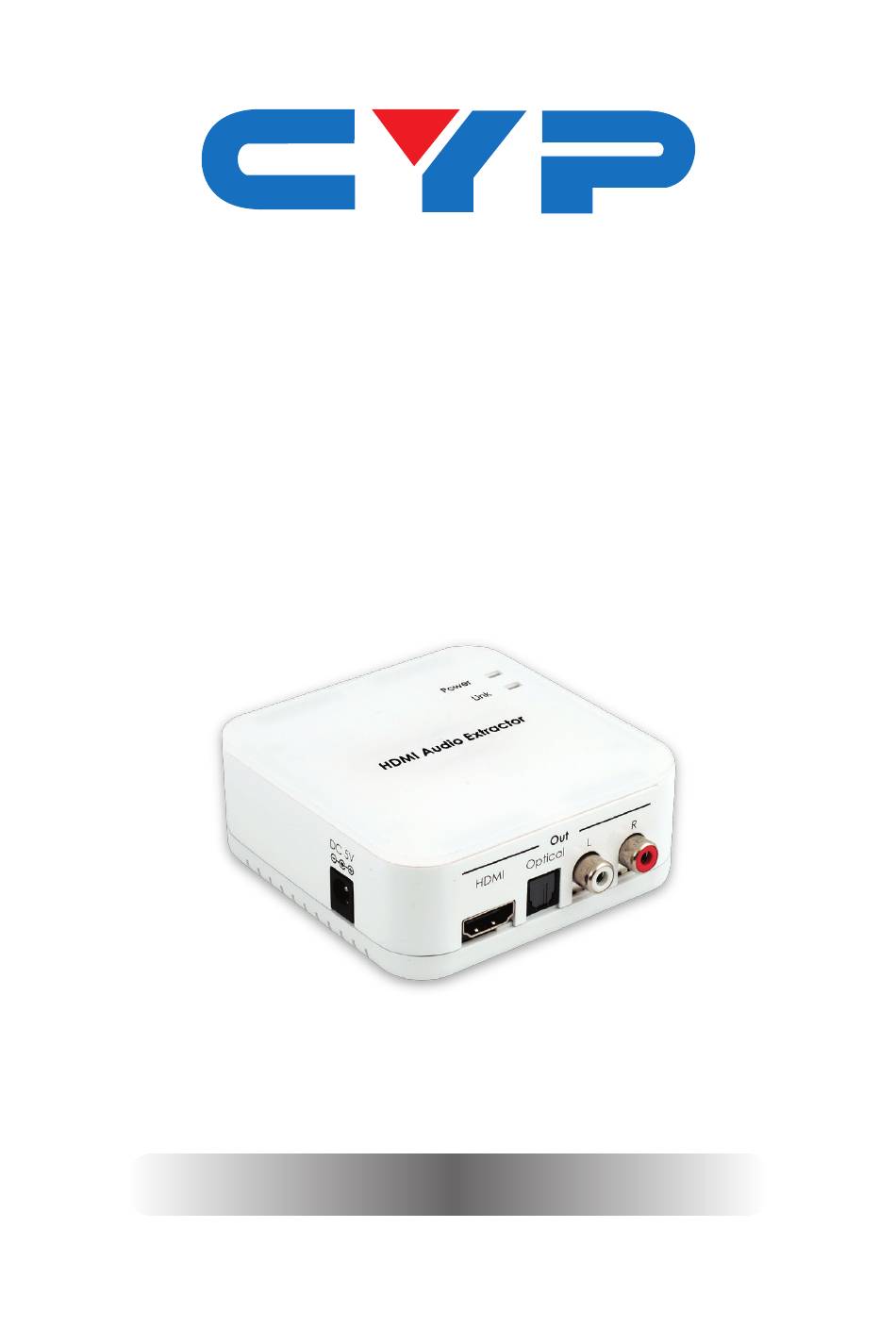

  • Page 1 CLUX-11CD HDMI Audio Extractor Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Top Panel ..........3 6.2 Right Panel ........4 6.3 Left Panel ..........4 6.4 Front Panel ........5 6.5 Rear Panel .........5 7.
  • Page 6: Introduction

    1. INTRODUCTION The HDMI Audio Extractor allows you to extract audio signals from your HDMI source. When connecting to a TV or display you don’t always get the best audio, or in the case of a PC monitor, no audio at all. So with this Audio Extractor you can take your original HDMI audio signal and convert it to digital optical or analog Stereo (L/R) audio.
  • Page 7: Features

    5. FEATURES • Compliant with HDMI, HDCP 1.2 and DVI 1.0 • Supports HDMI audio sampling rates up to 192 kHz • Supports Optical S/PDIF sampling rates up to 48 kHz • Supports TMDS clock frequency rate 225 MHz • Supports high-bit-rate (HBR) audio •...
  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Top Panel Power Link HDMI Audio Extractor Power LED: The Power LED will illuminate in blue when the unit is connected to the power supply and switched on. Link LED: The Link LED will illuminate in green when both the source and the display are connected and have established a link.
  • Page 9: Right Panel

    6.2 Right Panel Bitstream Power LPCM TV/Bitstream/2CH LPCM: This switch allows users to select the source's audio EDID. TV Mode: Switch to TV mode for the HDMI source to output audio per the EDID of connected TV or AV receiver, supports up to LPCM 7.1 channels.
  • Page 10: Front Panel

    6.4 Front Panel HDMI In HDMI In: Connect to a source device such as a DVD/Blu-ray player with an HDMI cable. 6.5 Rear Panel HDMI Optical HDMI Out: Connect to the display (TV/monitor) with an HDMI cable for video and audio signal output. No HDMI output connection is required to send audio through the analog and optical outputs.
  • Page 11: Connection Diagram

    7. CONNECTION DIAGRAM DVD or Blu-ray Player HDMI Input HDMI In HDMI Audio Extractor HDMI Optical Analog Stereo Output HDMI Output Digital Audio Output (Optical) Display Amplifier...
  • Page 12: Specifications

    8. SPECIFICATIONS Input Port 1×HDMI HDMI Audio Sampling Rate Up to 192 kHz Optical Audio Sampling Rate Up to 48 kHz Output Ports 1×HDMI, 1×Optical,1×L/R HDMI Audio Format LPCM 2/5.1/7.1CH, Dolby 5.1, DTS 5.1, DD+, D-TrueHD & DTS-HD Optical Audio Format LPCM 2CH, Dolby 5.1 &...
  • Page 13: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface...
  • Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20121106 MPM-CLUX11CD...
