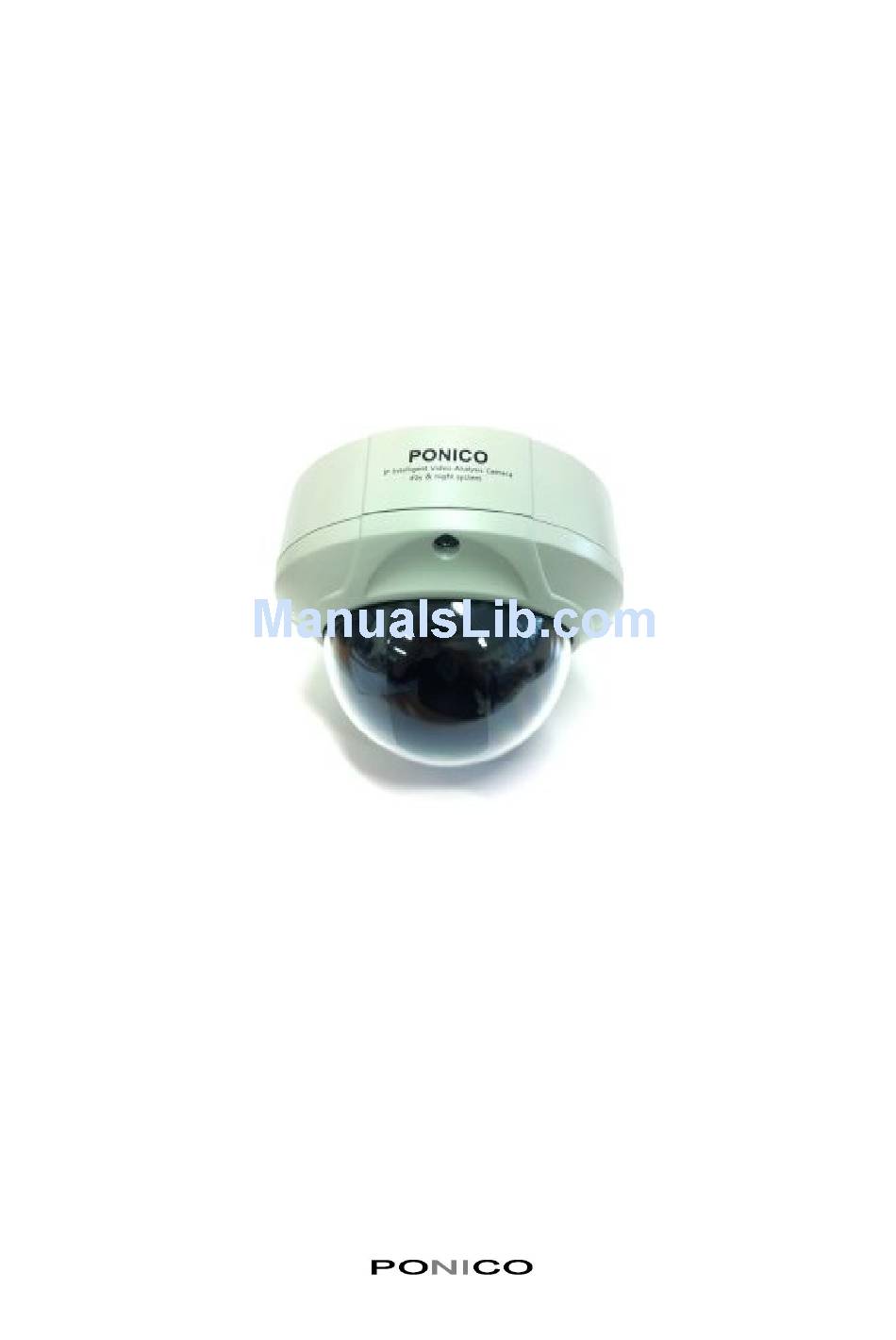

IP Intelligent Video Analysis Camera
PONI-S100-IVA, PONI-P100-IVA)
Installation Manual
(English)
Ver. 1.0 (110905)
PONICO KOREA CORPORATION
PONICO CANADA ENTERPRISE CORPORATION

Advertisement

loading
Need help?

Need help?

Do you have a question about the PONI-S100-IVA and is the answer not in the manual?

Questions and answers

Summary of Contents for ponico PONI-S100-IVA

  • Page 1 IP Intelligent Video Analysis Camera PONI-S100-IVA, PONI-P100-IVA) ( Installation Manual (English) Ver. 1.0 (110905) PONICO KOREA CORPORATION PONICO CANADA ENTERPRISE CORPORATION...
  • Page 2: Manual Guide

    Manual Guide This manual is for the Installation and operation of PONI-S100-IVA and PONI-P100-IVA, intelligent IP camera. PONICO Intelligent Video Analysis (IVA) is a camera with built-in IVA algorism function. This product has been developed with its technological excellency and its quality and reliability are guaranteed.
  • Page 3 1.Product Functions and Its Applications 1-1 <PONI-S100-IVA> IP Camera Functions: 1) Remote live video monitoring (H.264) 2) Both directional voice communications 3) Network GPIO control 4) Network S/W Up-grade VA (Video Analysis) Functions: 1) Line Crossing: Detection of imaginary line crossing.
  • Page 4 1-2 <PONI-P100-IVA> IP Camera Function: 1) Remote live video monitoring (H.264) 2) Both directional voice communications 3) Network GPIO control 4) Network S/W Up-grade VA (Video Analysis) Functions: 1) Line Crossing: Detection of objects closing imaginary line and count number of objects closing IN and OUT of the line.
  • Page 5: Product Descriptions

    2.Product Descriptions 2-1 Product Configuration and Package Contents 2-1-1. Followings are contained in the package: A) (PONI-S100-IVA, PONI-P100-IVA) Camera B) Power adapter+AC Code( 100~240VAC 50-60Hz / 12VDC, 2A ) C) CD Contents: 1.NVR Install Soft ware 2.IP Finder Install Soft ware。...
  • Page 6 ・IP Finder Scan Image ・NVR Manual Image 2-2 Camera External and Internal Structures 2-2-1 Internal Structures and Functional Guides. A) Internal Structure of Camera LAN Cable Connecter (10Mbps/100Mbps Ethernet ) Inside of Camera DC POWER Connecter BNC Connecter (Analog Video Output) *...
  • Page 7 B) Function Guide GPIO Connecter Factory Reset Button * GPIO Connecter:MIC Input (MIC+ -)、Speaker input (SPEAKER+ -)、 Alarm output1/5V 100mm(GPIO91, GND)、 Alarm output2/5V 100mm(GPIO80, GND) * Factory Reset:Reset to factory setting, reset by pressing the button approximately 3 seconds while power is on to factory setting. Lens Control Zoom Focus...
  • Page 8: Product Installation

    2-3 GPIO Connection Guide 2-3-1 Alarm Input and Output Guide A) Output. The only power (voltage/current) that can be connected directly to devices such as alarm or/and warning light is DC 5V 100mmA. If using devices requiring higher voltage and/or current, please purchase and use separate Reley switch. Alarm Output1/5V 100mm(GPIO91, GND),Alarm Output2/5V 100mm(GPIO91, GND)。...
  • Page 9 a)Ceiling b)Wall B) As Image Shown Bellow, Adjust PAN/TILT/HORIZONTAL of the Camera. TILT: 90° FOCUS Horizontal Rotation: 360° ZOOM PAN: 360° C)LAN Cable Connection 1 > To decide IP address of the camera, prepare a desktop or a laptop. *OS:Windows 2000. Windows XP. Windows Vista。 *The initial IP...
  • Page 10 (CROSSOVER Cable) ( DIRECT Cable) 3 > Connect POWER adaptor. 4 > Connect Sensor, Audio Mike, Cable of Speaker, only when necessary. 3-2 Setting IP Address of a Camera. 3-2-1 Changing IP Address of a Camera and Setting DHCP Address. A)...
  • Page 11 (Figure 2) C)By selecting DHCP, IP address will be automatically assigned from a router. Or, IP address can also be changed and sat manually by selecting Set Manually, by inputting Net mask, Gateway, etc. and press OK. (Figure 3) 4.Connect to Web viewer: To view the camera through connecting network (internet), there are two ways;...
  • Page 12 4-1 Log-in. A) As typing the IP address of the camera (192. 168. 1. 100) in the Address bar of Internet Explorer window and pressing enter, following screen appears.
  • Page 13 B) Inputting ID and Password, press Enter. Following screes appears. From factory setting, Initial ID: admin, Password: 11111111. Changing ID and Password, Camera Setup, etc. are described in the IP Camera & Setup Manual located in the CD provided with the product. Please refer to it.
  • Page 14 4-2 Specification of the Product&Camera Diagram. A) Specification of the Product Specifications PONI-S100,P100-IVA Image Device Progressive Scan CMOS Size 1/3 inch Scanning System 4:3 Progressive Pixel Clock 27Mhz, NTSC/PAL Total Pixel Array 762(H)X 504(V) Pixel Size 6.35um X 7.4um Effective Image 4622.8um x 3611.2um Area Dark Signal...
  • Page 15 B) Camera Diagram 4-3 System Scheme A) PONI-S100-IVA Location...
  • Page 16 B) PONI-P100-IVA PRODUCTION PONICO KOREA CORPORATION...
