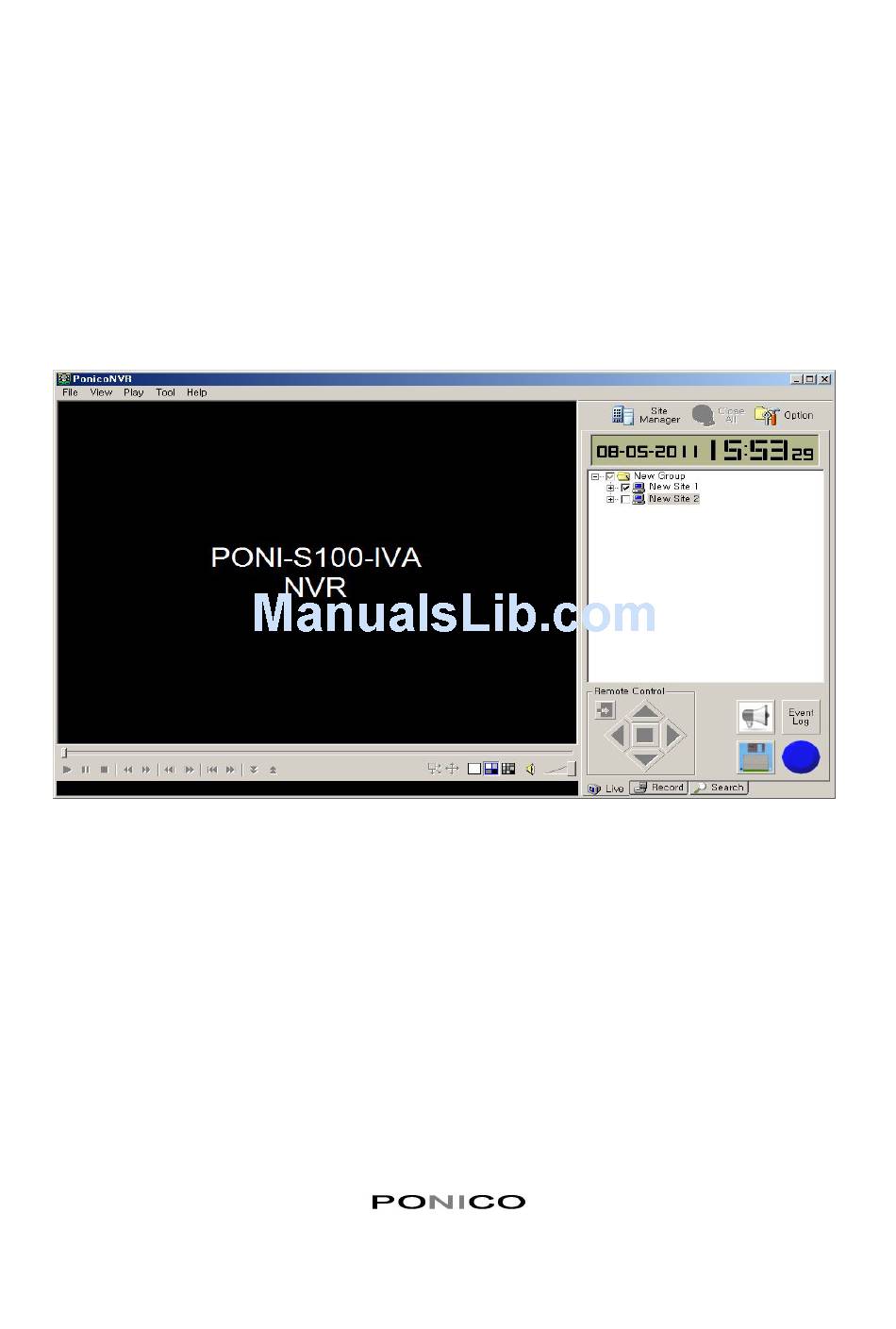

- Page 1 IP Intelligent Video Analysis Camera (PONI-S100-IVA, PONI-P100-IVA) Manual （Network Video Recorder） (English) PONICO KOREA CORPORATION PONICO CANADA ENTERPRISE CORPORATION...
- Page 2 This viewer is PC type NVR (Network Video Recorder) which can monitor live image, record its image and replay such recorded image by way of remote-connecting to PONI-S100-IVA IP camera. Recording can be done for either all activities or only specified events. Replay can be also done for either all recorded activities or only specified activities.
- Page 3 The screen which shows live, recorded or replaying images ④ Tool Selection Tab Selection button to choose live, recording or replaying recorded images ⑤ Screen Formation Selection button for screen, number, division, and size of screen ⑥ Video Analysis(VA) Setup Controlling and setting button for VA (intelligent sensor) of remote camera ⑦...
- Page 4 (Site manger window) ① By New Group button name of camera group will be inputted. If New Group button will be selected, New Group holder will appear on Site Selection screen. Cameras which are registered under New Group can be controlled as package. Cameras (1 to max 9) are connected and when Group name be clicked, all camera of its Group can be monitored all at once or one by one.
- Page 5 ① Search and Delete function This function is to find the IP camera which is connected to the same local network as PC with activated NVR viewer. Found IP address will be automatically registered on Search Group and only local camera can be controlled. In addition ID and PW will be registered. Delete function is to eliminate recorded of registered New group and New Camera.
- Page 6 ① When Live button of lower right of viewer be pressed, registered IP address of camera of New group under Site Manager will appear. Checking the camera to be serviced (New Site), and Start button will be pressed, then image of checked camera will appear on the screen. To view all cameras of Group, Group button will be pressed and the entire group images will appear.
- Page 7 Camera Setup Manual N V R When setting VA setup in NVR viewer, at first screen which will be setup will be clicked, and it is possible to set VA setup on each camera. ⑤ Event history of all camera connected to Viewer is recorded in file. (Name of the camera, time, IP address, kind of event, etc.) Event Log button is a function to see the recorded File.
- Page 8 Then check Beep on Event, which it will inform by alarm from PC if specified event occurs. Sound alarming will be performed only when live image is being monitored, it is possible to alarm by selecting only one camera of desired. (Types of events of PONI-S100-IVA is appear/disappear, Camera Sabotage, Fence line, Fence area).
- Page 9 ① Video Search Window ②List of Searched Files ⑥Viewer Selection ⑤Play Button ④Searching by Date ③Time Distribution Table ①It is possible to search recorded file by inputting detail information (camera name, year, month, date, hour, minute, channel, event etc.) on Video Search and by pressing search button. Then the file with search condition will be searched.
-
Page 10: Option Setting
7. Option setting ①General setting & Basic program setting. ③Interval of play and frame number setting at the time of recording and replaying. ②Place of storage for recorded file setting ④Video image editing and overlay setting & Hard Disc setting... - Page 11 ⑤Audio input, output and replay pitch setting The End...
