ponico PONI-S100-IVA Setup Manual

Hide thumbs Also See for PONI-S100-IVA:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual, Manual

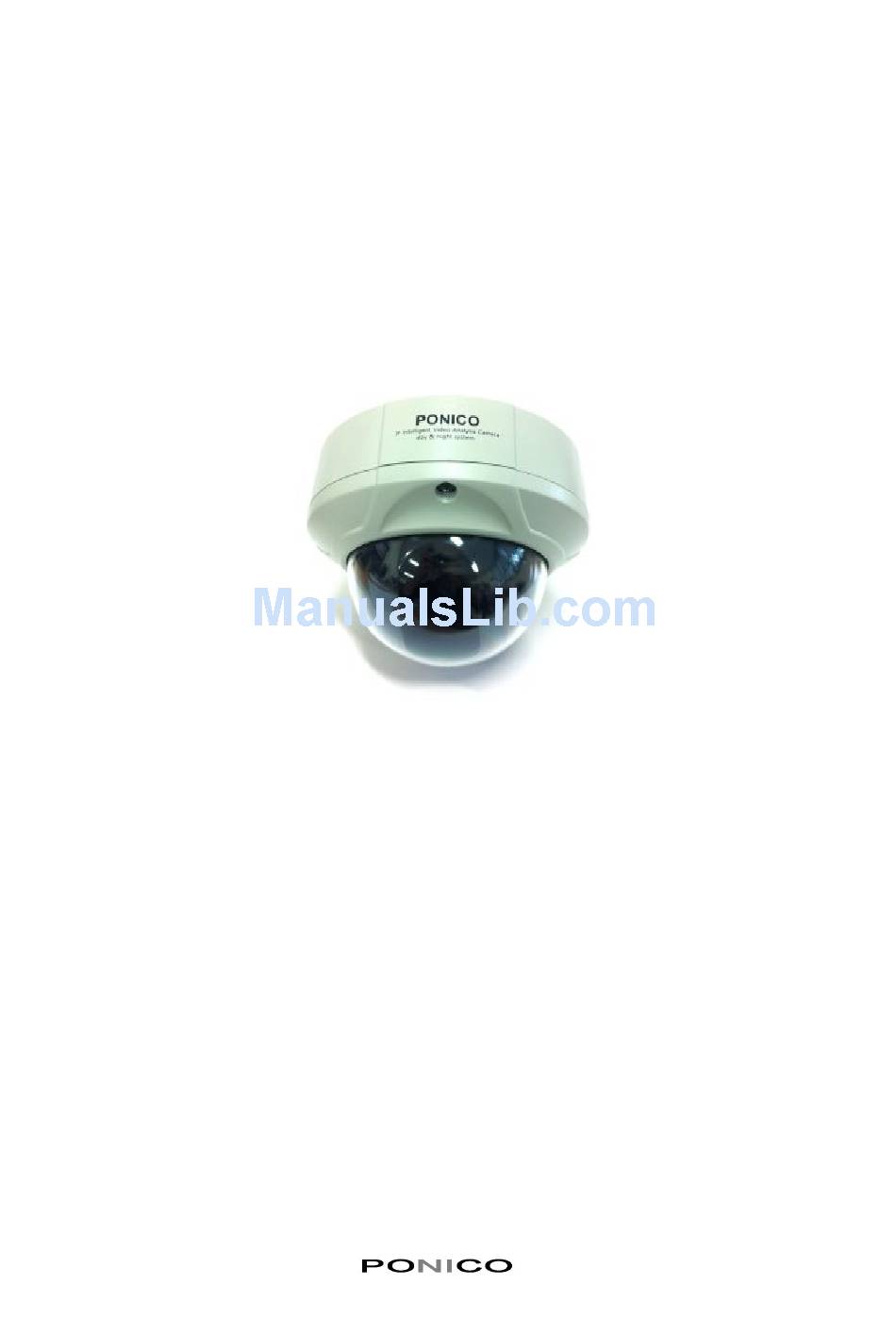

IP Intelligent Video Analysis Camera
(PONI-S100-IVA&PONI-P100-IVA)
IP Camera＆VA Setup Manual
(English)
PONICO KOREA CORPORATION
PONICO CANADA ENTERPRISE CORPORATION
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PONI-S100-IVA and is the answer not in the manual?

Questions and answers

Related Manuals for ponico PONI-S100-IVA

Summary of Contents for ponico PONI-S100-IVA

  • Page 1 IP Intelligent Video Analysis Camera (PONI-S100-IVA&PONI-P100-IVA) IP Camera＆VA Setup Manual (English) PONICO KOREA CORPORATION PONICO CANADA ENTERPRISE CORPORATION...
  • Page 2 This manual is for the setting and operation of PONI-S100-IVA intelligent IP camera. PONICO Intelligent Video Analysis (IVA) is a camera with built-in IVA algorism function. Alarming software, which detect and send warning to control station if some unusual event or incident occurs in the region of preset camera view.

  • Page 3: Web Browser Connection

    (A) IP Camera Set Up 1. Web Browser Connection 1-1. IP Connection: By inputting IP address of a camera such as 192.168.1.100 in Web browser, above screen will be displayed. Log-in by inputting of ID and Password.

  • Page 4: Viewer Mode

    2.VIEWER MODE 2-1.AUDIO/MIC/OSD: To decide AUDIO output, AUDIO input (MIC) or OSD by checking off. 2-2. FIT: Adjust Image Output to the Viewer size 2-3. Video 1, Video 2: Selection of video output. By setting Video Stream, can be separate Video 1 for Viewing and Video2 for Recording. 2-4.

  • Page 5: Admin Mode

    3. ADMIN mode 3-1. Video Set Up 3-1-1. Stream Set Up Primary/Secondary: Primary for VIDEO1 setup. Secondary for VIDEO2 setup Codec: H.264/MPEG4. Resolution: VGA/QVGA), Video Quality: Bit rate (bps) FPS: Select Frame rate 3-2. Audio Set Up Enable: Using AUDIO by ON/OFF Mode: Full Duplex, both-directional use Input Gain/Output Gain: Set up of input/output volume...
  • Page 6 3-3. Event Set Up Notification: Decide way of informing in occurrence of Event (FTP or Mail) Pre-alarm: To set number of frame to be recorded BEFORE occurrence of Event. Post-alarm: To set number of frame to be recorded AFTER occurrence of Event Notification.
  • Page 7 4. User Set Up Admin: To set Password of administrator ID: To set qualification of user by specifying Admin/Replay/Viewer User: ID/PW will be assigned up to 5 people. 5. New Work Set Up 5-1. IP Address Filtering: To setup filtering of IP address for PC being accepted or denied for an authorized connection.

  • Page 8: System Setting

    5-3.Wired Setting: To set up wired network 5-4.HTTP: Set up HTTP port ６．SYSTEM Setting 6-1.DATE and TIME Setting Current Server Time:Time of present camera : To input time by manual Manual Setting . with PC: To set time with PC time by synchronizing Sync Sync.
  • Page 9 Access Log: Show status quo of connection of user Event Log: Show status of Event occurring IP camera setting except for Event setting under Web viewer of PONI-S100-IVA had been explained from the above. The next VA (Video Analysis) setting, of IP camera Event setting of MOTION DETECTION...
  • Page 10 （B) VA(Video Analytic)Set Up Manual 1. MAIN SETUP frame Setting "VA ENBALE " =Start the VA (Video Analytic) sensing function. < Main Menu> 1-1 Press button, open MAIN SETUP frame. Select "VASETUP” by triangular arrow ,press BUTTON. → 1-2 Select "VA ENABLE," and activate to by triangular arrow And set by button.
  • Page 11 1-4 When activation of function is completed, "VA" will be indicated on upper right corner. ("VA "shows functioning in service)When VA function stops, OFF is indicated. 1-5 VA SETUP/ SENSITIVITY setting is to adjust sensitivity of a sensor, (Low, Medium, High). Consider size and distance of objects to be taken by camera, when setting the sensitivity.
  • Page 12 2-2 LINE FENCE setting can set lines from 1 to 4 lines. Lines 1through 4 will be selected sequentially to set. And press (Enter) button, then above right frame will appear. Select LINE POSITION SETUP and press (Enter) button. 2-3 Setting aline position will be shifted right and left or up and down by triangular arrow , and selected by pressing button.
  • Page 13 2-6 Setting "DIRECTION" "ALL" means senses both directions of object moving. FW means alarming forward. BW means alarming backward. (S100 sends alarm, & P100 displays number of objects counted) 2-7 Press button, then setting frame will disappear. As shown above, Setting frame of LINE setting can be confirmed.
  • Page 14 3-2 After selecting POIRION SETUP and press , above right frame will appear. Position of ach square point will be selected by arrows and press button to set. 3-3 Decide direction of sensing and alarming by "DIRECTION". IN –to be alarmed when objects coming to inside from outside.
  • Page 15 3-5 Press button, then setting frame disappears. As shown above, setting frame of AREA FENCE setting can be confirmed . 4.MAIN SETUP/FENCE SETUP/APPEAR/DISAPPEAR Setting =Function of sensing new object and disappearing object （This function is not on the P100） 4-1 FENCE SETUP/Select APPEAR/DISAPPEAR/ Press and above right frame appears.
  • Page 16 4-2 Select POITION SETUP same as AREA FENCE and press then above right frame will appear. Each position of square point is selected by arrow and press button to set. 4-3 Setting ALARM TIMING ALARM TIMING is a time to alarming after occurrence of event (incident) such as disappearance or appearance of object.
  • Page 17 5-2 Select POSITON SETUP same as AREA FENCE and press then above right frame will appear. Each position of square point will be selected by arrow and press button to set. 5-3 Turn “ACTIVATION” to ON and press button and set, Release is OFF. 5-4 When do not want to indicate MASK SETTING AREA on frame, set DISP MODE to be turned to OFF, When want to be indicated, set to ON.
  • Page 18 6-1. From MAIN SETUP, select CAMERA SETUP and press . From CAMERA SETUP, select CAM ID and can change CAM No. 7.MAIN SETUP/CAMERA SETUP/COLOR SETUP Setting= Camera Color Setting 7-1. From MAIN SETUP, select CAMERA SETUP and press . From CAMERA SETUP, select COLOR SETUP and press .
  • Page 19 8.MAIN SETUP/CAMERA SETUP/SCREEN FILP Setting= To adjust upper/ lower and right/ left of screen by flipping. 8-1. From MAIN SETUP, select CAMERA SETUP and press . From CAMERA SETUP, select SCREEN FLIP. FLIP : To flip upper/lower of screen Mirror: To flip left/right of screen MIR-FLI: To flip upper/lower/left/right 9.MAIN SETUP/CAMERA SETUP/SHUTTER SPEED Setting= Select Shutter Speed of Camera Sensor...
  • Page 20 10.MAIN SETUP/CAMERASETUP/OSD Color Setting= Select OSD Color 10-1. From MAIN SETUP, select CAMERA SETUP and press . From CAMERA SETUP, select OSD COLOR and decide color of VA character. Color can be selected from WHITE, BLACK, RED, BLUE, and YELLOW. 11.MAIN SETUP/ SYSTEMSETUP/SYSTEM REST Seting= REST VA Setting 11-1.
  • Page 21 12.MAIN SETUP/SYSTEMSETUP→FACTORY REST Setting= Initialize VA function 12-1. From MAIN SETUP, select SYSTEM SETUP and press . From SYSTEM SETUP, select FACTORY REST, and Reset by YES, or NO. In case of YES, VA function is initialized, it is necessary to Setup VA function from the beginning.
  • Page 22 13.MAIN SETUP/VA SETUP→SENSITIVITY Setting= Setting of Sensor Sensitivity 13-1. From MAIN SETUP, select VA SETUP and press . From SENSITIVITY, setup Sensitivity of sensor. Sensitivity is selected from HIGH, MEDIUM, and LOW. 14.MAIN SETUP/VA SETUP/OBJECT SIZE Setting= Setting size of object that best fits for monitoring 14-1.

  • Page 23: Other Settings

    15.MAIN SETUP/CAMERA SETUP/ CAMERA SABOTAGE Setting = function to alarm against unusual direction change and interfering camera 15-1. From MAIN SETUP, select VA SETUP and press . From CAM SABOTAGE, select ON. If function to be not operated, select OFF. 16.Other Settings 16-1.
