Omron M2 Basic Instruction Manual

Display:
Digital Automatic
F. Systolic blood pressure
Blood Pressure Monitor
G. Diastolic blood pressure
H. Heartbeat symbol
M2 Basic
Model
(Flashes during measurement)
Instruction Manual
I. Deflation symbol
J. Battery low symbol
IM-HEM-7116H-RU-01-09/2011
Arm cuff:
5334150-5A
N
Introduction
Thank you for purchasing the OMRON M2 Basic Digital Automatic Blood Pressure
Monitor.
The OMRON M2 Basic is a fully automatic blood pressure monitor, operating
on the oscillometric principle. It measures your blood pressure and pulse rate
simply and quickly. For comfortable controlled inflation without the need of
pressure pre-setting or re-inflation the device uses its advanced "IntelliSense"
2. Preparation
technology.
The unit also stores the last measurement value in memory.
2.1 Installing/Replacing the Batteries
Intended Use
1.
Turn the main unit upside down.
This product is designed to measure the blood pressure and pulse rate of
people within the range of the designated arm cuff, following the instructions in
2.
Slide the battery cover in the direction
this instruction manual.
of the arrow while pressing the ribbed
It is mainly designed for general household use. Please read the Important
Safety Information in this instruction manual before using the unit.
part of the cover.
Please read this instruction manual thoroughly before using the unit. For specific
3.
Install or replace four "AAA" size
information about your own blood pressure, CONSULT YOUR DOCTOR.
batteries so that the + (positive)
and - (negative) polarities match
Important Safety Information
the polarities indicated on the battery
Consult your doctor prior to using in pregnancy or if diagnosed with arrhythmia
compartment.
or arteriosclerosis.
4.
Please read this section carefully before using the unit. Put the battery cover back in place.
Warning:
Slide the battery cover as indicated,
• Indicates a potentially hazardous situation which, if not avoided, could result
until it clicks into place.
in death or serious injury.
(General Usage)
• Always consult your doctor. Self-diagnosis of measurement results and Note: The measurement
self-treatment are dangerous.
values continue to be
• People with severe blood flow problems, or blood disorders, should consult a
stored in memory even
doctor before using the unit, as cuff inflation can cause internal bleeding.
after the batteries are replaced.
(AC Adapter Usage)
• Never plug in or unplug the power cord from the electric outlet with wet
2.2 Battery Life & Replacement
hands.
(Battery Usage)
If the battery low symbol (
• If battery fluid should get in your eyes, immediately rinse with plenty of clean
replace all four batteries at the same time.
water. Consult a doctor immediately.
- When the battery low symbol (
Caution:
• Indicates a potentially hazardous situation which, if not avoided, may result in will still be able to use the unit for a short while. You
minor or moderate injury to the user or patient or damage to the equipment or should replace the batteries with new ones as soon as possible.
other property. - When the symbol (
(General Usage)
batteries with new ones at once. Turn the unit off before replacing the batteries.
• Do not leave the unit unattended with infants or persons who cannot express
their consent. • Remove the batteries if the unit will not be used for three months or more.
• Do not use the unit for any purpose other than measuring blood pressure. • Dispose of batteries according to applicable local regulations.
• Do not disassemble the unit or arm cuff.
Four new "AAA" alkaline batteries will last for approximately 300 measurements,
• Use only the approved arm cuff for this unit. Use of other arm cuffs may result
when used to take two measurements a day.
in incorrect measurement results.
• Make sure that the air tube is not wrapped around other parts of your body Since the supplied batteries are for monitoring use only, they may have
when taking measurements. This could result in injury when the air pressure a shorter life and do not last for 300 measurements.
in the air tube is increased.
• Do not leave the cuff wrapped on the arm if taking measurements during the
night. This could result in injury.
3. Using the Unit
• Do not inflate the arm cuff over 299 mmHg.
• Do not use a mobile phone or other devices that emit electromagnetic fields,
3.1 Applying the Arm Cuff
near the unit. This may result in incorrect operation of the unit.
• Do not operate the unit in a moving vehicle (car, airplane).
Be sure to wrap the arm cuff correctly so that you get accurate results.
• To inflate the cuff manually, refer to Chapter 3.3. If the cuff is over inflated, it
Measurements can be taken in light clothing. However, please remove
can cause internal bleeding.
(AC Adapter Usage)
thick clothes, such as sweaters, before taking a reading.
• Use only the original AC adapter (optional) designed for this unit. Use of
Note: You can take a measurement on either your left or right arm. The blood
unsupported adapters may damage and/or may be hazardous to the unit.
pressure can differ between the right arm and the left arm and therefore
• Plug the AC adapter into the appropriate voltage outlet.
• Do not use the AC adapter if the unit or the power cord is damaged. Turn off also the measured blood pressure values can be different. OMRON
the power and unplug the power cord immediately. recommends to always use the same arm for measurement. If the
(Battery Usage)
values between the two arms differ substantially, please check with your
• If battery fluid should get on your skin or clothing, immediately rinse with
physician which arm to use for your measurement.
plenty of clean water.
• Use only four "AAA" alkaline batteries with this unit. Do not use other types of
1.
Insert the air plug into the air jack
batteries.
• Do not insert the batteries with their polarities incorrectly aligned. on the left side of the main unit.
• Replace old batteries with new ones immediately. Replace all four batteries at
the same time.
• Remove the batteries if the unit will not be used for three months or more.
• Do not use new and used batteries together.
General Precautions
• Do not apply strong shocks and vibrations to or drop the unit and arm cuff.
2. Apply the arm cuff to your upper arm. The air tube should be
• Do not take measurements after bathing, drinking alcohol, smoking,
exercising or eating. centred on the inside of your arm and point down the inside of
• Do not forcibly bend the arm cuff or bend the air tube excessively.
the arm, so that the air tube runs down the inside of your
• When removing the air tube, pull on the air plug at the connection with the
forearm and is in line with your middle finger.
main unit not the tube itself.
• Do not inflate the arm cuff when it is not wrapped around your arm.
• Do not wash the arm cuff or immerse it in water.
• Read and follow the "Important information regarding Electro Magnetic
Compatibility (EMC)" in the Technical Data Section.
• Read and follow the "Correct Disposal of This Product" in the Technical Data
Section when disposing of the device and any used accessories or optional
parts.
3.
When the cuff is positioned correctly, close the fabric fastener firmly.

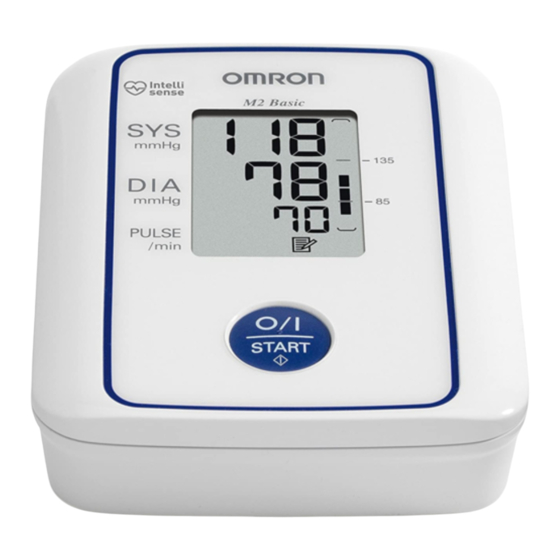

1. Overview
Taking a Reading on the Right Arm
Main unit:
D
A Apply the cuff so that the air tube is
at the side of your elbow.
Notes:
• Be careful not to rest your arm on
the air tube, or otherwise restrict
the flow of air to the cuff.
C
• The cuff should be 1 to 2 cm above
E the elbow.
B
A. Display D. Battery compartment
B. O/I START button E. Air jack
C. AC adapter jack
(for optional AC adapter)
3.2 Taking a Reading
F
1.
Sit on a chair with your feet flat on
K
G
the floor and place your arm on a
H
L
table so that the arm cuff will be
I
at the same level as your heart.
J M
Keep still and do not talk during measurement.
K. Blood pressure level indicator
L. Pulse display
2. Press the O/I START button to turn the unit on.
M. Memory symbol
If air starts to leak from the arm cuff,
please replace with a new one. Note: To cancel a measurement, press the O/I START button to turn the
O
Refer to "6. Optional Parts". unit off and to release the air in the arm cuff.
3.
Check the measurement results.
N. Arm cuff
The unit automatically stores blood
(Wide Range Cuff: arm
circumference 22 - 42 cm) pressure and pulse rate into its
P O. Air tube
memory.
P. Air plug
Refer to "3.4 Using the Memory
Function".
Notes:
• Self-diagnosis of measured results and treatment are dangerous.
Please follow the instructions of your doctor.
• Wait 2-3 minutes before taking another blood pressure reading.
Waiting between readings allows the arteries to return to the condition prior
to taking the blood pressure measurement.
Important:
• Recent research suggests that the
following values can be used as a
guide to high blood pressure for
measurements taken at home.
Systolic Blood Pressure
Diastolic Blood Pressure
This criteria is for home blood pressure measurement.
4.
Remove the arm cuff.
5. Press the O/I START button to turn the unit off.
Note: If you forget to turn the unit off, it will automatically shut itself off after
five minutes.
3.3 Instructions for Special Conditions
If your systolic pressure is known to be more than 220 mmHg, press
) appears on the display, and hold the O/I START button until the arm cuff inflates 30 to
40 mmHg higher than your suspected systolic pressure.
) starts to blink, you
1.
Press the O/I START button
to turn the unit on.
) remains lit, the batteries are exhausted. You should replace the
Measurement starts.
2.
When the cuff starts to inflate, press the O/I START button
and keep it pressed until the pressure is 30 to 40 mmHg
higher than your suspected systolic pressure.
Note: You cannot inflate the cuff above 299 mmHg. (An error will be displayed
if you try to inflate the cuff above 299 mmHg.)
3.
Release the O/I START button when the cuff has been
inflated to the desired pressure.
The cuff starts to deflate and measurement starts.
4.
The rest of the procedure is the same as for normal
measurement. Refer to "3.2 Taking a Reading", steps 3 to 5.
Note: Do not apply more pressure than necessary.
3.4 Using the Memory Function
The unit automatically stores the last measurement values (blood
pressure and pulse rate) in the memory.
1.
Press and hold the O/I START button until the last
measurement value is displayed along with the memory symbol.
2.
Press the O/I START button to turn the unit off.
If you forget to turn the unit off, it will automatically shut
itself off after five minutes.
1 - 2 cm
To Delete the Value Stored in Memory
1. To delete stored readings, first press and hold the O/I
START button until the last measurement value is displayed.
Then keep the button pressed down for about 10 seconds.
All readings will then be deleted.
1 to 2 cm
2.
Press the O/I START button to turn the unit off.
If you forget to turn the unit off, it will automatically shut
itself off after five minutes.
4. Handling Errors and Problems
4.1 Error Messages
Error Display Cause Remedy
Carefully read and repeat the
Cuff is under inflated.
steps listed under section 3.3.
Repeat measurement. Remain
Movement during
still and do not talk during
measurement.
measurement.
Insert the air plug securely.
Air plug disconnected.
Refer to section 3.1.
Arm cuff not applied Apply the arm cuff correctly.
Systolic blood
correctly. Refer to section 3.1.
pressure
Diastolic blood
Clothing is interfering Remove any clothing
pressure
with the arm cuff. interfering with the arm cuff.
Pulse display
Air is leaking from the
Replace cuff with new one.
arm cuff.
Arm cuff has been Do not inflate the arm cuff
inflated above
above 299 mmHg.
299 mmHg.
Refer to section 3.3.
Replace all four "AAA"
Battery power is low. batteries with new ones.
Refer to section 2.1.
Blinks or appears
continuously
Above 135 mmHg
Above 85 mmHg
Contact your OMRON retail
Device error.
outlet or distributor.
4.2 Troubleshooting
Problem Cause Remedy
Apply the arm cuff
Arm cuff not applied correctly.
correctly. Refer to section 3.1.
The reading is
Remain still and do not
Movement or talking
extremely low (or talk during
during measurement.
high). measurement.
Remove any clothing
Clothing is interfering
interfering with the arm
with the arm cuff.
cuff.
Make sure that the air
The air plug is not
jack is connected
securely inserted into
securely.
Arm cuff pressure
the main unit.
Refer to section 3.1.
does not rise.
Air is leaking from the Replace the arm cuff
arm cuff. with a new one.
Apply the cuff correctly
so that it is firmly
Arm cuff deflates too
wrapped around the
The arm cuff is loose.
soon.
arm.
Refer to section 3.1.
Inflate the cuff so that it
Cannot measure or The arm cuff has not is 30 to 40 mmHg
above your previous
readings are too low been inflated
measurement result.
or too high. sufficiently.
Refer to section 3.3.
The unit loses power The batteries are Replace the batteries
during measurement. empty. with new ones.
The batteries are Replace the batteries
empty. with new ones.
Nothing happens
when you press the
The batteries have Insert the batteries with
buttons.
been inserted the correct (+/ -)
incorrectly. polarity.
Press the O/I START button and repeat
measurement.
If the problem continues, try replacing the
Other problems.
batteries with new ones.
If this still does not solve the problem, contact
your OMRON retail outlet or distributor.
5. Maintenance and Storage
Maintenance
To protect your unit from damage, please observe the following:
• Do not subject the main unit and cuff to extreme
temperatures, humidity, moisture or direct sunlight.
• Do not fold the cuff or tubing tightly.
• Do not disassemble the unit.
• Do not subject the unit to strong shocks or vibrations
(for example, dropping the unit on the floor).
• Do not use volatile liquids to clean the main unit.
• Do not wash the arm cuff or immerse it in water.
• Do not use petrol, thinners or similar solvents to clean
the arm cuff.
• Do not carry out repairs of any kind by yourself.
If a defect occurs, consult your OMRON distributor.
• The unit should be cleaned with a soft, dry cloth.
Important information regarding Electro Magnetic Compatibility (EMC)
• Use a soft, moistened cloth and soap to clean the arm cuff.
With the increased number of electronic devices such as PC's and mobile
(cellular) telephones, medical devices in use may be susceptible to
Calibration and Service
electromagnetic interference from other devices. Electromagnetic
• The accuracy of this blood pressure monitor has been
interference may result in incorrect operation of the medical device and
create a potentially unsafe situation.
carefully tested and is designed for a long service life.
Medical devices should also not interfere with other devices.
• It is generally recommended to have the unit inspected every
two years to ensure correct functioning and accuracy. In order to regulate the requirements for EMC (Electro Magnetic
Compatibility) with the aim to prevent unsafe product situations, the
Please consult your authorised OMRON dealer.
EN60601-1-2:2007 standard has been implemented. This standard defines
Storage the levels of immunity to electromagnetic interferences as well as maximum
levels of electromagnetic emissions for medical devices.
Keep the unit in its storage case when not in use.
This medical device manufactured by OMRON HEALTHCARE conforms to
1. this EN60601-1-2:2007 standard for both immunity and emissions.
Unplug the air tube from the air jack.
Nevertheless, special precautions need to be observed:
Gently fold the air tube
• Do not use mobile (cellular) telephones and other devices, which generate
into the arm cuff.
strong electrical or electromagnetic fields, near the medical device. This
may result in incorrect operation of the unit and create a potentially unsafe
Note: Do not bend the air tube excessively.
situation. Recommendation is to keep a minimum distance of 7 m. Verify
Do not store the unit in the following situations:
correct operation of the device in case the distance is shorter.
• If the unit is wet.
Further documentation in accordance with EN60601-1-2:2007 is available at
• Locations exposed to extreme temperatures, humidity, direct sunlight,
OMRON HEALTHCARE EUROPE at the address mentioned in this instruction
dust or corrosive vapours.
manual.
• Locations exposed to vibrations, shocks or where it will be at risk of
Documentation is also available at www.omron-healthcare.com.
falling.
6. Optional Parts
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
Wide range cuff Medium arm cuff Large arm cuff
Arm circumference Arm circumference Arm circumference This marking shown on the product or its literature, indicates
that it should not be disposed of, with other household wastes
22 - 42 cm 22 - 32 cm 32 - 42 cm
at the end of its working life. To prevent possible harm to the
environment or human health from uncontrolled waste
disposal, please separate this product from other types of
wastes and recycle it responsibly to promote the sustainable
reuse of material resources.
CW-9520534-2 CM-9515371-7 CL-9515370-9
Household users should contact either the retailer where they purchased
this product, or their local government office, for details of where and how
they can return this item for environmentally safe recycling.
AC adapter S
Business users should contact their supplier and check the terms and
conditions of the purchase contract. This product should not be mixed with
other commercial wastes for disposal.
Manufacturer
Adapter S-9515336-9
Using the Optional AC Adapter
Notes:
EU-representative
• Never plug or unplug the power cord with wet hands.
• Use only the original AC adapter designed for this unit. Use of
unsupported adapters may damage the unit.
1.
Insert the AC adapter
plug into the AC adapter Exclusive
distributor in
jack on the right side of
Russia & importer
the main unit.
Production Facility
2.
Plug the AC adapter
into an electrical outlet.
To disconnect the AC adapter, unplug the AC adapter from the
electrical outlet first and then immediately remove the AC adapter plug
from the main unit.
7. Technical Data
Product Description Digital Automatic Blood Pressure Monitor
Model OMRON M2 Basic (HEM-7116H-RU)
Display LCD Digital Display
Measurement Method Oscillometric method
Measurement Range Pressure: 0 mmHg to 299 mmHg
Pulse: 40 to 180/min.
Memory Last measurement
Accuracy Pressure: ±3 mmHg
Pulse: ±5% of display reading
Inflation Automatic by electric pump
Deflation Automatic pressure release valve
Power Source 4 "AAA" batteries 1.5V or AC/ DC adapter
(optional, 6V 4W)
Battery Life Capacity of new alkaline batteries is approx. 300
measurements
Operating Temperature/ 10°C to 40°C/ 30 to 85% RH
Humidity
Storage Temperature/ -20°C to 60°C/ 10 to 95% RH/ 700-1060 hPa
Humidity/ Air Pressure
Console Weight Approximately 245g without batteries
Cuff Weight Approximately 170g
Outer Dimensions Approximately 104 (w) mm × 64 (h) mm × 129 (l) mm
Cuff Dimensions Approximately 151 mm × 635 mm
(Wide range cuff: arm circumference 22 to 42 cm)
Cuff material Nylon and polyester
Package Content Main unit, cuff, instruction manual, storage case,
battery set, guarantee card, blood pressure pass
Note: Subject to technical modification without prior notice
• This OMRON product is produced under the strict quality system of OMRON
HEALTHCARE Co. Ltd., Japan. The Core component for OMRON blood pressure
monitors, which is the Pressure Sensor, is produced in Japan.
• Disposal of this product and used batteries should be carried out in accordance
with the national regulations for the disposal of electronic products.
= Type B
This device fulfils the provisions of EC directive 93/42/EEC (Medical Device
Directive).
This blood pressure monitor is designed according to the European Standard
EN1060, Non-invasive sphygmomanometers Part 1: General Requirements
and Part 3: Supplementary requirements for electromechanical blood pressure
measuring systems.
Please read the instruction manual carefully before
using the device.
HEM-7116H-RU_A_M03_111019.pdf
OMRON HEALTHCARE Co., Ltd.
53, Kunotsubo, Terado-cho, Muko, Kyoto,
617-0002 JAPAN
OMRON HEALTHCARE EUROPE B.V.
Scorpius 33, 2132 LR Hoofddorp
THE NETHERLANDS
www.omron-healthcare.com
ComplectService Ltd.
13-14 building, 26 B. Tishinskiy per.,
Moscow 123557, RUSSIA
www.csmedica.ru
OMRON (DALIAN) CO., LTD.
Dalian, CHINA
Made in China
