Omron M2 Basic Instruction Manual

Arm cuff:
M
Digital Automatic
Blood Pressure Monitor
M2 Basic
Model
2. Preparation
Instruction Manual
2.1 Using the AC Adapter
Notes:
Introduction
• Never plug or unplug the power cord with wet hands.
• Use only the original AC adapter designed for this unit. Use of
Thank you for purchasing the OMRON M2 Basic Digital Automatic Blood Pressure unsupported adapters may damage the unit.
Monitor.
1.
Insert the AC adapter
The OMRON M2 Basic is a fully automatic blood pressure monitor, operating
on the oscillometric principle. It measures your blood pressure and pulse rate plug into the AC adapter
simply and quickly. For comfortable controlled inflation without the need of
jack on the right side of
pressure pre-setting or re-inflation the devices uses its advanced "IntelliSense"
the main unit.
technology.
The unit also stores the last measurement value in memory.
2. Plug the AC adapter
Please read this instruction manual thoroughly before using the unit. For specific
into an electrical outlet.
information about your own blood pressure, CONSULT YOUR DOCTOR.
To disconnect the AC adapter, unplug the AC adapter from the
Important Safety Information
electrical outlet first and then immediately remove the AC adapter plug
Consult your doctor prior to using in pregnancy or if diagnosed with arrhythmia
from the main unit.
or arteriosclerosis.
Please read this section carefully before using the unit.
2.2 Installing/Replacing the Batteries
Warning:
• Indicates a potentially hazardous situation which, if not avoided, could result
1.
in death or serious injury. Turn the main unit upside down.
(General Usage)
• Always consult your doctor. Self-diagnosis of measurement results and 2.
Slide the battery cover in the direction
self-treatment are dangerous.
• People with severe blood flow problems, or blood disorders, should consult a of the arrow while pressing the ribbed
doctor before using the unit, as cuff inflation can cause internal bleeding.
part of the cover.
(AC Adapter Usage)
• Never plug in or unplug the power cord from the electric outlet with wet hands.
3.
Install or replace four "AAA" size
(Battery Usage)
• If battery fluid should get in your eyes, immediately rinse with plenty of clean batteries so that the + (positive)
water. Consult a doctor immediately.
and - (negative) polarities match
Caution:
• Indicates a potentially hazardous situation which, if not avoided, may result in minor or the polarities indicated on the battery
moderate injury to the user or patient or damage to the equipment or other property.
compartment.
(General Usage)
• Do not leave the unit unattended with infants or persons who cannot express their consent.
4. Put the battery cover back in place.
• Do not use the unit for any purpose other than measuring blood pressure.
• Do not disassemble the unit or arm cuff.
Slide the battery cover as indicated,
• Use only the approved arm cuff for this unit. Use of other arm cuffs may result
in incorrect measurement results. until it clicks into place.
• Make sure that the air tube is not wrapped around other parts of your body
when taking measurements at night. This could result in injury when the air
Note: The measurement
pressure in the air tube is increased.
• Do not leave the cuff wrapped on the arm if taking measurements during the values continue to be
night. This could result in injury. stored in memory even
• Do not inflate the arm cuff over 299 mmHg.
after the batteries are replaced.
• Do not use a mobile phone or other devices that emit electromagnetic fields,
near the unit. This may result in incorrect operation of the unit.
2.3 Battery Life & Replacement
• Do not operate the unit in a moving vehicle (car, airplane).
• To inflate the cuff manually, refer to Chapter 3.3. If the cuff is over inflated, it
If the battery low symbol (
can cause internal bleeding.
replace all four batteries at the same time.
(AC Adapter Usage)
- When the battery low symbol (
• Use only the original AC adapter designed for this unit. Use of unsupported
adapters may damage and/or may be hazardous to the unit.
will still be able to use the unit for a short while. You
• Plug the AC adapter into the appropriate voltage outlet.
should replace the batteries with new ones as soon as possible.
• Do not use the AC adapter if the unit or the power cord is damaged. Turn off
- When the symbol (
the power and unplug the power cord immediately.
batteries with new ones at once. Turn the unit off before replacing the batteries.
(Battery Usage)
• If battery fluid should get on your skin or clothing, immediately rinse with
• Remove the batteries if the unit will not be used for three months or more.
plenty of clean water.
• Dispose of batteries according to applicable local regulations.
• Use only four "AAA" alkaline batteries with this unit. Do not use other types of batteries.
• Do not insert the batteries with their polarities incorrectly aligned.
Four new "AAA" alkaline batteries will last for approximately 300 measurements,
• Replace old batteries with new ones immediately. Replace all four batteries at
when used to take two measurements a day.
the same time.
Since the supplied batteries are for monitoring use only, they may have
• Remove the batteries if the unit will not be used for three months or more.
a shorter life and do not last for 300 measurements.
• Do not use new and used batteries together.
General Precautions
• Do not apply strong shocks and vibrations to or drop the unit and arm cuff. 3. Using the Unit
• Do not take measurements after bathing, drinking alcohol, smoking,
exercising or eating. 3.1 Applying the Arm Cuff
• Do not forcibly bend the arm cuff or bend the air tube excessively.
• When removing the air tube, pull on the air plug at the connection with the
Be sure to wrap the arm cuff correctly so that you get accurate results.
main unit not the tube itself.
Measurements can be taken in light clothing. However, please remove
• Do not inflate the arm cuff when it is not wrapped around your arm.
• Do not wash the arm cuff or immerse it in water. thick clothes, such as sweaters, before taking a reading.
• Read and follow the "Important information regarding Electro Magnetic
Note: You can take a measurement on either your left or right arm. The blood
Compatibility (EMC)" in the Technical Data Section.
pressure can differ between the right arm and the left arm and therefore
• Read and follow the "Correct Disposal of This Product" in the Technical Data
Section when disposing of the device and any used accessories or optional parts. also the measured blood pressure values can be different. Omron
recommends to always use the same arm for measurement. If the
values between the two arms differ substantially, please check with your
physician which arm to use for your measurement.

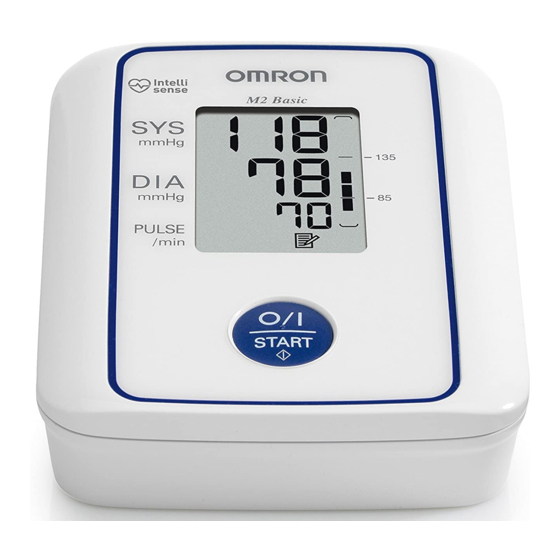

1. Overview
Main unit: 1.
D Insert the air plug into the air jack
A
on the left side of the main unit.
C
2. Apply the arm cuff to your upper arm. The air tube should be
E
centred on the inside of your arm and point down the inside of
B
the arm, so that the air tube runs down the inside of your
A. Display D. Battery compartment
forearm and is in line with your middle finger.
B. O/I START button E. Air jack
C. AC adapter jack
Display:
F
3.
When the cuff is positioned correctly, close the fabric fastener firmly.
G
H J
K Taking a Reading on the Right Arm
I
L
Apply the cuff so that the air tube is
F. Systolic blood pressure K. Pulse display
at the side of your elbow.
G. Diastolic blood pressure L. Deflation symbol
Notes:
H. Memory symbol
(Displayed wh en viewing Note: If your systolic or diastolic • Be careful not to rest your arm on
values stored in memo ry) pressure is outside the the air tube, or otherwise restrict
I. Battery low symbol standard range the flow of air to the cuff.
J. Heartbeat symbol (above 135/85 mmHg), • The cuff should be 1 to 2 cm above
the elbow.
1 . Flashes during measurement the Heartbeat symbol ( )
2 . If flashing after measurement will blink. Refer to
comp lete indicates blood pressure "3.2 Taking a Reading".
out o f recommended range
If air starts to leak from the arm cuff, 3.2 Taking a Reading
please replace with a new one.
N 1.
Refer to "6. Optional Parts". Sit on a chair with your feet flat on
the floor and place your arm on a
M. Arm cuff
table so that the arm cuff will be
(Medium cuff:
at the same level as your heart.
arm circumference 22-32 cm)
N. Air tube Keep still and do not talk during measurement.
O
O. Air plug
2.
Press the O/I START button to turn the unit on.
Note: To cancel a measurement, press the O/I START button to turn the
unit off and to release the air in the arm cuff.
3. Check the measurement results.
The unit automatically stores blood
pressure and pulse rate into its memory.
Refer to "3.4 Using the Memory
Function".
Notes:
• Self-diagnosis of measured results and treatment are dangerous.
Please follow the instructions of your doctor.
• Wait 2-3 minutes before taking another blood pressure reading.
Waiting between readings allows the arteries to return to the condition prior
to taking the blood pressure measurement.
Important:
• If your systolic or diastolic pressure is outside
the standard range, the heartbeat symbol will
blink when the measurement result is displayed.
Recent research suggests that the following
values can be used as a guide to high blood
pressure for measurements taken at home.
Systolic Blood Pressure
Diastolic Blood Pressure
This criteria is for home blood pressure measurement.
4.
Remove the arm cuff.
5. Press the O/I START button to turn the unit off.
Note: If you forget to turn the unit off, it will automatically shut itself off after
five minutes.
3.3 Instructions for Special Conditions
If your systolic pressure is known to be more than 170 mmHg, press
and hold the O/I START button until the arm cuff inflates 30 to
40 mmHg higher than your suspected systolic pressure.
) appears on the display,
1.
Press the O/I START button
) starts to blink, you
to turn the unit on.
Measurement starts.
) remains lit, the batteries are exhausted. You should replace the
2.
When the cuff starts to inflate, press the O/I START button
and keep it pressed until the pressure is 30 to 40 mmHg
higher than your suspected systolic pressure.
Note: You cannot inflate the cuff above 299 mmHg. (An error will be displayed
if you try to inflate the cuff above 300 mmHg.)
3.
Release the O/I START button when the cuff has been
inflated to the desired pressure.
The cuff starts to deflate and measurement starts.
4. The rest of the procedure is the same as for normal
measurement. Refer to "3.2 Taking a Reading", steps 3 to 5.
Note: Do not apply more pressure than necessary.
3.4 Using the Memory Function
The unit automatically stores the last measurement values (blood
pressure and pulse rate) in the memory.
1. Press and hold the O/I START button until the last
measurement value is displayed along with the memory symbol.
Important:
If your systolic or diastolic pressure is
outside the standard range, the heartbeat
symbol will blink when the measurement
result is displayed.
1 - 2 cm
Refer to "3.2 Taking a Reading".
2. Press the O/I START button to turn the unit off.
If you forget to turn the unit off, it will automatically shut
itself off after five minutes.
1 to 2 cm
To Delete the Value Stored in Memory
1.
To delete stored readings, first press and hold the O/I
START button until the last measurement value is displayed.
Then keep the button pressed down for about 10 seconds.
All readings will then be deleted.
2. Press the O/I START button to turn the unit off.
If you forget to turn the unit off, it will automatically shut
itself off after five minutes.
4. Handling Errors and Problems
Systolic blood
pressure 4.1 Error Messages
Diastolic blood
Error Display Cause Remedy
pressure
Pulse display
Carefully read and repeat the
Cuff is under inflated.
steps listed under section 3.3.
Repeat measurement. Remain
Movement during
still and do not talk during
measurement.
measurement.
Insert the air plug securely.
Air plug disconnected.
Refer to section 3.1.
Apply the arm cuff correctly.
Arm cuff not applied
correctly.
Refer to section 3.1.
Clothing is interfering Remove any clothing
Above 135 mmHg with the arm cuff. interfering with the arm cuff.
Air is leaking from the
Above 85 mmHg
Replace cuff with new one.
arm cuff.
Arm cuff has been
Do not inflate the arm cuff
inflated above
above 299 mmHg.
299 mmHg. Refer to section 3.3.
Replace all four "AAA"
Battery power is low.
batteries with new ones.
Refer to section 2.2.
Blinks or appears
continuously
Contact your OMRON retail
Device error.
outlet or distributor.
4.2 Troubleshooting
Problem Cause Remedy
Apply the arm cuff
Arm cuff not applied correctly.
correctly. Refer to section 3.1.
The reading is
Remain still and do not
Movement or talking
extremely low (or talk during
during measurement.
measurement.
high).
Remove any clothing
Clothing is interfering
interfering with the arm
with the arm cuff.
cuff.
Make sure that the air
The air plug is not
jack is connected
securely inserted into
securely.
Arm cuff pressure
the main unit.
Refer to section 3.1.
does not rise.
Air is leaking from the Replace the arm cuff
arm cuff. with a new one.
Apply the cuff correctly
so that it is firmly
Arm cuff deflates too
wrapped around the
The arm cuff is loose.
soon. arm.
Refer to section 3.1.
Inflate the cuff so that it
is 30 to 40 mmHg
Cannot measure or The arm cuff has not
above your previous
readings are too low been inflated
measurement result.
or too high. sufficiently.
Refer to section 3.3.
The unit loses power The batteries are Replace the batteries
during measurement. empty. with new ones.
The batteries are Replace the batteries
empty. with new ones.
Nothing happens
when you press the
The batteries have Insert the batteries with
buttons.
been inserted the correct (+/ -)
incorrectly. polarity.
Press the O/I START button and repeat
measurement.
If the problem continues, try replacing the
Other problems.
batteries with new ones.
If this still does not solve the problem, contact
your OMRON retail outlet or distributor.
• This OMRON product is produced under the strict quality system of OMRON
5. Maintenance and Storage
Healthcare Co. Ltd., Japan. The Core component for OMRON blood pressure
monitors, which is the Pressure Sensor, is produced in Japan.
Maintenance
• Disposal of this product and used batteries should be carried out in accordance
To protect your unit from damage, please observe the following:
with the national regulations for the disposal of electronic products.
• Do not subject the main unit and cuff to extreme
temperatures, humidity, moisture or direct sunlight.
• Do not fold the cuff or tubing tightly.
• Do not inflate the arm cuff over 299 mmHg.
• Do not disassemble the unit.
This device fulfils the provisions of EC directive 93/42/EEC (Medical Device
• Do not subject the unit to strong shocks or vibrations
Directive).
(for example, dropping the unit on the floor).
This blood pressure monitor is designed according to the European Standard
• Do not use volatile liquids to clean the main unit. EN1060, Non-invasive sphygmomanometers Part 1: General Requirements
The unit should be cleaned with a soft, dry cloth. and Part 3: Supplementary requirements for electromechanical blood pressure
measuring systems.
• Do not wash the arm cuff or immerse it in water.
Please read the instruction manual carefully before
• Do not use petrol, thinners or similar solvents to clean
using the device.
the arm cuff.
Important information regarding Electro Magnetic Compatibility (EMC)
With the increased number of electronic devices such as PC's and mobile
(cellular) telephones, medical devices in use may be susceptible to
electromagnetic interference from other devices. Electromagnetic
interference may result in incorrect operation of the medical device and
• Use a soft, moistened cloth and soap to clean the arm cuff. create a potentially unsafe situation.
Medical devices should also not interfere with other devices.
• Do not carry out repairs of any kind by yourself.
If a defect occurs, consult your OMRON distributor. In order to regulate the requirements for EMC (Electro Magnetic
Compatibility) with the aim to prevent unsafe product situations, the
Calibration and Service
EN60601-1-2:2007 standard has been implemented. This standard defines
the levels of immunity to electromagnetic interferences as well as maximum
• The accuracy of this blood pressure monitor has been
levels of electromagnetic emissions for medical devices.
carefully tested and is designed for a long service life.
This medical device manufactured by OMRON Healthcare conforms to this
• It is generally recommended to have the unit inspected every
EN60601-1-2:2007 standard for both immunity and emissions.
two years to ensure correct functioning and accuracy.
Nevertheless, special precautions need to be observed:
Please consult your authorised OMRON dealer.
• Do not use mobile (cellular) telephones and other devices, which generate
strong electrical or electromagnetic fields, near the medical device. This
Storage
may result in incorrect operation of the unit and create a potentially unsafe
Keep the unit in its storage case when not in use.
situation. Recommendation is to keep a minimum distance of 7 m. Verify
correct operation of the device in case the distance is shorter.
1.
Unplug the air tube from the air jack.
Further documentation in accordance with EN60601-1-2:2007 is available at
Gently fold the air tube OMRON Healthcare Europe at the address mentioned in this instruction manual.
into the arm cuff. Documentation is also available at www.omron-healthcare.com.
Note: Do not bend the air tube excessively.
Correct Disposal of This Product
Do not store the unit in the following situations:
(Waste Electrical & Electronic Equipment)
• If the unit is wet.
• Locations exposed to extreme temperatures, humidity, direct sunlight, This marking shown on the product or its literature, indicates
dust or corrosive vapours.
that it should not be disposed of, with other household wastes
• Locations exposed to vibrations, shocks or where it will be at risk of
at the end of its working life. To prevent possible harm to the
falling.
environment or human health from uncontrolled waste
disposal, please separate this from other types of wastes and
6. Optional Parts recycle it responsibly to promote the sustainable reuse of
material resources.
Medium arm cuff Large arm cuff AC adapter
Household users should contact either the retailer where they purchased
Arm circumference Arm circumference
this product, or their local government office, for details of where and how
22 - 32 cm 32 - 42 cm they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract. This product should not be mixed with
other commercial wastes for disposal.
This product does not contain any hazardous substances.
CM-9997579-7 CL-9970672-9 R Adapter-9997605-0
Manufacturer
7. Technical Data
Product Description Digital Automatic Blood Pressure Monitor
Model OMRON M2 Basic (HEM-7116-ARU)
Display LCD Digital Display
EU-representative
Measurement Method Oscillometric method
Measurement Range Pressure: 0 mmHg to 299 mmHg
Pulse: 40 to 180/min.
Memory Last measurement
Accuracy Pressure: ±3 mmHg
Exclusive
Pulse: ±5% of display reading
distributor in
Inflation Automatic by electric pump
Russia & importer
Deflation Automatic pressure release valve
Pressure Detection Capacitive pressure sensor
Production Facility
Power Source 4 "AAA" batteries 1.5V or AC/ DC adapter
(6V 4W)
Battery Life Capacity of new alkaline batteries is approx. 300
measurements
Operating Temperature/ 10°C to 40°C/ 30 to 85% RH
Humidity
Storage Temperature/ -20°C to 60°C/ 10 to 95% RH/ 700-1060 hPa
Humidity/ Air Pressure
Console Weight Approximately 245g without batteries
Cuff Weight Approximately 120g
Outer Dimensions Approximately 104 (w) mm × 64 (h) mm × 129 (l) mm
Cuff Dimensions Approximately 146 mm × 446 mm
(Medium cuff: arm circumference 22 to 32 cm)
Cuff material Nylon
Package Content Main unit, medium cuff, instruction manual, storage
case, battery set, AC adapter, guarantee card,
blood pressure pass
Note: Subject to technical modification without prior notice
HEM-7116-ARU_A_M01_090616.pdf
= Type B
OMRON HEALTHCARE CO., LTD.
24, Yamanouchi Yamanoshita-cho, Ukyo-ku, Kyoto,
615-0084, Japan
OMRON HEALTHCARE EUROPE B.V.
Kruisweg 577, 2132 NA Hoofddorp,The Netherlands
www.omron-healthcare.com
ComplectService Ltd.
1/1, Tishinskaya sq, Moscow, Russia,123056
www.csmedica.ru
OMRON DALIAN CO., LTD.
Economic & Technical Development Zone
Dalian 116600, China
Made in China
IM-HEM-7116-ARU-02-11/09
5327735-1B
