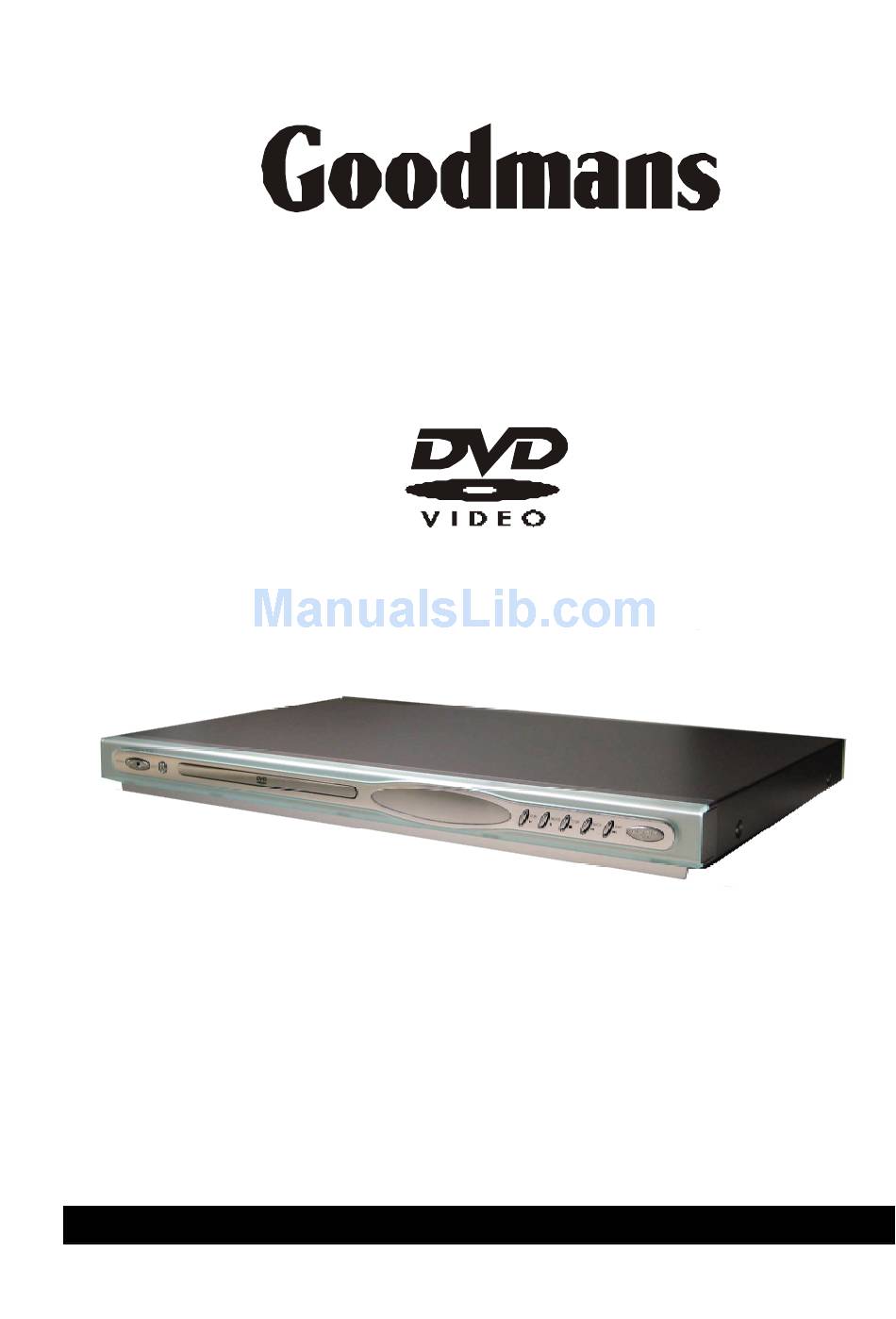

- Page 1 INSTRUCTIONS MANUAL Model:GDVD148E Before attempting to connect, operate or adjust this player,please read these instructions completely. Please save this manual.
-
Page 2: Safety Information
Safety information CAUTION: CAUTION DVD/VIDEO CD/CD PLAYER IS A CLASS 1 LASER PRODUCT. HOWEVER THIS DVD/VIDEO CD/CD PLAYER USES A VISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION EXPO- SURE IF DIRECTED. BE SURE TO OPERATE THE CAUTION: TO REDUCE THE RISK OF ELECTRIC DVD/VIDEO CD/CD PLAYER CORRECTLY AS IN- SHOCK, DO NOT REMOVE COVER (OR BACK). -
Page 3: Important Safeguards
Important safeguards For you own safety read following instructions carefully before attempting to connect this clock radio to the mains . Main Supply:230V, 50Hz ,AC only This unit is designed to operate on a 230V,50Hz supply only. Connecting it to other power sources may damage it. Ensure that the supply corresponds to the information on the rating tabel on the bottom of the unit. -
Page 4: Important Notes
Important notes To achieve the utmost enjoyment and performance, please read this manually carefully before attempting to operate the unit in order to became familiar with its features, and assure you years of faithful , trouble free performance and listening pleasure. Important Notes Keep instructions the safety and operating instructions should be retained for future reference. - Page 5 Important notes Hearing is very important to you and to us so please take care when operating this equipment . It is strongly recommended that you follow the listed guidelines in order to prevent possible damage or loss of hearing. ESTABLISH A SAFE SOUND LEVEL Over time your hearing will adapt to continuous loud sounds and will give the impression that the volume has in fact been reduced.
-
Page 6: Table Of Contents
Table of Contents Getting started: Safety information....................................1 Important safeguards..................................2 Important notes....................................3,4 General Information Features ....................................... 6 unit precautions....................................7 Notes on disc ....................................8 Accessory ..................................... 8 Install batteries in the remote control ............................8 Location of Controls Remote control ..................................... 9 Front panel .................................... -
Page 7: Features
Dear Customers May we take this opportunity to thank you for purchasing this DVD/VCD/CD player. We strongly recommend that you carefully study the Operating Instructions before attempting to operate the player and that you note the listed precaution. Features GRAPHICAL USER INTERFACE SCREEN HIGH QUALITY SOUND AND PICTURE... -
Page 8: Unit Precautions
Important Safeguards and Precautions Power Cord Protection If There is Noise Interference on the TV While a Broadcast is To avoid any malfunctions of the unit, and to protect against electric being Received shock, fire or personal injury, please observe the following: Depending on the reception condition of the TV, interference may •... -
Page 9: Notes On Disc
General Information(continued) Install Batteries in the Remote Control Notes on disc 1. Open the battery cover on the back of the remote. Disc handling precautions • 2. Insert two AAA batteries. Make sure that the polaritied(+ and -) are To keep the disc clean, handle the disc by its edge. Do not touch aligned correctly. -
Page 10: Remote Control
Remote Control Remote control 5. FAST FORWARD : press to do fast forward search. 6. STOP : press to stop playback. 7. TITLE/PBC: Dispaly the title menu if present on the disc (DVD only) & switch the PBC functions to on or off. 8. -
Page 11: Front Panel
Function Overview Front Panel 3 4 5 6 7 1.POWER Button To switch between power on and standby mode. 2.EJECT Button To open or close the disc tray. 3.PLAY 4Button To start disc playback. 4.PAUSE ;Button To interrupt disc playback. 5.STOP <... -
Page 12: Basic Connection
Basic Connection Ensure that this player and other equipment to be connected are set to the standby mode or off and disconnect the AC power cords before commencing connection. Do not block ventilation holes of any of the equipment and arrange them so that air can circulate freely. Read through the instructions before connecting other equipment. -
Page 13: Connecting To Audio Equipment
Basic Connection Connecting to a TV set or monitor with SCART video output connectors TV set or monitor SCART TV Scart Cable (supplied) S-video output connectors The S (separate) video output connector separates the color (C) and luminance (Y) signals before transmitting them to the TV set in order to achieve a sharper picture. -
Page 14: Optional Audio Connection
Optional audio Connection Connecting to a decoder with Dolby Digital (AC-3) processing When DVD recorded in Dolby Digital are played, Dolby digital bitstream is output from the player’ s COAXIAL digital audio output connector. When the player is connected to a Dolby Digital decoder , you can enjoy theater quality audio in your home. [A coaxial audio cable (not supplied) is required when a Dolby digital decoder is used.] TV set V ideo/audio cable (not supplied) -
Page 15: Basic Setup
Basic Setup TV SYSTEM In the top menu select the setup menu option to make desired setup You can setup the colour system of this unit to match up your options. connected TV set. If the colour system of this unit is different from In setup menu ,select Setup Menu option to make desired setup that of the TV set, the images can not be displayed normally on the options. -
Page 16: Language Setup
Basic Setup(continued) 16:9 DEFAULT If you have a widescreen TV set, use this setting (you must If you select this funtion, all of the funtion will restore to the also set your widescreen TV to Full size). aboriginality except the rating. SCREEN SAVER If you The default setting for the SCREEN SAVER is ON. -
Page 17: Audio Setup
Basic Setup(continued) OSD LANGUAGE AUDIO SETUP • Press SETUP on remote control. ENGLISH to select item you want. • SPANISH Press ENTER to confirm the selection. To exit the setup, press SETUP again. This page includes: DIGITAL OUT • DOWN SAMPLE •... -
Page 18: Video Setup
Basic Setup(continued) DOWN MIX BRIGHTNESS, CONTRAST, SATURATION To play a DVD disc recorded with surround multi-channel audio correctly ,select either one according to yur audio system. The BRIGHTNESS ,CONTRAST and SATURATION is the same User Interface. The default setting for the BRIGHTNESS and the CONTRAST is 6 respectively;... -
Page 19: Playing Discs
Playing Discs General operation When you complete all the connections, plug the AC power cord of the player. Press ON/STANDBY to switch ON the main power. Press OPEN/CLOSE to open the disc tray, press again to close the disc tray. 4 Press MUTE to shut off the sound. -
Page 20: Repeat Viewing / A-B Repeat Play
Repeat play Repeat 1.For DVD discs Press REPEAT repeatedly to select the following: REP ： [OFF] ： [CHAPTER] ： [TITLE] REP: [REP ALL] 2.For CD discs Press REPEAT repeatlly to select the following. ： [OFF] ： [REP 1] ： [REP ALL] 3.For MP3 discs Press REPEAT repeatlly to select the following. -
Page 21: Using The Menu For Dvd
Playing Discs(continued) Using the menu for DVD When playing back a CD 1 Press the DISPLAY repeatedly to show on TV screen as the Press the MENU/RETURN while playing a DVD disc. following (for reference): The TITLE MENU will be shown on TV screen for a moment, and then the title menu appears. -
Page 22: Program Play
Playing Discs(continued) Program play You can play the contents of the disc in the order you want by pro- gramming the order of the tracks to be played. Press PROGRAM to enter program mode. Use the number buttons (0 ~ 9) to input the track number in the order you want. -
Page 23: Special Function
Special Function Picture Zooming This function allows you to enlarge the picture on the TV screen and to pan through the enlarged image. Press ZOOM repeatedly to select a zoom factor as below: ZOOM 2 ZOOM ZOOM ZOOM 1/2 ZOOM : OFF To pan though the enlarged image, press buttons to move the zoomed picture left, right, up or down. -
Page 24: Definition Of Terms
Definition of terms Specifications Angle DVD section Recorded onto some DVD discs are scenes which Laser type..Semiconductor laser, Wavelength 650 nm have Signal system......PAL625/50,NTSC525/60 been simultaneously shot from a number of different Video output level........1 Vp-p (75 ohm) angles (the same scene is shot from the front, from the Video Y output level.......... -
Page 25: Troubleshooting
Troubleshooting Before requesting service for this player, check the chart below for a possible cause of the problem you are experiencing. Some simple checks or a adjustment on your part may eliminate the problem and restore proper operation. Symptom(Common) Remedy Insert the AC power plug securely into the power outlet. -
Page 26: Disc Handing And Maintenance
Disc handling and maintenance Handling precautions Hold the disc by the edges so the surface will not be soiled with fingerprints. Fingerprints, dirt and scratches can cause skipping and distortion. Do not write on the label side with a ball-point pen or other writing utensils. Do not use record cleaning sprays, benzine, thinner, static electricity prevention liquids .
