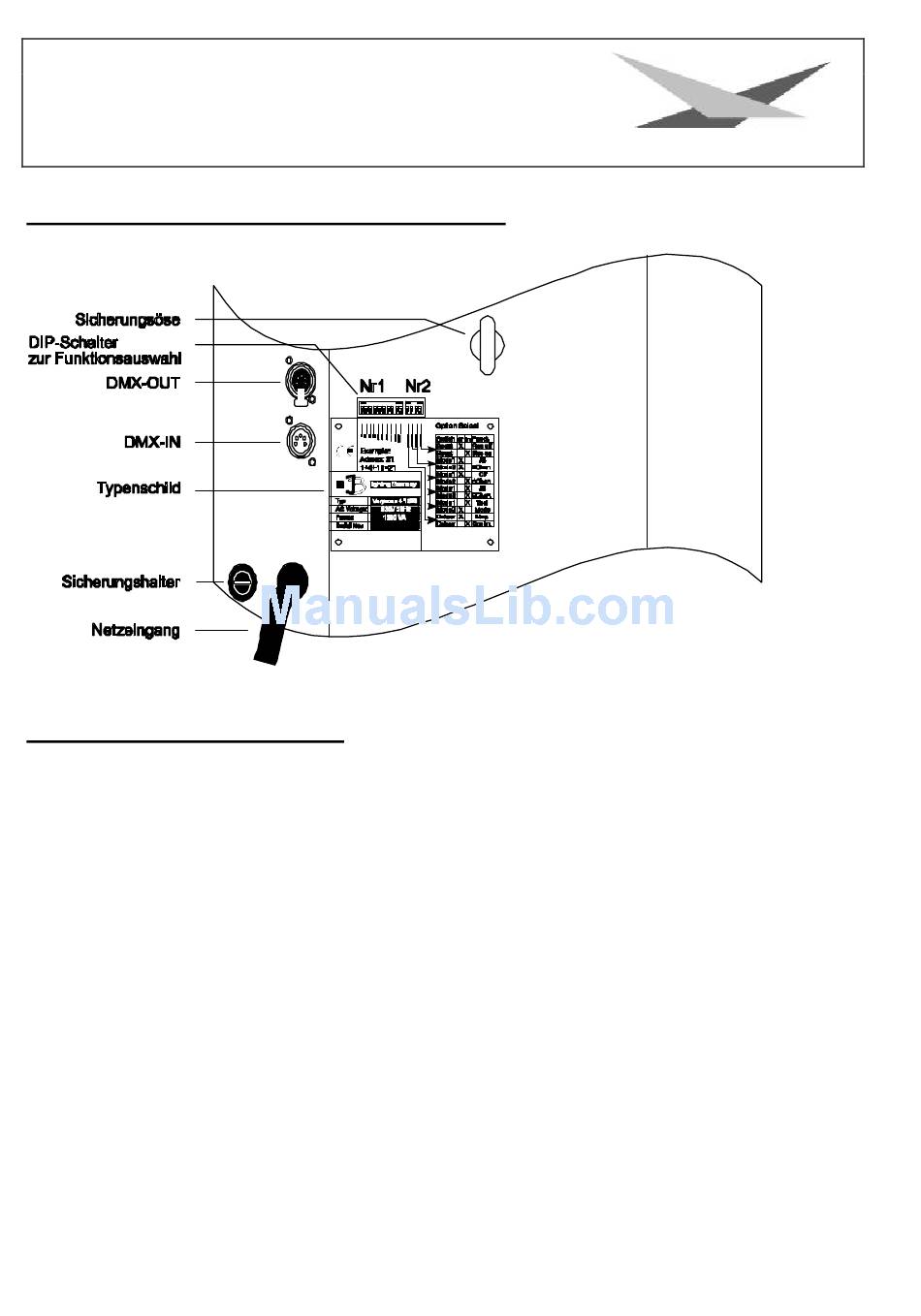

Rückansicht und Lage der Bedienelemente

Belegung der DMX-Buchsen

DMX-Eingang

Pin Nr.

Signal

1

Ground

2

DMX -

3

DMX +

4

frei

5

+5V

®

4 1200 HMI

Kabelfarbe

schwarz

weiß

rot

gr/sw

DMX-Ausgang

Pin Nr.

Signal

1

Ground

2

DMX -

3

DMX +

4

frei

5

frei

6

Kabelfarbe

schwarz

weiß

rot
