Apantac SDI-CVBS-S User Manual

SDI-CVBS-S
3G/HD/SD-SDI to CVBS Converter
USER MANUAL

Package Contents

• 1 CVBS-SDI-S
• 1 User manual
• 1 Power adapter DC 12V
• 1 Mounting plate
Introduction
This converter is intended for monitoring
use only, not for transmission or on-air use
Features
• Auto-detect 3G/HD/SD-SDI input
• Looping SDI output
• RCA Stereo analog audio output
• Coaxial audio output
SPECIFICATIONS
SDI Input
1 x BNC
SDI Loop Out (non-re-
1 x BNC
clocked)
CVBS Output 1 x RCA
Serial Digital SMPTE 424M, 292M, 259M
120m at 2.97 Gbps, 140m at 1.48
Equalization Gbps, 400m at 270 Mbps with
Belden 1694A
Return Loss > 15db up to 1.485 Gbps
> 10db up to 3G
Embedded Audio SMPTE-272M-A
Composite NTSC (SMPTE-170M), PAL
(ITU624-2)
1V nominal
Signal Level
DC Offset 0V, + - 0.1V
Impedence 75 ohm for BNC, 100 ohm for DVI-I
Return Loss 40db up to 5MHz
Analog Audio Out
2 x RCA
Coaxial (SPDIF) Out
1 x RCA
Analog Audio sample rate
48 KHz
Digital Audio sample rate 48 KHz
Power 12 DC
Weight 3 lbs (1.5 kg)
Dimension (LxWxH) 171 x 119 x 25 mm

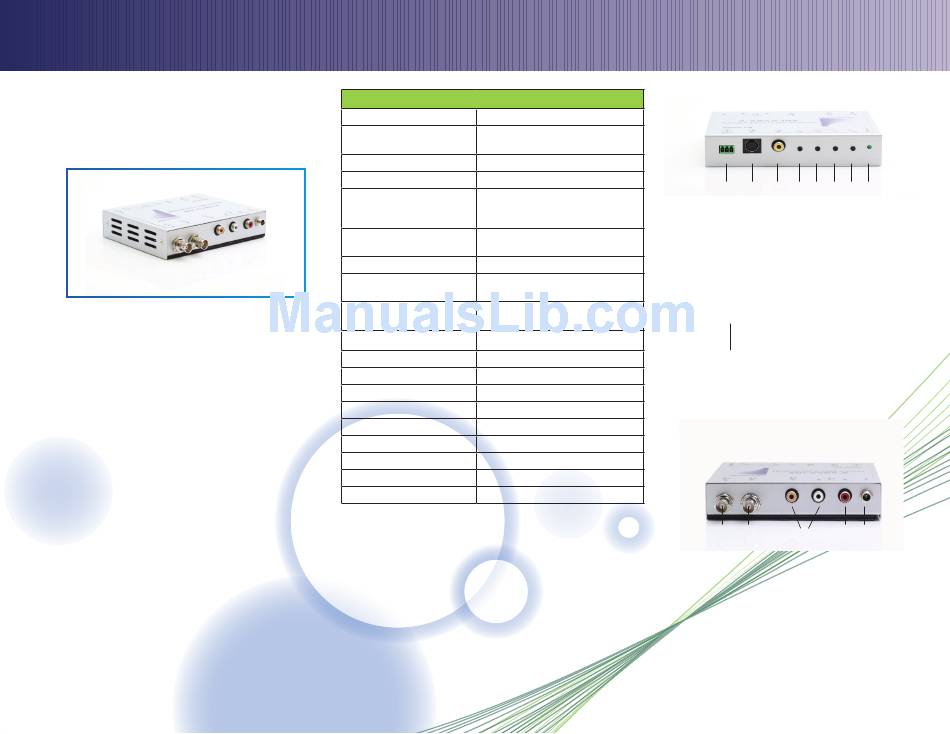

FRONT VIEW
1 2 3 4 5 6 7 8
1. RS-232 Control Port
Rx pin: connect to the RxD pin of the RS232
from PC
Tx pin: connect to the TxD pin of the RS232
from PC
GND pin: connect to the GND pin of the RS232
from PC
2. S-Video out Port
3. CVBS (composite video) out Port
4. OSD "Menu" Button (on/off OSD)
5. OSD "Down" Button
6. OSD "Up" Button
7. OSD "Enter" Button
8. Power LED
REAR VIEW
1 2 3
1. Auto-detect 3G/HD/SD-SDI input
2. Non-reclocked SDI output
3. Coaxial audio output
4. Stereo analog audio output
5. Power Indicator
4 5
