Apantac HDMI-IP-E Quick Start Manual

HDMI-IP-E and HDMI-IP-R

QUICK START GUIDE

Visit www.apantac.com for the full Manual
(
H.264 Encoder / Decoder SET)
What's in the Box
Note: HDMI-IP-E and HDMI-IP-R can also be sold
separately
1 x HDMI-IP-E (Encoder)
1 x HDMI-IP-R (Decoder)
2 x IR Emitter Cable
2 x 12V DC Power supplies
1 x Quick START Guide
© 2016 APANTAC LLC, All rights reserved
7470 SW BRIDGEPORT ROAD
PORTLAND, OR 97224, USA
PHONE +1 503 968 3000, FAX +1 503 389 7921
The content of this document are provided in connection with
Apantac LLC ("Apantac") products. Apantac makes no
representation or warranties with respect to the accuracy or
completeness of the contents of this publication and reserves
the right to make changes to specifications and product
descriptions
Key Features
HDMI 1.4 (1080P) to H.264 encoder and
–
decoder
Supports one pair of HDMI embedded audio
–
Supports both Unicast and Multicast
–
Supports up to 1080P@60Hz at 18Mbps
–
Supports point to point up to 100 meters
–
Compatible with CAT 5/E/6 cables
–
Supports RS-232
–
HDMI and HDCP compliant
–
Web interface for basic configuration
–

Specifications

Functions/Part# HDMI-IP-E
HDMI Input 1 (HDMI
Connector Type A)
HDMI Input Color HDMI: RGB 8/10/12 bit,
Space YCbCr 4:2:2/4:4:4 8/10/12
bit, DVI:RGB/YCbCr
4:2:2/4:4:4 8 bit
HDMI Output 1 (HDMI Type A)
Connector
HDMI Output Color YCbCr
Space 4:4:4
HDMI Output Max. 1080P@60Hz (8 bit)
Resolution
LED Indicators
LINK
IR In None
IR Out 3.5 mm
jack
IR Carrier Frequency 20KHz ~ 60KHz
Baud Rate Settings 3 PIN DIP Switch
ID DIP Switch 8 PIN DIP Switch
CAT 5E cable 100 meters maximum
distance
RS-232 connector
Baud Rate 2400 up to 115,200 bps;
data bits, 1 stop bit, no
Weight
Dimension (LxW-H) 120x75x33 mm

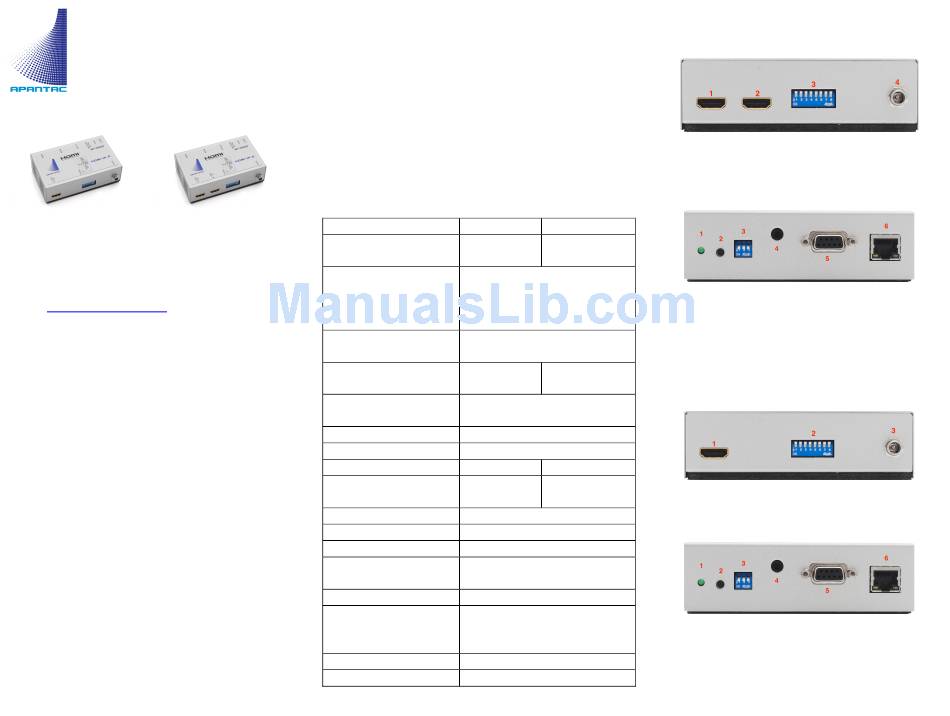

Front/Rear View
HDMI-IP-E (Encoder)
1. HDMI Loop out. (YCbCr 4:4:4)
2. HDMI Input
3. Multicast ID DIP Switch
4. Power (12 V DC 2A)
HDMI-IP-R
None
1. LED power indicator
2. System reset
3. Baud rate setting DIP Switch
4. IR out
5. RS-232
6. LINK
RGB
HDMI-IP-R(Decoder)
Power
Rj-45
3.5 mm jack
None
1. HDMI Output
2. Multicast ID DIP Switch
3. Power (12 V DC 2A)
DB9 Female
1. LED power indicator
2. System reset
parity
3. Baud rate setting DIP Switch
338 g
4. IR out
5. RS-232
6. LINK
