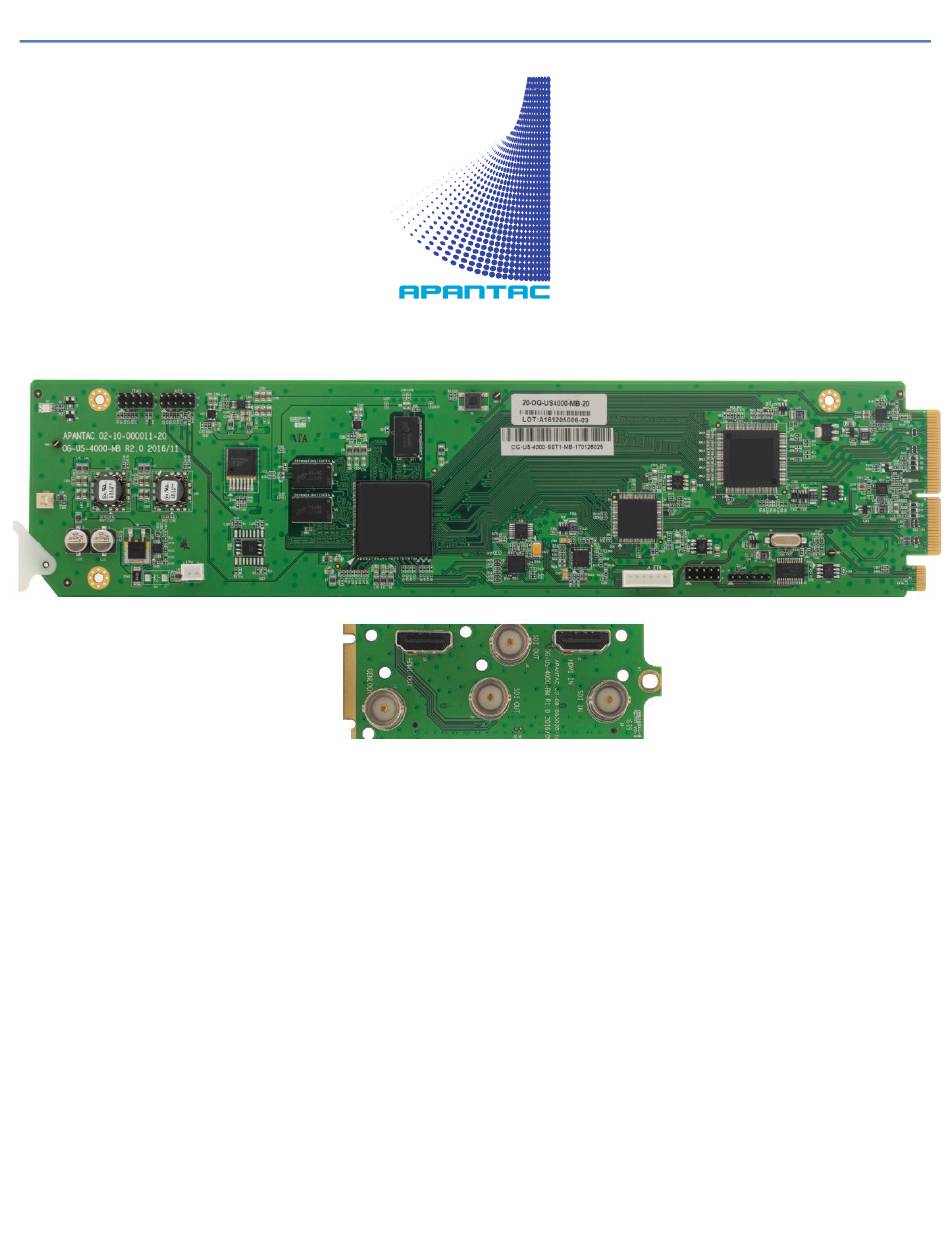

OG-US-4000 User Manual Contents: 1 x OG-US-4000-MB, main board 1 x OG-US-4000-RM, rear module 1 x 75 ohm Terminator 1 x Screw and washer APANTAC LLC www.apantac.com...
OG-US-4000 User Manual Installation: Card Installation Install the Apantac OG-US-4000 rear module (RM). Secure with the included screw and washer. Insert main board in the appropriate slot to match the RM card edge connector. Insure the main board is firmly seated into the RM con- nector.
OG-US-4000 User Manual Indicators: STATUS Indicator: Lights green when the OG-US-4000 has recognized and locked on to the video input signal. APANTAC LLC www.apantac.com...
OG-US-4000 User Manual Control and Configuration: Software: The Apantac OG-US-4000 model is controlled and configured through the openGear frame’s control software ‘Dashboard’ by Ross Video inc. Dashboard can be acquired through the Ross Video website; https://www.rossvideo.com Dashboard software runs on PC’s and connects to the openGear frame’s control card via Ether- net.
SDI Output: Indicates whether the OG-US-4000 is generating an SDI video signal on the outputs. Requires a successful Input Video Signal lock. Reference: Indicates the OG-US-4000 is receiving a valid genlock reference signal. Lock Status: Indicates whether the SDI output video signal is locked to the genlock reference signal. APANTAC LLC www.apantac.com...
SDI outputs. HDMI to SDI conversion; chooses the HDMI video input signal for conversion to both HDMI (For HDMI sources requiring HDCP, contact Apantac Technical Support.) and SDI outputs. Test Signals; generates a color-bar test pattern on both outputs.
The OG-US-4000 model includes the feature of locking the output video signal timing to the openGear frame’s refer- ence signal. This feature can be Enabled or Disabled. (Also refer to the Signal tab section) Notes: Genlock adjustments require the use of external test equipment. APANTAC LLC www.apantac.com...
HD letter-boxed within SD 480i 720p 1920 HD letter-boxed within SD 480i 1080i/p 1920 SD pillar-boxed within HD 720p 480i 1180 1080 SD pillar-boxed within HD 1080i/p 480i 1770 1080 Examples for De-boxing the incoming video to fill the output. APANTAC LLC www.apantac.com...
Pull and reseat the US-4000 to power-cycle and reboot the unit. Wait 30 seconds for boot to complete. Click the “Reset to default” option on this tab page. The EDID Status line will indicate the EDID is being reset, and then return to ‘ready’. APANTAC LLC www.apantac.com...
Note: to utilize Ethernet networking directly to the Apantac OG-US-4000 the openGear frame must have an ‘Advanced Networking’ control card. This control card includes an internal Ethernet switch in addition to the openGear’s standard CANBUS communications utilized by the Dashboard software.
‘Software Rev’, ‘FPGA Version’, and ‘Firmware Rev’ items indicate the currently installed firmware of the OG-US-4000. These values should appear similar to shown above. If they show as ‘0’ or not at all, this may indicate a hardware failure, power cycle the card and check whether firmware numbers are restored. APANTAC LLC www.apantac.com...
See the “Display Tab” section for instruction on changing the EDID. If you do not have an appropriate monitor to copy EDID from, Apantac Technical Support can assist with procuring or customizing an EDID.
Apantac LLC (herein after referred to as “Apantac”) warrants to the original purchaser of the products manufactured by Apantac (the “Product,”) will be free from defects in material and workmanship for a period of three (3) year from the date of shipment of the Product to the purchaser.
