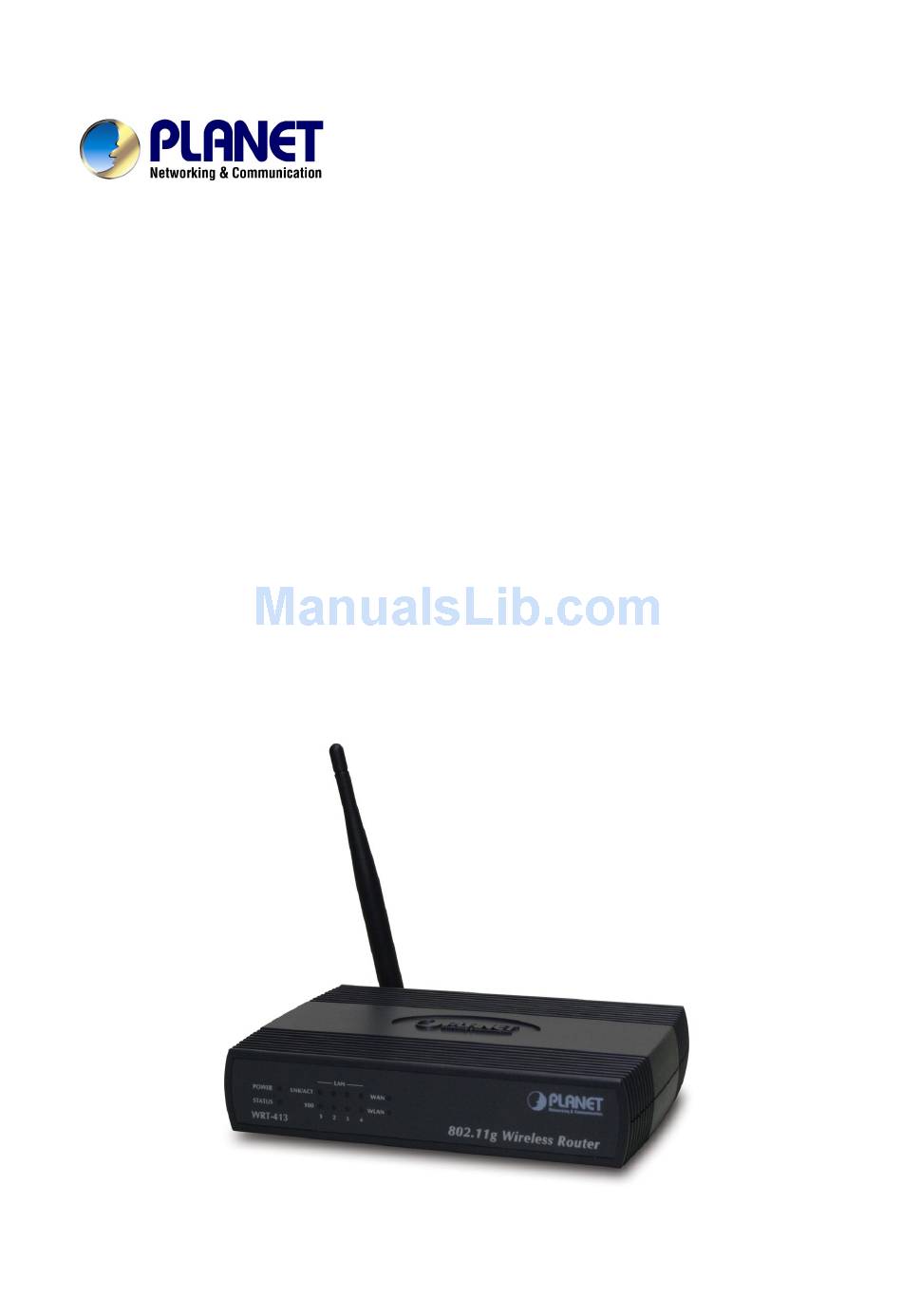

  • Page 1 802.11g Wireless Broadband Router WRT-413 User’s Manual...

  • Page 2: Federal Communication Commission Interference Statement

    Copyright Copyright© 2004 by PLANET Technology Corp. All rights reserved. No part of this publication may be repro- duced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or other- wise, without the prior written permission of PLANET.
  • Page 3 All guidelines of this and of the computer manufacture must therefore be allowed at all times to ensure the safe use of the equipment. Revision User’s Manual for PLANET 54Mbps Wireless Broadband Router Model: WRT-413 Rev: 1.0 (March. 2004)

  • Page 4: Table Of Contents

    Table of Contents CHAPTER 1 INTRODUCTION ................... 1 WRT-413 Features ....................1 Package Contents....................3 Physical Details..................... 4 CHAPTER 2 INSTALLATION..................6 Requirements......................6 Procedure......................6 CHAPTER 3 SETUP ....................8 Overview ....................... 8 Configuration Program ..................9 Setup Wizard ...................... 11 LAN Screen......................
  • Page 5 Wireless Access....................87 APPENDIX B ABOUT WIRELESS LANS ..............88 Modes ......................... 88 BSS/ESS......................88 Channels ......................88 WEP........................89 Wireless LAN Configuration ................89 APPENDIX C SPECIFICATIONS ................90 Multi-Function WRT-413 ..................90 Wireless Interface ....................90 Regulatory Approvals ..................91...

  • Page 7: Chapter 1 Introduction

    Chapter 1 Introduction This Chapter provides an overview of the WRT-413's features and capabilities. Congratulations on the purchase of your WRT-413. It is a multi-function device providing the following services: • Shared Broadband Internet Access for all users. • 4-Port Switching Hub for 10Base-T or 100Base-TX connections.

  • Page 8: Wireless Features

    • DHCP Server Support. Dynamic Host Configuration Protocol provides a dynamic IP address to PCs and other devices upon request. The WRT-413 can act as a DHCP Server for devices on your local LAN and WLAN. • Multi Segment LAN Support.

  • Page 9: Package Contents

    An intrinsic side effect of NAT (Network Address Translation) technology is that by allowing all users to share a single IP address, the location and even the existence of each PC is hidden. From the external viewpoint, there is no network, only a single device - the WRT-413. •...

  • Page 10: Physical Details

    On - Wireless connection available; Wireless Access Point is ready for use. Off - No Wireless connection available. Flashing - Data is being transmitted or received via the Wireless interface of WRT-413. Data includes "network traffic" as well as user data.

  • Page 11: Rear Panel

    2. Hold the Reset Button down while you Power On. 3. Keep holding the Reset Button for a few seconds, until the RED LED has flashed TWICE. 4. Release the Reset Button. The WRT-413 is now using the factory default values.

  • Page 12: Chapter 2 Installation

    To use the Wireless Access Point, all Wireless devices must be compliant with the IEEE802.11b or IEEE802.11g specifications. Procedure Figure 4: Installation Diagram 1. Choose an Installation Site Select a suitable place on the network to install the WRT-413. Ensure the WRT-413 and the xDSL/Cable modem are powered OFF.
  • Page 13 LAN ports on the WRT-413 will automatically function as an "Uplink" port when required. 3. Connect WAN Cable Connect the xDSL or Cable modem to the WAN port on the WRT-413. Use the cable supplied with your xDSL/Cable modem. If no cable was supplied, please use a standard cable.

  • Page 14: Chapter 3 Setup

    PCs on your local LAN may also require configuration. For details, see Chapter 4 - PC Configuration. Other configuration may also be required, depending on the features and functions of the WRT-413 you wish to use. Refer to the table below to locate detailed instructions for the required functions.

  • Page 15: Configuration Program

    2. Set your PC as a DHCP client and start. If your PC is already running, restart it. 3. Start your WEB browser. 4. In the Address field, enter "HTTP://" and the IP Address of the WRT-413, as in this example, which uses the WRT-413's default IP Address: HTTP://192.168.0.1...
  • Page 16 See Chapter 4 - PC Configuration for details on checking your PC's TCP/IP settings. • Ensure that your PC and the WRT-413 are in the same network segment. (If you don't have a router, this must be the case.) •...

  • Page 17: Setup Wizard

    Setup Wizard The first time you connect to the WRT-413, the Setup Wizard will run automatically. (The Setup Wizard will also run if the WRT-413's default settings are restored.) 1. Step through the Wizard until finished. • You need to know the type of Internet connection service used by your ISP. Check the data supplied by your ISP.
  • Page 18 Other Modems (e.g. Broadband Wireless) Type Details ISP Data required Dynamic Your IP Address is allocated None. IP Address automatically, when you connect to you ISP. Static (Fixed) Your ISP allocates a permanent IP IP Address allocated to you. IP Address Address to you.

  • Page 19: Home Screen

    Home Screen After finishing the Setup Wizard, you will see the Home screen. When you connect in future, you will see this screen when you connect. An example screen is shown below. Figure 5: Home Screen Navigation & Data Input •...

  • Page 20: Lan Screen

    TCP/IP IP Address IP address for the WRT-413, as seen from the local LAN. Use the default value unless the address is already in use or your LAN is using a different IP address range. In the latter case, enter an unused IP Address from within the range used by your LAN.
  • Page 21 If you wish to use another DHCP Server, rather than the WRT-413's, the following procedure is required. 1. Disable the DHCP Server fn the WRT-413. This setting is on the LAN screen. 2. Configure the DHCP Server to provide the WRT-413's IP Address as the Default Gateway to the clients to access Internet.

  • Page 22: Wireless Screen

    WRT-413. • g only - Only 802.11b connections are available. • b only - Only 802.11b connections are available. 802.11g clients will only be able to use the WRT-413 if they are fully backward- compatible with the 802.11b standard.
  • Page 23 Access Point • Select Enable. Wireless clients will be able to locate and use this Enable Access Access Point. If this option is not be selected, WRT-413 wireless Point interface will disabled. • The WLAN LED on the front panel will remain OFF if the Wire- less interface is disabled.
  • Page 24 Wireless – Wireless Security After click the “Configure” button of Wireless option, you can see the screen as below and configure the settings for wireless data encryption. Figure 8: WEP Screen Parameters • Disabled – It is the default setting. Data will NOT encrypted Security System before being transmitted.

  • Page 25: Password Screen

    Key Value Enter the Key Value you wish to use. Please ensure you have enter correct number for the key values with different Key Length and coding (Hex or ASCII) as 64bit (10 Hex digit / 5 ASCII), 128bit (26 Hex digit / 13 ASCII).
  • Page 26 Figure 10: Password Screen Once you have assigned a password, WRT-413 will be prompted you the dialog box below for enter password when you login to the configure screen. (If no password has been set, this dialog will not appear.) Figure 11: Password Dialog •...

  • Page 27: Chapter 4 Pc Configuration

    This section describes how to configure Windows clients for Internet access via the WRT-413. The first step is to check the PC's TCP/IP settings. WRT-413 uses TCP/IP protocol for all functions, so it is essential that the TCP/IP protocol be installed and configured on each PC.
  • Page 28 If your PC is already configured, check with your network administrator before configure the following settings: • On the Gateway tab, enter the WRT-413's IP address in the New Gateway field and click Add. Your network administrator can advise you of the IP address they had assigned to the WRT-413.
  • Page 29 Figure 14: Gateway Tab (Win 95/98) • On the DNS Configuration tab, ensure Enable DNS is selected. If the DNS Server Search Order list is empty, enter the DNS address provided by your ISP, then click Add. Figure 15: DNS Tab (Win 95/98)
  • Page 30 Checking TCP/IP Settings - Windows NT4.0 1. Select Control Panel - Network, and, on the Protocols tab, select the TCP/IP protocol, as shown below. Figure 16: Windows NT4.0 - TCP/IP 2. Click the “Properties…“ button, you will see a screen as below.
  • Page 31 • Click the Advanced button on the screen above. • On the following screen, click the Add button in the Gateways panel, and enter the WRT-413's IP ad- dress, as shown in Figure 18 below. • If necessary, use the Up button to make the WRT-413 to the first entry in the gateway list.
  • Page 32 Figure 18 - Windows NT4.0 - Add Gateway 2. The DNS should be set to the address provided by your ISP, as follows: • Click the DNS tab. • In the DNS screen below, click the Add button (under DNS Service Search Order), and enter the DNS provided by your ISP.
  • Page 33 Figure 19: Windows NT4.0 - DNS...
  • Page 34 Checking TCP/IP Settings - Windows 2000: 1. Select Control Panel - Network and Dial-up Connection. 2. Right - click the Local Area Connection icon and select Properties. You should see a screen as below: Figure 20: Network Configuration (Win 2000) 3.
  • Page 35 If your PC is already configured, check with your network administrator before configure the following settings. • Enter the WRT-413's IP address in the Default gateway field and click OK. (Your network administrator can advise you of the IP Address they assigned to the WRT-413.) •...
  • Page 36 Checking TCP/IP Settings - Windows XP 1. Select Control Panel - Network Connection. 2. Right click the Local Area Connection and choose Properties. You should see a screen as below. Figure 22: Network Configuration (Windows XP) 3. Select the “Internet Protocol TCP/IP “. 4.
  • Page 37 If your PC is already configured, check with your network administrator before configure the following settings. • In the Default gateway field, enter the WRT-413's IP address and click OK. Your network administrator can advise you of the IP address they assigned to the WRT-413.
  • Page 38 10. Setup is now completed. Accessing AOL To access AOL (America On Line) through the WRT-413, the AOL for Windows software must be configured to use TCP/IP network access, rather than a dial-up connection. The configuration process is as follows: •...

  • Page 39: Macintosh Clients

    Ensure your DNS settings are correct. Linux Clients To access the Internet via the WRT-413, it is only necessary to set the WRT-413 as the "Gateway". Ensure you are logged in as "root" before attempting any changes. Fixed IP Address By default, most Unix installations use a fixed IP Address.

  • Page 40: Wireless Client Configuration

    Wireless Client Configuration This section applies to all Wireless clients wishing to use the WRT-413's Access Point, regardless of the operat- ing system which is used on the client. To use the Wireless Access Point in the WRT-413, each Wireless Client must have compatible settings, as...

  • Page 41: Chapter 5 Operation And Status

    Refer to Chapter 6 - Advanced Features for further details. • Applications which use non-standard connections or port numbers may be blocked by the WRT-413's built- in firewall. You can define such applications as Special Applications to allow them to function normally.

  • Page 42: Connection Status - Pppoe

    Wizard or WAN Port screen. Broadband Modem This shows the status of the connection from the WRT-413 to the Broadband Modem. Internet Connection Current connection status: • Active • Idle • Unknown • Failed If there is an error, you can click the "Connection Details" button to find out more information.
  • Page 43 Figure 25: PPPoE Status Screen Data - PPPoE Screen Connection Physical Address The hardware address of this device, as seen by remote devices on the Internet. (This is different to the hardware address seen by devices on the local LAN.) The IP Address of this device, as seen by Internet users.
  • Page 44 Disconnect If WRT-413 is connecting to your ISP, it will hang up the connec- tion. Clear Log Delete all data of the Log. This will make it easier to read new messages. Refresh Update the data on screen.

  • Page 45: Connection Status - Pptp

    Connection Status - PPTP If using PPTP (Peer-to-Peer Tunneling Protocol), a screen as below will be displayed when the "Connection Details" button is clicked. Figure 26: PPTP Status Screen Data - PPTP Screen Connection Physical Address The hardware address of this device, as seen by remote devices on the Internet.

  • Page 46: Connection Status - L2Tp

    Disconnect If WRT-413 is connecting to your ISP, it will hang up the connection. Delete all data currently in the Log. This will make it easier to read Clear Log new messages. Refresh Update the data on screen.

  • Page 47: Connection Status - Telstra Big Pond

    When the connection is not established, it will connect to your ISP after click this button. Disconnect If WRT-413 is connecting to your ISP, it will hang up the connection. Clear Log Delete all data currently in the Log. This will make it easier to read new messages.

  • Page 48: Connection Details - Singtel Ras

    When the connection is not established, it will connect to your ISP after click this button. Disconnect If WRT-413 is connecting to your ISP, it will hang up the connec- tion. Delete all data currently in the Log. This will make it easier to read Clear Log new messages.
  • Page 49 Figure 29: Connection Details - RAS Data - RAS Screen Internet RAS Plan The RAS Plan which is currently used. Physical Address The hardware address of this device, as seen by remote devices on the Internet. (This is different to the hardware address seen by devices on the local LAN.) IP Address The IP Address of this device, as seen by Internet users.
  • Page 50 IP Address from the ISP's DHCP Server. • If an IP Address has been allocated to the WRT-413 (by the ISP's DHCP Server), this button will say "Release". Clicking the "Release" button will break the connection and release the IP Address.

  • Page 51: Connection Details - Fixed/Dynamic Ip Address

    Connection Details - Fixed/Dynamic IP Address If your access method is "Direct" (no login), a screen as below will be displayed when the "Connection Details" button is clicked. Figure 30: Connection Details - Fixed/Dynamic IP Address Data - Fixed/Dynamic IP address Screen Internet Physical Address The hardware address of this device, as seen by remote devices on the...
  • Page 52 Buttons Release/Renew This button is only useful if the IP address shown above is allocated automatically on connection. (Dynamic IP address). If you have a Fixed (Static) IP address, this button has no effect. Refresh Update the data shown on screen.

  • Page 53: Chapter 6 Advanced Features

    Chapter 6 Advanced Features This Chapter explains when and how to use the WRT-413's "Advanced" Features. Overview The following advanced features are provided. • Access Control • Dynamic DNS • Advanced Internet • Communication Applications • Special Applications • Multi-DMZ •...
  • Page 54 Access Control Screen This screen allows you to set the clients to access to the Internet with different limitation. Figure 31: Access Control Screen Data - Access Control Screen Group Group Select the desired Group. The screen will update to display the settings for the selected Group.
  • Page 55 Internet Access Restrictions Select the desired options for the current group: • None - Nothing is blocked. Use this to create the least restric- tive group. • Block all Internet access - All traffic via the WAN port is blocked. Use this to create the most restrictive group. •...

  • Page 56: Group Members Screen

    Group Members Screen This screen allows you to set the clients to different group. All the clients will be in the group “Default” when they are not in Group 1~4. Figure 32: Group Members Use this screen to add or remove members (PCs) from the current group. •...
  • Page 57 Default Schedule Screen This screen is displayed when the Define Schedule button on the Access Control screen is clicked. • This schedule can be (optionally) applied to any Access Control Group. • Blocking will be performed during the scheduled time (between the "Start" and "Finish" times.) •...

  • Page 58: Services Screen

    Services Screen This screen allows you to add a new Service when you can not find the service in the Available Services list. Figure 34: Access Control - Services Data - Services Screen Available Services This lists all the available services. Available Services "Delete"...

  • Page 59: Access Control Log

    New Service" area on screen. Cancel Clear the " Add New Service " area, ready for entering data for a new Service. Access Control Log To check the operation of the Access Control feature, an Access Control Log is provided. Click the View Log button on the Access Control screen to view this log.

  • Page 60: Dynamic Dns (Domain Name Server)

    3. Enter your DDNS data on the WRT-413's DDNS screen. 4. The WRT-413 will then automatically ensure that your current IP Address is recorded at the DDNS server. If the DDNS Service provides software to perform this "IP address update"; you should disable the "Update"...
  • Page 61 • Details of your DDNS account (Name, password, Domain name) must then be entered and saved on this screen. • This device will then automatically ensure that your current IP Address is recorded by the DDNS Service Provider. (You do NOT need to use the "Client"...

  • Page 62: Advanced Internet Screen

    An example screen is shown below. Figure 36: Internet Screen Communication Applications Most applications are supported transparently by the WRT-413. But sometimes it is not clear which PC should receive an incoming connection. This problem could arise with the Communication Applications listed on this screen.

  • Page 63: Special Applications

    If you use Internet applications which use non-standard connections or port numbers, you may find that they do not function correctly because they are blocked by the WRT-413's firewall. In this case, you can define the application as a "Special Application".
  • Page 64 Data - Special Applications Screen Checkbox Use this to Enable or Disable this Special Application as required. Name Enter a descriptive name to identify this Special Application. • Type - Select the protocol (TCP or UDP) used when you receive data Incoming from the special application or service.

  • Page 65: Url Filter

    The "DMZ PC" is effectively outside the Firewall, mak- ing it more vulnerable to attacks. For this reason, you should only enable the DMZ feature when required. URL Filter The URL Filter allows you to block access to undesirable Web site •...

  • Page 66: Virtual Servers

    Buttons Delete/Delete All Use these buttons to delete the selected entry or all entries, as required. Multiple entries can be selected by holding down the CTRL key while selecting.(On the Macintosh, hold the SHIFT key while selecting.) Use this to add the current Filter String to the site list. Virtual Servers This feature, sometimes called Port Forwarding, allows you to make Servers on your LAN accessible to Internet users.

  • Page 67: Virtual Servers Screen

    Virtual Servers Screen This screen lists a number of pre-defined Servers, and allows you to define your own Servers. Details of the selected Server are shown in the "Properties" area. Figure 40: Virtual Servers Screen Data - Virtual Servers Screen Servers Servers This lists a number of pre-defined Servers, plus any Servers you...

  • Page 68: Defining Your Own Virtual Servers

    Buttons Defaults This will delete any Servers you have defined, and set the pre- defined Servers to use their default port numbers. Disable All This will cause the "Enable" setting of all Virtual Servers to be set OFF. Update Selected Update the current Virtual Server entry, using the data shown in the Server "Properties"...

  • Page 69: Connecting To The Virtual Servers

    Connecting to the Virtual Servers Once configured, anyone on the Internet can connect to your Virtual Servers. They must use the Internet IP Address (the IP Address allocated to you by your ISP). e.g. http://203.70.212.52 ftp://203.70.212.52 It is more convenient if you are using a Fixed IP Address from your ISP, rather than Dynamic. However, you can use the Dynamic DNS feature, described in the following section, to allow users to connect to your Virtual Servers using a URL, rather than an IP Address.

  • Page 70: Wan Port Configuration

    WAN Port Configuration In this screen, you can configure the WAN port settings. Figure 41: WAN Port Screen Data – WAN Port Screen Identification Normally, there is no need to change the default name, but if your ISP Hostname requests that you use a particular Hostname, enter it here. If your ISP provided a domain name, enter it here.
  • Page 71 Also called Static IP Address. Select this if your ISP has allocated Specified IP Address you a fixed IP Address. If this option is selected, the following data must be entered. • IP Address The IP Address allocated by the ISP. •...
  • Page 72 Copy from PC Inserts the MAC address from your PC into the MAC address field. You must click "Save" to actually change the address used. Save Save your changes to the WRT-413. Cancel Reverse any changes made since the last "Save".

  • Page 73: Chapter 7 Advanced Administration

    The available settings and features are: Config File Backup or restore the configuration file for the WRT-413. This file contains all the configuration data. Logs View or clear all logs, set E-Mailing of log files.

  • Page 74: Config File

    Config File This feature allows you to download the current settings from the WRT-413, and save them to a file on your PC. You can restore a previously-downloaded configuration file to the WRT-413, by uploading it to the WRT-413. This screen also allows you to set the WRT-413 back to its factory default configuration. Any existing settings will be deleted.

  • Page 75: Logs

    Since only a limited amount of log data can be stored in the WRT-413, log data can also be E-mailed to your PC. Figure 43: Logs Screen...
  • Page 76 You can choose to have the logs E-mailed to you, by enabling E-mail Logs either or both checkboxes. If enabled, the Log will be sent to the specified E-mail address. The interval between E-mails is deter- mined by the "Send" setting. Send Select the desired option for sending the log by E-mail.

  • Page 77: Network Diagnostics

    Network Diagnostics This screen allows you to perform a "Ping" or a "DNS lookup". These activities can be useful in solving network problems. An example Network Diagnostics screen is shown below. Figure 44: Network Diagnostics Screen Data - Network Diagnostics Screen Ping Ping this Enter the IP address you wish to ping.

  • Page 78: Options

    If Disabled, UPnP users can only view the configuration. But ration... currently, this restriction only applies to users running Windows XP, who access the Properties via UPnP. (e.g. Right - click the WRT-413 in My Network Places, and select Properties)
  • Page 79 But currently, this restriction only applies to users running Windows XP, who access the Properties via UPnP. (e.g. Right - click the WRT-413 in My Network Places, and select Properties) MTU (Maximum Transmission Unit) value should only be changed if MTU size advised to do so by Technical Support.

  • Page 80: Pc Database

    By default, non-Server versions of Windows act as "DHCP Clients"; this setting is called "Obtain an IP Address automatically". • The WRT-413 uses the "Hardware Address" to identify each PC, not the name or IP address. The "Hardware Address" can only change if you change the PC's network card or adapter. •...
  • Page 81 Data - PC Database Screen Known PCs This lists all current entries. Data displayed is name (IP Address) type. The "type" indicates whether the PC is connected to the LAN. Name If adding a new PC to the list, enter its name here. It is best if this matches the PC's "hostname".
  • Page 82 • DCHP Client - Reserved IP Address - Select this if the PC is set to be a DCHP client, and you wish to guarantee that the WRT-413 will always allocate the same IP Address to this PC. Enter the required IP address. Only the last field is required; the other fields must match the WRT-413's IP address.
  • Page 83 MAC Address Select the appropriate option • Automatic discovery - Select this to have the WRT-413 contact the PC and find its MAC address. This is only possible if the PC is connected to the LAN and powered On. •...

  • Page 84: Remote Admin

    1. Ensure your Internet connection is established, and start your Web Browser. 2. In the "Address" bar, enter "HTTP://" followed by the Internet IP Address of the WRT-413. If the port number is not 80, the port number is also required. (After the IP Address, enter ":" followed by the port number.)

  • Page 85: Routing

    LAN has other Routers. • If your LAN has a standard Router (e.g. Cisco) on your LAN, and the WRT-413 is to act as a Gateway for all LAN segments, enable RIP (Routing Information Protocol) and ignore the Static Routing table.
  • Page 86 For class "C" networks, the default mask is 255.255.255.0 • Gateway IP Address - The IP Address of the Gateway or Router which the WRT-413 must use to communicate with the destina- tion above. (NOT the router attached to the remote segment.) •...

  • Page 87: Configuring Other Routers On Your Lan

    Configuring Other Routers on your LAN It is essential that all IP packets for devices not on the local LAN be passed to the WRT-413, so that they can be forwarded to the external LAN, WAN, or Internet. To achieve this, the local LAN must be configured to use the WRT-413 as the Default Route or Default Gateway.
  • Page 88 Static Routing - Example Figure 50: Routing Example For the WRT-413's Routing Table For the LAN shown above, with 2 routers and 3 LAN segments, the WRT-413 requires 2 entries as follows. Entry 1 (Segment 1) Destination IP Address 192.168.1.0 Network Mask 255.255.255.0 (Standard Class C)

  • Page 89: Security

    Security This screen allows you to set Firewall and other security-related options. Figure 51: Security Screen Data - Security Screen Firewall If enabled, DoS (Denial of Service) attacks will be detected and Enable DoS blocked. The default is enabled. It is strongly recommended that this Firewall setting be left enabled.
  • Page 90 Respond to and by network monitoring and diagnostic programs. ICMP • If checked, the WRT-413 will repond to ICMP packets received from the Internet. • If not checked, ICMP packets from the Internet will be ignored. Disabling this option provides a slight increase in security.

  • Page 91: Upgrade Firmware

    Upgrade Firmware The firmware (software) in the WRT-413 can be upgraded using your Web Browser. You must first download the upgrade file, then select Upgrade on the Administration menu. You will see a screen as below. Figure 52: Upgrade Firmware Screen To perform the Firmware Upgrade: 3.

  • Page 92: Appendix A Troubleshooting

    This chapter covers some common problems that may be encountered while using the WRT-413 and some possible solutions to them. If you follow the suggested steps and the WRT-413 still does not function properly, contact your dealer for further advice.

  • Page 93: Wireless Access

    Solution 2: The WRT-413 processes the data passing through it, so it is not transparent. Use the Special Applications feature to allow the use of Internet applications which do not function correctly. If this does solve the problem you can use the DMZ function. This should work with almost every application, but: •...

  • Page 94: Appendix B About Wireless Lans

    Appendix B About Wireless LANs This Appendix provides some background information about using Wireless LANs (WLANs). Modes Wireless LANs can work in either of two (2) modes: • Ad-hoc • Infrastructure Ad-hoc Mode Ad-hoc mode does not require an Access Point or a wired (Ethernet) LAN. Wireless Clients (e.g. notebook PCs with wireless cards) communicate directly with each other.

  • Page 95: Wep

    • Access Points use a fixed Channel. You can select the Channel used. This allows you to choose a Channel which provides the least interference and best performance. In the USA and Canada, 11 channel are avail- able. If using multiple Access Points, it is better if adjacent Access Points use different Channels to reduce interference.

  • Page 96: Appendix C Specifications

    Appendix C Specifications Multi-Function WRT-413 Model WRT-413 Dimensions 150 x 102 x 30 mm Operating Temperature 0° C to 50° C Storage Temperature -10° C to 70° C Network Protocol: TCP/IP 4 * 10/100BaseT (RJ45) LAN connection Network Interface: 1 * 10/100BaseT (RJ45) for WAN...

  • Page 97: Regulatory Approvals

    Regulatory Approvals CE Standards This product complies with the 99/5/EEC directives, including the following safety and EMC standards: • EN300328-2 • EN301489-1/-17 • EN60950 CE Marking Warning This is a Class B product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
