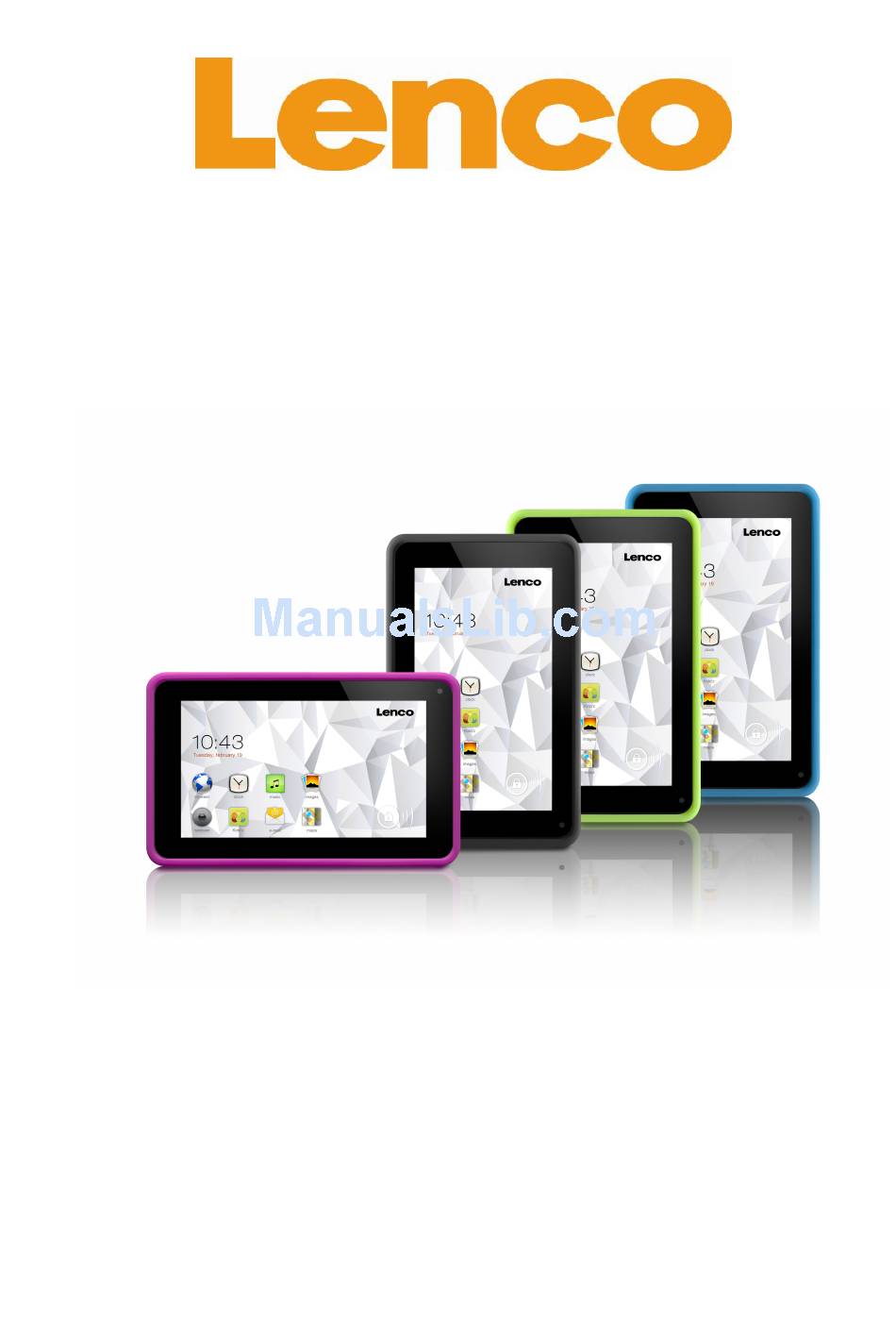

Page 1: User Manual
Cooltab-74 18 CM (7") TABLET WITH ANDROID™ User manual For information and support www.lenco.com... -
Page 2: Table Of Contents
Table of content Startup and Shutdown........................6 Usage of the Touch Screen....................... 6 Interface Introduction........................6 1.Desktop............................6 2. Screen Lock..........................7 Program Operation Instructions....................7 1. Player............................8 2. Music............................8 3. Sound Recorder.........................8 4. Camera............................9 5. Browser.............................11 6. Play Store..........................11 7. - Page 3 Dear customer, Thank you for buying this Lenco product. Quality and usability is our top priority. In order to let you fully enjoy this tablet, we have manufactured this product using high quality standards, materials, components, and care. Please read all safety instructions and national restrictions, before you use this tablet.
- Page 4 Keep these instructions in mind: Do not use this device near water. Clean only with a slightly damp cloth. Do not cover or block any ventilation opening. When placing the device on a shelf, leave 5 cm (2”) free space around the whole device.
- Page 5 The USB memory stick should be plugged into the unit directly. Don’t use an USB extensi on cable because it can cause interference resulting in failing of data. BEFORE SENDING YOUR DEVICE TO LENCO DO NOT FORGET TO BACKUP YOUR DATA. SUPPLIER IS NOT LIABLE FOR ANY DATA LOSS.
-
Page 6: Startup And Shutdown
Startup and Shutdown Startup: Please press and hold the Power Key for 5s. Shutdown: Press and hold the Power Key for 5s → Click Shutdown → and Confirm Locking and Unlocking the Screen: Press the Power Key very quickly to lock or unlock the Screen. Forced Shutdown: If the device has not responded for quite a while, please press and hold the Power Key or the Reset Key to reboot the device. -
Page 7: Screen Lock
6:Multitask Selection Key 7:Back to the Desktop from the Program Interface 8:Shortcut Key for Back to the Previous Interface 9:Shortcut Key for Volume Up 10:Battery Power Status 11:Time Display 12: View all Application Programs 2. Screen Lock The device will enter stand-by status if there is no operation for quite a while or the User has pressed the Power Key. -
Page 8: Music
2. The device will enter the Video Playing Interface if the User has selected a video file to play. The Control Menu as shown in the following Diagram will appear on the Screen, and then the User can properly adjust the Videos (including Volume Down and Volume Up, Progress Bar, Video Brightness Up and Down, Previous, Pause/Play, Next, Screen Size, Small Window Playing, Playing Mode, Subtitle, Locking, Add a Video and Settings). -
Page 9: Sound Recorder
1.Rank audio files according to Artists; 2.Rank audio files according to Albums; 3.Rank audio files according to Songs; 4.Automatically set the Playlists; 5.The Song is Now Playing. 3. Sound Recorder Click the Icon to enter the Recording Interface (as shown in the following Diagram). -
Page 10: Camera
Click the Icon to start recording and click and click the Icon to finish recording. Please click the Icon to play the recording file the User just finished. The recording files will be named according to the time, and the User can randomly select one recording file to play; as shown in the above Diagram, the green part of the Progress Bar represents the sound wave and the recording time is being displayed on the bottom right corner. -
Page 11: Browser
Take a Picture After the Camera has been enabled, please click the Icon to take a picture, and the picture will be automatically saved. It is possible for the User to move the Picture into the Photo Album. Under the Camera Mode, the User can enter the Photo Album and view various photos in the form of Sudoku, and 3 pictures can be displayed at the same time at most. -
Page 12: Play Store
Click the Icon to enter the Browser webpage: 1: Previous webpage you have browsed and you can view it again as you like; 2: Current webpage;3: Add a webpage; 4: Menu Key 6. Play Store Open to search and download relevant application programs. Enter the Play Store for the first time and the System will ask you to log in google account (if you do not have a Email account, please apply for one account in http://gmail.google.com ). -
Page 13: Clock
8. Clock Click the Clock Icon to reveal the current date and time. Alarm Clock It is possible for you to set up several alarm clocks at the same time. When the Icon appears on the Screen, at least one alarm clock will sound. ☆... -
Page 14: Downloads
2.Click and select the numbers and symbols to conduct calculation. 3. Click Clear to eliminate the numbers and symbols one by one, and press Clear for a while to eliminate all numbers and symbols. 10. Downloads 1. Click the Icon View the software programs which have been downloaded at present and select the software application you want to conduct installation. - Page 15 8. Optional: Input the Account Name. 9. Input the Name for sending e-mails, and then click FINISH. ☆ Upon the completion of settings, please confirm with your Email Supplier whether their server supports POP and SMTP transport protocol if your device cannot connect to a free Email Account.
-
Page 16: File Manager/Explorer
☆If you have configured more than one Email Account and have deleted the default account, the next account in order will then be the default account in your system. 1. Click the Email Icon 2. In My Messages, click Menu→ Accounts. 3. -
Page 17: Settings
1. Click the Icon or the Icon to open relevant storage device and display the files saved in your storage devices. 2. Click the file or folder you want and hold on for a while, and then select COPY. 3. Click the Icon , and go back to Home to find the Storage Device Symbol →... - Page 18 Cast screen User can set it open and make wireless display on HD TV Memory Usage Condition Show the Storage Capacity status as well as the Format and Storage Unload function of the Storage Device; Battery Show the Battery Data; Application Manage and display various application programs within this Programs...
-
Page 19: Wi-Fi Network Settings
Printing Connect it with a Printer to print local files; View the Status Information, Battery Service Condition, Legal About the Information, Model, Android Version, Kernel Version and Tablet PC Version Number. Wi-Fi Network Settings As the Wi-Fi connection is important to enable various functions of this device, please firstly configure the Wi-Fi network for your device. -
Page 20: Usage Of The Extended Memory
MNC:01/ Authentication Type: Not set/ APN Type: Not set/ APN Protocol: Not set Upon the completion of settings, the device can successfully connect to the 3G Network, and the Icon will appear on the Screen. The Icon in gray is to search the available network, and the Icon in Blue means that the device has been successfully connected with the 3G Network. -
Page 21: Connect To Pc
3. Click the Icon or the Icon to find the .apk files or folder. 4. Select one .apk file → Install. When such application program has been installed, its Icon will display itself among other application programs. 5. Click and directly run relevant program; or click and go back to the File Explorer. Install Application Programs through Online Downloading It is possible for you to download Android application programs from the Internet or other Android stores, and to quickly install them into your device. -
Page 22: Charging
Charging This device can be charged by means of the Power Adapter with one end connecting to the Power Adapter and the other end to the micro usb port of this device. During the charging process, the Battery Icon will display itself as ;... - Page 23 Please protect the Power Cable. When it has been connected with the power supply, please do not tread on it or place other objects above it. Please pay special attention to the joint of the Power Cable Connection Device. Please use the original power adapter to conduct charging for this device.
-
Page 24: Service And Support
The helpdesk is accessible from Monday till Friday from 9 AM till 6 PM. When contacting Lenco, you will always be asked for the model and serial number of your product. The serial number can be found on the back of the device. Please write down the serial number below:... - Page 25 Products with the CE marking comply with the EMC Directive (2004/108/EC) and the Low Voltage Directive (2006/95/EC) issued by the Commission of the European Community. Hereby, STL Group BV, Ankerkade 20 NL 5928 PL Venlo, declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
