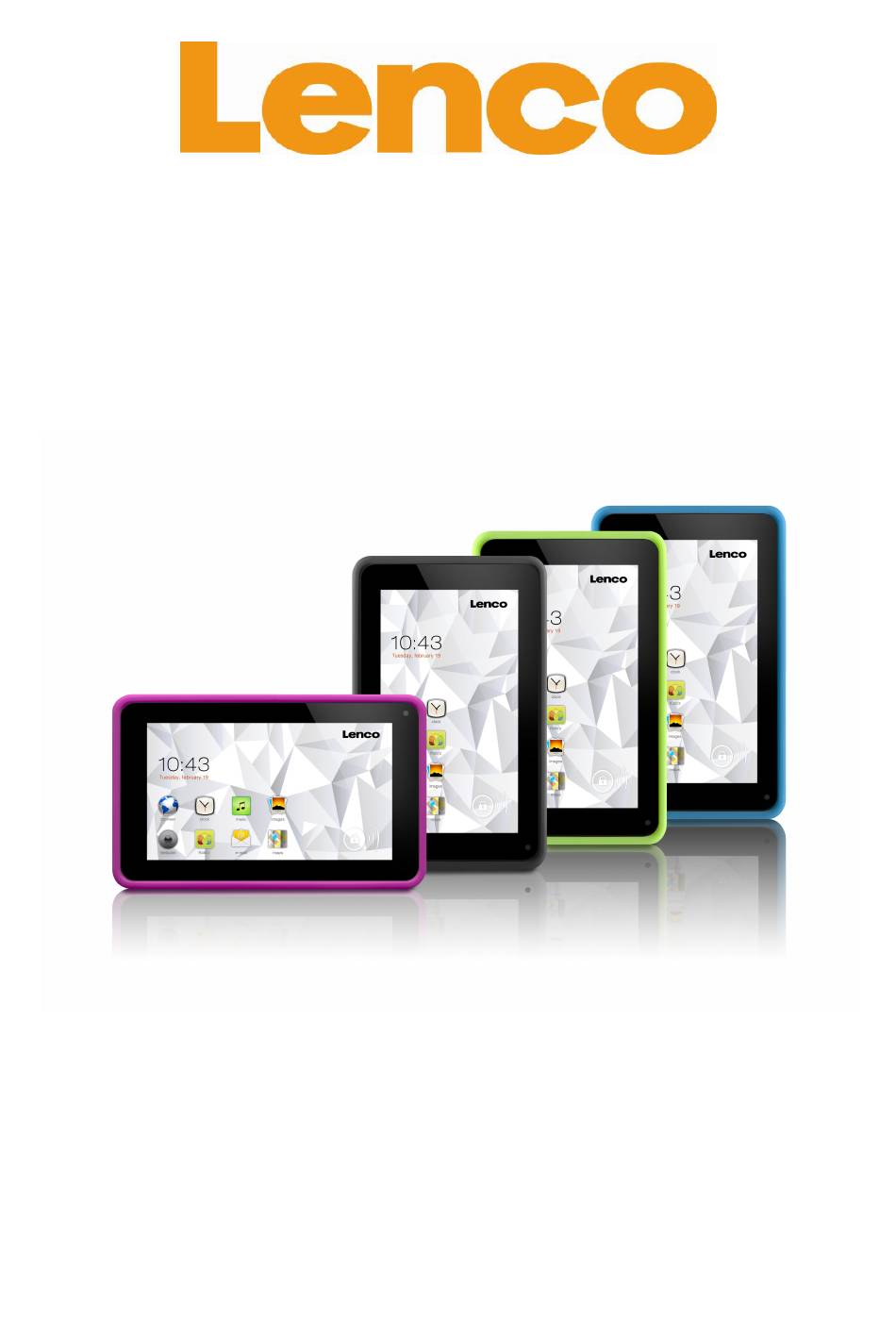

- Page 1 Cooltab-73 18 CM (7") TABLET WITH ANDROID™ User manual For information and support www.lenco.com...
-
Page 2: Table Of Contents
Table of contents What is in the box?........................6 Exploring the tablet........................7 Exploring the home screen....................8 Getting started.......................... 9 Where to use.........................9 Charging the battery......................9 Battery maintenance......................9 Create a Google account....................9 Operating the touch screen....................9 Configuration of the tablet.................... - Page 3 Personal, Location services....................17 Personal, Security......................17 Personal, Language & input..................... 18 Personal: backup & reset....................19 System: date & time......................19 System: accessibility......................19 System: developer options....................19 System: about tablet......................19 Preinstalled apps........................20 Adobe reader........................20 Aldiko............................20 Browser..........................20 Calculator..........................21 Calendar..........................21 Camera..........................
- Page 4 Disclaimer..........................31 Service and support.......................32 End of life..........................33...
-
Page 5: What Is In The Box
Dear customer, Thank you for buying this Lenco product. Quality and usability is our top priority. In order to let you fully enjoy this tablet, we have manufactured this product using high quality standards, materials, components, and care. Please read all safety instructions and national restrictions, before you use this tablet. -
Page 6: Exploring The Tablet
Exploring the tablet Camera ON/OFF Volume Volume Earphone TF Card Volume + button: Press this button to increase the volume. Volume - button: Press this button to lower the volume. Micro SD slot: This is to insert an SD card. Reset button: Press this button if the tablet does not respond. -
Page 7: Exploring The Home Screen
Exploring the home screen 1. Return icon: touch this icon to go back to the previous screen. 2. Home icon: touch this icon to return to the home screen (app(s) will continue to run on the background). 3. Multi-task icon: touch this icon to display all running apps, touch an app to open it. Shortcut key to volume-. -
Page 8: Getting Started
Getting started Where to use Never leave this tablet in direct sunlight or any other strong light. For comfortable viewing, we recommend a soft light. Always make sure that direct sunlight does not fall on the screen. When the tablet is not in use, place it on a sturdy platform of which the surface should be flat and steady, so the tablet can’t fall. -
Page 9: Configuration Of The Tablet
To move through the menus, quickly move your index finger up, down, left, or right. Tap on an item, hold it, and drag it to a new location. Configuration of the tablet Important note: Before you start the configuration, make sure that there is an internet connection available. -
Page 10: Connect To The Internet Via Wi-Fi
Connect to the internet via Wi-Fi Open system settings then select "system settings" in the menu. Now go to the WIRELESS & NETWORKS menu, tap on, and hold Wi-Fi. Then move it to the right so that the slider changes to ON. The tablet will now start scanning for networks. -
Page 11: Basic Operation
Basic operation Switch the tablet on / off Press and hold the power button for 5 seconds to switch the tablet on. When the tablet is booted (this may take a few minutes) move the circle to the lock to unlock the home screen. -
Page 12: Move Items On The Home Screen
Move items on the home screen Tab on an icon and hold it to move it. When you move it to the right or left side of the home screen, the icon will move to the next or previous screen. Move it to the folder in which you want to store it. Create folders on the home screen Move an app to the location of another app so that it is on top of the other app. -
Page 13: System Settings
“Move to SD card”: this option obtains more internal memory space because the app goes to the SD card. If the SD card isn't inserted, then the app can’t be used. “Clear cache”: this option clears the cache, like saved websites on the internet browser. -
Page 14: Device, Sound
Move the first white vertical line to the beginning of the graph to cover the whole month. To install a warning when 80% of the data is used, move the horizontal yellow bar to 819MB (80% of 1GB). ... -
Page 15: Device, Storage
power. Move the bar to the left to lower the brightness, move it to the right to enhance the brightness. Once the desired level is set, tap on “OK” to confirm it. sets the home screen’s wallpaper. You have three options: Wallpaper: ... -
Page 16: Personal, Accounts & Sync
“Stop”: this option stops an app. The app will not be available for multi-tasking anymore until you restart it, so you save memory and processor capacity. “Report”: if some errors occur during usage of the app, select this option to send a report to the creator, enabling them to analyze the problem. -
Page 17: Personal, Language & Input
installs credentials that are stored on an SD card (for example Install from SD card: exported credentials from another device). removes all credentials and starts to rebuild your database. Use Clear credentials: this feature if there is an unwanted credential installed and you do not know which one it is. -
Page 18: System: Accessibility
System: accessibility mark the checkbox to enlarge the font. Large text: when this checkbox is marked, the screen rotates when you Auto-rotate screen: rotate the tablet. when this checkbox is marked, the tablet pronounces the entered Speak passwords: passwords. sets the “touch and hold” delay. Enlarge the timeframe if you Touch &... -
Page 19: Preinstalled Apps
Preinstalled apps All the preinstalled apps are in the apps menu. Open the apps menu to display them. Remark: Some of the apps require an internet connection to function, or to let all features of an app to function. Important note: The user manual was written prior to product development, so it is possible that some apps function different then this manual describes, as they may be of a later version, or that they are replaced by a different version, or that these apps are not even installed at all. -
Page 20: Calculator
Activates an URL field Saves the current web address as favorite. While browsing, you can use the following options: Zoom by placing 1 finger from each hand on the screen. If you move your fingers towards each other, you zoom out. If you move your fingers away from each other, you zoom in. -
Page 21: Documents To Go
Documents to go With this app, you can view many different kinds of documents as well as e-mail attachments, which can be stored on the tablet. Downloads Here you can view and manage all downloaded files. Tap on a file to see the options, for example “install app”... -
Page 22: Gallery
Tap on this icon to display all files and folders on the USB storage device Tap on this icon to display all pictures Tap on this icon to view the process information or to backup all installed apps Tap on this icon to add, delete, copy or move files in or from a folder Gallery Open this app to view all your pictures and movies. -
Page 23: Maps
Maps With this app, you can visit the whole world with your tablet. Move quickly up, down, left, or right, to scroll through the maps. Tap twice on a location to zoom in on that point. You can also use your fingers to zoom in or out by placing 2 fingers on the screen and move them towards each other, or move them away from each other. -
Page 24: Trouble Shooting
Trouble shooting Problem Solution When you are in areas with weak signals or poor reception, you may lose reception. Move to another Your tablet displays area and try again. network- or service error messages You cannot access some options without a subscription. Contact your service provider for more details. -
Page 25: 3G Dongles. This Tablet Supports The Following 3G Dongles
3G Dongles. This tablet supports the following 3G Dongles. WCDMA: HuaWei E230 HuaWei E1782 ZTE MF633 HuaWei E176G HuaWei E1750 ZTE MF637U HuaWei E160E HuaWei UMG1691 HuaWei E182G ZTE MF633BP-1 CDMA2000/EVDO: HuaWei E150 HuaWei EC156 ZTE AC2736 HuaWei EC1261 HuaWei EC1270 ZTE AC2746 HuaWei EC122 ZTE AC580... -
Page 26: Keep Your Personal And Important Data Safe
Ukrainian, Japanese, Korean Unit dimensions 191,6 x 116,3 x 11 mm Unit weight 335 gram Housing material Plastic Certificates CE, RoHS Keep your personal and important data safe While using your tablet, be sure to back up all your important data. Axxion is not responsible for any loss of data. -
Page 27: Safety Instructions
CAUTION RISK OF ELECTRICAL SHOCK DO NOT OPEN CAUTION: TO PREVENT AN ELECTRICAL SHOCK, DO NOT REMOVE ANY COVER SCREWS. THERE ARE NO USER SERVICEABLE PARTS INSIDE. REQUEST A QUALIFIED SERVICE PERSON TO PERFORM SERVICING. This symbol indicates that there are important operating maintenance instructions in the user manual accompanying this tablet. - Page 28 To clean the tablet, use a soft dry cloth. Do NOT use solvents or petrol based fluids. To remove severe stains, you may use a damp cloth with dilute detergent. Lenco is not responsible for damage or lost data caused by malfunction, misuse, modification of the device or battery replacement.
-
Page 29: National Restrictions
Charge the battery if: a) The battery level icon displays (An empty battery) b) The device switches off automatically when restarted. Do not interrupt the connection when the device is formatting or transferring files. Otherwise, data may be corrupted or lost. WARNING: Long-term exposure to loud sounds may lead to temporary or permanent hearing impairment. - Page 30 “THIRD PARTY CONTENT AND SERVICES ARE PROVIDED ‘AS IS.’ LENCO DOES NOT WARRANT CONTENT OR SERVICES SO PROVIDED, NEITHER EXPRESSLY NOR IMPLIED, FOR ANY PURPOSE.
- Page 31 Lenco offers service and warranty in accordance to European law, which means that in case of repair (both during and after the warranty period), you should contact your local dealer. Please note: It is not possible to send products to directly Lenco for repair.
