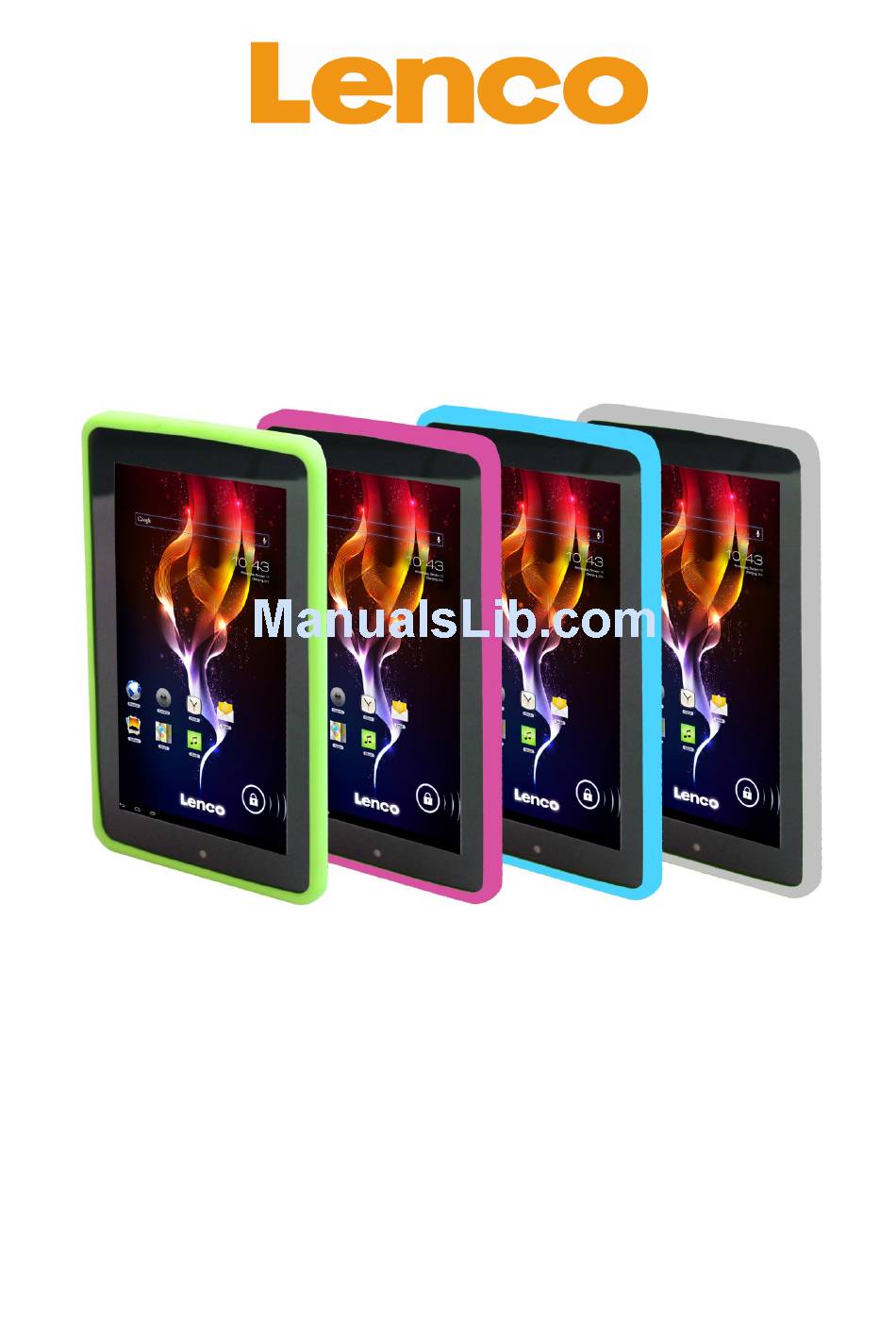

Page 1: User Manual
COOLTAB-70 18 CM (7") INTERNET TABLET WITH ANDROID™ 4.0 User manual www.lenco.com V1.0... -
Page 2: Table Of Contents
Table of contents What is in the box? ..................... 5 Exploring the tablet ..................... 6 Exploring the home screen ..................7 Getting started ......................8 Where to use ......................8 Charging the battery ....................8 Battery maintenance ....................8 Create a Google account ..................8 Operating the touch screen .................. - Page 3 Personal, Accounts & sync ..................16 Personal, Location services .................. 16 Personal, Security ....................16 Personal, Language & input .................. 17 Personal: backup & reset ..................18 System: date & time ....................18 System: accessibility ..................... 18 System: developer options ..................18 System: about tablet ....................
- Page 4 Do not distribute copyright-protected material ............30 Disclaimer ......................... 31 Service and support ....................32 End of life ........................33...
-
Page 5: What Is In The Box
Dear customer, Thank you for buying this Lenco product. Quality and usability is our top priority. In order to let you fully enjoy this tablet, we have manufactured this product using high quality standards, materials, components, and care. Please read all safety instructions and national restrictions, before you use this tablet. -
Page 6: Exploring The Tablet
Exploring the tablet Volume + button: Press this button to increase the volume. Volume - button: Press this button to lower the volume. Micro SD slot: This is to insert an SD card. DC in 5V socket: This is to connect the AC adaptor to charge the internal battery. Reset button: Press this button if the tablet does not respond. -
Page 7: Exploring The Home Screen
Exploring the home screen Exploring the home screen 1. Return icon: touch this icon to go back to the previous screen. Return icon: touch this icon to go back to the previous screen. 2. Home icon: touch this icon to return to the home screen (app(s) will continue to touch this icon to return to the home screen (app(s) will continue to touch this icon to return to the home screen (app(s) will continue to run on the background). -
Page 8: Getting Started
Getting started Where to use Never leave this tablet in direct sunlight or any other strong light. For comfortable viewing, we recommend a soft light. Always make sure that direct sunlight does not fall on the screen. When the tablet is not in use, place it on a sturdy platform of which the surface should be flat and steady, so the tablet can’t fall. -
Page 9: Configuration Of The Tablet
To move through the menus, quickly move your index finger up, To move through the menus, quickly move your index finger up, To move through the menus, quickly move your index finger up, down, left, or right. Tap on an item, hold it, and drag it to a new location. Tap on an item, hold it, and drag it to a new location. -
Page 10: Connect To The Internet Via Wi-Fi
Connect to the internet via Wi Connect to the internet via Wi-Fi Open system settings by tapping on the Open system settings by tapping on the “options” icon and then select and then select "system settings" in the menu. Now go to the WIRELESS & NETWORKS menu, tap Now go to the WIRELESS &... -
Page 11: Basic Operation
Basic operation Switch the tablet on / off the tablet on / off Press and hold the power button for 5 seconds to Press and hold the power button for 5 seconds to switch the tablet on. When the the tablet on. When the tablet is booted (this may take a few minutes) move the circle to the lock to unlock tablet is booted (this may take a few minutes) move the circle to the lock to unlock tablet is booted (this may take a few minutes) move the circle to the lock to unlock... -
Page 12: Move Items On The Home Screen
Move items on the home screen Tab on an icon and hold it to move it. When you move it to the right or left side of the home screen, the icon will move to the next or previous screen. Move it to the folder in which you want to store it. Create folders on the home screen Move an app to the location of another app so that it is on top of the other app. -
Page 13: System Settings
“Move to SD card”: this option obtains more internal memory space because the app goes to the SD card. If the SD card isn't inserted, then the app can’t be used. “Clear cache”: this option clears the cache, like saved websites on the internet browser. -
Page 14: Device, Sound
Data usage, the usage graph To understand how the data limit works, please follow the following steps to setup a data limit. Note: This example is based on a 1GB data limit every month starting the first day of the month. Setup the data limit: Move the first white vertical line to the beginning of the graph to cover the whole month. -
Page 15: Device, Display
Device, display The display’s brightness can be set. The more brightness you add, the Brightness: clearer the display will become. Higher brightness, however, uses more battery power. Move the bar to the left to lower the brightness, move it to the right to enhance the brightness. -
Page 16: Personal, Accounts & Sync
“Move to SD card”: this option clears internal memory space because the app is moved to the SD card. If the SD card isn't inserted then the app can’t be used. “Clear cache”: this option clears the cache, like saved websites on the internet browser. -
Page 17: Personal, Language & Input
IMPORTANT: THE PROTECTION METHODS MENTIONED BELOW CAN’T BE REMOVED OR UNDONE IN ANY WAY IF YOU DO NOT HAVE THE ACCES CODE ANYMORE! SO WHEN YOU ENCRYPT YOUR TABLET WITH THE BELOW MENTIONED PROTECTION METHOD AND YOU FORGET OR LOSE THE CODE IT IS IMPOSSIBLE TO DECRYPT THE TABLET. -
Page 18: Personal: Backup & Reset
Personal: backup & reset mark the checkbox to backup all app data, Wi-Fi passwords, and Back up my data: other settings to Google servers. this shows which data are in the back up account. Backup account: mark this checkbox to restore backed up settings and data when Automatic restore: reinstalling an app. -
Page 19: Preinstalled Apps
Preinstalled apps All the preinstalled apps are in the apps menu. Open the apps menu to display them. Remark: Some of the apps require an internet connection to function, or to let all features of an app to function. Important note: The user manual was written prior to product development, so it is possible that some apps function different then this manual describes, as they may be of a later version, or that they are replaced by a different version, or that these apps are not even installed at all. -
Page 20: Calculator
Activates an URL field Activates an URL field Saves the current web address as favorite. current web address as favorite. While browsing, you can use the following options: browsing, you can use the following options: Zoom by placing 1 finger from each hand on the screen. If you move your fingers Zoom by placing 1 finger from each hand on the screen. -
Page 21: Documents To Go
Documents to go With this app, you can view many different kinds of documents as well as e can view many different kinds of documents as well as e can view many different kinds of documents as well as e-mail attachments, which can be stored on the tablet. -
Page 22: Gallery
Tap on this icon to display all files and folders on the USB storage device Tap on this icon to display all files and folders on the USB storage device Tap on this icon to display all files and folders on the USB storage device Tap on this icon to display all pictures Tap on this icon to display all pictures Tap on this icon to view the process information or to backup all... -
Page 23: Maps
Maps With this app, you can visit the whole world with your tablet. Move quickly up, down, left, or right, to scroll through the maps. Tap twice on a location to zoom in on that point. You can also use your fingers to zoom in or out by placing 2 fingers on the screen and move them towards each other, or move them away from each other. -
Page 24: Trouble Shooting
Trouble shooting Problem Solution When you are in areas with weak signals or poor Your tablet displays reception, you may lose reception. Move to another network- or service error area and try again. messages You cannot access some options without a subscription. Contact your service provider for more details. -
Page 25: 3G Dongles. This Tablet Supports The Following 3G Dongles
3G Dongles. This tablet supports the following 3G Dongles. WCDMA: HuaWei E230 HuaWei E1782 ZTE MF633 HuaWei E176G HuaWei E1750 ZTE MF637U HuaWei E160E HuaWei UMG1691 HuaWei E182G ZTE MF633BP-1 CDMA2000/EVDO: HuaWei E150 HuaWei EC1261 HuaWei EC122 HuaWei EC156 HuaWei EC1270 ZTE AC580 ZTE AC2736 ZTE AC2746... -
Page 26: Specifications
Specifications Size 7 Inch Aspect ratio 16:9 Resolution 800 x 480 Display Touch screen Capacitive Backlight Range 180~250 cd m² Typical 215 cd m² Operating system Android™ 4.0 Processor Allwinner A13, 1.2GHz Internal 4GB (flash) Expandable via SD slot Yes, max 32GB Memory Internal memory available 1.2GB... -
Page 27: Keep Your Personal And Important Data Safe
Keep your personal and important data safe While using your tablet, be sure to back up all your important data. Lenco is not responsible for any loss of data. When you want to dispose of your tablet, back up all data and then reset your tablet to prevent misuse of your personal information. -
Page 28: Safety Instructions
Safety instructions IMPORTANT SAFETY INSTRUCTIONS - READ CAREFULLY BEFORE USE. CAUTION RISK OF ELECTRICAL SHOCK DO NOT OPEN CAUTION: TO PREVENT AN ELECTRICAL SHOCK, DO NOT REMOVE ANY COVER SCREWS. THERE ARE NO USER SERVICEABLE PARTS INSIDE. REQUEST A QUALIFIED SERVICE PERSON TO PERFORM SERVICING. - Page 29 To clean the tablet, use a soft dry cloth. Do NOT use solvents or petrol based fluids. To remove severe stains, you may use a damp cloth with dilute detergent. Lenco is not responsible for damage or lost data caused by malfunction, misuse, modification of the device or battery replacement.
-
Page 30: National Restrictions
Safety instructions - continued Charge the battery if: a) The battery level icon displays (An empty battery) b) The device switches off automatically when restarted. Do not interrupt the connection when the device is formatting or transferring files. Otherwise, data may be corrupted or lost. WARNING: Long-term exposure to loud sounds may lead to temporary or permanent hearing impairment. -
Page 31: Disclaimer
OR SERVICE BY YOU OR ANY THIRD PARTY, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.” Third party services may be terminated or interrupted at any time, and Lenco makes no representation or warranty that any content or service will remain available for any period. -
Page 32: Service And Support
Lenco offers service and warranty in accordance to European law, which means that in case of repair (both during and after the warranty period), you should contact your local dealer. Please note: It is not possible to send products to directly Lenco for repair. -
Page 33: End Of Life
(Waste Electrical and Electronic Equipment Directive). When you see a crossed-out wheeled waste container on the product, it means that the product falls under the EU directive 2002/96/EC. Lenco 2012, all rights reserved.
