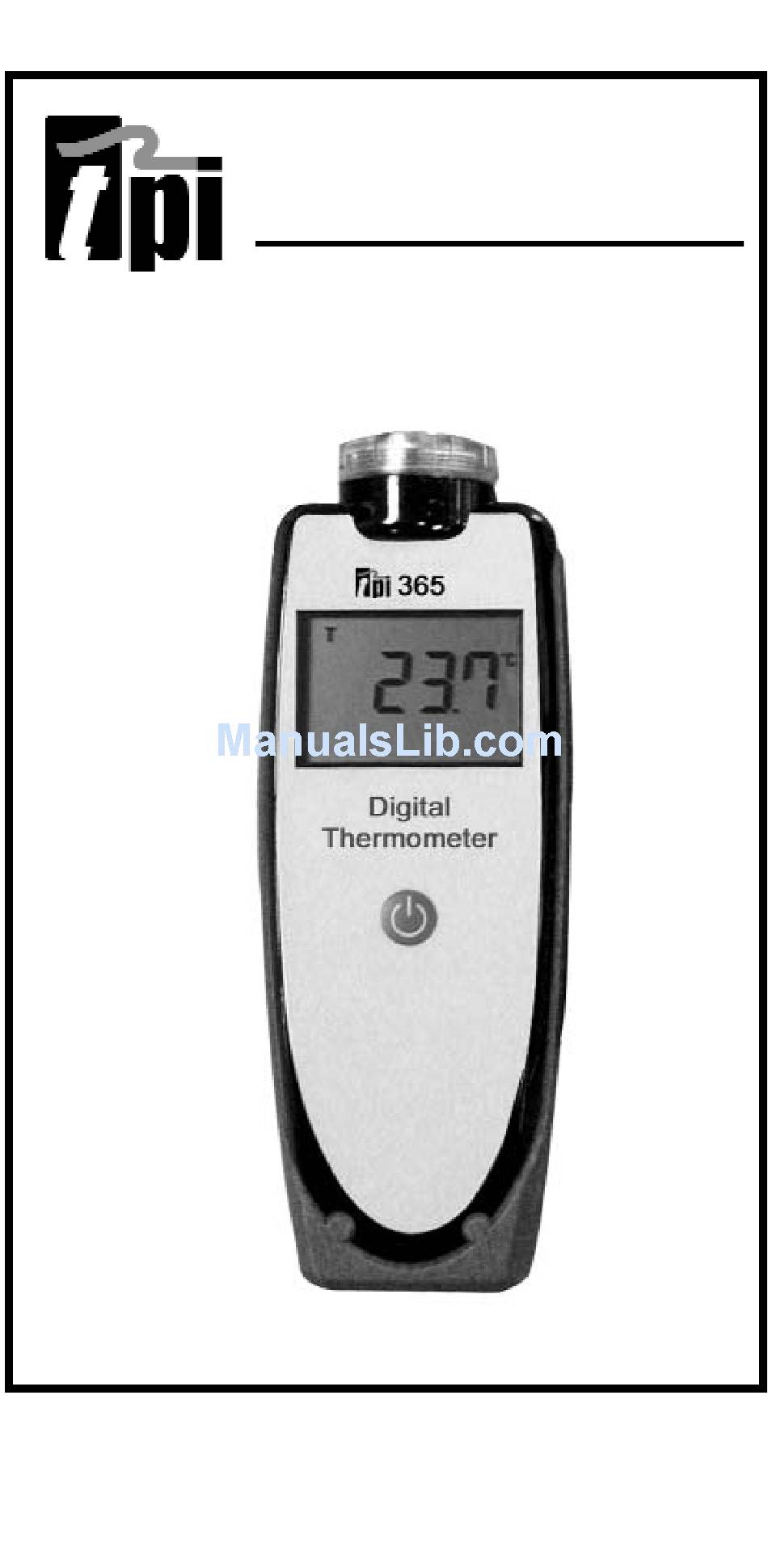

- Page 1 Thermometer Instruction Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION Congratulations ........3 Product Description ......3 Declaration of Conformity ....4 SAFETY CONSIDERATIONS ......5 TECHNICAL DATA Features and Benefits......6 Product Applications ......6 Specifications........7 MEASUREMENT TECHNIQUES Controls and Functions ....8 Performing Measurements..... 9 OPTIONAL ACCESORIES ......10 TROUBLESHOOTING & MAINTENANCE 11... -
Page 3: Introduction Congratulations
A. INTRODUCTION 1. Congratulations!! Thank you for purchasing TPI products. The 360 series thermometers are easy to use and built to last. They are backed by a 3 year limited warranty. Please remember to complete and return your product warranty registration card. -
Page 4: Declaration Of Conformity
3. EC Declaration of Conformity This is to certify that TPI 360 series thermometers con- form to the protection requirements of the council direc- tive 89/336/EEC, in the approximation of laws of the member states relating to Electromagnetic compatibility and 73/23/EEC. The Low Voltage Directive by application... -
Page 5: Safety Considerations
B. SAFETY CONSIDERATIONS WARNING: Use caution when performing mea- surements on temperatures above 100ºF. GENERAL GUIDELINES ALWAYS • Test your thermometer before using it to make sure it is operating properly. • Inspect temperature probes before using to make sure there are no breaks or shorts. -
Page 6: Features And Benefits
C. TECHNICAL DATA 1. Features and Benefits Large LCD Easy to read measurement results High Accuracy Reliable test results. Water Proof Rugged and built to last. Auto Off Automatically powers off after 30 minutes of inactivity. 2. Product Applications Perform the following tests and/or measurements with the 360 series thermometers: Validate the temperature of incoming food product prior to accepting deliveries. -
Page 7: Specifications
3. Specifications Input Type Range K-Type Thermocouple -328ºF to 1,112ºF (-200ºC to 600ºC) K-Type Connection Sub-mini Accuracy +/-(0.1% of reading + 0.4ºF (0.2ºC)) Resolution > -100ºC = 0.1ºC, < 100ºC = 1ºC IP Rating IP 67 Units of Measure ºC / ºF Selectable Operating Temperature -4ºF to 122ºF (-20ºC to 50ºC) -100ºC = 0.1ºC, <... -
Page 8: Measurement Techniques
Input Connector LCD Display On / Off Key On / Off Key turns the 365 on for use or off. This button is also used to select between ºC and ºF units of measure. To change units of measure, press and hold down the On / Off key at the time of power on. -
Page 9: Performing Measurements
2. Performing Measurements Turn the 365 on by pressing the On/Off key. The unit of measure can be selected at this time. To change units of measure, press and hold down the On / Off key at the time of power on. The display will show the unit of measure in the upper right corner of the display. -
Page 10: Optional Accesories
Bead type probe (non-food applications) GK13M Bead type probe (food and non-food applications) CK11M Surface temperature measurements FK 11M Penectration / Immersion measurements This is a partial listing of temperature probes available for the 365. Please visit www.tpi-thevalueleader.com for additional probes. -
Page 11: Troubleshooting & Maintenance
• Temperature probe not connected • Temperature probe defective Maintenance 1. Battery Replacement: The 365 will display a battery symbol when the internal 1.5 Volt batteries needs replacement. Disconnect the temperature probe. Loosen the 4 battery cover screws located on the back cover. - Page 12 365 SPECIFICATIONS Input Type Range K-Type Thermocouple -328ºF to 1,112ºF (-200ºC to 600ºC) Accuracy +/-(0.1% of reading + 0.4ºF (0.2ºC)) Resolution > -100ºC = 0.1ºC, < 100ºC = 1ºC IP Rating IP 67 Units of Measure ºC / ºF Selectable Operating Temperature -4ºF to 122ºF (-20ºC to 50ºC)
