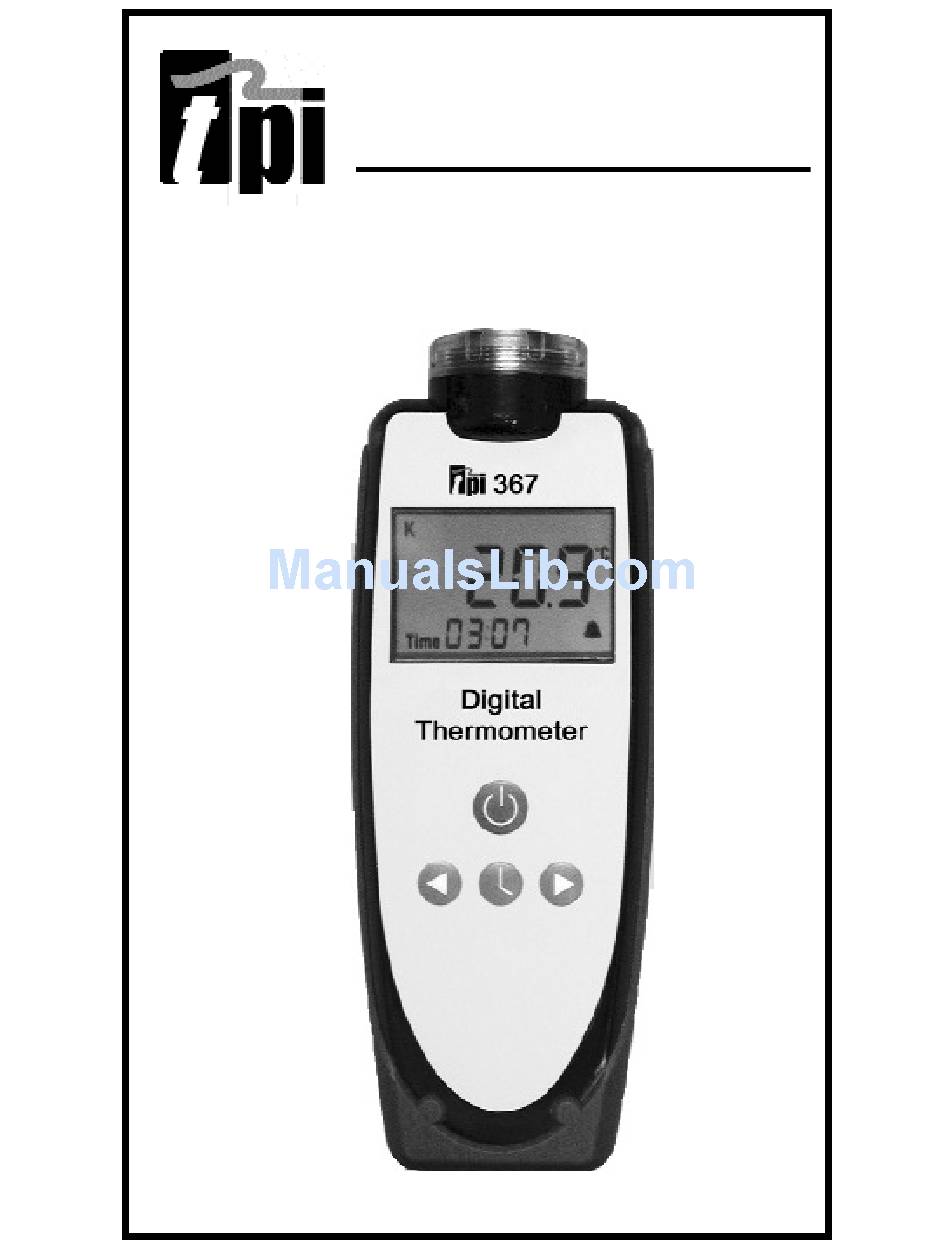

  • Page 1 367 / 367D Thermometer Instruction Manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION Congratulations ........3 Product Description ......3 Declaration of Conformity ....4 SAFETY CONSIDERATIONS ......5 TECHNICAL DATA Features and Benefits......6 Product Applications ......7 Specifications........8 MEASUREMENT TECHNIQUES Controls and Functions ....9 Clock, Timer & Alarm......10 Performing Measurements..14 Menu Mode.......22 LOGGING PARAMETERS (367D ONLY) ..30 RETRIEVING LOGGED DATA (367D) ..34 OPTIONAL ACCESSORIES ......34 TROUBLESHOOTING &...

  • Page 3: Introduction Congratulations

    A. INTRODUCTION 1. Congratulations!! Thank you for purchasing TPI products. The 360 series thermometers are easy to use and built to last. They are backed by a 3 year limited warranty. Please remember to complete and return your product warranty registration card.

  • Page 4: Declaration Of Conformity

    3. EC Declaration of Conformity This is to certify that TPI 360 series thermometers con- form to the protection requirements of the council direc- tive 89/336/EEC, in the approximation of laws of the member states relating to Electromagnetic compatibility and 73/23/EEC. The Low Voltage Directive by application...

  • Page 5: Safety Considerations

    B. SAFETY CONSIDERATIONS WARNING: Use caution when performing mea- surements on temperatures above 100ºF. GENERAL GUIDELINES ALWAYS • Test your thermometer before using it to make sure it is operating properly. • Inspect temperature probes before using to make sure there are no breaks or shorts.

  • Page 6: Features And Benefits

    C. TECHNICAL DATA 1. Features and Benefits Large LCD Easy to read measurement results High Accuracy Reliable test results. Water Proof Rugged and built to last. Auto Off Automatically powers off after 5 minutes of inactivity. Data Logging Record and time stamp results. (367D Only)

  • Page 7: Product Applications

    2. Product Applications Perform the following tests and/or measurements with the 360 series thermometers: Validate the temperature of incoming food product prior to accepting deliveries. Measure food storage temperature. Verify cooking and storage temperature. Confirm hot and cold holding cabinet temperatures. Measure food reheating temperatures.

  • Page 8: Specifications

    3. Specifications Input Type Range Thermistor -58ºF to 302ºF (-50ºC to 150ºC) K-Type Thermocouple -328ºF to 1,112ºF (-200ºC to 600ºC) T-Type Thermocouple -328ºF to 752ºF (-200ºC to 400ºC) K-Type Probe Yellow Cord T-Type Probe Blue Cord Thermistor Probe White Cord Accuracy +/-(0.1% of reading + 0.4ºF (0.2ºC)) Resolution >...

  • Page 9: Measurement Techniques

    Left Arrow Key Right Arrow Key Menu Key On / Off Key turns the 367 on for use or off (stand by mode). The clock is displayed when the instrument is off and the timer and alarm clock are accessible.

  • Page 10: Clock, Timer & Alarm

    2. Clock, Timer, & Alarm When the 367 is off, the real time clock is displayed and the coundown timer and alarm clock functions are available. Press the MENU key to cycle through each of the displays. Real time clock display The clock displays in a 24 hour format (hh:mm) and can be set from the menu mode.
  • Page 11 Clock, Timer, & Alarm (continued) Countdown timer display One of the three preset countdown timers is displayed. Pressing the LEFT ARROW key cycles through the timers. The timers can be set from the menu mode. Pressing the RIGHT ARROW key activates the timer and the arrows on the left side of the timer will begin to scroll.
  • Page 12 Clock, Timer, & Alarm (continued) Alarm clock display The alarm clock set time is displayed. To set the alarm press the LEFT ARROW key and the minutes digits will blink. Press the RIGHT ARROW key to set the desired value. Holding the key down will increase the value rapidly.
  • Page 13 Clock, Timer, & Alarm (continued) To activate the alarm press the RIGHT ARROW key and an alarm bell will display next to the time. To deactivate alarm mode, press the RIGHT ARROW key again. When the alarm clock set time is reached the alarm will begin to sound. Press any key to turn off the alarm.

  • Page 14: Performing Measurements

    3. Performing Measurements Turn the 367 on by pressing the On/Off key. The display will read “OPEN” if no probe is attached. MENU mode can be activated to change clock, display, and data logging (367D only) settings after the 367 has been turned on.
  • Page 15 Performing Measurements (continued) Increased Update Rate - Pressing the RIGHT ARROW key increases the update rate allowing quickly changing temperatures to be measured. “F” will blink in the display while this mode is active. Please see below. To return the update rate to normal press the RIGHT ARROW key. Note: The update rate will automatically return to normal after 5 minutes.
  • Page 16 Performing Measurements (367D Only) “L” will flash when the 367D is logging. Pressing the RIGHT ARROW key will activate and deactivate logging. The number to the right will increase each time a new measurement has been logged. NOTE: When logging is started all previously logged data will be overwritten.
  • Page 17 Performing Measurements (367D Only) 10. Reserved logging is used to tell the 367D to log at the preset start and stop times. Pressing the RIGHT ARROW key enables (LrES yes) or disables (LrES no) reserved logging. The start and stop times can be checked as shown below.
  • Page 18 Performing Measurements (367D Only) 13. Press the MENU repeatedly to switch the 367D to store / recall mode (See below) 14. Press the RIGHT ARROW key to select the location to store the cur- rently displayed measurement. Allow 1 second for data storage. 15.
  • Page 19 Performing Measurements (367D Only) 16. Pressing the LEFT ARROW key switches the 367D to recall mode (See below). 17. Pressing the LEFT ARROW key selects the location to recall and dis- play. Allow 1 second for data retrieval.
  • Page 20 Performing Measurements (continued) 18. Press the MENU key to cycle the 367 to temperature / timer display mode. The temperature and one of three preset countdown timers is displayed. See below. 19. Pressing the LEFT ARROW key cycles through the timers. The timers can be set from the menu mode.
  • Page 21 RIGHT ARROW key again. When the alarm clock set time is reached the alarm will begin to sound. Press any key to turn off the alarm. 21. Pressing the MENU key cycles the 367 the temperature / clock dis- play.

  • Page 22: Menu Mode

    Setting countdown timers 1.. To activate menu mode, press and hold down the MENU key until the 367 beeps and “EDIT” is displayed. Pressing the MENU key repeatedly will cycle through the various menu parameters. Press the menu key and countdown timer 1 will be displayed.

  • Page 23: Setting The Clock

    Setting the clock To activate menu mode, press and hold down the MENU key until the 367 beeps and “EDIT” is displayed. Press the menu key repeatedly until clock mode is displayed. a. Use the LEFT ARROW key to select hour, minute, or seconds and use the RIGHT ARROW key to set the required time.
  • Page 24 Field calibration To activate menu mode, press and hold down the MENU key until the 367 beeps and “EDIT” is displayed. Press the menu key repeatedly until field calibration mode is dis- played (see display below). TO USE FIELD CALIBRATION AN ICE BATH IS REQUIRED.

  • Page 25: Auto Power Off

    Auto power off The auto power off function conserves battery life by turning the 367 off after 5 minutes of inactivity. To disable or enable this func- tion perform the following steps. If menu mode is active skip to step 2.
  • Page 26 This mode is used with the gap setting. (See next page) To activate menu mode, press and hold down the MENU key until the 367 beeps and “EDIT” is displayed. Press the menu key repeatedly until over temperature alarm mode is displayed (see display below).
  • Page 27 164ºF or under 156ºF. To activate menu mode, press and hold down the MENU key until the 367 beeps and “EDIT” is displayed. Press the menu key repeatedly until over temperature alarm mode gap is displayed (see display below).
  • Page 28 If menu mode is active skip to step 2. To activate menu mode, press and hold down the MENU key until the 367 beeps and “EDIT” is displayed. Press the menu key repeatedly until unit of measurement mode is displayed (see display below).
  • Page 29 ARROW key to switch the main display to SEL. Press the RIGHT ARROW key to select between “K” and “T” type thermocouple input. To return the 367 to auto select press the LEFT ARROW key until Auto is displayed. After the desired probe type is selected press the MENU key to go to the next selection or press and hold the MENU key to exit menu mode.

  • Page 30: Logging Parameters (367D Only)

    E. Logging Parameters (367D Only) To change the logging interval, press and hold the MENU key down to activate menu mode until the 367 beeps and “EDIT” is displayed. Press the menu key repeatedly until logger interval mode is dis- played.
  • Page 31 Logging Parameters 367D Only (continued) To change the logging start time, press and hold the MENU key down to activate menu mode until the 367 beeps and “EDIT” is dis- played. Press the menu key repeatedly until logger start time mode is dis- played.
  • Page 32 Logging Parameters 367D Only (continued) To change the logging stop time, press and hold the MENU key down to activate menu mode until the 367 beeps and “EDIT” is dis- played. Press the menu key repeatedly until logger start time mode is dis- played.
  • Page 33 To enable (reserve) the logging function to begin at the specified start time, press and hold the MENU key down to activate menu mode until the 367 beeps and “EDIT” is displayed. Press the menu key repeatedly until logger reserve mode is dis- played.

  • Page 34: Retrieving Logged Data (367D)

    Bead type probe (food and non-food applications) GT19L Bead type probe with oven clamp CT11L Surface temperature measurements FT11L Penectration / Immersion measurements This is a partial listing of temperature probes available for the 365. Please visit www.tpi-thevalueleader.com for additional probes.

  • Page 35: Troubleshooting & Maintenance

    Only reads OPEN • Temperature probe not connected • Temperature probe defective Maintenance 1. Battery Replacement: The 367 will display a battery symbol when the internal 1.5 Volt batteries needs replacement. a. Disconnect the temperature probe. b. Loosen the 4 battery cover screws located on the back cover.
  • Page 37 367 / 367D SPECIFICATIONS (PARTIAL LIST) Input Type Range Thermistor -58ºF to 302ºF (-50ºC to 150ºC) K-Type Thermocouple -328ºF to 1,112ºF (-200ºC to 600ºC) T-Type Thermocouple -328ºF to 752ºF (-200ºC to 400ºC) Accuracy +/-(0.1% of reading + 0.4ºF (0.2ºC)) Resolution > -100ºC = 0.1ºC, < 100ºC = 1ºC...

This manual is also suitable for:

367d
