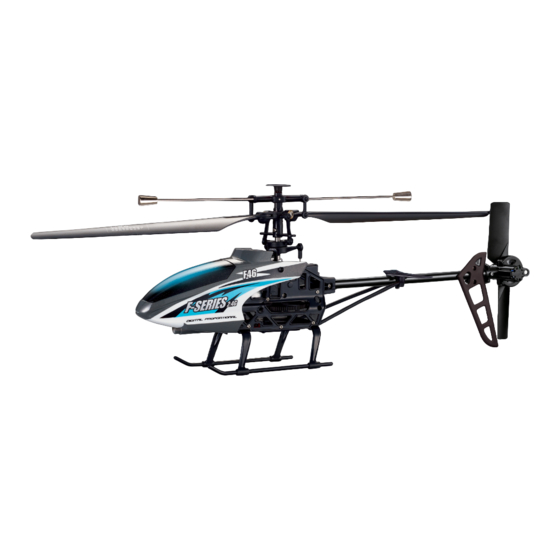

Flying Gadgets F-Series Instruction Manual

2.4g 4ch digital proportional r/c helicopter model
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ITEM NO.F46/F646

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F-Series and is the answer not in the manual?

Questions and answers

Related Manuals for Flying Gadgets F-Series

Summary of Contents for Flying Gadgets F-Series

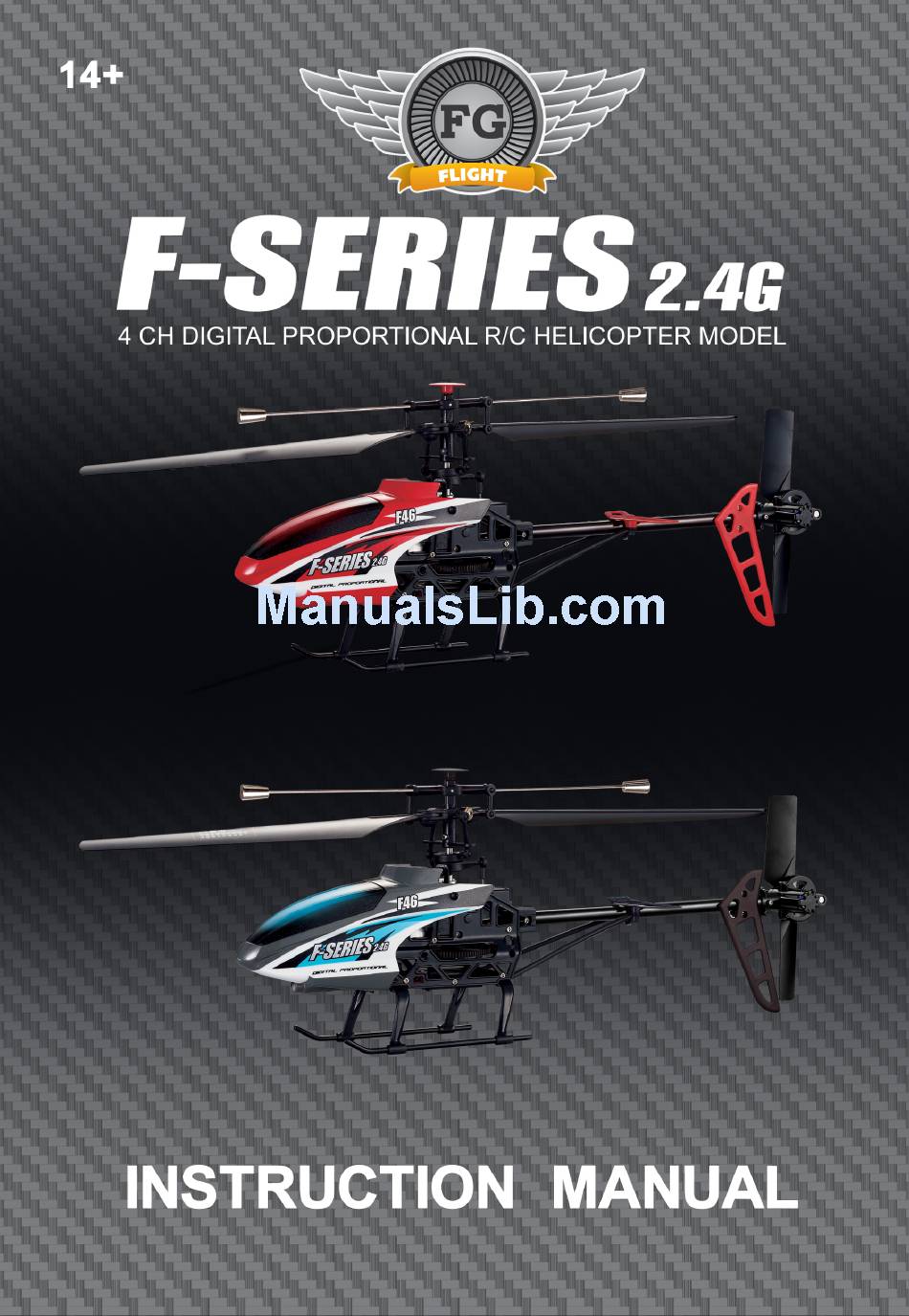

  • Page 1 ITEM NO.F46/F646...
  • Page 2 Thank you for purchasing this Flying Gadgets product. Please read this manual carefully before use and retain it for future reference. Technical parameter of the helicopter Fuselage Length:510MM Gross Weight: about 235g Main Rotor Diameter: 315MM Overall height: 145MM Battery: Li-polymer 7.4V...
  • Page 3 Product/spare parts included in this packaging Qty(pc) Qty(pc) Description Description Helicopter 7.4V 700mAh li-polymer battery Remote control Manual Rotor blade Tail Rotor Charger The LCD Remote control Main features of the remote control The 2.4Ghz, LCD remote control, allows many helicopters to be used at the same time. Control function: upwards, downwards, forwards, backwards, left, right, spinning left and spinning right, video and photography.
  • Page 4 Function switch Function description In stick Mod 3 and 4, it helps to tune the helicopter's left and right direction spinning speed. 键 键 键 键 Trimmer C In stick Mod 1 and 2,it helps to tune the helicopter's sidewards flight. In stick Mod 1 and 3, this button is null.
  • Page 5 键 键 Activate the LCD remote control Slide the power switch to the "ON" position after you have chosen your 键 键 throttle mode selection. To activate the remote control, slowly push up the throttle stick to the top and then push it down to the bottom. 键...

  • Page 6: Charging The Helicopter

    The helicopter connector stabilizer bar rotor blade servo split charging device Tail motor searchlight power socket Charging plug camera battery connector Charging the helicopter This helicopter comes with a split balanced charging device (1 piece plug charger +1 piece balance box charger). How to charge the helicopter using the balance charger: Turn off the helicopter;...
  • Page 7 This product comes with a battery, please pay attention to the following safety instructions: Only use the charger provided to charge the battery. When charging the battery: If the battery becomes too hot, then the battery is overcharged. If this is the case then stop charging the battery.
