Summary of Contents for Flying Gadgets F-Series 2.4G

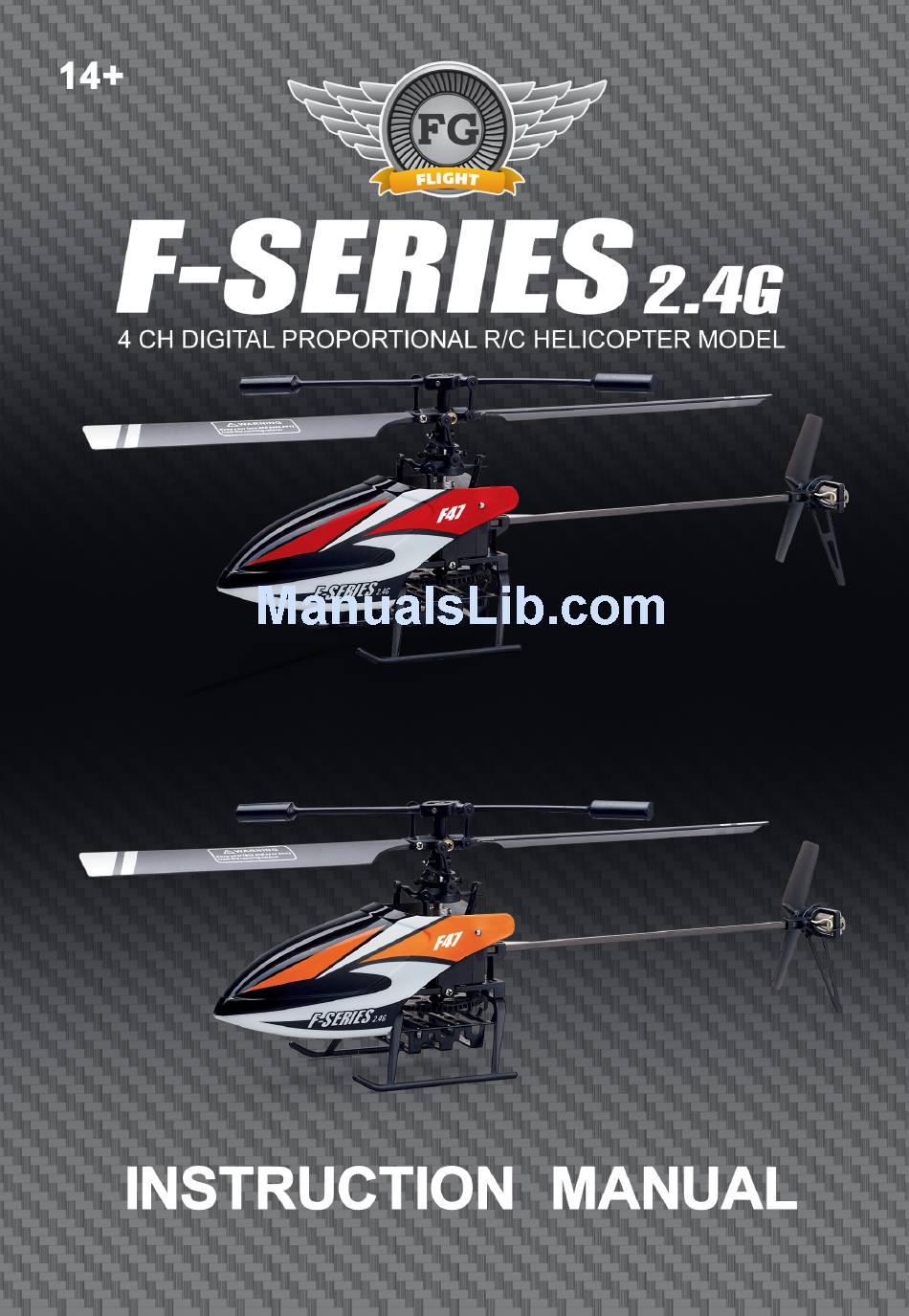

- Page 1 ITEM NO.F47/F647...
- Page 2 Thank you for purchasing this Flying Gadgets product. Please read this manual carefully before use and retain it for future reference. Technical parameter of the helicopter Fuselage Length:235MM Gross Weight: about 49g Main Rotor Diameter: 225MM Overall height: 80MM Battery: Li-polymer 3.7V...
- Page 3 Product/spare parts included in this packaging Qty(pc) Qty(pc) Description Description Helicopter 3.7V 380mAh li-polymer battery Remote controller Manual Tail Rotor Rotor blade USB charger The LCD Remote control Main features of the remote control The 2.4Ghz, LCD remote control, allows many helicopters to be used at the same time. Control function: upwards, downwards, forwards, backwards, left, right, spinning left and spinning right, video and photography.
- Page 4 Function switch Function description In stick Mod 3 and 4, it helps to tune the helicopter's sidewards flight. Trimmer B In stick Mod 1 and 2,it helps to tune the helicopter's left and right direction spinning speed. In stick Mod 3 and 4, it helps to tune the helicopter's left and right direction spinning speed.
- Page 5 键 键 Pic.1 Pic.2 键 键 Activate the LCD remote control EXIT/ EXIT/ LIGHT LIGHT MENU/ MENU/ Slide the power switch to the "ON" position after you have chosen your PUSH PUSH throttle mode selection. To activate the remote control, slowly push up the 键...
- Page 6 STICK MOD STICK MOD STICK MOD This is the low speed icon. This is the medium speed icon. This is the maximum speed icon . EXIT/ EXIT/ EXIT/ Pic.7 Pic.8 Pic.9 LIGHT LIGHT LIGHT MENU/ MENU/ MENU/ PUSH PUSH PUSH The helicopter connector stabilizer bar...
-
Page 7: Safety Instructions
This product comes with a battery, please pay attention to the following safety instructions: Only use the charger provided to charge the battery. When charging the battery: If the battery becomes too hot, then the battery is overcharged. If this is the case then stop charging the battery. As over charging will damage the battery.
