Viega Programmable Heat/Cool Thermostat Product Instructions

Product
Instructions

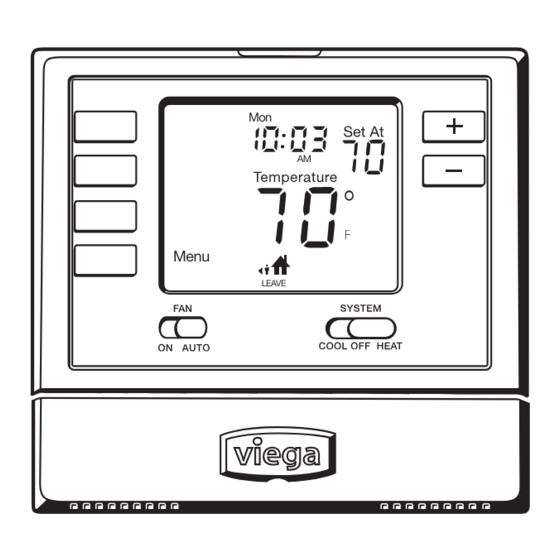

Viega Programmable Heat/Cool Thermostat
®
The Viega programmable heat/cool thermostat is easy
to install, easy to wire and easy to program. It can be
used for single stage heating and cooling applications,
making it ideal for many different applications. Installation
instructions can be found below.
Thermostat applications guide
Description
Gas or Oil Heat
Electric Furnace
Heat Pump (No Aux. or Emergency Heat)
Heat Pump (with Aux. or Emergency Heat)
Multi-stage Systems
Heat Only Systems
Cool Only Systems
Mounting the subbase
W
For vertical mount put one screw top and one screw bottom.
For horizontal mount put one screw left and one screw right.
The thermostat can be mounted directly to the wall or it can
be mounted to a wall box. Use the vertical mounting screw
location to attach to a wall box.
Viega LLC, 301 N. Main, 9th Floor • Wichita, KS 67202 • Ph: 800-976-9819 • Fax: 316-425-7618
PI-PR 566440 0114 (Programmable Heat-Cool Thermostat)
Yes
Yes
Yes
No
No
Yes
Yes
Caution: Electrical Hazard
Failure to disconnect the power before beginning
to install this product can cause electrical shock or
equipment damage.
Mercury Notice:
All of our products are mercury free. However, if the
product you are replacing contains mercury, dispose of it
properly. Your local waste management authority can give
you instructions on recycling and proper disposal.
A trained, experienced technician must install this
product. Carefully read these instructions. You could
damage this product or cause a hazardous condition if
you fail to follow these instructions.
Mon
AM
Menu
LEAVE
Part Number 15117
1 of 13
