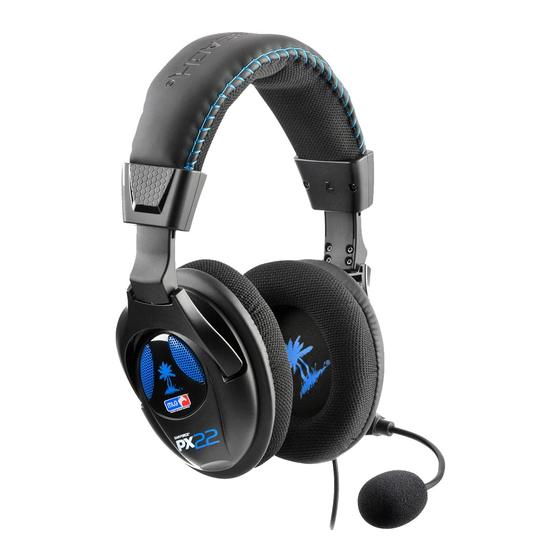

Ear Force PX 22 User Manual

Amplified universal gaming headset

Hide thumbs

Table Of Contents

Quick Links

Download this manual

WIRED

™

For: PS3

I Xbox 360

I PC

Mac

I Mobile

AMPLIFIED UNIVERSAL GAMING HEADSET

User Guide

#1 for Competitive Gaming

Table of Contents

Need help?

Do you have a question about the PX 22 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ear Force PX 22

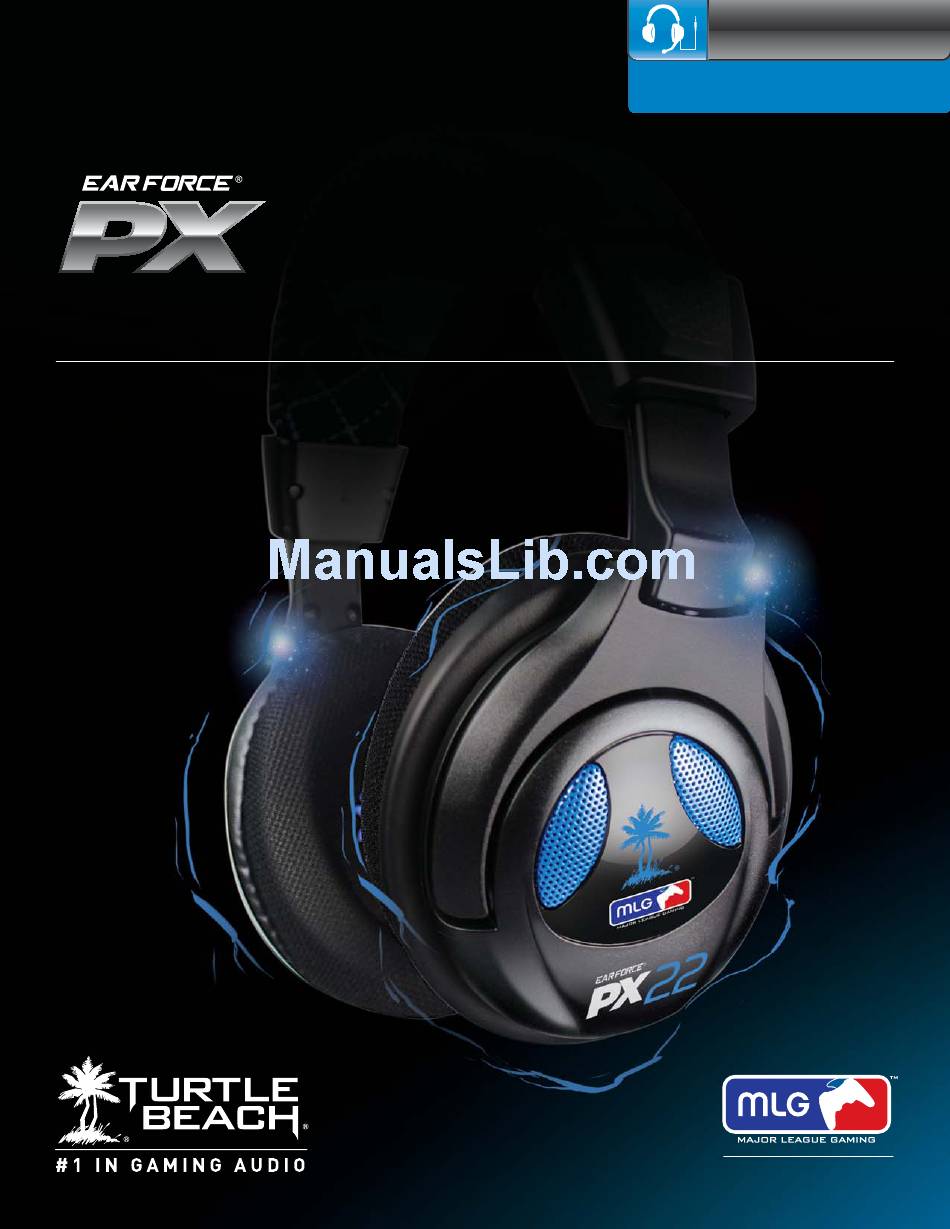

Page 1 WIRED ™ ® For: PS3 I Xbox 360 I PC ® I Mobile AMPLIFIED UNIVERSAL GAMING HEADSET User Guide #1 for Competitive Gaming...
Page 2 Congratulations on your purchase of the Ear Force PX22 headset from Turtle Beach. The PX22 works with your consoles, PC or Mac and all of your favorite mobile devices. Welcome to the Turtle Beach Audio Advantage! For our Knowledgebase and Technical Support Contact info please visit: http://www.turtlebeach.com/support...
Page 3: Table Of Contents
Table of Contents Package Contents Features Ampliﬁer Function Map / Use ™ Hardware Setup (HDMI / RCA) ™ Using your PX22 Headset on PS3 ® Xbox 360 Hardware Setup (HDMI / RCA) ® Using your PX22 Headset on Xbox 360 ®...
Page 4: Package Contents
Package Contents EarForce PX22 Headset Inline Ampliﬁer Xbox 360 Talkback Cable 3.5mm, 4-Pole Auxiliary Cable Turtle Beach Stickers RCA Splitter Cable...
Page 5: Features P5
Features Features · Adjustable Bass & Treble Levels: Tune bass and treble levels to add depth and realism. · Dynamic Chat Boost: Automatically adjusts the volume of chat based on game volume changes. · Independent Volume Controls: Separate game and chat volume controls plus mic mute on the inline amp. ·...
Page 6: Ampliﬁer Function Map / Use
Ampliﬁer Function Map / Use Inline Ampliﬁer Game Volume Controls Treble Controls Chat Control Bass Controls Mic Switch: MODE SWITCH Mic On (High) Mic On (Low) Variable Mic Monitor Phone Call Mode Mic Mute Chat Boost Indicator LED Mic Mute Indicator LED: bright blue = Mic On (High), dark blue = Mic On (Low), purple = Phone Call Mode,...
Page 7: Hardware Setup Hdmi / Rca
™ Hardware Setup HDMI / RCA ™ Setup (HDMI) Headset Inline Ampliﬁer Headset Inline Ampliﬁer USB Power RCA Splitter Cable (Black) Audio: Red / White...
Page 8 ™ Hardware Setup HDMI / RCA ™ Setup (HDMI) Headset Inline Ampliﬁer USB Power (Black) RCA Splitter Cable *PS3 AV Cable Audio: Red / White HDMI Video: Yellow *PS3 AV cable is included with your console.
Page 9 ™ Hardware Setup HDMI / RCA ™ Setup (RCA) Headset Inline Ampliﬁer Headset Inline Ampliﬁer USB Power RCA Splitter Cable (Black) *PS3 AV cable is included with your console.
Page 10 ™ Hardware Setup HDMI / RCA ™ Setup (RCA) Headset Inline Ampliﬁer USB Power (Black) Video: Yellow RCA Splitter Cable PS3 AV Cable Audio: Red / White *PS3 AV cable is included with your console.
Page 11: Using Your Px22 Headset On Ps3
™ Using your PX22 Headset on PS3 HDMI or digital (optical) 12/14 12:15 PM Audio Output Settings Sets to output audio through multiple connectors simultaneously. Audio output to connectors that are not selected in [Audio Output Settings] is downscaled to 2 Ch. 1.
Page 12: Xbox 360 Hardware Setup (Hdmi / Rca)
® Xbox 360 Hardware Setup HDMI / RCA ® Xbox 360 Setup (HDMI) Inline Ampliﬁer Headset Xbox 360 Talkback Cable Headset Inline Ampliﬁer...
Page 13 ® Xbox 360 Hardware Setup HDMI / RCA ® Xbox 360 Setup (HDMI) * Xbox 360 Headset Inline Ampliﬁer Talkback Cable USB Power RCA Splitter Cable Xbox 360 Inline Ampliﬁer Talkback Headset Cable USB Power **Xbox 360 Audio RCA Splitter Adapter Cable Cable * For best Xbox chat performance, use with ofﬁcial Microsoft Xbox 360 products.
Page 14 ® Xbox 360 Hardware Setup HDMI / RCA ® Xbox 360 Setup (HDMI) * Xbox 360 Inline Ampliﬁer Headset Talkback Cable USB Power (Black) RCA Splitter ** Xbox 360 Audio Cable Adapter Cable A/V Port HDMI * For best Xbox chat performance, use with ofﬁcial Microsoft Xbox 360 products. **All Xbox 360 models require an Xbox 360 Audio Adapter Cable for audio output when used with an HDMI connection (Adapter available from turtlebeach.com).
Page 15 ® Xbox 360 Hardware Setup HDMI / RCA ® Xbox 360 Setup (RCA) Headset Inline Ampliﬁer Xbox 360 Talkback Cable Inline Ampliﬁer Headset Headset Xbox 360 Inline Ampliﬁer Talkback USB Power Cable RCA Splitter Cable (Black)
Page 16 ® Xbox 360 Hardware Setup HDMI / RCA ® Xbox 360 Setup (RCA) Xbox 360 Headset Inline Ampliﬁer Talkback Cable USB Power (Black) RCA Splitter Cable Audio: Red / White Video: Yellow NOTE: The white/red RCA plugs need to be connected to the TV’s AUDIO IN jacks if you want to hear game audio in your TV in addition to your headset...
Page 17: Using Your Px22 Headset On Xbox 360
® Using your PX22 Headset on Xbox 360 ® Xbox 360 Conﬁguration Voice Voice Volume Game Volume Mute Kinect Voice Output Play Through Headset 1. Go back to Xbox Settings - Choose “Preferences” Play Through Speakers - Choose “Voice” Play Through Both - Set both Voice Volume and Game Volume to ”10”...
Page 18 PC / Mac Hardware Setup PC / Mac Setup When used as a PC/Mac gaming headset, the PX22 functions as an Ampliﬁed USB Stereo Headset. When connected to a PC or Mac, the PX22 appears in Windows and Mac operating systems as “TURTLE BEACH PX22.” This allows the PX22 microphone to be assigned for chat use in game software as a USB audio device.
Page 19 PC Setup PLEASE NOTE: Depending on your OS Version, the screens may differ but the steps will remain the same. 1. Right-click the speaker icon in your task bar 2. Right-click on “Speakers” and select “Set as Default and select “Playback Devices” Device”.
Page 20 Mac Setup PLEASE NOTE: Depending on your OS Version, the screens may differ but the steps will remain the same. 1. Click on the Apple Menu and select System Preferences » Sounds. 2. On Output tab, select “Headphones”. 3. On Input tab, select “TURTLE BEACH PX22 CHAT”. NOTE: In order to maintain independent volume controls for chat and game, please make sure to set “TURTLE BEACH PX22”...
Page 21 Mobile Setup Direct Connection Connect the 3.5mm plug to a mobile device to listen to music or movies, play games or take phone calls. Headset Works with many mobile devices...
Page 22 Mobile Setup Using the Inline Ampliﬁer PLEASE NOTE: Inline amp must be in phone call mode or your voice will be routed over your PC/Console’s chat channel. You will hear the caller no matter where the switch is set but if not in the phone call mode, your caller will not hear you and others will.
Page 23 Speciﬁcations · Console Audio Connection: RCA (analog) · PC/Mac Audio Connection: USB and stereo 3.5mm · PC/PS3 Mic Connection: USB · Xbox 360 Mic Connection: 2.5mm talkback cable · Power: USB...
Page 24 Regulatory Compliance Statements for the PX22 Models Federal Communications Commission (FCC) Compliance Notices Class B Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15, Subpart B of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 25: Declaration Of Conformity
Declaration of Conformity Heading Marking by this symbol: indicates compliance with the Essential Requirements of the EMC Directive of the European Union (2004/108/EC). This equipment meets the following conformance standards: Safety: EN 60950-1: 2006 + A11 + A1 + A12 (T-Mark License) Also Licensed for Standards: EC 60950-1: 2005 + A1: 2009, (CB Scheme Report/Certiﬁcate), UL60950-1 (NRTL License), CSA22.2, 60950-1 (SCC License)
Page 26 LIMITED ONE YEAR WARRANTY FOR TURTLE BEACH PRODUCTS: Voyetra Turtle Beach, Inc. (“VTB”) warrants to the original end-user purchaser (“Purchaser”) that the retail Turtle Beach hardware product herein (“Product”) will be free of defects in materials and workmanship for a period of one year from the date of purchase by the Purchaser (“Warranty Period”).
Page 27 EXCLUSIONS FROM LIMITED WARRANTY: This Limited Warranty shall not apply and VTB has no liability under this Limited Warranty if the Turtle Beach Product: - is used for commercial purposes such as “LAN, Call Centers” (including rental or lease); - is modiﬁed or tampered with; - is damaged by Acts of God, power surge, misuse, abuse, negligence, accident, wear and tear, mishandling, misapplication, or other causes unrelated to defective materials or workmanship;...
Page 28 Copyright © 2013 Voyetra Turtle Beach, Inc. (VTB, Inc.) All rights reserved. Turtle Beach, the Turtle Beach Logo, Voyetra, and Ear Force are either trademarks or registered trademarks of VTB, Inc. Xbox, Xbox 360, and Xbox LIVE are registered trademarks of Microsoft Corporation. PlayStation is a registered trademark and PS3 is a trademark of Sony Computer Entertainment, Inc.
