Summary of Contents for Ear Force STEALTH 520

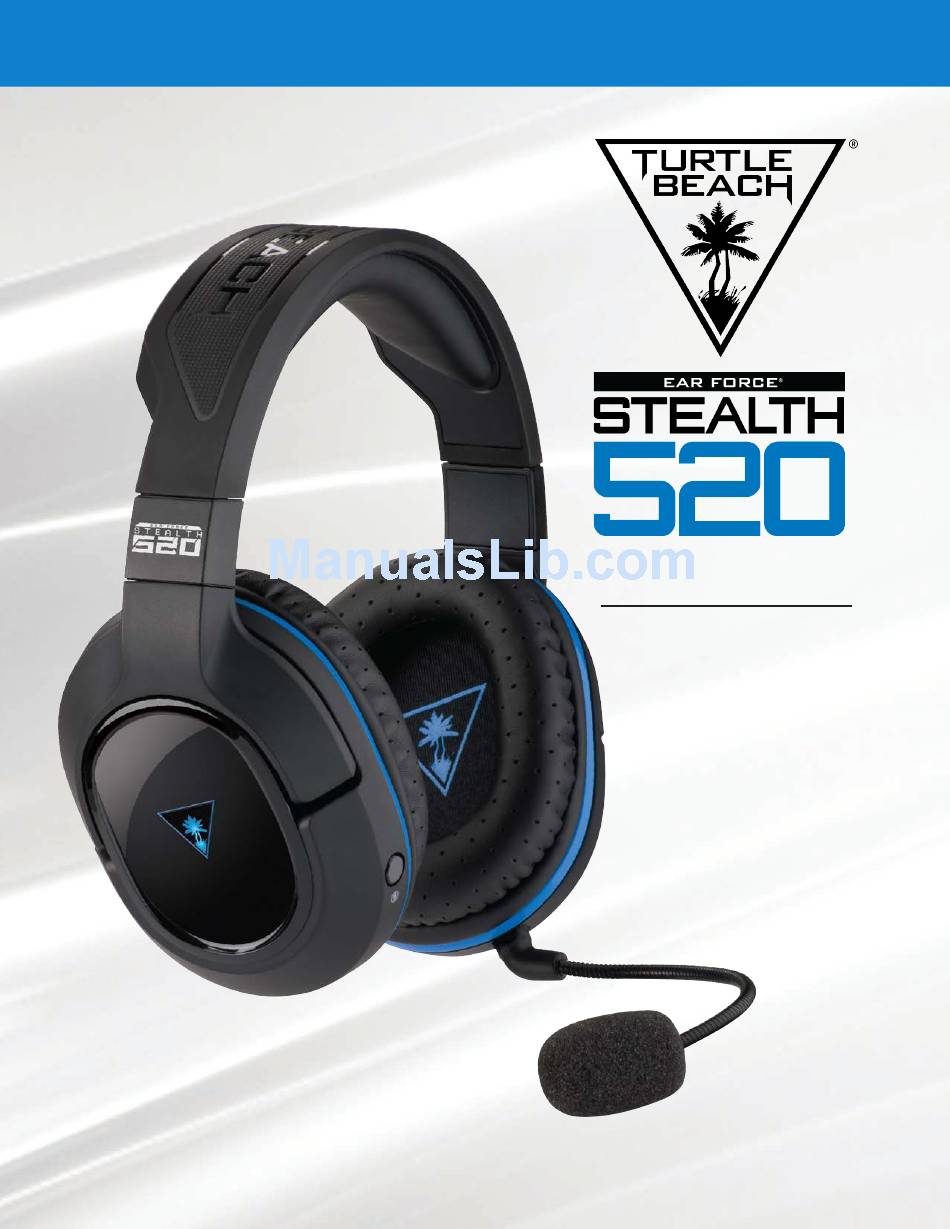

- Page 1 | PS3 ™ ™ SURROUND SOUNG GAMING HEADSET USER GUIDE...
- Page 2 EAR FORCE STEALTH 520 ® SURROUND SOUND GAMING HEADSET Congratulations on your purchase of the Ear Force Stealth 520 headset from ® Turtle Beach. Designed for PS3 , PS4 and PS Vita gaming, the STEALTH 520 ™ ™ ™ also supports music, movies, and chat. Turtle Beach brings over 35 years of...
- Page 3 In the Box For our Knowledgebase and Technical Support please visit turtlebeach.com/support Go to Table of Contents...
-
Page 4: Table Of Contents
Table of Contents About the STEALTH 520 Overview Parts and Controls Headset Charging Setup ™ Setup ™ Mobile Setup Pairing the Headset and Transmitter Adjusting sound (PS3/PS4) Specifications P18 Troubleshooting tips Important safety information... -
Page 5: About The Stealth 520
About the STEALTH 520 The STEALTH 520 is an advanced gaming headset optimized for PS3 and PS4 consoles. ™ ™ It also unlocks the audio potential of music, movies and more. To get the most from your STEALTH 520, please take a few moments to review this introduction. -
Page 6: Overview P6
Blu-ray Disc. Crank up your tunes on music services like Pandora™ and then chat with friends or make mobile calls! Step up to STEALTH Ear Force STEALTH headsets connect cutting edge wireless tech with ® advanced audio features so you win more, jump up the leaderboards and flat out hear your favorite games like never before. -
Page 7: Parts And Controls P7
Parts and Controls Go to Table of Contents... - Page 8 Dynamic Chat Boost Chat Boost is a dynamic talkback expander built into the STEALTH 520 headset that automatically increases chat volume during loud moments in your game, so you can always hear your teammates or other players, regardless of the game volume.
-
Page 9: Headset Charging P8
Headset Charging Even though the STEALTH 520 supports wired connection to mobile devices, it uses an internal amplifier and so requires power from its rechargeable battery. NOTE: Make sure to charge your Headset regularly. NOTE: Always charge your Headset before storing it for more than three months. Never store the headset in temperatures above 113°F/45°. -
Page 10: Ps4 ™ Setup P9
Setup ™ The Ear Force STEALTH 520 headset is designed for use with PS4™ consoles. ® 1. Plug the Removable Mic Boom into the jack on the left earcup of the Headset. 2. Connect the square optical plug of the Digital Optical Cable to the Digital Out (Optical) port of the PS4 console. - Page 11 Setup ™ Primary Output Port Select the input format supported by the device (TV, AV amplifier or receiver) that is connected using the DIGITAL OUT (OPTICAL) port. Note that if the device does not support the selected format, the speakers might be damaged. Dolby Digital 5.1ch DTS 5.1ch Linear PCM 44.1kHz...
- Page 12 Setup ™ 5. Go to Settings >> Devices >> Audio Devices 6. Select USB Headset(Turtle Beach Stealth 520 Chat) for Input & Output Device 7. Set Output to Headphones to Chat Audio 8. Set Volume Control (Headphones) level to maximum...
-
Page 13: Ps3 ™ Setup P12
Setup ™ 1. Plug the Removable Mic Boom into the jack on the left earcup of the Headset. 2. Connect the square optical connector of the Digital Optical Cable to the Digital Out (Optical) port of the console. ™ 3. Insert the small plug of the Digital Optical Cable into the Digital Optical Input on the side of the Wireless Transmitter. - Page 14 Setup ™ 1. Go to Settings » Accessory Settings » Audio Device Settings 2. Set the Input Device and Output Device fields to Turtle Beach Stealth 520. 3. Go to Settings » Sound Settings » Audio Output Settings » Optical Digital Go to Table of Contents...
- Page 15 Setup ™ 4. Check ONLY Dolby Digital 5.1 Ch. Audio Output Settings Select an output format supported by the TV or AV amplifier (receiver) in use. The system will automatically adjust the output to match the selected format. Dolby Digital 5.1 Ch. DTS 5.1 Ch.
-
Page 16: Mobile Setup P15
Mobile device. Mobile audio is not processed in DTS Headphone: X Surround Sound. When using the Stealth 520 away from your console (Mobile Connection Only) after 15 minutes you may hear a prompt indicating that you must press the Power Button in order to continue use. This is built in for battery conservation, just press the power button to continue listening to music without interruption. -
Page 17: Pairing The Headset And Transmitter P16
Pairing the Headset and Transmitter NOTE: Your STEALTH 520 Headset ships from the factory already paired for communication with your Wireless Transmitter. In normal operation, it should not be necessary for you to pair the two again. You should only need to perform pairing yourself in the event that wireless communication fails. -
Page 18: Adjusting Sound (Ps3/Ps4) P17
Vocal Boost - Tune in to the vocals on music tracks and dialog in games and movies, makes your team-mates, characters and stories come alive as you’ve never heard before. The Stealth 520 takes advantage of DTS Headphone:X ® Surround Sound, which uses sophisticated processing to Adjust DTS Headphone: X 7.1... -
Page 19: Specifications
Specifications Headset · Speakers 50mm with Neodymium Magnets · Frequency Response 20Hz - 20kHz · Earpad Material Perforated Leather (Black) with Foam Cushion · Earcup Design Over-Ear (Closed) · Microphone Design Removable Omni-Directional Microphone Transmitter · Game Input Digital Optical (Mini-Toslink) ·... - Page 20 Troubleshooting Tips No Sound Possible cause Solution Confirm that the Headset is on. The Charge/Pairing Status Power is off LED should be illuminated blue. NOTE: The Headset must be powered on for use, even when you’re connected via the Mobile Cable. Dead/low battery Confirm that the Headset battery is charged. In game console use, confirm that Wireless Transmitter is properly seated in the USB port and that the Digital Optical Cable is firmly connected at both ends.
- Page 21 For best results, we recommend a wired connection from your modem/ router to your game console. Possible cause Solution Confirm that the game console is properly configured for the Incorrect console setup STEALTH 520. See PS4 Setup (page 9) or PS3 Setup ™ ™ (page 12).
-
Page 22: Important Safety Information P21
Important Safety Information To avoid potential damage to the device, always disconnect all cables before transporting it. WARNING: Permanent hearing damage can occur if a headset is used at high volumes for extended periods of time, so it is important to keep the volume at a safe level. Over time, your ears adapt to loud volume levels, so a level that may not cause initial discomfort can still damage your hearing. - Page 23 Use only the supplied internal antenna. Unauthorized antennas, modifications, or attachments could damage the EAR FORCE Stealth 520 RX & TX Models and violate FCC regulations. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Please contact Turtle Beach for a list of approved 2.4 GHz antennas.
- Page 24 European Union and European Fair Trade Association (EFTA) Regulatory Compliance This equipment may be operated in the countries that comprise the member countries of the European Union and the Heading European Fair Trade Association. These countries, listed below, are referred to as The European Community throughout this document: AUSTRIA, BELGIUM, BULGARIA, CYPRUS, CZECH REPUBLIC, DENMARK, ESTONIA, FINLAND, FRANCE, GERMANY, GREECE, HUNGARY, IRELAND, ITALY, LATVIA, LITHUANIA, LUXEMBOURG, MALTA, NETHERLANDS, POLAND,...
- Page 25 LIMITED ONE YEAR WARRANTY FOR TURTLE BEACH PRODUCTS: Voyetra Turtle Beach, Inc. (“VTB”) warrants to the original end-user purchaser (“Purchaser”) that the retail Turtle Beach hardware product herein (“Prod- uct”) will be free of defects in materials and workmanship for a period of one year from the date of purchase by the Purchaser (“Warranty Period”). Any Extended Warranty or Service Plans purchased through a Retail store are not honored by VTB.
- Page 26 EXCLUSIONS FROM LIMITED WARRANTY: This Limited Warranty shall not apply and VTB has no liability under this Limited Warranty if the Turtle Beach Product: - is used for commercial purposes such as “LAN, Call Centers” (including rental or lease); - i s modified or tampered with; - is damaged by Acts of God, power surge, misuse, abuse, negligence, accident, wear and tear, mishandling, misapplication, or other causes unrelated to defective materials or workmanship;...
- Page 27 For ages 13 and up © 2016 Voyetra Turtle Beach, Inc. Turtle Beach, the Palm Tree Logo, Voyetra, and Ear Force are trademarks of Voyetra Turtle Beach, Inc. For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Headphone:X is a trademark of DTS, Inc.
