Page 1

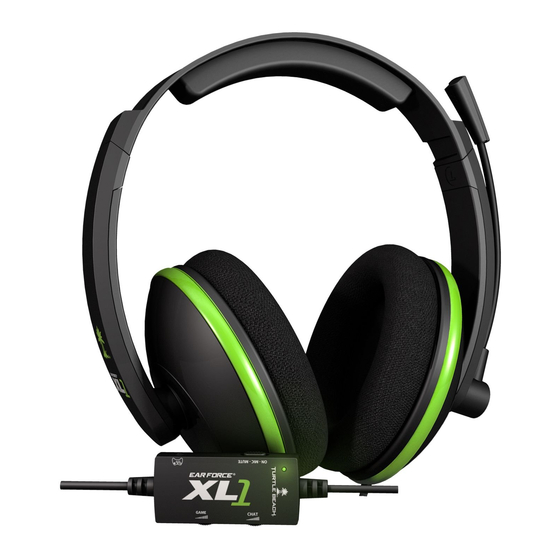

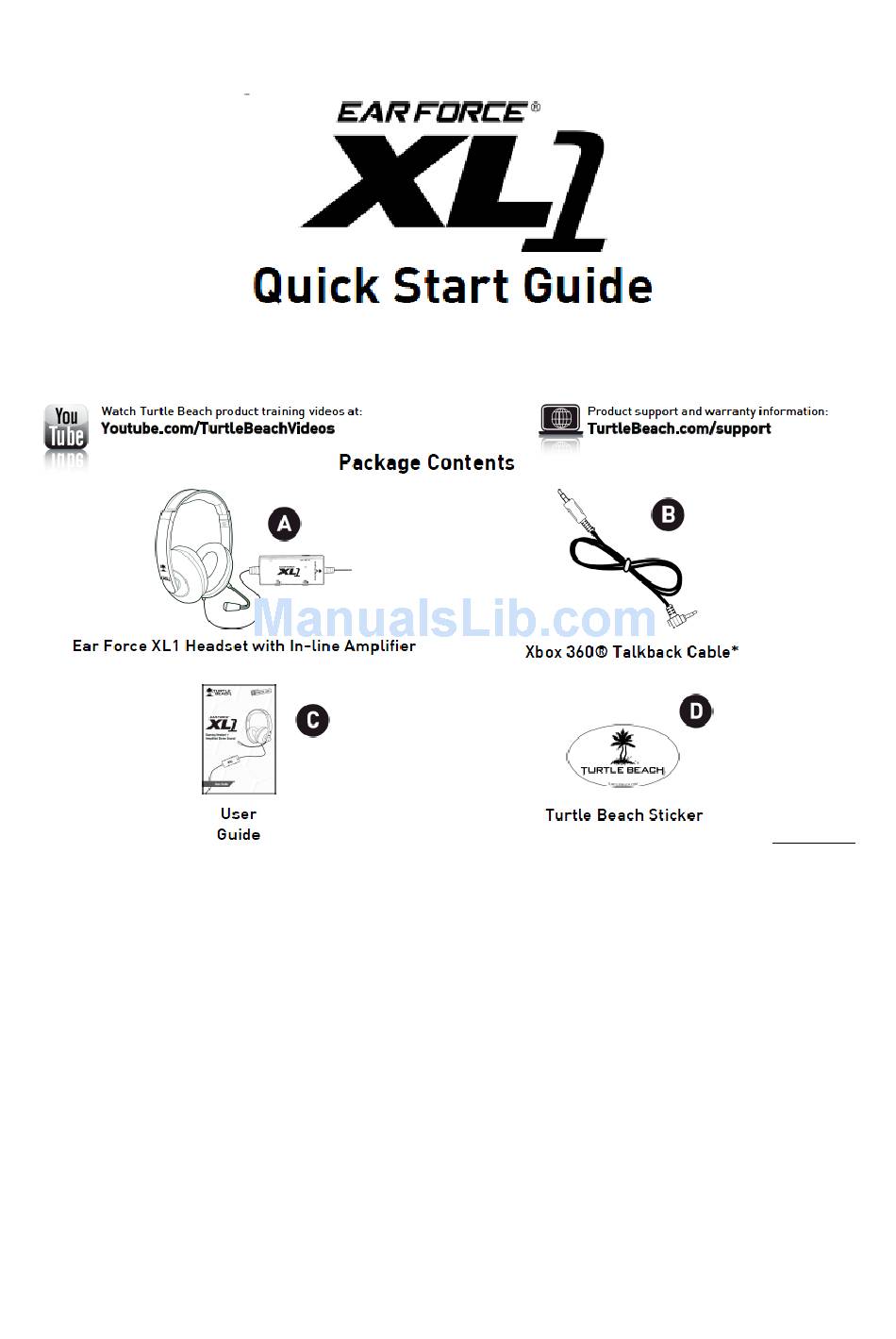

User Guide/Ghidul De Utilizare Turtle Beach Sticker/Turtle Beach Sticker Ear Force XL1 Headset with In-line Amplifier /Căști Ear Force XL1 cu Amplificatorul integrat prin cablu Xbox 360® Talkback Cable*/ Xbox 360® Cablu Talkback * Informații privitoare la suport și garanție: TurtleBeach.com/support...
Page 2
In-line Amplifier Controls/Controlul Amplificatorului Integrat Prin Cablu Mic Switch/Comutator Mic Mic LED/Mic LED Green = Mic On/Verde = Mic Activ Red = Mic Muted/Red = Mic Oprit Chat Volume Dial/Chat Volum Control Game Volume Dial/Joc Volum Control Xbox 360 Talkback Cable Jack/Xbox 360 Talkback Cablu Jack...
Page 3
Xbox 360 Setup – HDMI/Xbox 360 Setup – HDMI * An Xbox 360 Audio Adapter (available on TurtleBeach.com) is required only if your TV does not have red/white AUDIO OUT RCA jacks, and if you are using an HDMI cable to connect your game console to your TV.
Page 4
Xbox 360 Setup – HDMI (Continued)/ Xbox 360 Setup – HDMI (Continuat) HDMI cable/HDMI cablu to A/V port/către A/V port USB/USB Xbox 360 Back Panel/Xbox 360 Panoul din spate to HDMI port/către HDMI port...
Page 5
Xbox 360 Setup – HDMI Alternate (Continued)/ Xbox 360 Setup – HDMI Alternat (Continuat) Right Audio Out (Red)/ Ieșire Audio Dreaptă (Roșu) Left Audio Out (White)/ Ieșire Audio Stângă (Alb) HDMI In/HDMI In...
Page 6
Xbox 360 Setup – HDMI Alternate (Continued)/ Xbox 360 Setup – HDMI Alternat (Continuat) Xbox 360 Setup – HDMI Alternate/Xbox 360 Setup – HDMI Alternat Xbox 360 Back Panel/Xbox 360 Panoul din spate Right Audio Out (Red)/Ieșire Audio Dreaptă (Roșu) Left Audio Out (White)/Ieșire Audio Stângă...
Page 7
Xbox 360 Setup – RCA/Xbox 360 Setup – RCA Xbox 360 A/V Cable/Xbox 360 A/V Cablu...
Page 8
Xbox 360 Setup – RCA (Continued)/ Xbox 360 Setup – RCA (Continuat) A/V port/A/V port to A/V port/către A/V port Xbox 360 Back Panel/Xbox 360 Panoul din spate Xbox 360 A/V Cable/Xbox 360 A/V Cablu Video In (Yellow)/Video In (Galben) Right Audio In (Red)/Dreaptă...
Page 9
Xbox 360 Chat Configuration/Xbox 360 Chat Configurație Press the silver Xbox Guide button on your Xbox 360/Apăsați butonul argint Xbox Guide pe controlerul consolei Xbox 360. controller. Go to Settings > Preferences > Voice./ Mergeți la Setări > Preferințe > Voce. •...
