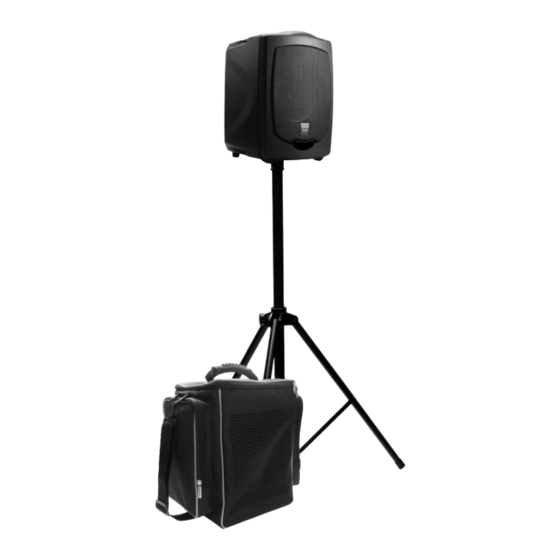

Chiayo Focus 505 Series Operation Manual
  1. Manuals
  2. Brands
  3. Chiayo Manuals
  4. Speaker System
  5. Focus 505 series
  6. Operation manual

Chiayo Focus 505 Series Operation Manual

Portable sound system
Hide thumbs Also See for Focus 505 Series:
Table of Contents

Advertisement

Quick Links

Portable sound system
Operation maunal
Focus 505
Taiwan Good Design
Focus 500
Taiwan Excellence
IC: 3563A-FOCUS505
I C : 3 5 6 3 A - S Q 5 0 1 6
I C : 3 5 6 3 A - S M 5 0 1 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Focus 505 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Chiayo Focus 505 Series

Summary of Contents for Chiayo Focus 505 Series

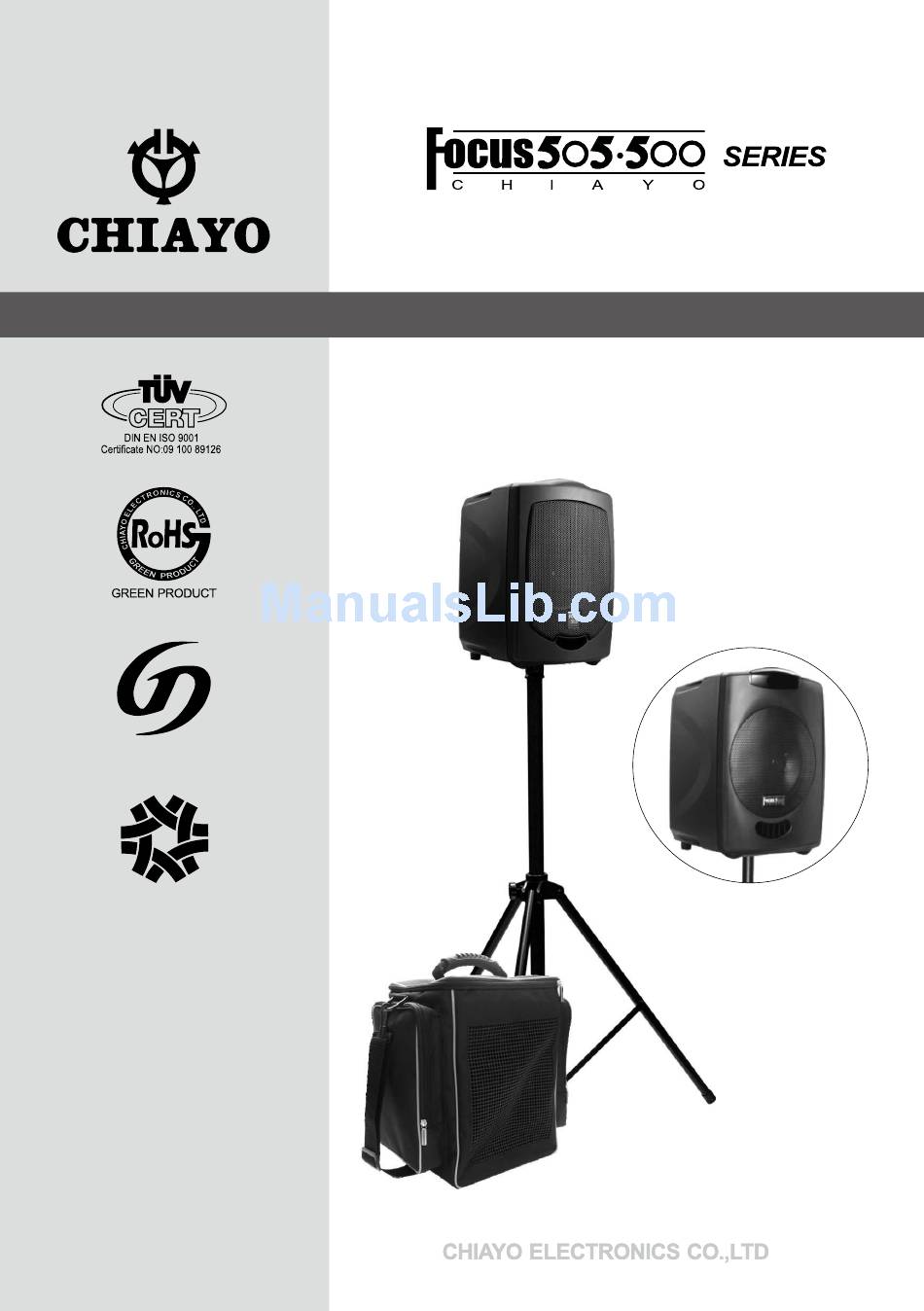

  • Page 1 Portable sound system Operation maunal Focus 505 Taiwan Good Design Focus 500 Taiwan Excellence IC: 3563A-FOCUS505 I C : 3 5 6 3 A - S Q 5 0 1 6 I C : 3 5 6 3 A - S M 5 0 1 6...
  • Page 2 Congratulations and thank you for purchasing this all-in-one compact portable sound system. To ensure a trouble-free operation, please read this manual thoroughly and fully understand its controls and functions. There are various versions of the Focus as below: 1. Focus Passive Speaker.(p.2) 2.
  • Page 3 Focus Active Speaker 1. Aux volume 2. Aux input 3. Battery low indicator 4. Charging indicator 5. DC in 6. Fuse 7. Power switch 8. Battery compartment release 4 5 6 Focus Passive Speaker 1. Audio input 2. Battery compartment release...
  • Page 4 Focus (Amplifier version) 1. Mic volume control 2. Aux volume control 3. Wireless mic 1 4. Wireless mic 2 5. Bass control 6. Treble control 7. Voice priority 8. Mic input 9. Aux input 10. Aux output 11. External speaker 12.
  • Page 5 Focus (CD / USB Player & Digital Recorder version) 1. Play/Pause 2. Stop 3. SD/USB selector 4. Track number button "1" 5. Track number button "10" 6. Track number button "100" 7. A→B play section 8. Program/Repeat 9. Forward 10. Reverse 11.

  • Page 6: Operating Procedures

    Operating procedures After unpacking the unit for the first time, please charge the unit for about 4~5 hours before any operation. This is absolutely necessary as the built-in rechargeable battery might have been discharged naturally due to long shipment and storage time, even though it has been fully charged in the factory prior to shipment.
  • Page 7 Operation of system with Digital Recorder. This operation is valid for version of Focus with built-in “Digital Recorder “. To operate, first turn on the Master power switch and then press the designated power button of this module. The LCD display will be lighted up and Volume setting can be done by rotating the knob.
  • Page 8 Operating the CD / USB Player To begin operation switch on the CD Power after the main power of Focus has been turned Keys Functions PLAY/PAUSE When this key is pushed during CD stop, play will start after track search. When this key is pushed during CD is playing, it will be changed to pause.

  • Page 9: Play Mode

    FOLDER-DOWN In stop mode: Skip the starting play folder to previous folder during stop mode, cyclic to the last folder if it is in the first folder. In program entry mode: Change the file for program select to previous folder’s first file, cyclic to the last folder if it is in the first folder.
  • Page 10 Operating the Digital Recorder Player Features - Recording through the Line-in recording directly to a USB or SD Card - Offer USB and SD Card function of each replication. - Recording format is most popular MP3 audio format. - Accept the capacity of 128MB to 16G USB / SD Card / SDHC - With a language learning function, can be broadcast repeatedly at designated areas - Adjustable recording quality, provide choice of 44.1 KHz, 128 Kbps and 192Kbps.
  • Page 11 press STOP button to stop recording. Sound recording through the REC function keys are saved in the directory folder REC -To Play REC track in folder: press FOLDER button, LCD display F. Use REV or F. WD button to select the directory REC, press PLAY / II to start playing. -The track number in the REC Folder will start from “...
  • Page 12 being played - Press 3rd times, LCD screen displays "REP ALL", will be repeated play all tracks. - Press 4th times, cancel repeat playback function. The words on LCD screen will be eliminated. Memory function: Need to operate in the stop-play mode, can be memories up to 99 songs - Single or multi-tracks memory: Press the STOP button to stop playback.
  • Page 13 - To cancel delete function, just wait for LCD stops flashing and cancellation of delete function LCD Display: LINE: Line in audio source DEL: When using delete function : In playing mode II: Pausing REP: Repeatedly playing the single track REP ALL: Repeat all tracks REP F: Repeat specific folder RAN: Playback in random order...
  • Page 14 button to select the directory REC, press PLAY / II to start playing. - The track number in the REC Folder will start from “ REC 001 “, and increase gradually. Therefore if want to check the recording file after finish record, the song will be recorded at the last track in the REC folder.
  • Page 15 tracks stored in the Program. - Whole folder memory: Press the STOP function keys to stop playback Press PROG / REPEAT button, LCD screen display shows PROG, press the FOLDER button with the number of combination of keys or REV keys F. WD button to select the folder Press PROG to store selected folder.
  • Page 16 UHF/VHF handheld microphone (Q-1005/Q-815/SQ-1016/SQ-5016) Parts and functions Q-1005 (VHF fixed freq.) Q-815 (UHF fixed freq.) SQ-1016 (UHF 16 freq.) SQ-5016 (UHF LCD 16 freq.) Microphone parts and functions Q-1005 Q-815 SQ-1016 SQ-5016 Cartridge Battery power LED Power switch Channel switch Battery compartment Bottom cap Locking button...

  • Page 17: Battery Installation

    Battery installation This microphone requires 2 AA-size batteries to operate. Please insert the batteries according to the correct polarity. Many batteries are known to have leakage problem of conductive and corrosive liquid. Please observe the rule to remove the batteries if they are not to be used for a longer period.
  • Page 18 UHF/VHF beltpack transmitter (M-1005/M-815/SM-1016/SM-5016) Parts and functions 14 15 M-1005 ▲ M-815 ▲ SM-5016 ▲ (VHF fixed freq.) (UHF fixed freq.) (UHF LCD 16 freq.) SM-1016 ▲ (UHF 16 freq.) Transmitter parts and functions M-1005 M-815 SM-1016 SM-5016 Antenna Battery weak / audio mute indicator Power switch Mini-XLR connector...
  • Page 19 Battery installation This microphone requires 2 AA-size batteries to operate. Please insert the batteries according to the correct polarity. Many batteries are known to have leakage problem of conductive and corrosive liquid. Please observe the rule to remove the batteries if they are not to be used for a longer period.

  • Page 20: Battery Installation/Replacement

    Infrared handheld microphone (IWH-201/IWH-301) Parts and functions 1. Grille cover. 2. Status LED: Bicolor LED will glow when switch is put to ON. Green : Battery is full and microphone is in normal mode. Red : Battery is weak and will shut off soon. Please charge the battery. 3.

  • Page 21: Battery Installation & Charging

    Infrared handheld/pendant microphone (IWH-401) Parts and functions 1. Cartridge screen. 2. Infrared emitter. IR ray radiates from here. Do not block or hold this part of the body. 3. Anti-rolling color ring. 4. Status LED: Bicolor LED will glow when switch is put to ON : Green : Battery is full and microphone is in normal mode.

  • Page 22: Parts And Functions

    Infrared beltpack transmitter (IWM-202) Parts and functions 1. Battery compartment 2. Power high/low switch 3. A-B channel selector 4. Lavalier or headset microphone input 5. Power on/off 6. Power indicator 7. Infrared emission source 8. Volume control Operating procedures 1. Open battery cover and put 2 AA alkaline batteries. 2.
  • Page 23 Infrared beltpack transmitter (IWM-302) Parts and functions 1. Volume control 2. Power on / Battery-status indicator 3. Power switch 4. Mini XLR connnector 5. Infrared emitter 6. Cover-release button 7. Charging contacts 8. Transmission-strength selector 9. Channel selector 10. Gain control (MT, low impedance) Making changes to settings in IWM-302 Channel changing First open the cover of IWM-302's battery compartment by pressing its release buttons on...

  • Page 24: Channel Changing

    Infrared pendant transmitter (IWM-402) Parts and functions peeled off AA-sized NiMH battery 1. Mic in (Φ2.5mm). Headset or lavalier microphone is ok. 2. Power switch. 3. Charging port. 4. Charging contact, workable with HC-40 charger. This transmitter has a unique inbuilt safety feature to protect itself from misuse during recharging.
  • Page 25 Maintenance-free Lead Acid battery Guidelines for maintenance-free Batteries: 1. Battery should operate at temperatures between 15°C ~ 50°C. To ensure a longer life span, it should be kept between 5°C ~ 35°C. For optimum result, 20°C ~ 25°C will be ideal. When temperature falls 15 degrees below zero, battery will undergo some changes in its chemical contents and therefore cannot be recharged.
  • Page 26 -25-...
  • Page 27 -26-...
  • Page 28 12I1240...
