Page 1: Operation Manual

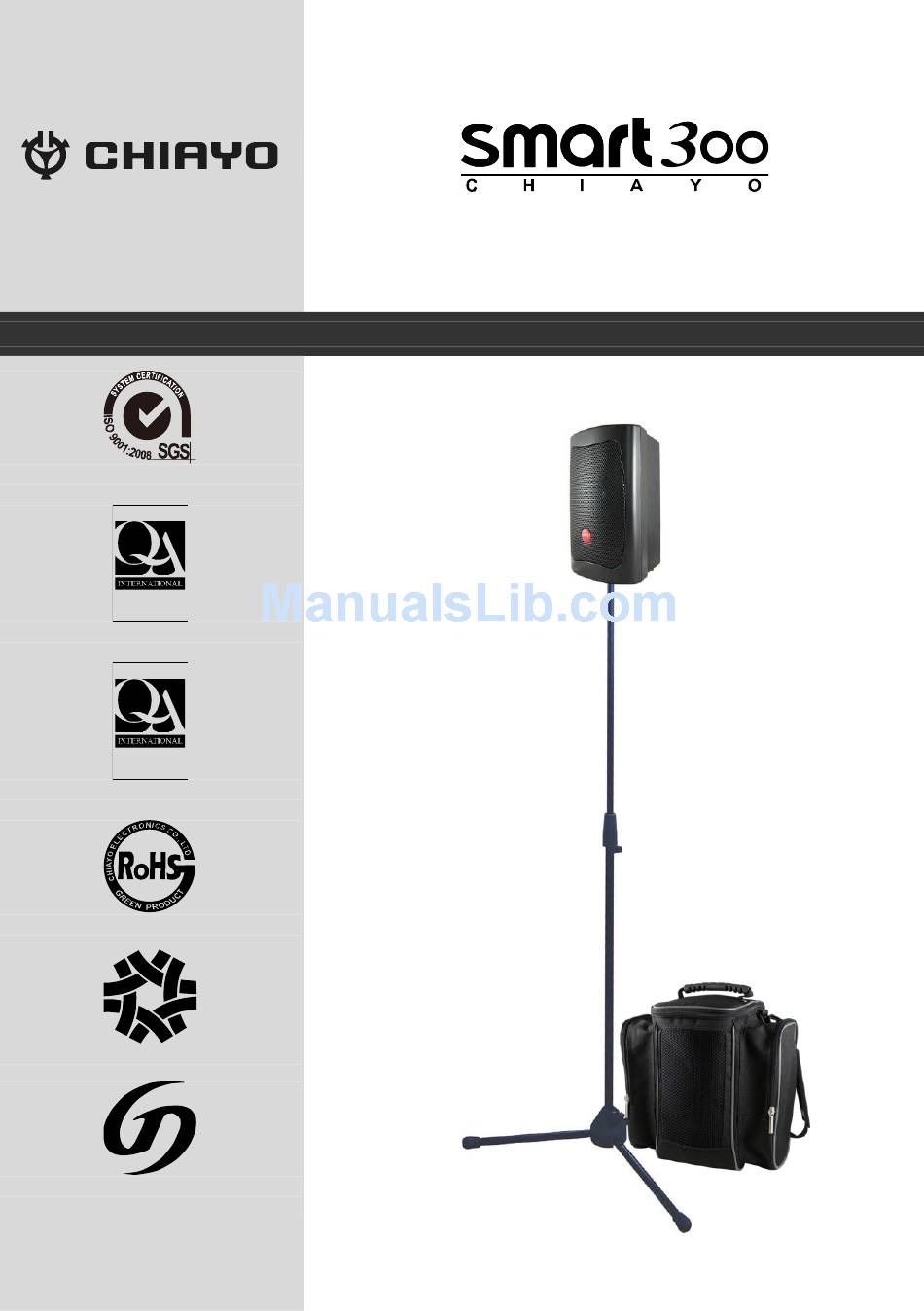

Mini Wireless Portable Amplifier System Operation manual ISO 9001 R EG ISTER ED IS O 140 01 ISO 14001 R EG ISTER ED O H S A S 180 01 OHSAS 18001 GREEN PRODUCT TAIWAN EXCELLENCE TAIWAN GOOD DESIGN... - Page 2 Please read and follow the instructions in this manual thoroughly to obtain optimum results from this unit. We also recommend that you keep this manual handy for future reference. Safety Precautions Be sure to read the instructions in this section carefully before use. ...
- Page 3 ISO 9001｜ISO 14001｜OHSAS 18001 Congratulation and thank you for the purchase of this all-in-one ultra compact portable sound system. To ensure a trouble-free operation, please read this manual thoroughly to fully understand its controls and functions. Configuration All versions of SMART 300 series comes equipped with the following : 1.
- Page 4 SMART 300 Speaker 1. Mic input 2. Aux input 3. Tone control 4. WR channel selector (optional) 5. Aux output 6. DC input 7. Power/battery status/charging indicator 8. Power/mic volume control 9. Aux/USB/SD volume control 10. Wireless microphone volume control (optional) 11.
- Page 5 ISO 9001｜ISO 14001｜OHSAS 18001 Recharge the battery before first use After unpacking the unit for the first time, please recharge the unit for about 4~5 hours before operation. This is absolutely necessary as the built-in rechargeable battery might have been discharged naturally due to long shipment and storage time, even though it had been fully charged in the factory prior to shipment.
- Page 6 UHF handheld transmitters（SQ-5016｜SQ-1016V｜SQ-1016｜Q-818｜Q-1005） → SQ-5016 (UHF LCD 16-freq.) → SQ-1016V｜1016 (UHF 16-freq) → Q-818 (UHF fixed-freq) → Q-1005 (VHF fixed-freq) Transmitter parts and functions SQ-5016 SQ-1016V SQ-1016 Q-818 Q-1005 Cartridge Battery weak/power LED Power switch Channel switch Volume control Battery compartment Bottom cap Locking button Audio mute switch...
- Page 7 ISO 9001｜ISO 14001｜OHSAS 18001 CHANNEL setting (SQ-1016V｜1016) Please use the attached small screw driver to set the channel. VOLUME adjusting (SQ-1016V) Please slide the wheel to adjust the volume. Other settings (SQ-5016) 1. Channel setting Use UP or DOWN button to go to the CHANNEL｜FREQUENCY page. The cursor will flash to allow changes to be made.
- Page 8 UHF belt-pack transmitters（SM-5016｜SM-1016｜M-815｜M-1005） Parts and functions Transmitter parts and functions SM-5016 SM-1016 M-818 M-1005 Antenna Battery weak/audio mute indicator Power switch (Lavalier microphone) Mini XLR connector Audio mute switch Charging port Cover release button Charging contacts Setting button Up button Down button Channel switch Gain control (GT, high impedance)
- Page 9 ISO 9001｜ISO 14001｜OHSAS 18001 Battery installation & indicator This belt-pack requires 2 x AA batteries to operate. To install, open the battery cover using the cover release buttons and insert the batteries into the battery compartment. Note: Batteries contain a corrosive acid that may leak and damage the belt-pack when stored for a long period.
- Page 10 Maintenance-free Lead Acid battery Guidelines for maintenance-free Batteries: 1. Battery should operate at temperatures between 15°C ~ 50°C. To ensure a longer life span, it should be kept between 5°C ~ 35°C. For optimum result, 20°C ~ 25°C will be ideal. When temperature falls 15 degrees below zero, battery will undergo some changes in its chemical contents and therefore cannot be recharged.
- Page 11 ISO 9001｜ISO 14001｜OHSAS 18001 -10-...
- Page 12 CHIAYO ELECTRONICS CO.,LTD. Http://www.chiayo.com.tw｜Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan｜Tel: 886-2-27415741｜Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan｜Tel: 886-5-2711000｜Fax: 886-5-5767611...
