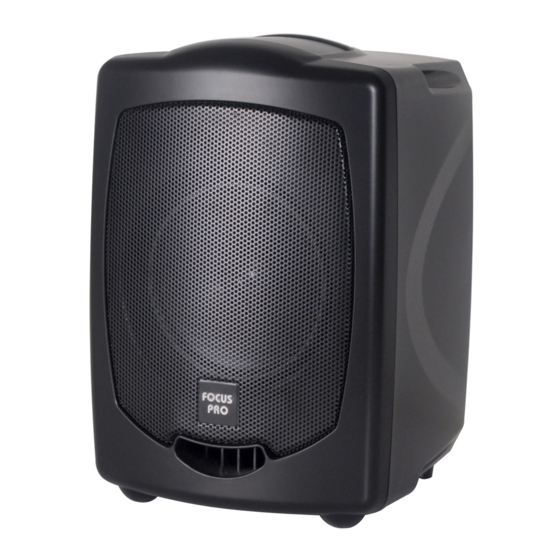

- Page 1 FOCUS PRO/500/505 Operation manual Portable Wireless PA System CHIAYO ELECTRONICS CO., LTD.
- Page 2 ◼ Use only manufacturer authorized or recommended accessories. ◼ Use only with a cart, stand, tripod or accessories specified or provided by Chiayo. Be careful when using a cart to avoid injury from tip-over. ◼ Unplug the product during an electrical strom or when unused for long periods of time.
- Page 3 Operation manual Warning Please read and follow the instructions in this manual thoroughly to obtain optimum results from this unit. We also recommend that you keep this manual handy for future reference. Please read and follow the instructions in this manual thoroughly to obtain optimum results from this unit.
-
Page 4: Table Of Contents
FOCUS PRO/505/500 Portable Wireless PA System INDEX 1. Instruction ..........................4 1-1. In the box ..........................4 1-2. Optional related products ....................4 1-3. Parts and functions ......................5 1-4. Charging the battery ......................5 1-5. Module compartment ......................6 1-6. Connection with external audio sources ................6 2. -
Page 5: Instruction
Belt-pack digital transmitter RP-5100M Repeater module DPRB-500M MP3 recorder module ▍Speaker PA-505R Companion powered speaker SP-505 Passive companion speaker ▍Accessories ST-40 Tripod stand: standard SB-21 Tripod stand: height adjustable Wired microphone, please refer SR-40 Speaker wall mount rack DM-series to CHIAYO website. -
Page 6: Parts And Functions
FOCUS PRO/505/500 Portable Wireless PA System 1-3. Parts and functions MICROPHONE AUX IN VOICE PRIORITY Battery low volume control volume control switch indicator BASS / TREBLE POWER MICROPHONE switch input (6.3mm) AUX IN socket AUX OUT socket EXTERNAL SPEAKER CHARGING... -
Page 7: Module Compartment
Instruction 1-5. Module compartment For receiver / For receiver module repeater module For Bluetooth MP3 recorder module DPRB-500M. 1-6. Connection with external audio sources WIRED MIC INSTRUMENT ACTIVE SPEAKER PASSIVE SPEAKER... -
Page 8: Settings And Operations
FOCUS PRO/505/500 Portable Wireless PA System 2. Settings and Operations 2-1. Using the wired microphone (MIC IN) Plug a wired microphone with a 6.3mm plug to MIC IN. Turn on master POWER and then adjust MIC volume control to desired level. -
Page 9: Using The Wireless Receiver
Settings and Operations 2-2. Using the wireless receiver 2-2-1. Parts and functions Diversity A/B Transmitter battery RF signal meter Channel antenna power Audio signal meter IR sensor area SYNC Power switch / PWR/VOL volume control IrDA synchronization Frequency DOWN button UP button SET button button... -
Page 10: Channel Scanning
FOCUS PRO/505/500 Portable Wireless PA System 2-2-2. Channel scanning For an interference- free operation, a cleaner channel might be necessary if the current one receives too much interference. To operate the scanning: Press ▼(down) or ▲(up) button to make Hold SET button until this icon... -
Page 11: Volume And Other Settings
Settings and Operations 2-2-4. Volume and other settings Turn on master POWER and then adjust its individual volume control to a desired level. SYNC PWR/VOL BASS / TREBLE equalizer (refer to P.12) can be adjusted individually. Equalizer... -
Page 12: Using An Electronic Instrument (Aux In)
FOCUS PRO/505/500 Portable Wireless PA System 2-3. Using an electronic instrument (AUX IN) Plug an electronic guitar or keyboard with a 6.3mm plug to the AUX IN input jack. Turn on master POWER and then adjust AUX volume control to a desired level. -
Page 13: Equalizer For Wired And Wireless Microphone And Music
Settings and Operations 2-4. EQUALIZER for WIRED and WIRELESS MICROPHONE and MUSIC EQUALIZER adjustment is actually used to increase or reduce the high/low frequency component of the speaker's restored sound. It is so-called raising or attenuating TREBLE/BASS via frequency-specific volume knobs to improve human voices or make musical instruments’ sound more prominent. -
Page 14: Application
FOCUS PRO/505/500 Portable Wireless PA System 3. Application 3-1. Connecting a passive companion speaker SP-505 Plug the passive companion speaker’s audio cable with a 6.3mm connector to the speaker input socket of SP-505 or another 4~8Ω load speaker. Max cable length less than 20m. -
Page 15: Installing Or Replacing A Receiver/Repeater Module
Installing or replacing a receiver/repeater module 4. Installing or replacing a receiver/repeater module There are two slots above the control panel for installing optional modules which includes receiver and repeater modules. Use a Phillips-head screwdriver (not included) to remove the screws of the blank cover panel or current module’s panel. -
Page 16: Faq & Useful Operation Tips
(microphone, MP3 ... etc.). Is it possible to play music storing on external devices via wireless amplifier? Yes. CHIAYO's wireless amplifiers have auxiliary audio input(s) LINE IN (or AUX IN) for connection with external devices such as notebook, mobile phones or tablets. - Page 17 Will wireless amplifier automatically power off once it is fully charged? Do I need to unplug the power cord? Yes. Since all CHIAYO amplifiers have an overcharge protection circuit that automatically power off at full charge and prevent damage to the system.
-
Page 18: Maintenance-Free Lead-Acid And Lithium Batteries
2. Please use the power supply specified by CHIAYO for charging. 3. The CHIAYO amplifier has a protection circuit to prevent overcharging. To ensure safety, the charging time should not exceed 12 hours. Please disconnect the power supply when fully charged. - Page 19 Maintenance-free Lead-acid and Lithium batteries...
- Page 20 CHIAYO ELECTRONICS CO., LTD. Http://www.chiayo.com.tw ｜ Email: sales@chiayo.com.tw Office: 30, Lane 27, Section 4, Jen-Ai Road, Taipei 10685, Taiwan Tel: 886-2-27415741 ｜ Fax: 886-2-27525242 Factory: 88, Chung-Hsiao Street 2, Chiayi 60080, Taiwan Tel: 886-5-2711000 ｜ Fax: 886-5-5767611...
