MODEL VX10.2XLPRO AND
VX7.2XL TILE SAW
OWNER'S/OPERATOR'S MANUAL
Caution!
Read Safety and General Instructions carefully before using saw for the first time.
REV. 1
serial
number -
You should record the Serial Number of your Tile Saw on this
Owner's/Operator's Manual and on the Warranty Card. The Warranty
Card must be sent back with all the required pertinent information
for the warranty to take effect.
VX10.2XLPRO
shown.
Patents Pending
Assembled in U.S.A.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VX10.2XLPRO and is the answer not in the manual?

Questions and answers

phil kester
May 15, 2025

I have a vx10.2 saw and i can't get the nut off to change the blade

1 comments:
Mr. Anderson
May 22, 2025

To remove the nut to change the blade on a Pearl Abrasive VX10.2XLPRO saw, use the wrench provided to loosen the blade shaft arbor nut. Make sure the saw is turned off and unplugged before doing this. Turn the nut in the correct direction to loosen it, then remove the blade. Be careful not to over-tighten the nut when installing the new blade.

This answer is automatically generated

phil kester
May 15, 2025

I am not getting the nut off to change the blade

1 comments:
Mr. Anderson
May 22, 2025

To remove the nut to change the blade on the Pearl Abrasive VX10.2XLPRO, use the wrench provided with the saw. Make sure the blade is installed with the arrow pointing in the same direction as the arbor shaft rotation or the arrow on the blade guard. Be careful not to overtighten the nut.

This answer is automatically generated

Juan Carlos
May 18, 2025

Comp apretar la cuckoos

Subscribe to Our Youtube Channel

Summary of Contents for Pearl Abrasive VX10.2XLPRO

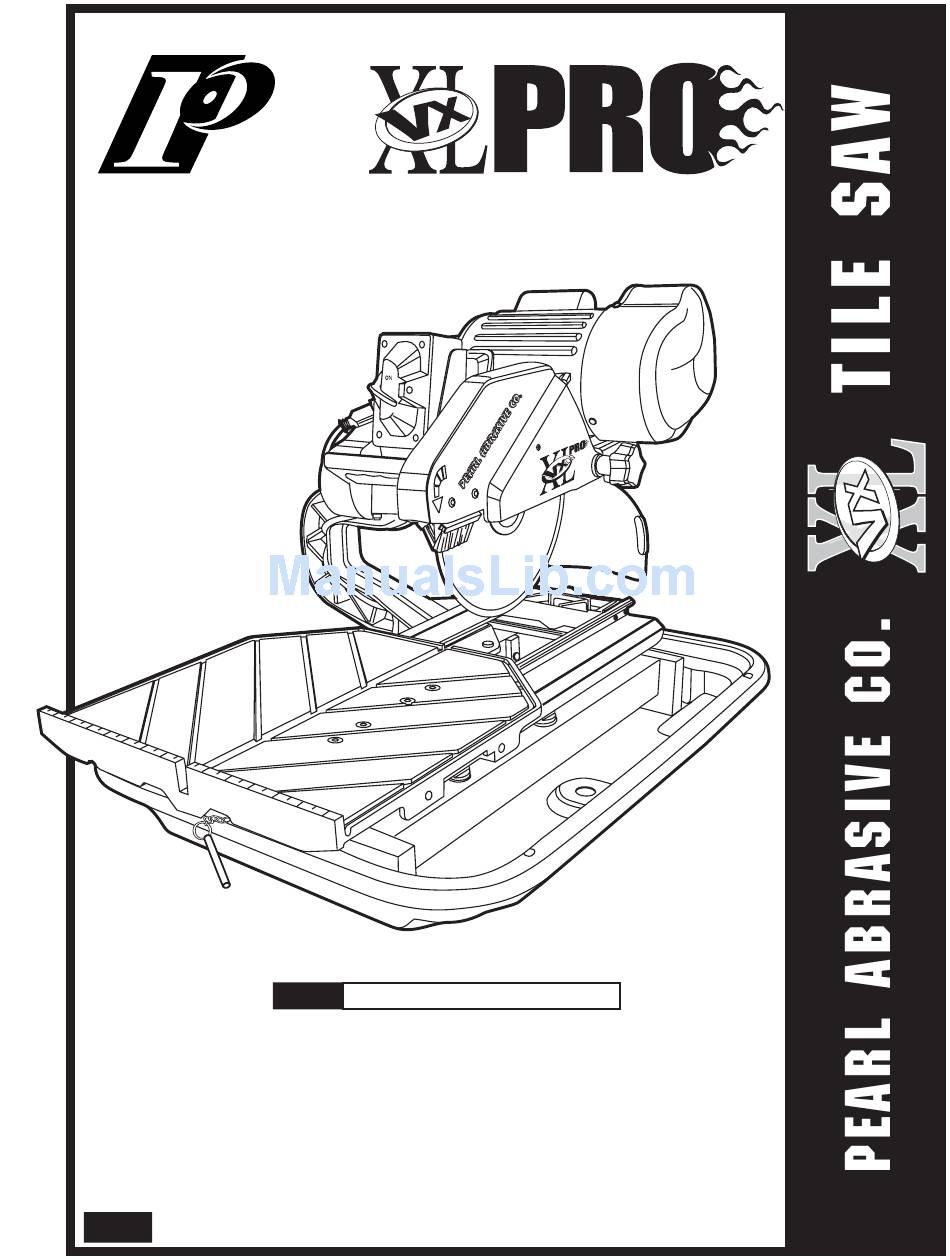

  • Page 1 Pearl Abrasive Co. Accept No Imitations ® MODEL VX10.2XLPRO AND VX7.2XL TILE SAW OWNER’S/OPERATOR’S MANUAL VX10.2XLPRO shown. serial number - You should record the Serial Number of your Tile Saw on this Owner’s/Operator’s Manual and on the Warranty Card. The Warranty Card must be sent back with all the required pertinent information for the warranty to take effect.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE GENERAL SAFETY RULES FOR ALL POWER TOOLS....... . 3 SYMBOLS .
  • Page 3: General Safety Rules For All Power Tools

    i. GENERAL SAFETY RULES FOR ALL POWER TOOLS WARNING! Read all instructions. As with all machinery there are certain hazards involved with operation and use of the machine. The following basic safety precautions should be followed at all times to reduce the risk of fire, electric shock and serious personal injury to you or others.
  • Page 4: Symbols

    21. Extension cords. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. Extension cord tables (refer to page 21 ) show the correct size to use depending on cord length and nameplate ampere rating.
  • Page 5: Features

    FEATURES The Pearl VX7.2XL / VX10.2XLPRO is a portable professional tile saw. Lightweight and compact it has innovative built in features that enable it to cut larger format tiles. The unique main table allow the saw to increase its cutting capacity when needed.
  • Page 6: Getting To Know Your Saw

    Power Switch Motor Assembly Vertical Arm Assembly Blade Guard Adjustment Knob 45º/90º Rip Guide Blade Guard Diamond Blade Carriage Assembly VX10.2XLPRO shown. Water Tray Lock Pin Main Table Assembly Roller Kit FRONT Drip Tray Miter Block Blade Wrench – 6 –...
  • Page 7: Blade Installation

    vi. BLADE INSTALLATION 1. Carefully raise the cutting head to its highest WARNING: Setting the blade too low may position and secure it into place by tightening damage the cutting table and if set too high, the cutting head adjustment knob in the rear the blade may grab the material being cut, support.
  • Page 8 nameplate. Do not operate any saw without • The blade stops cutting or noticeably safety guards in place or with a blade diameter slows down. larger than the maximum saw blade capacity. Blade dressing stones are available from your local Pearl 8.
  • Page 9 See Figure 2(D) . If a Ground Fault Circuit Interrupter properly installed and grounded in outlet is not available, Pearl Abrasive Co. has it available accordance with all local codes and as an accessory item. A plug-in Ground Fault Circuit ordinances.
  • Page 10: Using The Cutting Table

    3. Simply line-up the material being cut with the appropriate pre-marked lines on the cutting Figure 4 Cutting large tile table surface. VX10.2XLPRO and VX7.2XL can cut a VX7.2XL 24" tile and diagonally cut a 18" tile. 4. Now you are ready to make your cut. shown.
  • Page 11: Care And Maintenance

    WARNING! For your safety before performing any maintenance on the saw turn off the power switch and unplug the power cord. The Pearl VX7.2XL/VX10.2XLPRO requires very directly below adjuster. See Figure 5. little maintenance however, keeping your saw clean and C.
  • Page 12 4 hex-screws Figure 9 Attaching Drip Tray to Tub screw Figure 6 Table roller adjustment STEP 5. Aligning the Blade to the Table • While cutting, the material being cut must move in a straight line parallel to the saw blade.
  • Page 13: Bearing Housing Replacement

    Take 1. Remove the screws (5 screws–VX7.2XL • care not to damage the inner flange. 3 screws–VX10.2XLPRO) on the belt guard. Lock the bearing housing into place by 2. Remove the belt guard. using brackets and nuts.
  • Page 14: Belt Replacement

    xii. BELT REPLACEMENT 1. Turn off the saw before proceeding any further. 7. To re-assemble, follow steps in reverse order. 2. Loosen and remove the belt guard screws and take off the belt guard. 3. Loosen the 4 nuts (front & back) on the mounting plate.
  • Page 15 VX10.2XLPRO MOTOR ASSEMBLY 21 20 19 PART NAME PART NUMBER PART NAME PART NUMBER Power Cable PSV10010 22 Circuit Breaker PSV10024 Motor Fan Cover PSV10011 23 Motor Adjustment Clip PSV10025 Running Capacitor PSV10012 24 Mounting Plate PSV10026 Starter Capacitor PSV10013...
  • Page 16 VX7.2XL VERTICAL ARM ASSEMBLY VX10.2XLPRO VERTICAL ARM ASSEMBLY PART NAME PART NUMBER PART NAME PART NUMBER Arm, Vertical V380101-MA Arm, Vertical V380101-MA Mount, Motor V380102-MA Mount, Motor 10” V380201 Hex Bolt, .375 - 16x1 Grade 5 Min. V3800 Hex Bolt, .375 - 16x1 Grade 5+ V3800 Washer, .375 A.N.
  • Page 17: Table Assembly

    12 Shaft, Pivot V380202-MA 13 Handle, Adjustable 6270K34 14 Fender Washer, Metric V3811 15 Bolt, .10mm x 25 V3812 16 Washer, Lock 10mm V3813 VX7.2XL & VX10.2XLPRO TABLE ASSEMBLY PART NAME PART NUMBER Main Table V380001-MA Mount, Roller V31014-MA Spacer, Roller V31004-MA...
  • Page 18: Base Assembly

    VX7.2XL & VX10.2XLPRO CARRIAGE ASSEMBLY PART NAME PART NUMBER Rail Guides V31008SS Screw, Sockethead, 1/4-20x6.2 12140 Shim (Optional) V31018 End Casting V31009-MA VX7.2XL & VX10.2XLPRO BASE ASSEMBLY PART NAME PART NUMBER Screw, Buttonhead 1/4-20x1.25 12139 Washer, Coined V31005-MA Spacer, Roller...
  • Page 19: Accessories

    xiv. ACCESSORIES Name (Qty.) Roller Kits (1) Name (Qty.) Miter Block (1) w/ PVC Roller w/ Metal Roller Part Number Part Number Part Number S1000-34 V31003-SP V31003-SPM (use only with stainless steel rails) Optional Name (Qty.) Name (Qty.) 45˚/90˚ Rip Guide (1) Knob for Rip Guide Part Number and Miter Block (1)
  • Page 20: The Right Blades Does The Right Job

    Pearl reserves the right to discontinue products at any time without notice. All illustrations displayed in this manual are the property of Pearl Abrasive Co. and shall not be duplicated or reproduced without the express written consent of Pearl Abrasive Co.
  • Page 21: Electrical Motor Specification

    ELECTRICAL MOTOR SPECIFICATION Recommendations: VX7.2XL VX10.2XLPRO • It is recommended that a 15 amp circuit be Horse Power 3/4 hp 2 hp used while operating this saw. This will Volts 115 V/ 60 hz 115 V/ 60hz prevent possible power interruption or loss.
  • Page 22: Troubleshooting

    xviii. TROUBLESHOOTING WARNING! For your safety and the safety of others, turn the power switch off and always remove the plug from power source before troubleshooting. Repairs performed by unauthorized personnel could cause serious hazard. We recommend that service to this tool be performed by a qualified service technician with original equipment replacement parts.
  • Page 23 – 23 –...
  • Page 24 PEARL ABRASIVE CO. A C C E P T N O I M I T A T I O N S CORPORATE OFFICE: SO. CALIFORNIA • USA 6210 S. GARFIELD AVENUE,COMMERCE, CA 90040-0031 562-927-5561 • FAX 562-928-3857 Toll Free: 800-969-5561 www.pearlabrasive.com...

This manual is also suitable for:
