SECTION 3.

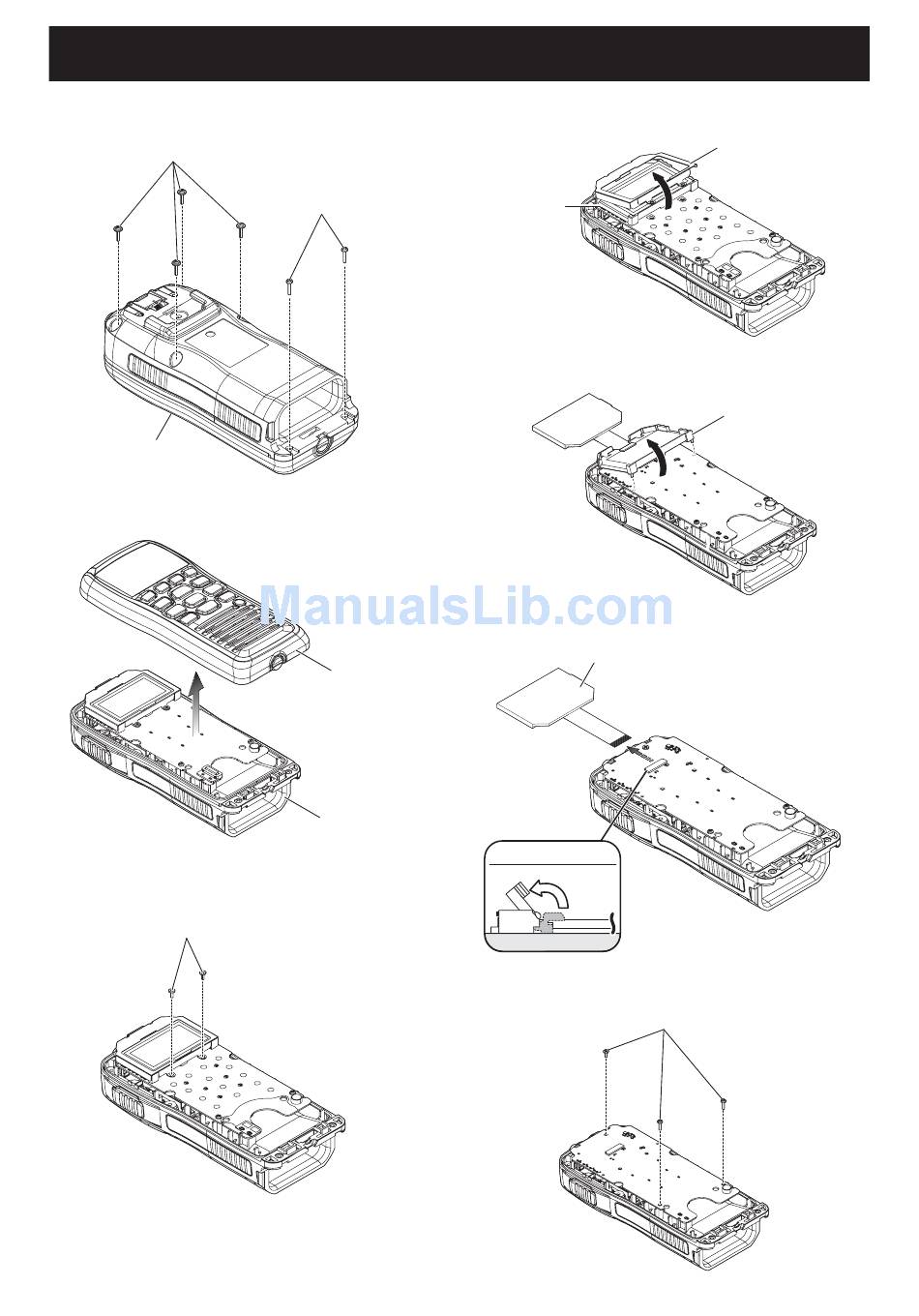

1. REMOVING THE MAIN UNIT
1) Remove 6 screws from the rear panel.
Screws
Rear panel
2) Separate the FRONT PANEL from the rear panel.
3) Remove 2 screws from the MAIN UNIT.
Screws
MAIN UNIT MAIN UNIT
DISASSEMBLY INSTRUCTION
Screws
Front panel
Rear panel
MAIN UNIT
4) Remove the LCD holder from the MAIN UNIT.
Reflector
5) Remove the refl ector from the MAIN UNIT.
6) Disconnect the fl at cable.
LCD
FLAT CABLE
Lift up
flat cable
7) Remove 3 screws from the MAIN UNIT.
MAIN UNIT MAIN UNIT
MAIN UNIT
3 - 1
MAIN UNIT
MAIN UNIT
MAIN UNIT
LCD holder
MAIN UNIT
MAIN UNIT
Reflector
MAIN UNIT MAIN UNIT
MAIN UNIT
MAIN UNIT
MAIN UNIT
MAIN UNIT
MAIN UNIT
MAIN UNIT
MAIN UNIT MAIN UNIT
MAIN UNIT
MAIN UNIT
Screws
(Continued on next page.)
