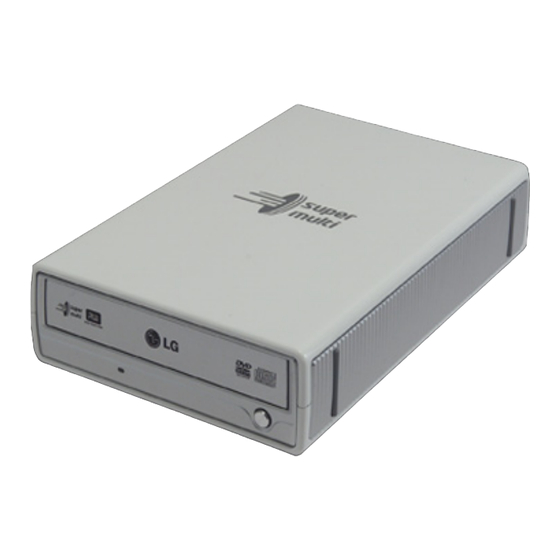

LG GSA-5120D Owner's Manual

External super multi dvd rewriter
Hide thumbs

Advertisement

Quick Links

External
External
Super Multi D
VD Re
writer
Super Multi D
VD Re
writer
GSA-5120D

Advertisement

loading

  Also See for LG GSA-5120D

  Related Manuals for LG GSA-5120D

  Summary of Contents for LG GSA-5120D

  • Page 1 External External Super Multi D VD Re writer Super Multi D VD Re writer GSA-5120D...
  • Page 2 CAUTION :The laser used in the External Super Multi DVD Rewriter can damage your eyes. Do not attempt to open the cover. To reduce the risk of electric shock, do not remove the cover (or back). There are no user-serviceable parts inside. Refer servicing to qualified service personnel.
  • Page 3 This product is manufactured to comply with the radio interference requirements of EEC DIRECTIVE 89/336/EEC, 93/68/EEC and 73/23/EEC. CAUTION - VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO THE BEAM. VARNING - OSYNLIG LASERSTRÄLNING NÄR DENNA DEL ÄR ÖPPNAD STRÄLEN ÄR FARLIG.
  • Page 4: Table Of Contents

    Contents Introduction Features ..........2 Package contents .
  • Page 5: Introduction

    Introduction Thank you for purchasing the LG External Super Multi DVD Rewriter. Features • Universal Serial Bus (USB) 2.0 and FireWire IEEE 1394 interface for high-speed data transfer. • Buffer Under Run error protection technology • Emergency eject support • Bear media loading with power eject.
  • Page 6: System Requirements

    Cautions System meeting the following requirements is needed in order to use USB 2.0 operation with this drive. • Computer that is equipped with a USB 2.0 – compliant USB connector or PCI adapter card, and on which the USB 2.0 EHCI (Enhanced Host Controller Interface) driver software The USB 2.0 EHCI driver software is supplied with currently available PCI adapter cards that conform to USB 2.0.
  • Page 7: Important Precautions

    Important precautions Follow these precautions when handling the drive or discs. Precautions Please note that the manufacturer of this equipment does not offer any warranty against data loss due to inappropriate installation, handling, direct or indirect damages. Please note that the manufacturer will bear no responsibility for direct or indirect damages (including lost data)caused by the use of this product or its malfunction.
  • Page 8: Location And Function Of Controls

    Location and function of controls This drive should be used only in its current hardware and software configuration. 1. Disc Tray 2. Drive activity indicators The LED used to indicate the operation of External Super Multi DVD Rewriter. Read: The green color is displayed during disc reading session. Write: The green color is flashed during disc writing sessions.
  • Page 9: Installation

    Installation Hardware Installation Connecting to computer ON OFF To AC wall outlet. NOTES • Please do not turn off the drive while the computer is searching for the drive. If you turn off the drive, normal operation of the computer will not be possible. •...
  • Page 10: Removing The Usb Converter Cable

    Removing the USB converter cable The drive supports the plug and play(not swap) function of Windows, and can be removed and inserted by performing the following operation. 1. Stop the application software being currently used. 2. Click the icon “ ”...
  • Page 11: Operation

    Operation Loading and ejecting a disc Remember - AC adapter must be connected. Make sure the power is turned on. Loading a disc 1. Push the Eject Button to open the Disc tray. 2. Load a disc. (Label facing up.) 3.
  • Page 12: Playing A Music Cd

    Playing a music CD Listening to sound When connected to a computer, you can play audio CD’s through your computer’s audio system after setting Digital Audio mode. Check your Windows or “Windows Media Player” manual for detail. Playing DVD video and MPEG2 movie video The drive must be connected to a computer, and basic installation already done.
  • Page 13: Appendix

    Appendix Troubleshooting If you are experiencing problems with the drive, verify the following items. Since the problem may be caused by a device other than the drive, check other things such as system settings or other software being used, etc. If you cannot resolve the problem after verifying these items, contact your dealer or our customer service department.
  • Page 14: Specifications

    Specifications Supported Discs DVD(Single/Dual), DVD-RW, DVD-R, DVD+RW, DVD+R, DVD+R Double layer, DVD- RAM, CD-Digital Audio & CD-Extra, CD-Plus, CD-ROM, CD-ROM XA-Ready, CD-I FMV, CD-TEXT, CD-Bridge, CD-R, CD-RW, Photo-CD (Single & Multi-Session), Video CD, DVD-VIDEO Dimensions 163.2 x 54 x 244.7mm (WxHxD) Weight About 1.54Kg...
  • Page 15 Copyright © 2004 LG Electronics U.S.A. Inc. 1000 Sylvan Ave. Englewood Cliffs NJ 07632 U. S. A. or http://www.lgusa.com LG Electronics Canada Inc. 550 MATHESON Blvd. East Mississauga. Ontario L4Z4G3 Canada LG Electronics Deutschland GMBH Jakob-Kaiser-Straße 12, D-47877 Willich, Germany LG Electronics U.
