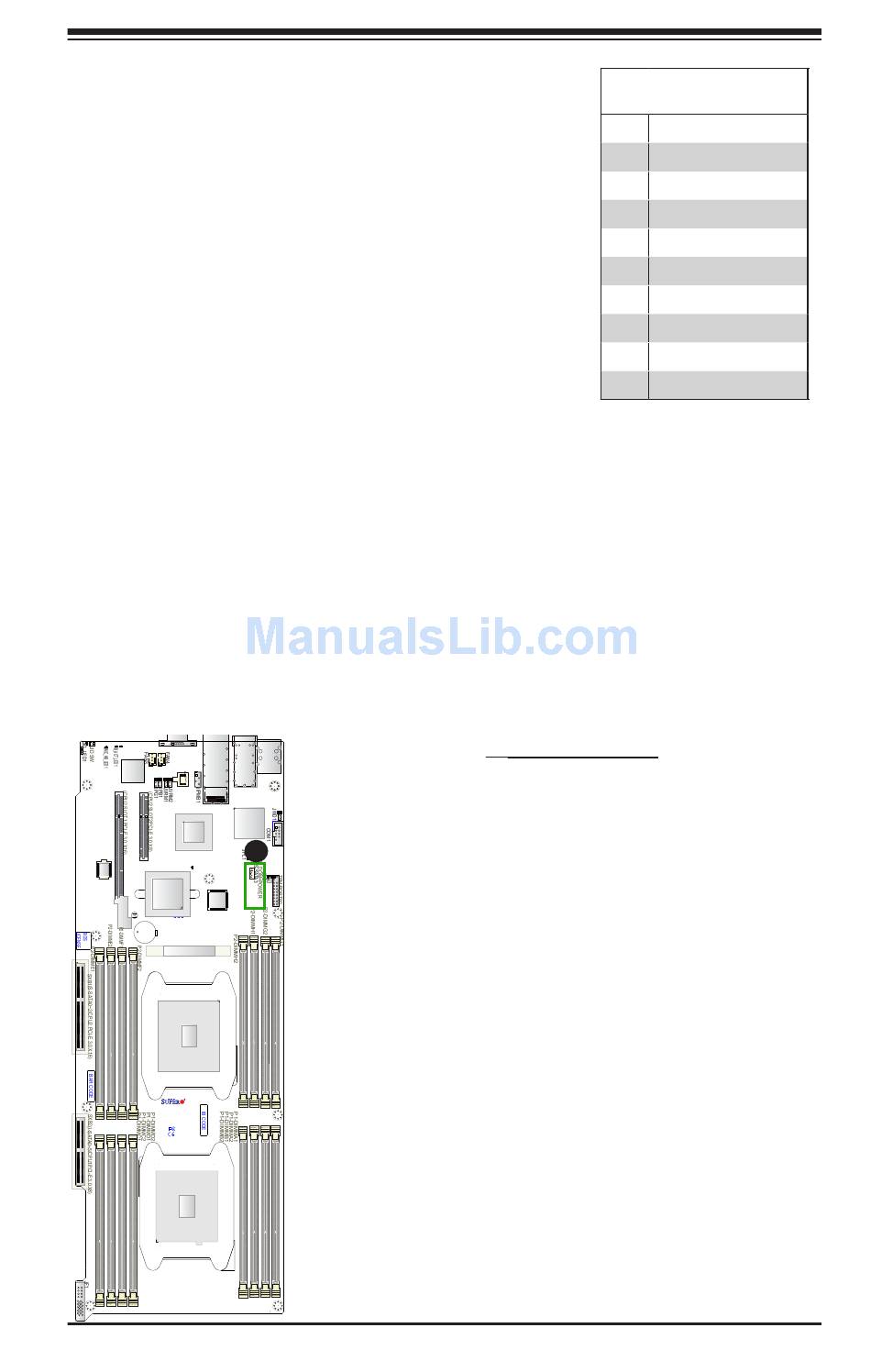

SATA DOM/Power

A SATA DOM (Device-on-Disk) is located at S-
SATA3 on the motherboard. S-SATA3 is used with a
Supermicro SuperDOM, which is a yellow SATA DOM
connector with a power pin built in, and no external
power supply is needed. Supermicro SuperDOM is
backward-compatible with a regular SATA HDD or
SATA DOM that requires an external power supply.
All SATA ports provide serial-link signal connections,
which are faster than the connections of Parallel ATA.
See the table on the right for pin definitions.
LAN1/LAN2
IB_LINK_LED1
VGA
BMC
BIOS
Slot1 Slot2
QSFP
IB
LAN CTRL
PCH
CPLD
JBT1
BATTERY
SXB1
CPU2_VRM_HS1
CPU2
X10DRT-P Series
Rev. 1.10
SXB2
CPU1
USB0/1 (3.0)
IPMI_LAN
10G/1G
A
JTPM1
SATA DOM/PWR
A.
2-33
Chapter 2: Installation
SATA DOM/PWR
Pin Definitions
Pin# Signal
1 Ground
2 SATA_TXP
3 SATA_TXN
4 Ground
5 SATA_RXN
6 SATA_RXP
7 Ground
8 +5V
9 Ground
